Vacuum Control And Air Injection (2.0L I4 DSL HIGH DOHC AJ200, Halewood (UK), Starter - Stop/Start System, 2.0L I4 DSL MID DOHC AJ200) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Vacuum Control And Air Injection (2.0L I4 DSL HIGH DOHC AJ200, Halewood (UK), Starter - Stop/Start...

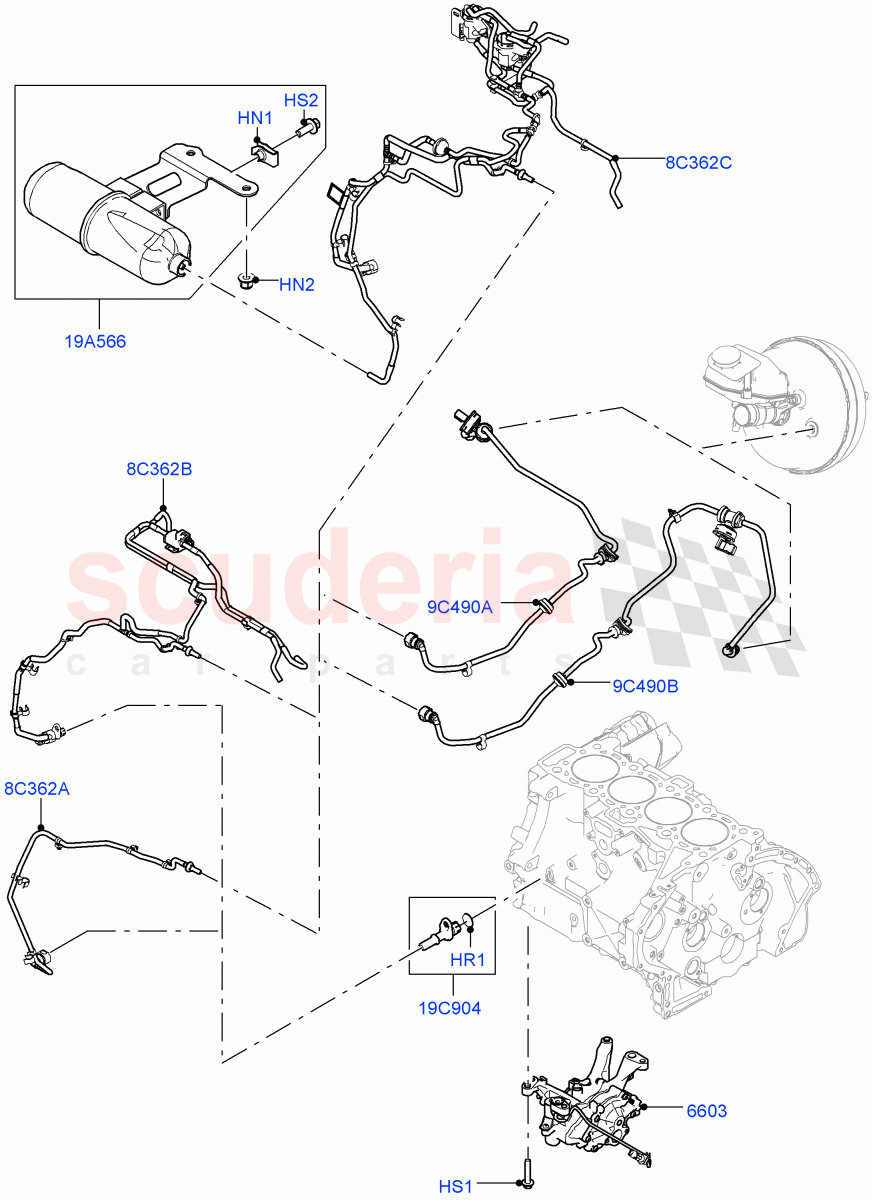

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106648	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073649	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078805	PUMP - OIL & VACUUM	Enquire	To Order
	LR087668	PUMP - OIL & VACUUM	Enquire	To Order
	LR110501	PUMP - OIL & VACUUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094053	RESERVOIR - VACUUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073665	CONNECTOR - VACUUM TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073743	HOSE - VACUUM CONTROL HARNESS	Enquire	To Order
	LR080279	HOSE - VACUUM	Enquire	To Order
	LR080279	HOSE - VACUUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084920	HOSE - VACUUM	Enquire	To Order
	LR092850	HOSE - VACUUM	Enquire	To Order
	LR105965	HOSE - VACUUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094526	HOSE - VACUUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072050	MANIFOLD - VACUUM SUPPLY	Enquire	To Order
	LR083654	MANIFOLD - VACUUM SUPPLY	Enquire	To Order
	LR118823	MANIFOLD - VACUUM SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072052	MANIFOLD - VACUUM SUPPLY	Enquire	To Order
	LR093060	MANIFOLD - VACUUM SUPPLY	Enquire	To Order
	LR118816	MANIFOLD - VACUUM SUPPLY	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HN1	LR000053	NUT - FLANGED	LR000053 NUT - FLANGED 2.0L I4 DSL HIGH DOHC AJ200 / M6 / From: JH000001	-	2	Enquire
HN2	FY106046	NUT - HEX.	FY106046 NUT - HEX. 2.0L I4 DSL HIGH DOHC AJ200 / Hexagonal Head, M6 / From: JH000001	-	2	Enquire
HR1	LR106648	O-RING	LR106648 O-RING Connector, Vacuum / From: GH000001	-	1	Enquire
HS1	LR073649	SCREW	LR073649 SCREW M8 x 40MM / From: GH000001	-	4	Enquire
HS2	FS106166	SCREW	FS106166 SCREW 2.0L I4 DSL HIGH DOHC AJ200 / Hexagonal Head, M6 X 16MM / From: JH000001	-	2	Enquire
8C362A	LR073743	HOSE - VACUUM CONTROL HARNESS	LR073743 HOSE - VACUUM CONTROL HARNESS From: GH000001 / To: GH083823	-	1	Enquire
8C362A	LR080279	HOSE - VACUUM	LR080279 HOSE - VACUUM From: GH083824 / To: GH999999	-	1	Enquire
8C362A	LR080279	HOSE - VACUUM	LR080279 HOSE - VACUUM 2.0L I4 DSL MID DOHC AJ200, EU6 + DPF Emissions / From: HH000001	-	1	Enquire
8C362B	LR084920	HOSE - VACUUM	LR084920 HOSE - VACUUM Euro Stage 4 Emissions / From: HH000001 / To: HH199136	-	1	Enquire
8C362B	LR092850	HOSE - VACUUM	LR092850 HOSE - VACUUM Euro Stage 4 Emissions / From: HH199137 / To: HH254425	-	1	Enquire
8C362B	LR105965	HOSE - VACUUM	LR105965 HOSE - VACUUM Euro Stage 4 Emissions / From: HH254426	-	1	Enquire
8C362C	LR094526	HOSE - VACUUM	LR094526 HOSE - VACUUM 2.0L I4 DSL HIGH DOHC AJ200, EU6 + DPF Emissions / From: JH000001	-	1	Enquire
9C490A	LR072050	MANIFOLD - VACUUM SUPPLY	LR072050 MANIFOLD - VACUUM SUPPLY RHD / From: GH000001 / To: GH999999	-	1	Enquire
9C490A	LR083654	MANIFOLD - VACUUM SUPPLY	LR083654 MANIFOLD - VACUUM SUPPLY RHD / From: HH000001 / To: KH337794	-	1	Enquire
9C490A	LR118823	MANIFOLD - VACUUM SUPPLY	LR118823 MANIFOLD - VACUUM SUPPLY RHD / From: KH337795	-	1	Enquire
9C490B	LR072052	MANIFOLD - VACUUM SUPPLY	LR072052 MANIFOLD - VACUUM SUPPLY LHD / From: GH000001 / To: HH180587	-	1	Enquire
9C490B	LR093060	MANIFOLD - VACUUM SUPPLY	LR093060 MANIFOLD - VACUUM SUPPLY LHD / From: HH180588 / To: KH338161	-	1	Enquire
9C490B	LR118816	MANIFOLD - VACUUM SUPPLY	LR118816 MANIFOLD - VACUUM SUPPLY LHD / From: KH338162	-	1	Enquire
19A566	LR094053	RESERVOIR - VACUUM	LR094053 RESERVOIR - VACUUM 2.0L I4 DSL HIGH DOHC AJ200 / From: JH000001	-	1	Enquire
19C904	LR073665	CONNECTOR - VACUUM TUBE	LR073665 CONNECTOR - VACUUM TUBE From: GH000001	-	1	Enquire
6603	LR078805	PUMP - OIL & VACUUM	LR078805 PUMP - OIL & VACUUM From: GH000001 / To: GH999999	-	1	Enquire
6603	LR087668	PUMP - OIL & VACUUM	LR087668 PUMP - OIL & VACUUM From: HH000001 / To: JH293231	-	1	Enquire
6603	LR110501	PUMP - OIL & VACUUM	LR110501 PUMP - OIL & VACUUM From: JH293232	-	1	Enquire
