Name: Exhaust Gas Recirculation (Low Pressure EGR) (2.0L I4 DSL HIGH DOHC AJ200, EU6 + DPF Emissions, Stage V Plus DPF, Proconve L6 Emissions, EU6D Diesel + DPF Emissions) ((V) FROMJH000001)
Rating: 4.0 (1 reviews)

Exhaust Gas Recirculation (Low Pressure EGR) (2.0L I4 DSL HIGH DOHC AJ200, EU6 + DPF Emissions, Stage V Plus DPF, Proconve L6 Emissions, EU6D Diesel + DPF Emissions) ((V) FROMJH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Exhaust Gas Recirculation (Low Pressure EGR) (2.0L I4 DSL HIGH DOHC AJ200, EU6 + DPF Emissions,...

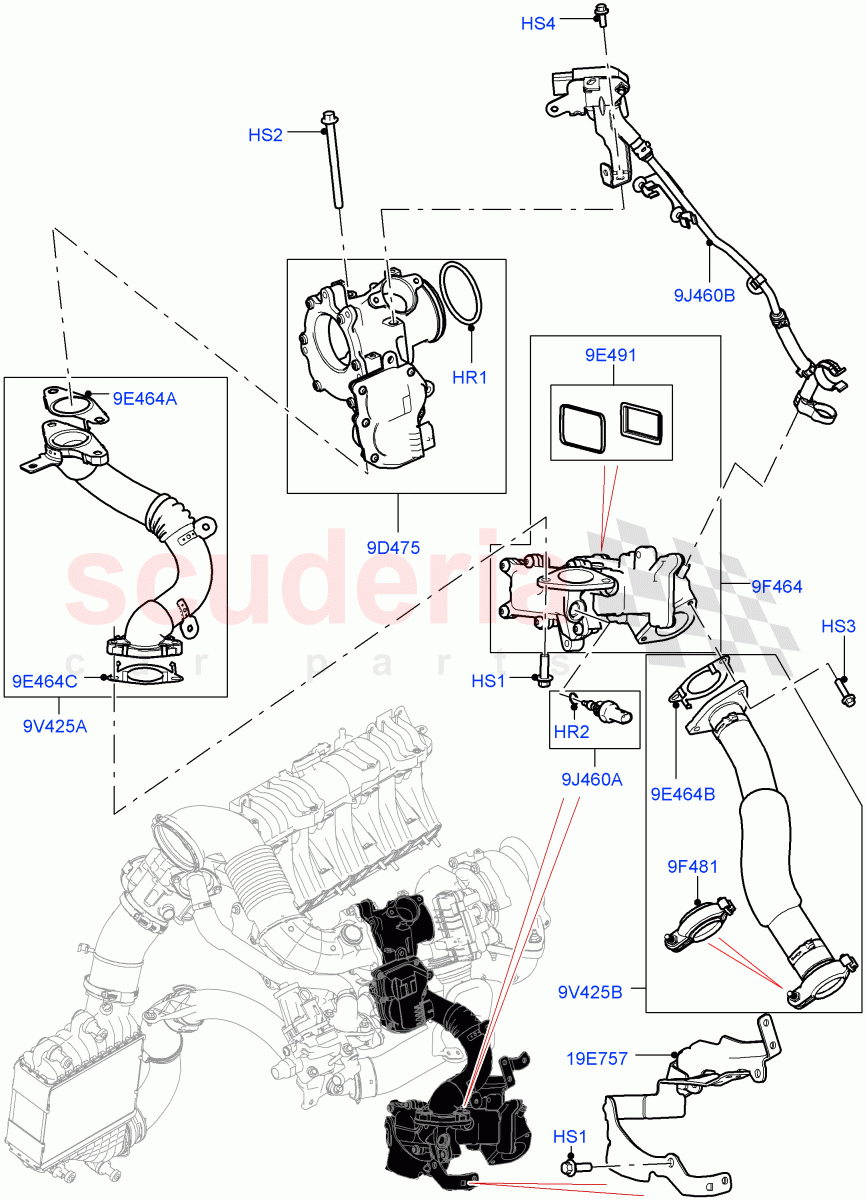

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR083962	O-RING	$5.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095785	O-RING	$4.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073724	SCREW	$1.96	To Order
	LR073724	SCREW	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073738	SCREW	$3.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	$1.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073686	SCREW	$2.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087071	EGR VALVE - LOW PRESSURE	$332.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126126	FILTER - EGR COOLER	$23.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073730	COOLER - EGR	$418.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR168738	JOINT	$86.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR082666	BRACKET - SUPPORT	$34.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073734	GASKET - EGR COOLER	$7.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083961	GASKET - EGR INLET	$9.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095555	GASKET - EGR OUTLET	$11.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075629	SENSOR - TEMPERATURE	$46.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094522	SENSOR - EXHAUST GAS PRESSURE	$222.13	To Order
	LR108954	SENSOR	$225.62	To Order
	LR116636	SENSOR - EXHAUST GAS PRESSURE	$203.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094527	TUBE - EXHAUST GAS RECIRCULATION	$97.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR097976	TUBE - EGR COOLER	$161.50	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR083962	O-RING	LR083962 O-RING 60MM / From: JH000001	$5.13	1
HR2	LR095785	O-RING IN STOCK	LR095785 O-RING 11.3 x 2.5MM, Sensor / From: JH000001 IN STOCK	$4.92	1
HS1	LR073724	SCREW	LR073724 SCREW EGR Cooler, M8 X 25MM / From: JH000001	$1.96	5
HS1	LR073724	SCREW	LR073724 SCREW Bracket, M8 X 25MM / From: JH000001	$1.96	3
HS2	LR073738	SCREW IN STOCK	LR073738 SCREW M8 x 100MM / From: JH000001 IN STOCK	$3.70	2
HS3	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM / From: JH000001	$1.28	2
HS4	LR073686	SCREW	LR073686 SCREW For Sensor, M6 X 16MM / From: JH000001	$2.38	1
9D475	LR087071	EGR VALVE - LOW PRESSURE	LR087071 EGR VALVE - LOW PRESSURE From: JH000001	$332.28	1
9E464A	LR073734	GASKET - EGR COOLER	LR073734 GASKET - EGR COOLER EGR Cooler To EGR Valve / From: JH000001	$7.19	1
9E464B	LR083961	GASKET - EGR INLET	LR083961 GASKET - EGR INLET EGR Cooler Inlet / From: JH000001	$9.56	1
9E464C	LR095555	GASKET - EGR OUTLET	LR095555 GASKET - EGR OUTLET EGR Cooler Outlet / From: JH000001	$11.75	1
9E491	LR126126	FILTER - EGR COOLER	LR126126 FILTER - EGR COOLER Filter And Gasket Kit / From: JH000001	$23.99	1
9F464	LR073730	COOLER - EGR	LR073730 COOLER - EGR From: JH000001	$418.60	1
9F481	LR168738	JOINT IN STOCK	LR168738 JOINT Joint / From: JH000001 IN STOCK	$86.58	1
9J460A	LR075629	SENSOR - TEMPERATURE	LR075629 SENSOR - TEMPERATURE Temperature / From: JH000001	$46.10	1
9J460B	LR094522	SENSOR - EXHAUST GAS PRESSURE	LR094522 SENSOR - EXHAUST GAS PRESSURE Exhaust Gas Pressure / From: JH000001 / To: JH270237	$222.13	1
9J460B	LR108954	SENSOR	LR108954 SENSOR Exhaust Gas Pressure / From: JH270238 / To: JH305637	$225.62	1
9J460B	LR116636	SENSOR - EXHAUST GAS PRESSURE	LR116636 SENSOR - EXHAUST GAS PRESSURE Exhaust Gas Pressure, Sensor And Tube Assy / From: JH305638	$203.41	1
9V425A	LR094527	TUBE - EXHAUST GAS RECIRCULATION	LR094527 TUBE - EXHAUST GAS RECIRCULATION EGR Cooler To EGR Valve / From: JH000001	$97.32	1
9V425B	LR097976	TUBE - EGR COOLER	LR097976 TUBE - EGR COOLER EGR Cooler Inlet / From: JH000001	$161.50	1
19E757	LR082666	BRACKET - SUPPORT	LR082666 BRACKET - SUPPORT From: JH000001	$34.58	1

Exhaust Gas Recirculation (Low Pressure Egr) (2.0L I4 Dsl High Dohc Aj200, Eu6 + Dpf Emissions,...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Exhaust Gas Recirculation (Low Pressure EGR) (2.0L I4 DSL HIGH DOHC AJ200, EU6 + DPF Emissions,...
