Exhaust Gas Recirculation (2.0L I4 Dsl Mid Dohc Aj200, Euro Stage 4 Emissions, 2.0L I4 Dsl High...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Exhaust Gas Recirculation (2.0L I4 DSL MID DOHC AJ200, Euro Stage 4 Emissions, 2.0L I4 DSL HIGH...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4654270 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR073740 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR073735 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR083962 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR083963 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR071842 SCREW AND WASHER - HEX HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR071774 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073736 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR088739 DUCT - CLEAN AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR084362 VALVE - EXHAUST GAS RECIRCULATION Enquire To Order
LR110291 VALVE - EXHAUST GAS RECIRCULATION Enquire To Order
Photo Part No Description Price (each) Stock
LR082314 GASKET - EXHAUST MANIFOLD Enquire To Order
Photo Part No Description Price (each) Stock
LR084914 COOLER - EGR Enquire To Order
LR101127 COOLER - EGR Enquire To Order
Photo Part No Description Price (each) Stock
LR084915 CONNECTOR - EGR Enquire To Order
LR111577 CONNECTOR - EGR Enquire To Order
Photo Part No Description Price (each) Stock
LR073732 TUBE - EXHAUST GAS RECIRCULATION Enquire To Order
Photo Part No Description Price (each) Stock
LR073742 BRACKET - SUPPORT Enquire To Order
View All

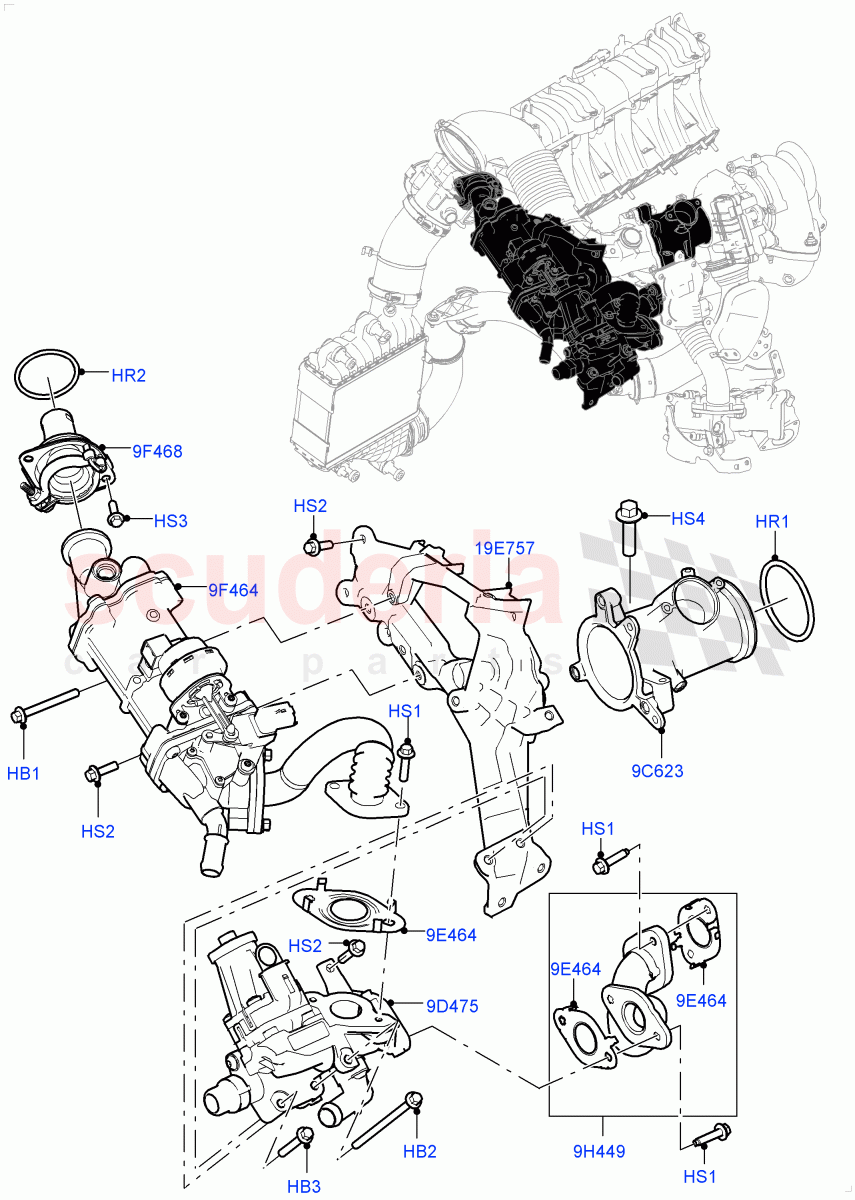

Exhaust Gas Recirculation (2.0L I4 DSL MID DOHC AJ200, Euro Stage 4 Emissions, 2.0L I4 DSL HIGH DOHC AJ200, LEV 160) ((V) FROMHH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 4654270
BOLT
M6 x 55MM / From: HH000001 		- 1 Enquire
HB2 LR073740
BOLT
M6 x 100MM / From: HH000001 		- 1 Enquire
HB3 LR073735
BOLT
M6 X 40MM / From: HH000001 		- 1 Enquire
HR1 LR083962
O-RING
Euro Stage 4 Emissions / 60MM, Air Duct / From: HH000001 		- 1 Enquire
HR2 LR083963
O-RING
EGR Valve To Inlet Manifold / From: HH000001 		- 1 Enquire
HS1 LR071842
SCREW AND WASHER - HEX HEAD
EGR Tube, Hexagonal Head, M6 X 25MM / From: HH000001 		- 6 Enquire
HS2 LR073655
SCREW
Hexagonal Head, M6 X 20MM / From: HH000001 		- 7 Enquire
HS3 LR071774
SCREW
EGR Valve To Inlet Manifold, Hexagonal Head, M6 X 20MM / From: HH000001 		- 2 Enquire
HS4 LR073736
SCREW
Euro Stage 4 Emissions / Air Duct, M8 X 30MM / From: HH000001 		- 2 Enquire
9C623 LR088739
DUCT - CLEAN AIR
Euro Stage 4 Emissions / Turbocharger Inlet / From: HH000001 		- 1 Enquire
9D475 LR084362
VALVE - EXHAUST GAS RECIRCULATION
From: HH000001 / To: JH280703 		- 1 Enquire
9D475 LR110291
VALVE - EXHAUST GAS RECIRCULATION
From: JH280704 		- 1 Enquire
9E464 LR082314
GASKET - EXHAUST MANIFOLD
EGR Tube / From: HH000001 		- 3 Enquire
9F464 LR084914
COOLER - EGR
From: HH000001 / To: HH232043 		- 1 Enquire
9F464 LR101127
COOLER - EGR
From: HH232044 		- 1 Enquire
9F468 LR084915
CONNECTOR - EGR
From: HH000001 / To: JH292146 		- 1 Enquire
9F468 LR111577
CONNECTOR - EGR
From: JH292147 		- 1 Enquire
9H449 LR073732
TUBE - EXHAUST GAS RECIRCULATION
From: HH000001 		- 1 Enquire
19E757 LR073742
BRACKET - SUPPORT
From: HH000001 		- 1 Enquire
