Name: Emission Control - Crankcase (2.0L I4 DSL MID DOHC AJ200, Halewood (UK), 2.0L I4 DSL HIGH DOHC AJ200)
Rating: 4.0 (1 reviews)

Emission Control - Crankcase (2.0L I4 DSL MID DOHC AJ200, Halewood (UK), 2.0L I4 DSL HIGH DOHC AJ200) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Emission Control - Crankcase (2.0L I4 DSL MID DOHC AJ200, Halewood (UK), 2.0L I4 DSL HIGH DOHC...

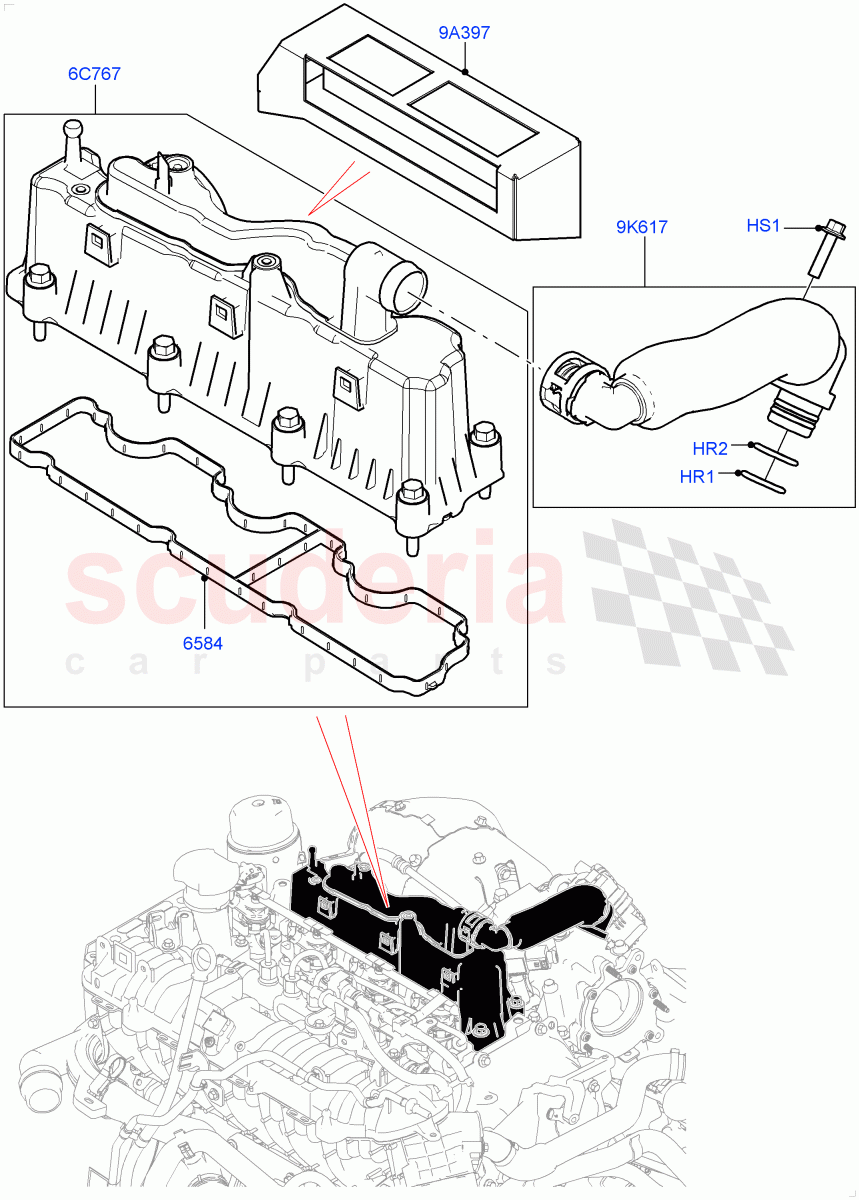

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR105417	O-RING	$5.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105418	O-RING	$5.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	$1.28	To Order
	LR071842	SCREW AND WASHER - HEX HEAD	$1.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105593	GASKET - COVER	$42.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073793	COVER - BREATHER	$219.02	To Order
	LR105980	COVER - BREATHER	$207.71	To Order
	LR084846	COVER - BREATHER	$198.35	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR174796	HEAT SHIELD	$93.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073728	HOSE - CRANKCASE VENTILATION	$40.45	To Order
	LR077852	HOSE - CRANKCASE VENTILATION	$80.26	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR105417	O-RING	LR105417 O-RING 38MM, Primary / From: GH083601	$5.65	1
HR2	LR105418	O-RING	LR105418 O-RING 38MM, Secondary / From: GH083601	$5.65	1
HS1	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Engine Ventilation, Hexagonal Head, Hose, M6 X 25MM / From: GH000001 / To: GH083600	$1.28	1
HS1	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Engine Ventilation, Hexagonal Head, Hose, M6 X 25MM / From: GH083601	$1.28	2
6C767	LR073793	COVER - BREATHER	LR073793 COVER - BREATHER Engine Ventilation / From: GH000001 / To: GH055993	$219.02	1
6C767	LR105980	COVER - BREATHER	LR105980 COVER - BREATHER Engine Ventilation / From: GH055994 / To: GH999999	$207.71	1
6C767	LR084846	COVER - BREATHER	LR084846 COVER - BREATHER (+)"CDN/MEX/USA" / Engine Ventilation / From: HH000001 / To: HH150000	$198.35	1
6C767	LR093136	COVER - BREATHER	LR093136 COVER - BREATHER (+)"CDN/MEX/USA" / Engine Ventilation / From: HH150001	$211.20	1
6C767	LR105980	COVER - BREATHER	LR105980 COVER - BREATHER (-)"CDN/MEX/USA" / Engine Ventilation / From: HH000001 / To: HH164495	$207.71	1
6C767	LR093135	COVER - BREATHER	LR093135 COVER - BREATHER (-)"CDN/MEX/USA" / Engine Ventilation / From: HH164496 / To: HH262487	$199.18	1
6C767	LR105980	COVER - BREATHER	LR105980 COVER - BREATHER (-)"CDN/MEX/USA" / Engine Ventilation / From: HH262488	$207.71	1
9A397	LR174796	HEAT SHIELD	LR174796 HEAT SHIELD From: GH000001	$93.02	1
9K617	LR073728	HOSE - CRANKCASE VENTILATION	LR073728 HOSE - CRANKCASE VENTILATION Engine Ventilation / From: GH000001 / To: GH083600	$40.45	1
9K617	LR077852	HOSE - CRANKCASE VENTILATION	LR077852 HOSE - CRANKCASE VENTILATION Engine Ventilation / From: GH083601	$80.26	1
6584	LR105593	GASKET - COVER	LR105593 GASKET - COVER From: GH000001	$42.69	1
