Exhaust Gas Recirculation (Low Pressure Egr) (2.0L I4 Dsl Mid Dohc Aj200, Itatiaia (Brazil)) ((V)...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Exhaust Gas Recirculation (Low Pressure EGR) (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil)) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR083962 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR073724 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073738 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR071842 SCREW AND WASHER - HEX HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR077847 EGR VALVE - LOW PRESSURE Enquire To Order
Photo Part No Description Price (each) Stock
LR073730 COOLER - EGR Enquire To Order
Photo Part No Description Price (each) Stock
LR082666 BRACKET - SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR073734 GASKET - EGR COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR083961 GASKET - EGR INLET Enquire To Order
Photo Part No Description Price (each) Stock
LR075629 SENSOR - TEMPERATURE Enquire To Order
Photo Part No Description Price (each) Stock
LR083304 SENSOR - EXHAUST GAS PRESSURE Enquire To Order
Photo Part No Description Price (each) Stock
LR073733 TUBE - EXHAUST GAS RECIRCULATION Enquire To Order
Photo Part No Description Price (each) Stock
LR071830 TUBE - EGR COOLER Enquire To Order
View All

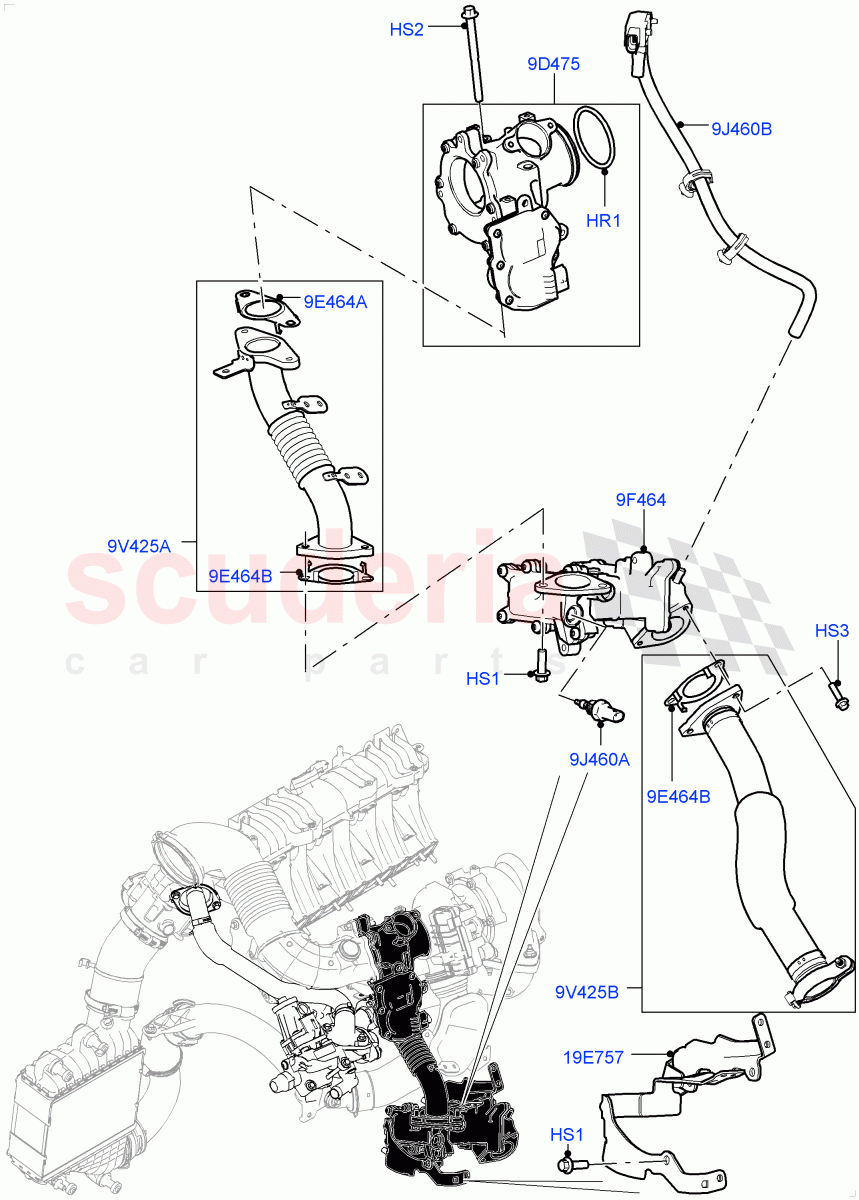

Exhaust Gas Recirculation (Low Pressure EGR) (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR083962
O-RING
60MM / From: GT000001 		- 1 Enquire
HS1 LR073724
SCREW
EGR Cooler, M8 X 25MM / From: GT000001 		- 4 Enquire
HS2 LR073738
SCREW
M8 x 100MM / From: GT000001 		- 2 Enquire
HS3 LR071842
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 25MM / From: GT000001 		- 2 Enquire
9D475 LR077847
EGR VALVE - LOW PRESSURE
From: GT000001 		- 1 Enquire
9E464A LR073734
GASKET - EGR COOLER
EGR Cooler To EGR Valve / From: GT000001 		- 1 Enquire
9E464B LR083961
GASKET - EGR INLET
From: GT000001 		- 1 Enquire
9F464 LR073730
COOLER - EGR
From: GT000001 		- 1 Enquire
9J460A LR075629
SENSOR - TEMPERATURE
Temperature / From: GT000001 		- 1 Enquire
9J460B LR083304
SENSOR - EXHAUST GAS PRESSURE
Exhaust Gas Pressure / From: GT000001 		- 1 Enquire
9V425A LR073733
TUBE - EXHAUST GAS RECIRCULATION
EGR Cooler To EGR Valve / From: GT000001 		- 1 Enquire
9V425B LR071830
TUBE - EGR COOLER
EGR Cooler Inlet / From: GT000001 		- 1 Enquire
19E757 LR082666
BRACKET - SUPPORT
From: GT000001 		- 1 Enquire
