Name: Thermostat/Housing & Related Parts (2.0L I4 DSL MID DOHC AJ200, 6 Speed Manual Trans-JLR M66 2WD, Halewood (UK), 6 Speed Manual Trans M66 - AWD, 2.0L I4 DSL HIGH DOHC AJ200, 9 Speed Auto AWD, 6 Speed Manual Trans BG6)
Rating: 4.9 (1 reviews)

Thermostat/Housing & Related Parts (2.0L I4 DSL MID DOHC AJ200, 6 Speed Manual Trans-JLR M66 2WD, Halewood (UK), 6 Speed Manual Trans M66 - AWD, 2.0L I4 DSL HIGH DOHC AJ200, 9 Speed Auto AWD, 6 Speed Manual Trans BG6) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Thermostat/Housing & Related Parts (2.0L I4 DSL MID DOHC AJ200, 6 Speed Manual Trans-JLR M66 2WD,...

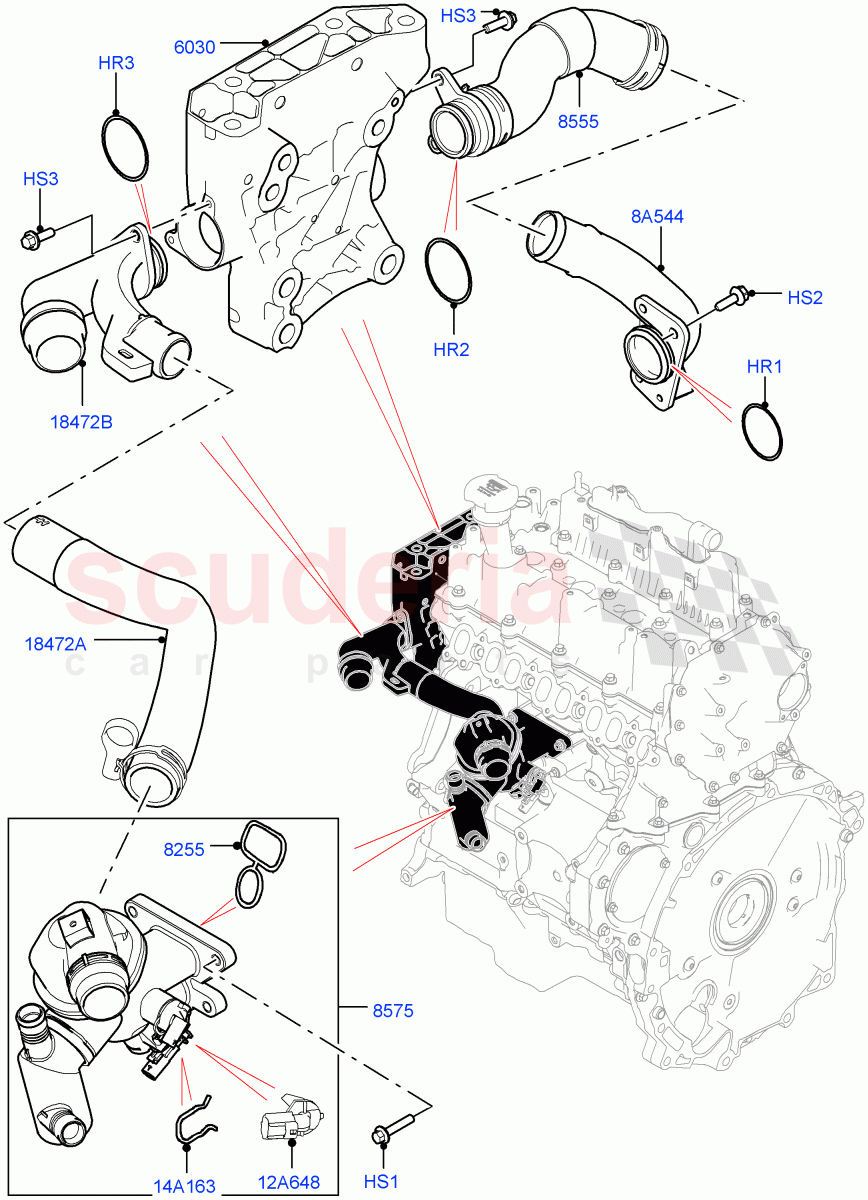

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR096839	O-RING	$5.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096840	O-RING	$12.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096841	O-RING	$5.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	$2.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073736	SCREW	$1.63	To Order

Photo	Part No	Description	Price (each)	Stock
	VYP500080	BOLT AND WASHER - HEX.HEAD	$0.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR072044	SUPPORT - ENGINE MOUNTING - FRONT	$343.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105592	SEAL - THERMOSTAT	$8.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR077712	TUBE - BY-PASS	$48.44	To Order
	LR083328	TUBE - BY-PASS	$45.87	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR105975	THERMOSTAT	$166.74	IN STOCK
	LR105975	THERMOSTAT	$166.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR117900	TUBE - CONNECTING	$49.08	To Order
	LR117900	TUBE - CONNECTING	$49.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105595	SENSOR - ENGINE COOLANT TEMPERATURE	$34.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105610	RETAINER - SENSOR CLIP	$4.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114275	HOSE - WATER BY-PASS	$67.78	To Order
	LR114275	HOSE - WATER BY-PASS	$67.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR076780	TUBE - BY-PASS	$58.74	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR096839	O-RING	LR096839 O-RING Elbow Connector,	$5.82	1
HR2	LR096840	O-RING	LR096840 O-RING	$12.09	1
HR3	LR096841	O-RING	LR096841 O-RING	$5.67	1
HS1	LR073648	SCREW IN STOCK	LR073648 SCREW Hexagonal Head, M6 x 30MM / From: GH000001 IN STOCK	$2.55	4
HS2	LR073736	SCREW	LR073736 SCREW M8 X 30MM / From: GH000001	$1.63	2
HS3	VYP500080	BOLT AND WASHER - HEX.HEAD IN STOCK	VYP500080 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M6 X 20MM / From: GH000001 IN STOCK	$0.69	4
8A544	LR117900	TUBE - CONNECTING	LR117900 TUBE - CONNECTING From: GH000001 / To: JH315259	$49.08	1
8A544	LR117900	TUBE - CONNECTING	LR117900 TUBE - CONNECTING From: JH315260	$49.08	1
12A648	LR105595	SENSOR - ENGINE COOLANT TEMPERATURE	LR105595 SENSOR - ENGINE COOLANT TEMPERATURE From: GH000001	$34.73	1
14A163	LR105610	RETAINER - SENSOR CLIP	LR105610 RETAINER - SENSOR CLIP From: GH000001	$4.50	1
6030	LR072044	SUPPORT - ENGINE MOUNTING - FRONT	LR072044 SUPPORT - ENGINE MOUNTING - FRONT From: GH000001	$343.87	1
8255	LR105592	SEAL - THERMOSTAT IN STOCK	LR105592 SEAL - THERMOSTAT Thermostat And Housing Assy / From: GH000001 IN STOCK	$8.28	1
8555	LR077712	TUBE - BY-PASS	LR077712 TUBE - BY-PASS From: GH000001 / To: GH101147	$48.44	1
8555	LR083328	TUBE - BY-PASS IN STOCK	LR083328 TUBE - BY-PASS From: GH101148 IN STOCK	$45.87	1
8575	LR105975	THERMOSTAT IN STOCK	LR105975 THERMOSTAT From: GH000001 / To: HH999999 IN STOCK	$166.74	1
8575	LR105975	THERMOSTAT IN STOCK	LR105975 THERMOSTAT From: JH000001 IN STOCK	$166.74	1
18472A	LR114275	HOSE - WATER BY-PASS	LR114275 HOSE - WATER BY-PASS From: GH000001 / To: JH300263	$67.78	1
18472A	LR114275	HOSE - WATER BY-PASS	LR114275 HOSE - WATER BY-PASS From: JH300264	$67.78	1
18472B	LR076780	TUBE - BY-PASS	LR076780 TUBE - BY-PASS From: GH000001	$58.74	1
