Radiator/Coolant Overflow Container (2.0L I4 DSL MID DOHC AJ200, 6 Speed Manual Trans-JLR M66 2WD, Halewood (UK), 6 Speed Manual Trans M66 - AWD, 2.0L I4 DSL HIGH DOHC AJ200, 9 Speed Auto AWD, 6 Speed Manual Trans BG6) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Radiator/Coolant Overflow Container (2.0L I4 DSL MID DOHC AJ200, 6 Speed Manual Trans-JLR M66 2WD,...

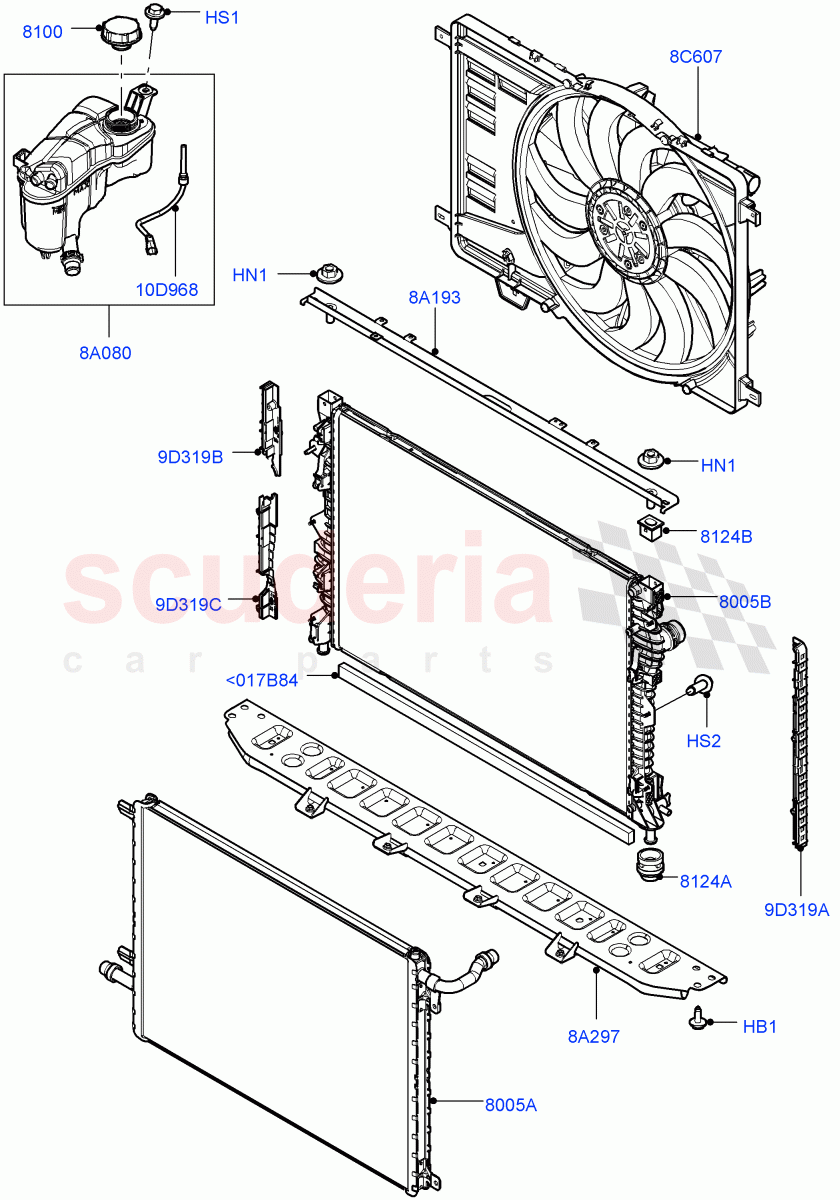

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG501000	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500310	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006025	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500170	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000243	CAP - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075357	RADIATOR - WATER CHARGE AIR COOLER	Enquire	To Order
	LR112874	RADIATOR	Enquire	To Order
	LR133030	RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075360	RADIATOR - MAIN	Enquire	To Order
	LR075359	RADIATOR - MAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000242	INSULATOR - RADIATOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007399	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060349	TANK - RADIATOR OVERFLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044300	BRACKET - RADIATOR UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024295	SUPPORT - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072086	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order
	LR072085	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order
	LR099669	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR000930	SENSOR - COOLANT LEVEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072018	BRACKET - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071997	BRACKET - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071999	BRACKET - RADIATOR LOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024294	PAD - FOAM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<017B84	LR024294	PAD - FOAM	LR024294 PAD - FOAM Self Adhesive / From: GH000001	-	1	Enquire
HB1	RYG501000	BOLT AND WASHER - HEX.HEAD	RYG501000 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M8 X 21MM / From: GH000001	-	6	Enquire
HN1	RYH500310	NUT AND WASHER - HEX.	RYH500310 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer / From: GH000001	-	2	Enquire
HS1	LR006025	BOLT	LR006025 BOLT Bolt And Washer, M6 X 15 Hex / From: GH000001	-	1	Enquire
HS2	BYP500170	SCREW	BYP500170 SCREW Hexagonal Head, M6 x 14MM / From: GH000001	-	9	Enquire
8A080	LR060349	TANK - RADIATOR OVERFLOW	LR060349 TANK - RADIATOR OVERFLOW From: GH000001	-	1	Enquire
8A193	LR044300	BRACKET - RADIATOR UPPER	LR044300 BRACKET - RADIATOR UPPER Upper / From: GH000001	-	1	Enquire
8A297	LR024295	SUPPORT - RADIATOR	LR024295 SUPPORT - RADIATOR Lower / From: GH000001	-	1	Enquire
8C607	LR072086	MOTOR AND FAN - ENGINE COOLING	LR072086 MOTOR AND FAN - ENGINE COOLING 6 Speed Manual Trans-JLR M66 2WD / From: GH000001 / To: HH999999	-	1	Enquire
8C607	LR072085	MOTOR AND FAN - ENGINE COOLING	LR072085 MOTOR AND FAN - ENGINE COOLING 9 Speed Auto AWD / From: GH000001 / To: HH240655	-	1	Enquire
8C607	LR099669	MOTOR AND FAN - ENGINE COOLING	LR099669 MOTOR AND FAN - ENGINE COOLING 9 Speed Auto AWD / From: HH240656 / To: HH999999	-	1	Enquire
8C607	LR094059	MOTOR AND FAN - ENGINE COOLING	LR094059 MOTOR AND FAN - ENGINE COOLING 2.0L I4 DSL HIGH DOHC AJ200 / From: JH000001	-	1	Enquire
8C607	LR072086	MOTOR AND FAN - ENGINE COOLING	LR072086 MOTOR AND FAN - ENGINE COOLING 2.0L I4 DSL MID DOHC AJ200, 6 Speed Manual Trans-JLR M66 2WD / From: JH000001	-	1	Enquire
8C607	LR099669	MOTOR AND FAN - ENGINE COOLING	LR099669 MOTOR AND FAN - ENGINE COOLING 2.0L I4 DSL MID DOHC AJ200, 6 Speed Manual Trans M66 - AWD / From: JH000001	-	1	Enquire
9D319A	LR072018	BRACKET - RADIATOR	LR072018 BRACKET - RADIATOR LH / From: GH000001	-	1	Enquire
9D319B	LR071997	BRACKET - RADIATOR	LR071997 BRACKET - RADIATOR RH, Upper / From: GH000001	-	1	Enquire
9D319C	LR071999	BRACKET - RADIATOR LOWER	LR071999 BRACKET - RADIATOR LOWER RH, Lower / From: GH000001	-	1	Enquire
10D968	LR000930	SENSOR - COOLANT LEVEL	LR000930 SENSOR - COOLANT LEVEL From: GH000001	-	1	Enquire
8005A	LR075357	RADIATOR - WATER CHARGE AIR COOLER	LR075357 RADIATOR - WATER CHARGE AIR COOLER Water Charge Air Cooler / From: GH000001 / To: JH295853	-	1	Enquire
8005A	LR112874	RADIATOR	LR112874 RADIATOR Water Charge Air Cooler / From: JH295854 / To: KH348202	-	1	Enquire
8005A	LR133030	RADIATOR	LR133030 RADIATOR Water Charge Air Cooler / From: KH348203	-	1	Enquire
8005B	LR075360	RADIATOR - MAIN	LR075360 RADIATOR - MAIN 9 Speed Auto AWD / From: GH000001	-	1	Enquire
8005B	LR075359	RADIATOR - MAIN	LR075359 RADIATOR - MAIN 6 Speed Manual Trans M66 - AWD / From: GH000001	-	1	Enquire
8100	LR000243	CAP - RADIATOR	LR000243 CAP - RADIATOR From: GH000001	-	1	Enquire
8124A	LR000242	INSULATOR - RADIATOR SUPPORT	LR000242 INSULATOR - RADIATOR SUPPORT Lower / From: GH000001	-	2	Enquire
8124B	LR007399	INSULATOR - RUBBER	LR007399 INSULATOR - RUBBER Upper / From: GH000001	-	2	Enquire
