Name: EGR Cooling System (2.0L I4 DSL MID DOHC AJ200, EU6 + DPF Emissions, Proconve L6 Emissions, Stage V Plus DPF, Japanese Emission + DPF, DPF + DE-SOX) ((V) FROMGH000001)
Rating: 4.6 (1 reviews)

EGR Cooling System (2.0L I4 DSL MID DOHC AJ200, EU6 + DPF Emissions, Proconve L6 Emissions, Stage V Plus DPF, Japanese Emission + DPF, DPF + DE-SOX) ((V) FROMGH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - EGR Cooling System (2.0L I4 DSL MID DOHC AJ200, EU6 + DPF Emissions, Proconve L6 Emissions, Stage V...

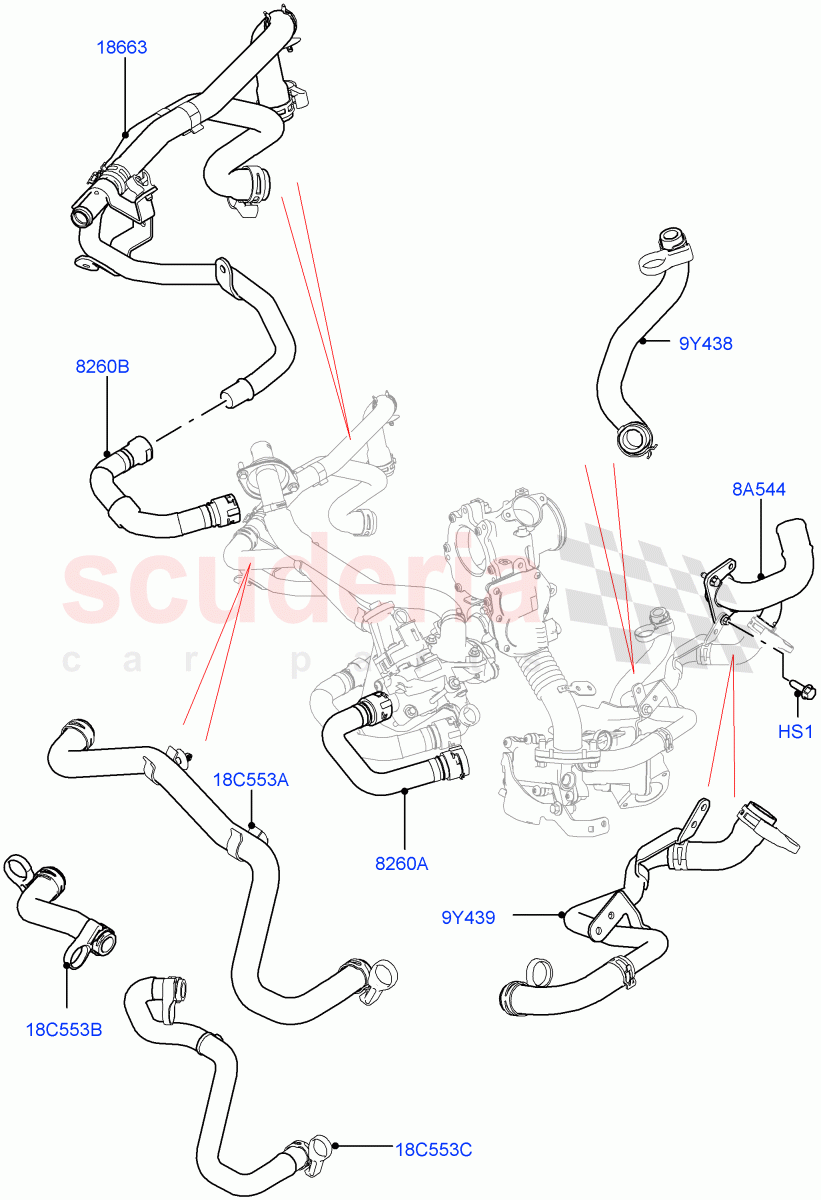

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073689	SCREW	$2.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073713	TUBE - HEATER WATER	$169.62	To Order
	LR104391	TUBE - HEATER WATER	$115.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071992	HOSE - HEATER WATER	$68.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071993	HOSE - HEATER WATER	$66.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117900	TUBE - CONNECTING	$49.08	To Order
	LR117900	TUBE - CONNECTING	$49.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074126	HOSE - EGR COOLER	$29.34	To Order
	LR084678	HOSE - EGR COOLER	$50.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073712	HOSE - WATER OUTLET	$172.18	To Order
	LR077855	HOSE - WATER OUTLET	$158.31	To Order
	LR087237	HOSE - WATER OUTLET	$156.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073715	HOSE - WATER INLET	$58.88	To Order
	LR084066	HOSE - WATER INLET	$58.43	To Order
	LR084066	HOSE - WATER INLET	$58.43	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR093646	HOSE - EGR COOLER	$41.63	To Order
	LR093646	HOSE - EGR COOLER	$41.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093647	HOSE - EGR COOLER	$48.96	To Order
	LR093647	HOSE - EGR COOLER	$48.96	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR073689	SCREW	LR073689 SCREW Hexagonal Head, M6 X 20MM / From: GH000001	$2.27	2
8A544	LR117900	TUBE - CONNECTING	LR117900 TUBE - CONNECTING From: GH000001 / To: JH315259	$49.08	1
8A544	LR117900	TUBE - CONNECTING	LR117900 TUBE - CONNECTING From: JH315260	$49.08	1
9Y438	LR074126	HOSE - EGR COOLER	LR074126 HOSE - EGR COOLER Coolant EGR Inlet, Low Pressure EGR / From: GH000001 / To: GH999999	$29.34	1
9Y438	LR084678	HOSE - EGR COOLER	LR084678 HOSE - EGR COOLER Coolant EGR Inlet, Low Pressure EGR / From: HH000001	$50.27	1
9Y439	LR073712	HOSE - WATER OUTLET	LR073712 HOSE - WATER OUTLET Coolant EGR Outlet, Low Pressure EGR / From: GH000001 / To: GH083755	$172.18	1
9Y439	LR077855	HOSE - WATER OUTLET	LR077855 HOSE - WATER OUTLET Coolant EGR Outlet, Low Pressure EGR / From: GH083756 / To: GH999999	$158.31	1
9Y439	LR087237	HOSE - WATER OUTLET	LR087237 HOSE - WATER OUTLET Coolant EGR Outlet, Low Pressure EGR / From: HH000001	$156.72	1
18C553A	LR073715	HOSE - WATER INLET	LR073715 HOSE - WATER INLET High Pressure EGR / From: GH000001 / To: GH095098	$58.88	1
18C553A	LR084066	HOSE - WATER INLET	LR084066 HOSE - WATER INLET EU6 + DPF Emissions / High Pressure EGR / From: GH095099 / To: HH183835	$58.43	1
18C553A	LR084066	HOSE - WATER INLET	LR084066 HOSE - WATER INLET Stage V Plus DPF / High Pressure EGR / From: GH095099	$58.43	1
18C553A	LR084066	HOSE - WATER INLET	LR084066 HOSE - WATER INLET Proconve L6 Emissions / High Pressure EGR / From: KH000001	$58.43	1
18C553B	LR093646	HOSE - EGR COOLER	LR093646 HOSE - EGR COOLER EU6 + DPF Emissions / High Pressure EGR / From: HH183836	$41.63	1
18C553B	LR093646	HOSE - EGR COOLER	LR093646 HOSE - EGR COOLER Japanese Emission + DPF / High Pressure EGR / From: KH000001	$41.63	1
18C553C	LR093647	HOSE - EGR COOLER	LR093647 HOSE - EGR COOLER EU6 + DPF Emissions / High Pressure EGR / From: HH183836	$48.96	1
18C553C	LR093647	HOSE - EGR COOLER	LR093647 HOSE - EGR COOLER Japanese Emission + DPF / High Pressure EGR / From: KH000001	$48.96	1
8260A	LR071992	HOSE - HEATER WATER	LR071992 HOSE - HEATER WATER Coolant EGR to Heater, High Pressure EGR / From: GH000001	$68.78	1
8260B	LR071993	HOSE - HEATER WATER	LR071993 HOSE - HEATER WATER Connection, Heater And EGR Water Rail / From: GH000001	$66.45	1
18663	LR073713	TUBE - HEATER WATER	LR073713 TUBE - HEATER WATER Heater And EGR Water Rail / From: GH000001 / To: HH262487	$169.62	1
18663	LR104391	TUBE - HEATER WATER	LR104391 TUBE - HEATER WATER Heater And EGR Water Rail / From: HH262488	$115.77	1
