Name: Radiator/Coolant Overflow Container (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil), 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMGT000001)
Rating: 5.0 (1 reviews)

Radiator/Coolant Overflow Container (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil), 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Radiator/Coolant Overflow Container (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil), 2.0L I4 DSL...

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG501000	BOLT AND WASHER - HEX.HEAD	$1.12	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500310	NUT AND WASHER - HEX.	$2.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR006025	BOLT	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR000243	CAP - RADIATOR	$11.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR075357	RADIATOR - WATER CHARGE AIR COOLER	$411.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075360	RADIATOR - MAIN	$584.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000242	INSULATOR - RADIATOR SUPPORT	$1.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR007399	INSULATOR - RUBBER	$1.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR024296	TANK - RADIATOR OVERFLOW	$100.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR044300	BRACKET - RADIATOR UPPER	$62.09	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR024295	SUPPORT - RADIATOR	$106.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR072085	MOTOR AND FAN - ENGINE COOLING	$853.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000930	SENSOR - COOLANT LEVEL	$36.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR072018	BRACKET - RADIATOR	$35.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071997	BRACKET - RADIATOR	$30.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071999	BRACKET - RADIATOR LOWER	$30.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024294	PAD - FOAM	$5.70	IN STOCK

View All

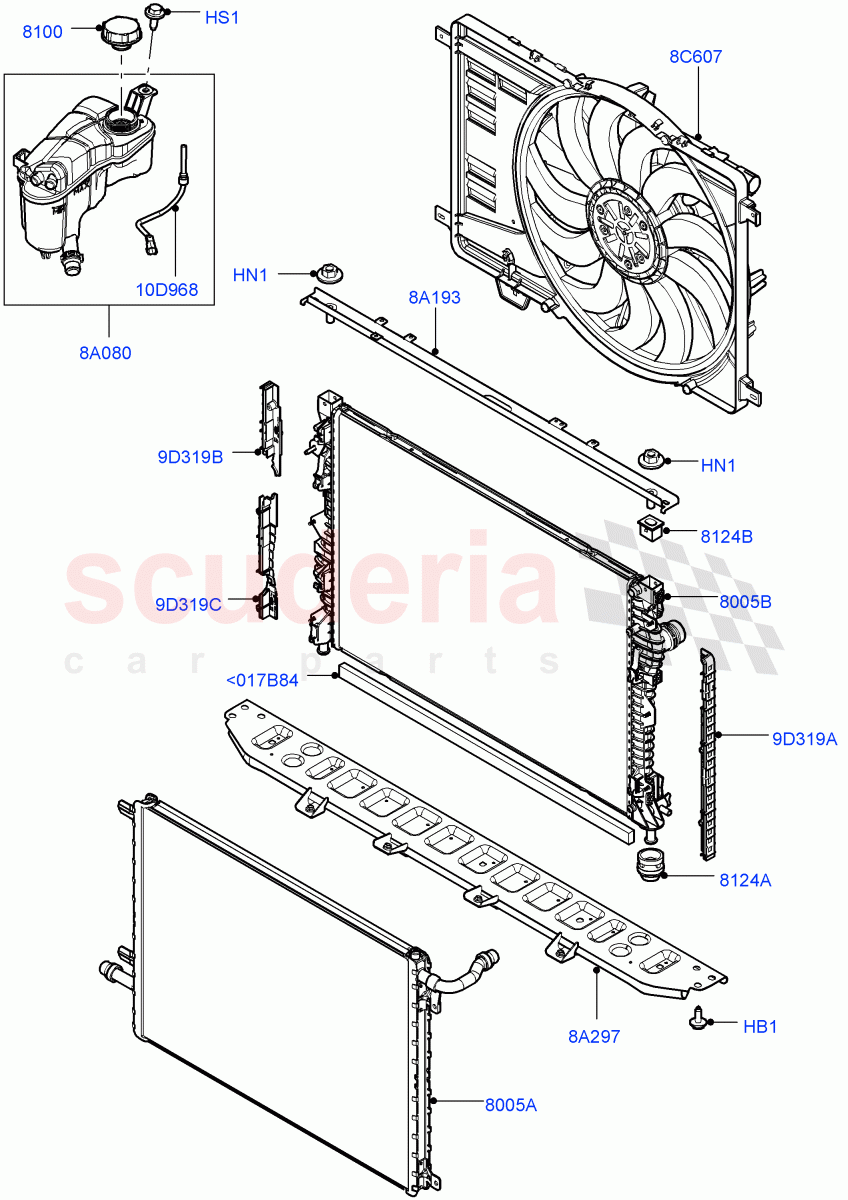

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<017B84	LR024294	PAD - FOAM IN STOCK	LR024294 PAD - FOAM Self Adhesive / From: GT000001 IN STOCK	$5.70	1
HB1	RYG501000	BOLT AND WASHER - HEX.HEAD	RYG501000 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M8 X 21MM / From: GT000001	$1.12	6
HN1	RYH500310	NUT AND WASHER - HEX. IN STOCK	RYH500310 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer / From: GT000001 IN STOCK	$2.97	2
HS1	LR006025	BOLT IN STOCK	LR006025 BOLT Bolt And Washer, M6 X 15 Hex / From: GT000001 IN STOCK	$1.32	1
8A080	LR024296	TANK - RADIATOR OVERFLOW IN STOCK	LR024296 TANK - RADIATOR OVERFLOW From: GT000001 IN STOCK	$100.71	1
8A193	LR044300	BRACKET - RADIATOR UPPER IN STOCK	LR044300 BRACKET - RADIATOR UPPER Upper / From: GT000001 IN STOCK	$62.09	1
8A297	LR024295	SUPPORT - RADIATOR IN STOCK	LR024295 SUPPORT - RADIATOR Lower / From: GT000001 IN STOCK	$106.30	1
8C607	LR072085	MOTOR AND FAN - ENGINE COOLING	LR072085 MOTOR AND FAN - ENGINE COOLING From: GT000001	$853.61	1
9D319A	LR072018	BRACKET - RADIATOR	LR072018 BRACKET - RADIATOR LH / From: GT000001	$35.46	1
9D319B	LR071997	BRACKET - RADIATOR	LR071997 BRACKET - RADIATOR RH, Upper / From: GT000001	$30.57	1
9D319C	LR071999	BRACKET - RADIATOR LOWER	LR071999 BRACKET - RADIATOR LOWER RH, Lower / From: GT000001	$30.50	1
10D968	LR000930	SENSOR - COOLANT LEVEL IN STOCK	LR000930 SENSOR - COOLANT LEVEL From: GT000001 IN STOCK	$36.89	1
8005A	LR075357	RADIATOR - WATER CHARGE AIR COOLER	LR075357 RADIATOR - WATER CHARGE AIR COOLER Water Charge Air Cooler / From: GT000001	$411.91	1
8005B	LR075360	RADIATOR - MAIN	LR075360 RADIATOR - MAIN From: GT000001	$584.29	1
8100	LR000243	CAP - RADIATOR IN STOCK	LR000243 CAP - RADIATOR From: GT000001 IN STOCK	$11.17	1
8124A	LR000242	INSULATOR - RADIATOR SUPPORT IN STOCK	LR000242 INSULATOR - RADIATOR SUPPORT Lower / From: GT000001 IN STOCK	$1.66	2
8124B	LR007399	INSULATOR - RUBBER IN STOCK	LR007399 INSULATOR - RUBBER Upper / From: GT000001 IN STOCK	$1.59	2
