Name: EGR Cooling System (2.0L I4 DSL MID DOHC AJ200, EU6D Diesel + DPF Emissions, 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMKH000001)
Rating: 4.8 (1 reviews)

EGR Cooling System (2.0L I4 DSL MID DOHC AJ200, EU6D Diesel + DPF Emissions, 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMKH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - EGR Cooling System (2.0L I4 DSL MID DOHC AJ200, EU6D Diesel + DPF Emissions, 2.0L I4 DSL HIGH DOHC...

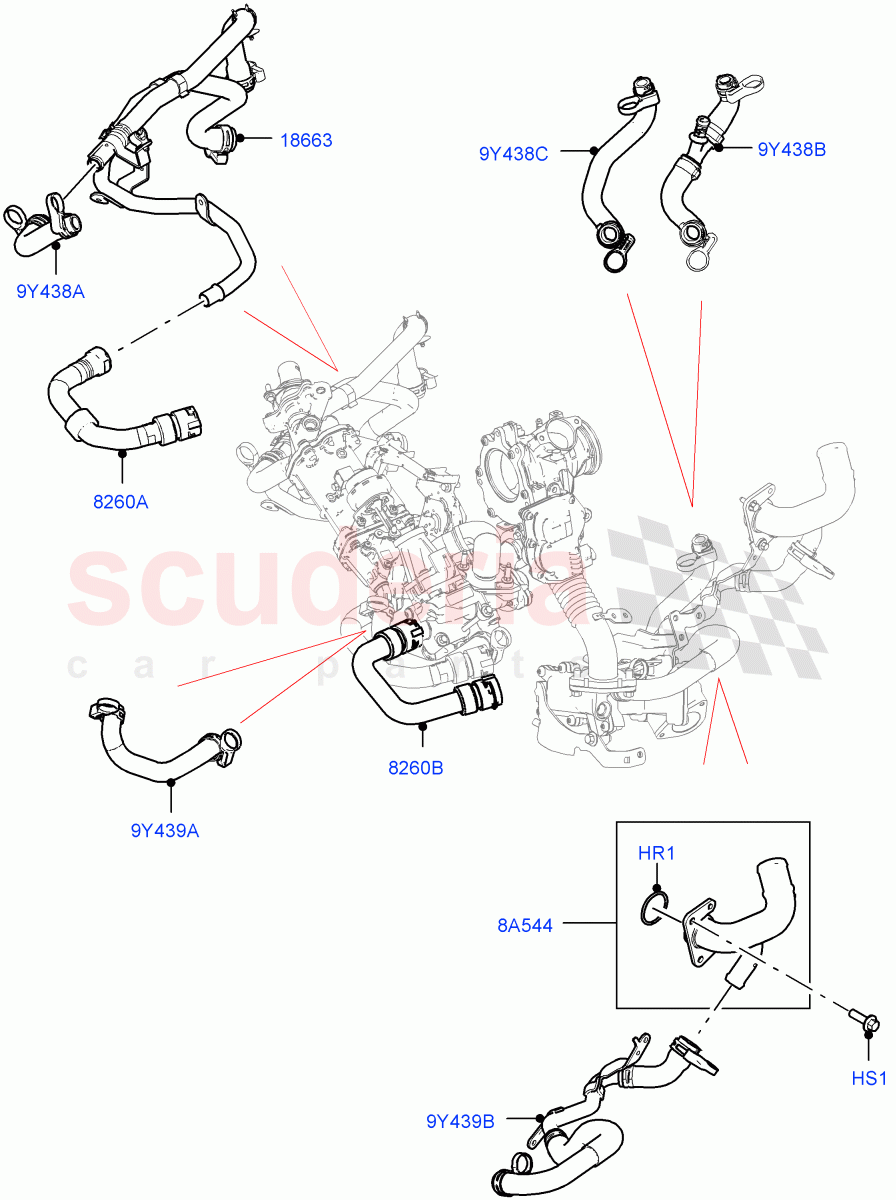

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR096839	O-RING	$5.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073689	SCREW	$2.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR104391	TUBE - HEATER WATER	$115.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071993	HOSE - HEATER WATER	$66.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071992	HOSE - HEATER WATER	$68.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117900	TUBE - CONNECTING	$49.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074125	HOSE - EGR COOLER	$38.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093828	HOSE - HEATER WATER	$57.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084678	HOSE - EGR COOLER	$50.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084790	HOSE - WATER OUTLET	$43.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087237	HOSE - WATER OUTLET	$156.72	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR096839	O-RING	LR096839 O-RING Elbow Connector,	$5.82	1
HS1	LR073689	SCREW	LR073689 SCREW Hexagonal Head, M6 X 20MM / From: KH000001	$2.27	2
8A544	LR117900	TUBE - CONNECTING	LR117900 TUBE - CONNECTING From: KH000001	$49.08	1
9Y438A	LR074125	HOSE - EGR COOLER	LR074125 HOSE - EGR COOLER EGR Cooler Inlet / From: KH000001	$38.13	1
9Y438B	LR093828	HOSE - HEATER WATER	LR093828 HOSE - HEATER WATER 2.0L I4 DSL HIGH DOHC AJ200 / From EGR Cooler To Oil Cooler / From: KH000001	$57.19	1
9Y438C	LR084678	HOSE - EGR COOLER	LR084678 HOSE - EGR COOLER 2.0L I4 DSL MID DOHC AJ200 / From EGR Cooler To Oil Cooler / From: KH000001	$50.27	1
9Y439A	LR084790	HOSE - WATER OUTLET	LR084790 HOSE - WATER OUTLET EGR Cooler To EGR Valve / From: KH000001	$43.71	1
9Y439B	LR087237	HOSE - WATER OUTLET	LR087237 HOSE - WATER OUTLET Coolant EGR Outlet, Low Pressure EGR / From: KH000001	$156.72	1
8260A	LR071993	HOSE - HEATER WATER	LR071993 HOSE - HEATER WATER Connection, Heater And EGR Water Rail / From: KH000001	$66.45	1
8260B	LR071992	HOSE - HEATER WATER	LR071992 HOSE - HEATER WATER Coolant EGR to Heater / From: KH000001	$68.78	1
18663	LR104391	TUBE - HEATER WATER	LR104391 TUBE - HEATER WATER Heater And EGR Water Rail / From: KH000001	$115.77	1
