Splash And Heat Shields (Body) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Splash And Heat Shields (Body) ((V) FROMAA000001)

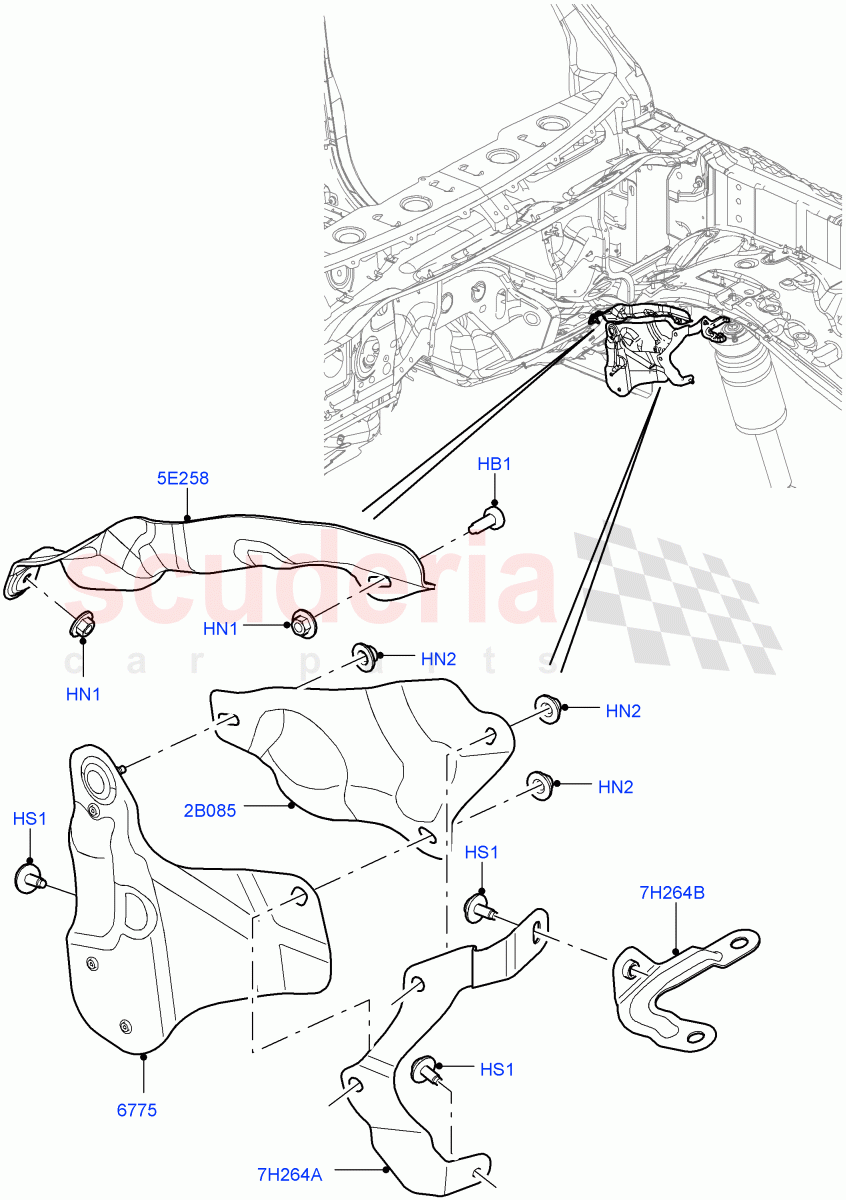

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AYG500030	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500310	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH501030	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYG500380	SCREW AND WASHER - HEX HEAD	Enquire	To Order
	KYG500380	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014242	SHIELD	Enquire	To Order
	LR014241	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SGC500131	SHIELD	Enquire	To Order
	SGC500121	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500730	SHIELD	Enquire	To Order
	WEB500720	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014102	BRACKET - EXHAUST BRAKE SUPPORT	Enquire	To Order
	LR014049	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KKJ500020	BRACKET	Enquire	To Order
	KKJ500030	BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	AYG500030	BOLT	AYG500030 BOLT Brake Pipe, M6 x 15, Shield / From: AA000001	-	2	Enquire
HN1	RYH500310	NUT AND WASHER - HEX.	RYH500310 NUT AND WASHER - HEX. Brake Pipe, Hexagonal Head, M6, Nut And Washer, Shield / From: AA000001	-	4	Enquire
HN2	RYH501030	NUT - FLANGED	RYH501030 NUT - FLANGED Brake Hose, M6, Shield / From: AA000001	-	6	Enquire
HS1	KYG500380	SCREW AND WASHER - HEX HEAD	KYG500380 SCREW AND WASHER - HEX HEAD Bracket, Hexagonal Head, M6 X 13.5MM, Suspension Bush / From: AA000001	-	4	Enquire
HS1	KYG500380	SCREW AND WASHER - HEX HEAD	KYG500380 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 13.5MM, Suspension Bush / From: AA000001	-	2	Enquire
2B085	SGC500131	SHIELD	SGC500131 SHIELD LH, Brake Hose / From: AA000001	-	1	Enquire
2B085	SGC500121	SHIELD	SGC500121 SHIELD RH, Brake Hose / From: AA000001	-	1	Enquire
5E258	WEB500730	SHIELD	WEB500730 SHIELD LH, Brake Pipe / From: AA000001	-	1	Enquire
5E258	WEB500720	SHIELD	WEB500720 SHIELD RH, Brake Pipe / From: AA000001	-	1	Enquire
7H264A	LR014102	BRACKET - EXHAUST BRAKE SUPPORT	LR014102 BRACKET - EXHAUST BRAKE SUPPORT LH, Shield, Suspension Bush / From: AA000001	-	1	Enquire
7H264A	LR014049	BRACKET	LR014049 BRACKET RH, Shield, Suspension Bush / From: AA000001	-	1	Enquire
7H264B	KKJ500020	BRACKET	KKJ500020 BRACKET RH, Shock Absorber Mounting / From: AA000001	-	1	Enquire
7H264B	KKJ500030	BRACKET	KKJ500030 BRACKET LH, Shock Absorber Mounting / From: AA000001	-	1	Enquire
6775	LR014242	SHIELD	LR014242 SHIELD LH, Suspension Bush / From: AA000001	-	1	Enquire
6775	LR014241	SHIELD	LR014241 SHIELD RH, Suspension Bush / From: AA000001	-	1	Enquire
