Chassis Frame ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Chassis Frame ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
KYG500190 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FC112267 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
KYG500015 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
KYG500250 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
KYG500500 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR007778 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR014236 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
FX112057L NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
LR007779 NUT Enquire To Order
Photo Part No Description Price (each) Stock
FY110056 NUT Enquire To Order
Photo Part No Description Price (each) Stock
FY114056 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
FT114356P SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FT112407 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
KVX500010 WASHER - FIBRE Enquire To Order
Photo Part No Description Price (each) Stock
KVX500030 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
KYH500100 NUT - SPRING Enquire To Order
Photo Part No Description Price (each) Stock
LR014466 FRAME Enquire To Order
LR023709 FRAME - CHASSIS Enquire To Order
LR032579 FRAME - CHASSIS Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
KVU500140 BRACKET - HOUSING MOUNTING Enquire To Order
KVU500150 BRACKET - HOUSING MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
KVY500031 STIFFENER Enquire To Order
Photo Part No Description Price (each) Stock
KVB500101 CROSSMEMBER - REAR CLOSING Enquire To Order
Photo Part No Description Price (each) Stock
KVB500110 CROSSMEMBER Enquire To Order
Photo Part No Description Price (each) Stock
KVS500030 CROSSMEMBER Enquire To Order
Photo Part No Description Price (each) Stock
KQD500123 CROSSMEMBER Enquire To Order
KQD500133 CROSSMEMBER Enquire To Order
Photo Part No Description Price (each) Stock
KVF500161 BRACKET - BODY MOUNTING Enquire To Order
KVF500161 BRACKET - BODY MOUNTING Enquire To Order
KVF500161 BRACKET - BODY MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
KVF500120 BRACKET - BODY MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
KVF500190 ISOLATOR Enquire To Order
Photo Part No Description Price (each) Stock
KVF500180 BRACKET - BODY MOUNTING Enquire To Order
KVF500180 BRACKET - BODY MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR014235 SHIELD - FRONT CROSSMEMBER Enquire To Order
Photo Part No Description Price (each) Stock
LR017424 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
LR062211 BRACKET - SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
RQU500361 BRACKET - FRAME MOUNTING Enquire To Order
RQU500371 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
RQU500391 BRACKET Enquire To Order
RQU500381 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
LR015545 BRACKET Enquire To Order
View All

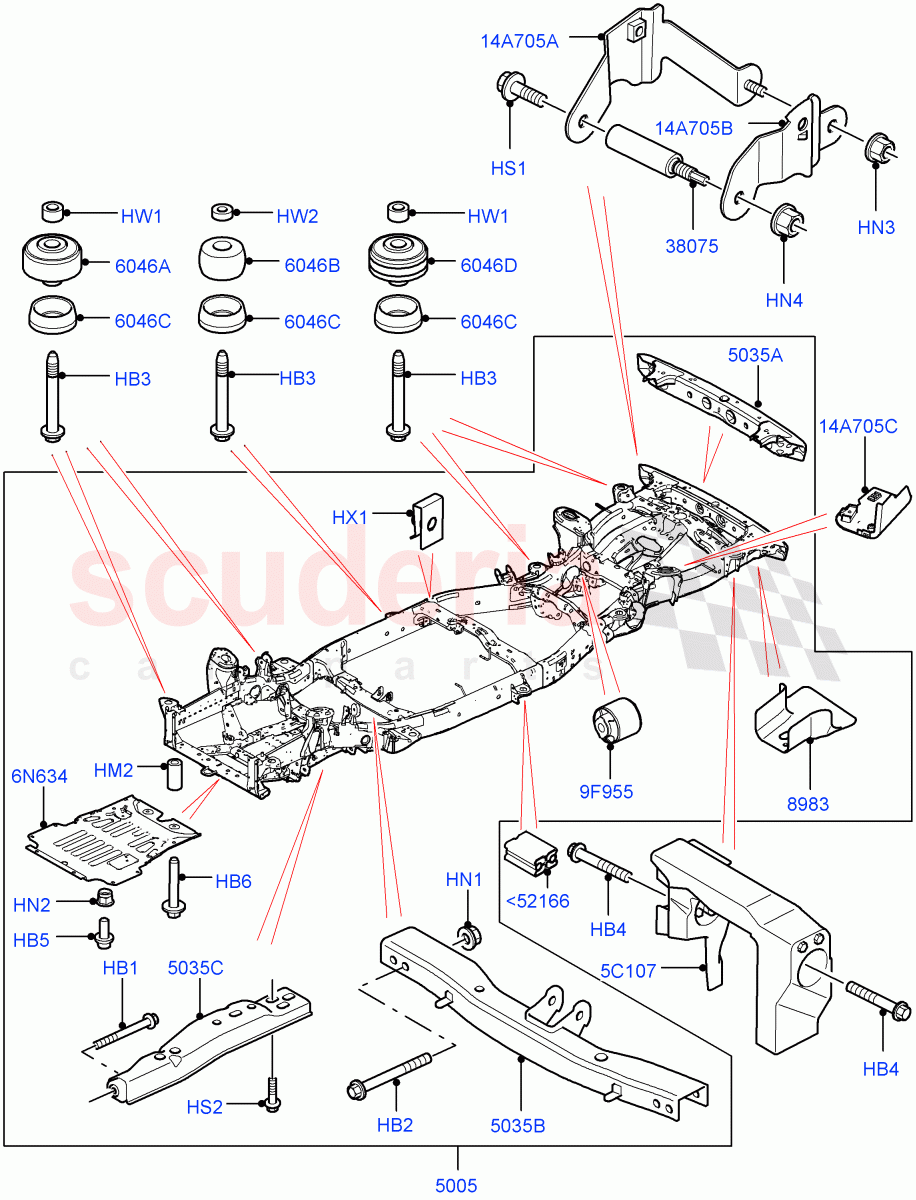

Chassis Frame ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<52166 LR062211
BRACKET - SUPPORT
From: FA000001 		- 5 Enquire
HB1 KYG500190
BOLT
M12 x 130MM / From: AA000001 		- 1 Enquire
HB2 FC112267
BOLT
M12 x 130MM / From: AA000001 		- 4 Enquire
HB3 KYG500015
BOLT
Hexagonal Head, M13 X 104MM / From: AA000001 		- 10 Enquire
HB4 KYG500250
BOLT
Absorber Assy, M10 x 63MM / From: AA000001 		- 4 Enquire
HB5 KYG500500
BOLT
M10 X 25MM, Shield / From: AA000001 		- 8 Enquire
HB6 LR007778
BOLT
Engine, M10 X 65MM, Shield / From: AA000001 		- 2 Enquire
HM2 LR014236
SPACER
Engine, Shield / From: AA000001 		- 2 Enquire
HN1 FX112057L
NUT - FLANGED
M12 / From: AA000001 		- 4 Enquire
HN2 LR007779
NUT
Engine, M10, Shield / From: AA000001 		- 2 Enquire
HN3 FY110056
NUT
M10, Service Only / From: AA000001 		- 2 Enquire
HN4 FY114056
NUT - HEX.
Hexagonal Head, M14, Service Only / From: AA000001 		- 2 Enquire
HS1 FT114356P
SCREW
M14 X 35MM, Service Only / From: AA000001 		- 2 Enquire
HS2 FT112407
BOLT
M12 x 40MM / From: AA000001 		- 3 Enquire
HW1 KVX500010
WASHER - FIBRE
Isolator / From: AA000001 		- 8 Enquire
HW2 KVX500030
WASHER
Isolator / From: AA000001 		- 2 Enquire
HX1 KYH500100
NUT - SPRING
M10, Nut "U" Spring / From: AA000001 		- 6 Enquire
5C107 KQD500123
CROSSMEMBER
RH, Absorber Assy / From: AA000001 		- 1 Enquire
5C107 KQD500133
CROSSMEMBER
LH, Absorber Assy / From: AA000001 		- 1 Enquire
6N634 LR014235
SHIELD - FRONT CROSSMEMBER
Engine / From: AA000001 		- 1 Enquire
9F955 LR017424
BUSH
Differential, Rear / From: AA000001 		- 2 Enquire
14A705A RQU500361
BRACKET - FRAME MOUNTING
RH, Inner, Service Only / From: AA000001 / To: AA999999 		- 1 Enquire
14A705A RQU500371
BRACKET
LH, Inner, Service Only / From: AA000001 / To: AA999999 		- 1 Enquire
14A705B RQU500391
BRACKET
LH, Outer, Service Only / From: AA000001 		- 1 Enquire
14A705B RQU500381
BRACKET
RH, Outer, Service Only / From: AA000001 		- 1 Enquire
14A705C LR015545
BRACKET
Plastic, Wiring Connector / From: AA000001 		- 1 Enquire
5005 LR014466
FRAME
Requires VIN To Order, VIN Stamped / From: AA000001 / To: AA539607 		- 1 Enquire
5005 LR023709
FRAME - CHASSIS
Requires VIN To Order, VIN Stamped / From: AA539608 / To: CA605104 		- 1 Enquire
5005 LR032579
FRAME - CHASSIS
Requires VIN To Order, VIN Stamped / From: CA605105 / To: EA999999 		- 1 Enquire
5005 LR062162
FRAME - CHASSIS
Requires VIN To Order, VIN Stamped / From: FA000001 / To: FA999999 		- 1 Enquire
5005 LR071907
FRAME - CHASSIS
3.0 V6 D Gen2 Twin Turbo / Requires VIN To Order, VIN Stamped / From: GA000001 		- 1 Enquire
5005 LR071908
FRAME - CHASSIS
3.0L DOHC GDI SC V6 PETROL / Requires VIN To Order, VIN Stamped / From: GA000001 		- 1 Enquire
5035A KVB500101
CROSSMEMBER - REAR CLOSING
Rear / From: AA000001 		- 1 Enquire
5035B KVB500110
CROSSMEMBER
Transfer Box / From: AA000001 		- 1 Enquire
5035C KVS500030
CROSSMEMBER
From: AA000001 		- 1 Enquire
6046A KVF500161
BRACKET - BODY MOUNTING
Lion Diesel 2.7 V6 (140KW) / Isolator / From: AA000001 		- 8 Enquire
6046A KVF500161
BRACKET - BODY MOUNTING
5.0L OHC SGDI NA V8 Petrol - AJ133 / Isolator / From: AA000001 / To: DA999999 		- 4 Enquire
6046A KVF500161
BRACKET - BODY MOUNTING
3.0L DOHC GDI SC V6 PETROL / Isolator / From: EA000001 		- 4 Enquire
6046B KVF500120
BRACKET - BODY MOUNTING
Isolator / From: AA000001 		- 2 Enquire
6046C KVF500190
ISOLATOR
Isolator / From: AA000001 		- 10 Enquire
6046D KVF500180
BRACKET - BODY MOUNTING
5.0L OHC SGDI NA V8 Petrol - AJ133 / Isolator / From: AA000001 / To: DA999999 		- 4 Enquire
6046D KVF500180
BRACKET - BODY MOUNTING
3.0L DOHC GDI SC V6 PETROL / Isolator / From: EA000001 		- 4 Enquire
8983 KVU500140
BRACKET - HOUSING MOUNTING
RH, Crossmember, Rear / From: AA000001 		- 1 Enquire
8983 KVU500150
BRACKET - HOUSING MOUNTING
LH, Crossmember, Rear / From: AA000001 		- 1 Enquire
38075 KVY500031
STIFFENER
Service Only / From: AA000001 / To: AA999999 		- 2 Enquire
