Rear Door Lock Controls ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

View All

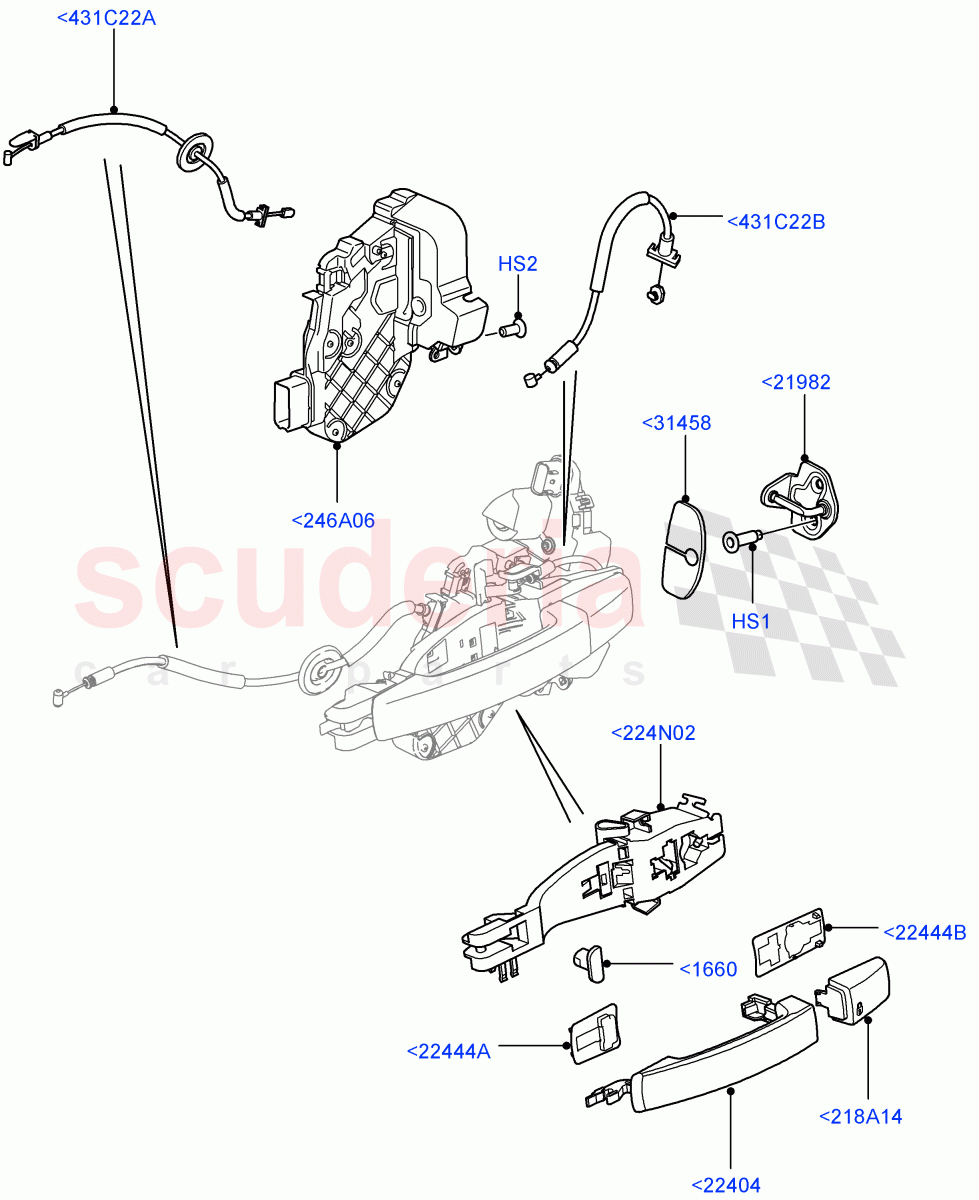

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Rear Door Lock Controls ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FYP500020	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500010	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ABS780160	SPACER - HANDLE ASSIST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FQB500041PMA	STRIKER - DOOR LOCKING MECHANISM	Enquire	To Order
	LR031915	STRIKER - DOOR LOCKING MECHANISM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CXA500050	HANDLE - DOOR PULL	Enquire	To Order
	LR019308	HANDLE - DOOR - OUTER	Enquire	To Order
	LR019764	HANDLE - DOOR - OUTER	Enquire	To Order

...and 8 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FQW500022PMA	COVER - DOOR INSIDE HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CXJ500060	CAP - HANDLE	Enquire	To Order
	LR018254	CAP - HANDLE	Enquire	To Order
	LR030194	CAP - HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CXE500050	GASKET - DOOR HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CXE500040	GASKET - DOOR HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018297	REINFORCEMENT - DOOR HANDLE	Enquire	To Order
	LR018298	REINFORCEMENT - DOOR HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011302	LATCH - REAR DOOR	Enquire	To Order
	LR011303	LATCH - REAR DOOR	Enquire	To Order
	LR011304	LATCH - REAR DOOR	Enquire	To Order

...and 15 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013916	CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FQZ500143	CABLE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<218A14	CXJ500060	CAP - HANDLE	CXJ500060 CAP - HANDLE Exterior Door Handle - Black / RH/LH / From: AA000001	-	2	Enquire
<218A14	LR018254	CAP - HANDLE	LR018254 CAP - HANDLE Exterior Door Handle - Oberon / RH/LH / From: AA000001	-	2	Enquire
<218A14	LR030194	CAP - HANDLE	LR030194 CAP - HANDLE Exterior Door Handle - Santorini / Primed, RH/LH / From: AA000001	-	2	Enquire
<224N02	LR018297	REINFORCEMENT - DOOR HANDLE	LR018297 REINFORCEMENT - DOOR HANDLE RH, Handle / From: AA000001	-	1	Enquire
<224N02	LR018298	REINFORCEMENT - DOOR HANDLE	LR018298 REINFORCEMENT - DOOR HANDLE LH, Handle / From: AA000001	-	1	Enquire
<246A06	LR011302	LATCH - REAR DOOR	LR011302 LATCH - REAR DOOR (-)"CDN/J/USA", Less Keyless Entry System, With Door Dead Locks / RH / From: AA000001 / To: AA513325	-	1	Enquire
<246A06	LR011303	LATCH - REAR DOOR	LR011303 LATCH - REAR DOOR (-)"CDN/J/USA", Less Keyless Entry System, With Door Dead Locks / LH / From: AA000001 / To: AA513325	-	1	Enquire
<246A06	LR011304	LATCH - REAR DOOR	LR011304 LATCH - REAR DOOR (+)"CDN/J/USA", Less Keyless Entry System, With Central Locking System / RH / From: AA000001 / To: GA846473	-	1	Enquire
<246A06	LR011305	LATCH - REAR DOOR	LR011305 LATCH - REAR DOOR (+)"CDN/J/USA", With Central Locking System, With Keyless Start / LH / From: AA000001 / To: GA846473	-	1	Enquire
<246A06	LR013890	LATCH - REAR DOOR	LR013890 LATCH - REAR DOOR (-)"CDN/J/USA", Keyless Entry/Start - Passive, With Door Dead Locks / RH / From: AA000001 / To: FA768140	-	1	Enquire
<246A06	LR013891	LATCH - REAR DOOR	LR013891 LATCH - REAR DOOR (+)"CDN/J/USA", Keyless Entry/Start - Passive, With Central Locking System / RH / From: AA000001 / To: GA846473	-	1	Enquire
<246A06	LR013892	LATCH - REAR DOOR	LR013892 LATCH - REAR DOOR (-)"CDN/J/USA", Keyless Entry/Start - Passive, With Door Dead Locks / LH / From: AA000001 / To: GA846473	-	1	Enquire
<246A06	LR013893	LATCH - REAR DOOR	LR013893 LATCH - REAR DOOR (+)"CDN/J/USA", Keyless Entry/Start - Passive, With Central Locking System / LH / From: AA000001 / To: GA846473	-	1	Enquire
<246A06	LR072414	LATCH - REAR DOOR	LR072414 LATCH - REAR DOOR (-)"CDN/J/USA", Less Keyless Entry System, With Door Dead Locks / RH / From: AA513326 / To: FA999999	-	1	Enquire
<246A06	LR071650	LATCH - REAR DOOR	LR071650 LATCH - REAR DOOR (-)"CDN/J/USA", Less Keyless Entry System, With Door Dead Locks / LH / From: AA513326 / To: FA999999	-	1	Enquire
<246A06	LR091345	LATCH - REAR DOOR	LR091345 LATCH - REAR DOOR (-)"CDN/J/USA", Keyless Entry/Start - Passive, With Door Dead Locks / RH / From: FA768141	-	1	Enquire
<246A06	LR091361	LATCH - REAR DOOR	LR091361 LATCH - REAR DOOR (-)"CDN/J/USA", Less Keyless Entry System, With Door Dead Locks / LH / From: GA000001	-	1	Enquire
<246A06	LR091346	LATCH - REAR DOOR	LR091346 LATCH - REAR DOOR Keyless Entry/Start - Passive, With Central Locking System / RH / From: GA846474	-	1	Enquire
<246A06	LR091347	LATCH - REAR DOOR	LR091347 LATCH - REAR DOOR With Central Locking System, With Keyless Start / RH / From: GA846474	-	1	Enquire
<246A06	LR091351	LATCH - REAR DOOR	LR091351 LATCH - REAR DOOR (-)"CDN/J/USA", Keyless Entry/Start - Passive, With Door Dead Locks / LH / From: GA846474	-	1	Enquire
<246A06	LR091348	LATCH - REAR DOOR	LR091348 LATCH - REAR DOOR Keyless Entry/Start - Passive, With Central Locking System / LH / From: GA846474	-	1	Enquire
<246A06	LR091343	LATCH - REAR DOOR	LR091343 LATCH - REAR DOOR With Central Locking System, With Keyless Start / LH / From: GA846474	-	1	Enquire
<246A06	LR091360	LATCH - REAR DOOR	LR091360 LATCH - REAR DOOR (-)"CDN/J/USA", Less Keyless Entry System, With Door Dead Locks / RH / From: GA000001	-	1	Enquire
<431C22A	LR013916	CABLE	LR013916 CABLE Door Release Control, Internal / From: AA000001	-	2	Enquire
<431C22B	FQZ500143	CABLE	FQZ500143 CABLE Door Release Control, External / From: AA000001	-	2	Enquire
<1660	ABS780160	SPACER - HANDLE ASSIST	ABS780160 SPACER - HANDLE ASSIST From: AA000001	-	2	Enquire
<21982	FQB500041PMA	STRIKER - DOOR LOCKING MECHANISM	FQB500041PMA STRIKER - DOOR LOCKING MECHANISM From: AA000001 / To: BA590799	-	2	Enquire
<21982	LR031915	STRIKER - DOOR LOCKING MECHANISM	LR031915 STRIKER - DOOR LOCKING MECHANISM From: BA590800	-	2	Enquire
<22404	CXA500050	HANDLE - DOOR PULL	CXA500050 HANDLE - DOOR PULL Exterior Door Handle - Black, With Keyless Start / RH/LH / From: AA000001 / To: DA675685	-	2	Enquire
<22404	LR019308	HANDLE - DOOR - OUTER	LR019308 HANDLE - DOOR - OUTER Exterior Door Handle - Oberon, With Keyless Start / RH/LH / From: AA000001 / To: DA675685	-	2	Enquire
<22404	LR019764	HANDLE - DOOR - OUTER	LR019764 HANDLE - DOOR - OUTER Exterior Door Handle - Oberon, With Keyless Entry/Start - Passive / RH/LH / From: AA000001 / To: DA666028	-	2	Enquire
<22404	LR020632	HANDLE - DOOR - OUTER	LR020632 HANDLE - DOOR - OUTER Exterior Door Handle - Black, With Keyless Start / RH/LH / From: DA675686	-	2	Enquire
<22404	LR020928	HANDLE - DOOR - OUTER	LR020928 HANDLE - DOOR - OUTER Exterior Door Handle - Oberon, With Keyless Start / RH/LH / From: DA675686	-	2	Enquire
<22404	LR023729	HANDLE - DOOR - OUTER	LR023729 HANDLE - DOOR - OUTER Body Coloured Exterior Door Handle, Landmark Limited Edition, With Keyless Start / Primed, RH/LH / From: BA000001	-	2	Enquire
<22404	LR023730	HANDLE - DOOR - OUTER	LR023730 HANDLE - DOOR - OUTER Body Coloured Exterior Door Handle, Landmark Limited Edition, With Keyless Entry/Start - Passive / Primed, RH/LH / From: BA000001	-	2	Enquire
<22404	LR020810	HANDLE - DOOR - OUTER	LR020810 HANDLE - DOOR - OUTER Exterior Door Handle - Oberon, Keyless Entry/Start - Passive / RH/LH / From: DA666029	-	2	Enquire
<22404	LR023729	HANDLE - DOOR - OUTER	LR023729 HANDLE - DOOR - OUTER Exterior Door Handle - Santorini, Landmark Limited Edition, With Keyless Start / Primed, RH/LH / From: BA000001	-	1	Enquire
<22404	LR030195	HANDLE - DOOR - OUTER	LR030195 HANDLE - DOOR - OUTER Body Coloured Exterior Door Handle, With Keyless Entry/Start - Passive / Primed, RH/LH / From: CA000001	-	1	Enquire
<22404	LR030196	HANDLE - DOOR - OUTER	LR030196 HANDLE - DOOR - OUTER Body Coloured Exterior Door Handle, With Keyless Start / Primed, RH/LH / From: CA000001	-	2	Enquire
<22444A	CXE500050	GASKET - DOOR HANDLE	CXE500050 GASKET - DOOR HANDLE Front, Handle / From: AA000001	-	2	Enquire
<22444B	CXE500040	GASKET - DOOR HANDLE	CXE500040 GASKET - DOOR HANDLE Handle, Rear / From: AA000001	-	2	Enquire
<31458	FQW500022PMA	COVER - DOOR INSIDE HANDLE	FQW500022PMA COVER - DOOR INSIDE HANDLE Striker / From: AA000001	-	2	Enquire
HS1	FYP500020	SCREW	FYP500020 SCREW M8 X 25MM, Striker / From: AA000001	-	4	Enquire
HS2	FYP500010	SCREW	FYP500010 SCREW Latch, M6 x 12MM / From: AA000001	-	6	Enquire
