Quarter Windows ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Quarter Windows ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
CFT500011 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
CZU000010 RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
XUI500150 RETAINER - PRESS STUD Enquire To Order
Photo Part No Description Price (each) Stock
DZP500020 RETAINER Enquire To Order
Photo Part No Description Price (each) Stock
CVB500580 GLASS - QUARTER WINDOW Enquire To Order
CVB500600 GLASS - QUARTER WINDOW Enquire To Order
CVB500640 GLASS - QUARTER WINDOW Enquire To Order
...and 25 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
DDF500081PVL MOULDING - GLASS-WINDOW RH Enquire To Order
DDF500091PVL MOULDING - QUARTER WINDOW Enquire To Order
View All

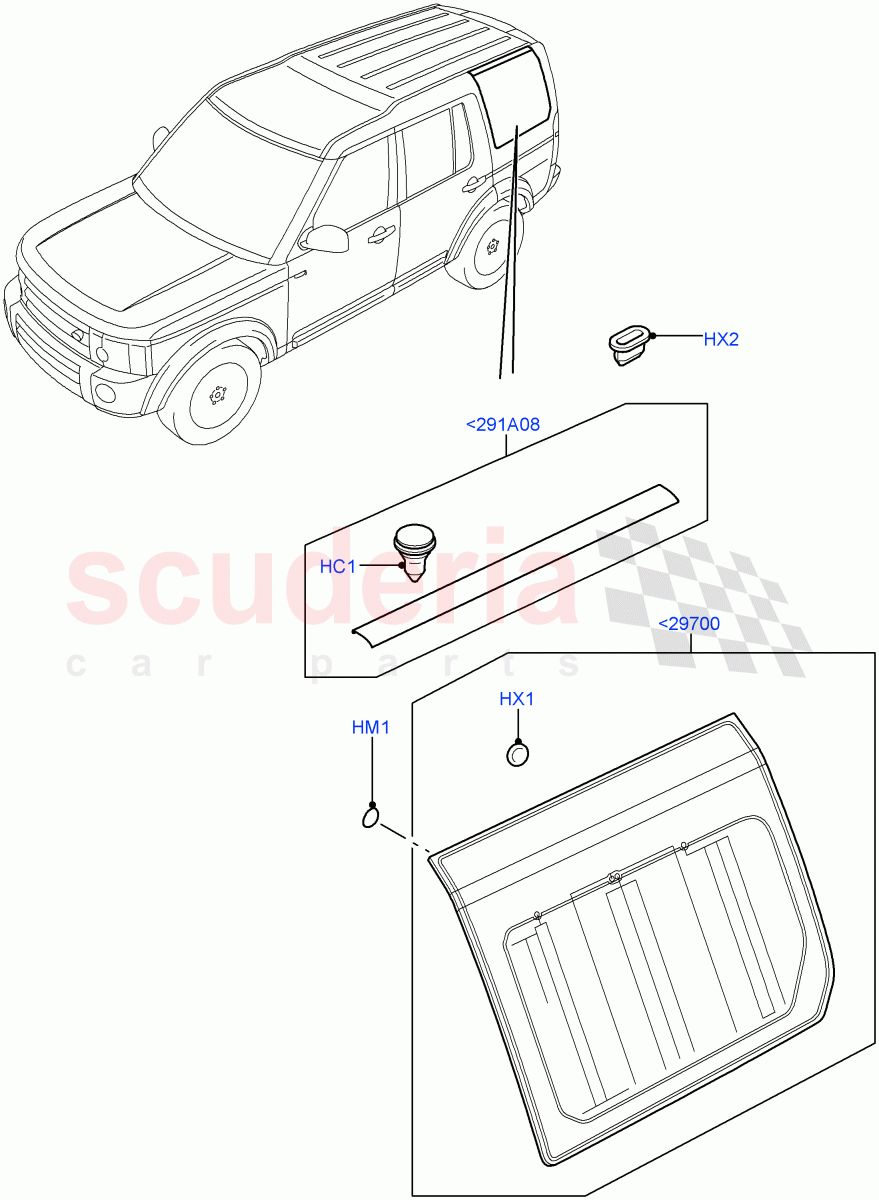

Quarter Windows ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<291A08 DDF500081PVL
MOULDING - GLASS-WINDOW RH
RH, Black - High Gloss / From: AA000001 		- 1 Enquire
<291A08 DDF500091PVL
MOULDING - QUARTER WINDOW
LH, Black - High Gloss / From: AA000001 		- 1 Enquire
<29700 CVB500580
GLASS - QUARTER WINDOW
Less Television, Less Vehicle Info And Comm System, With Optikool Glass / RH, With Antenna / From: AA000001 / To: BA999999 		- 1 Enquire
<29700 CVB500600
GLASS - QUARTER WINDOW
(-)"J", With Privacy Glass / RH, With Antenna / From: AA000001 / To: BA999999 		- 1 Enquire
<29700 CVB500640
GLASS - QUARTER WINDOW
Less Television, Vehicle Info & Com System, With Optikool Glass / RH, With Antenna / From: AA000001 / To: BA999999 		- 1 Enquire
<29700 CVB500650
GLASS - QUARTER WINDOW
Less Television, Vehicle Info & Com System, With Privacy Glass / RH, With Antenna / From: AA000001 / To: BA999999 		- 1 Enquire
<29700 CVB500590
GLASS - QUARTER WINDOW
Less Television, Less Vehicle Info And Comm System, With Optikool Glass / LH, Less Antenna / From: AA000001 / To: BA999999 		- 1 Enquire
<29700 CVB500610
GLASS - QUARTER WINDOW
(-)"J", Less Television, With Privacy Glass / LH, Less Antenna / From: AA000001 / To: BA999999 		- 1 Enquire
<29700 CVB500620
GLASS - QUARTER WINDOW
Less Television, Vehicle Info & Com System, With Optikool Glass / LH, With Antenna / From: AA000001 / To: BA999999 		- 1 Enquire
<29700 CVB500630
GLASS - QUARTER WINDOW
Less Television, Vehicle Info & Com System, With Privacy Glass / LH, With Antenna / From: AA000001 / To: BA999999 		- 1 Enquire
<29700 LR029617
GLASS - QUARTER WINDOW
Less TV Receiver, With Optikool Glass / RH, With Antenna / From: CA000001 / To: CA616850 		- 1 Enquire
<29700 LR031648
GLASS - QUARTER WINDOW
(-)"J", HD And Sirius Radio Broadcast, Less TV Receiver, With Privacy Glass / LH, With Antenna / From: CA000001 / To: CA612232 		- 1 Enquire
<29700 LR029662
GLASS - QUARTER WINDOW
(-)"J", Less TV Receiver, With Privacy Glass / RH, With Antenna / From: CA000001 / To: CA617917 		- 1 Enquire
<29700 LR031784
GLASS - QUARTER WINDOW
TV Receiver Hybrid-DVB-T & Analog, With Privacy Glass / LH, With Antenna / From: CA000001 / To: CA612232 		- 1 Enquire
<29700 LR029663
GLASS - QUARTER WINDOW
TV Receiver - ISDB-T (Japan), With Privacy Glass / RH, With Antenna / From: CA000001 / To: CA616850 		- 1 Enquire
<29700 LR031658
GLASS - QUARTER WINDOW
TV Receiver Hybrid-DVB-T & Analog, With Optikool Glass / LH, With Antenna / From: CA000001 / To: CA612232 		- 1 Enquire
<29700 LR029618
GLASS - QUARTER WINDOW
TV Receiver Hybrid-DVB-T & Analog, With Optikool Glass / RH, With Antenna / From: CA000001 / To: CA616850 		- 1 Enquire
<29700 LR032725
GLASS - QUARTER WINDOW
Analogue Audio Broadcast, Less TV Receiver, With Optikool Glass / LH, With Antenna / From: CA000001 / To: CA612232 		- 1 Enquire
<29700 LR032726
GLASS - QUARTER WINDOW
Less TV Receiver, With Optikool Glass / RH, Less Antenna / From: CA000001 / To: CA616850 		- 1 Enquire
<29700 LR032727
GLASS - QUARTER WINDOW
Less TV Receiver, With Privacy Glass / RH, Less Antenna / From: CA000001 / To: CA617917 		- 1 Enquire
<29700 LR039054
GLASS - QUARTER WINDOW
Analogue Audio Broadcast, Less TV Receiver, With Optikool Glass / LH, With Antenna / From: CA612233 		- 1 Enquire
<29700 LR039055
GLASS - QUARTER WINDOW
(-)"J", HD Radio Broadcast, Less TV Receiver, With Privacy Glass / LH, With Antenna / From: CA612233 		- 1 Enquire
<29700 LR039056
GLASS - QUARTER WINDOW
Digital Audio Broadcast, Less TV Receiver, With Optikool Glass / LH, With Antenna / From: CA612233 		- 1 Enquire
<29700 LR039057
GLASS - QUARTER WINDOW
TV Receiver - ISDB-T (Japan), With Privacy Glass / LH, With Antenna / From: CA612233 		- 1 Enquire
<29700 LR039047
GLASS - QUARTER WINDOW
Less TV Receiver, With Optikool Glass / RH, Less Antenna / From: CA616851 		- 1 Enquire
<29700 LR039050
GLASS - QUARTER WINDOW
Less TV Receiver, With Optikool Glass / RH, With Antenna / From: CA616851 		- 1 Enquire
<29700 LR039051
GLASS - QUARTER WINDOW
(-)"J", Less TV Receiver, With Privacy Glass / RH, With Antenna / From: CA617918 		- 1 Enquire
<29700 LR039053
GLASS - QUARTER WINDOW
TV Receiver Hybrid-DVB-T & Analog, With Privacy Glass / RH, With Antenna / From: CA616851 		- 1 Enquire
<29700 LR039052
GLASS - QUARTER WINDOW
TV Receiver - Digital, With Optikool Glass / RH, With Antenna / From: CA616851 		- 1 Enquire
<29700 LR039048
GLASS - QUARTER WINDOW
Less TV Receiver, With Privacy Glass / RH, Less Antenna / From: CA617918 		- 1 Enquire
HC1 CFT500011
CLIP
Moulding / From: AA000001 		- 2 Enquire
HM1 CZU000010
RUBBER
Handle / From: AA000001 		- 4 Enquire
HX1 XUI500150
RETAINER - PRESS STUD
Aerial / From: AA000001 		- 3 Enquire
HX2 DZP500020
RETAINER
Attaches Moulding / From: AA000001 		- 6 Enquire
