Luggage Compartment Door (Door And Fixings) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Luggage Compartment Door (Door And Fixings) ((V) FROMAA000001)

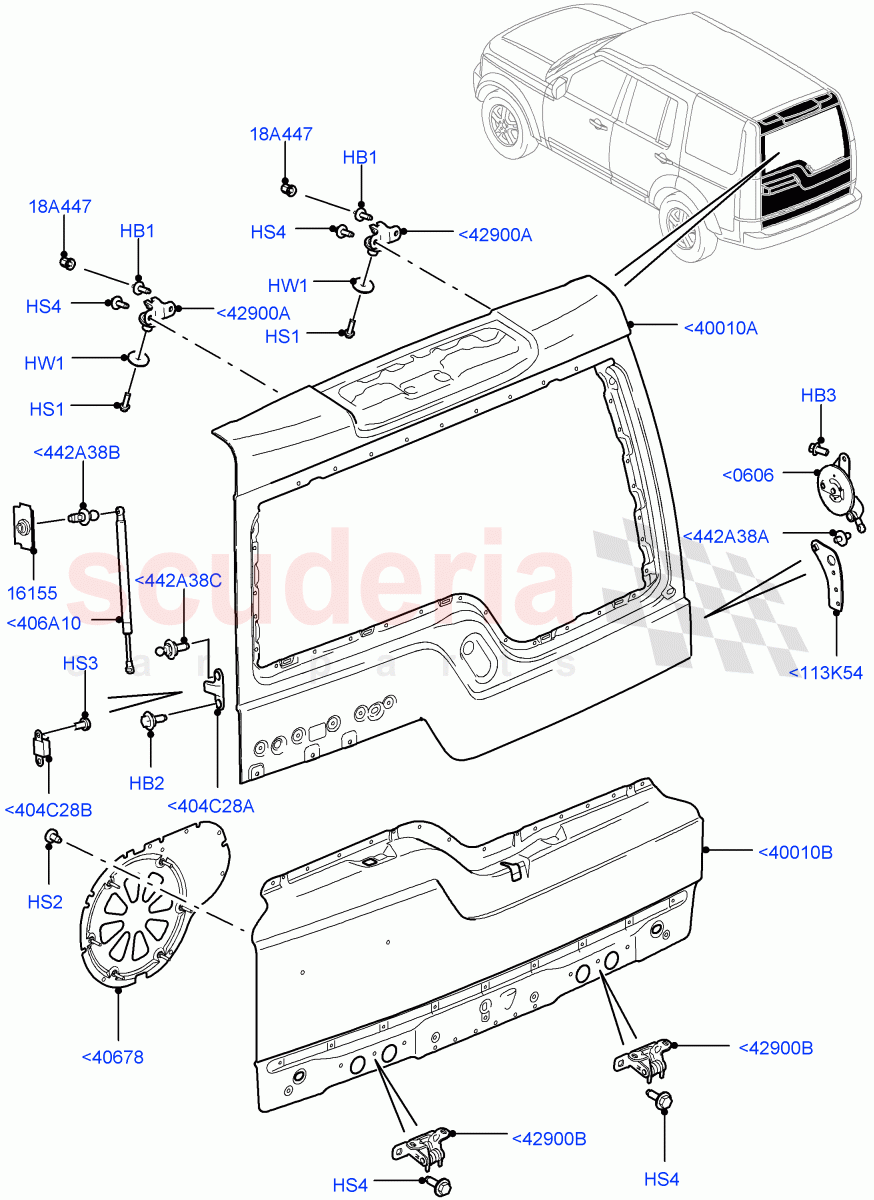

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AYG000012	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BHZ780010	BOLT - SHOULDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108161	Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FT110356	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500620	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYG500050	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500980	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KVX100011	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BHF780040	STAY	Enquire	To Order
	BHF780050	STAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ALR780770	REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BHR780243	REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BZU500010	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BHR780220	PLATE - MOUNTING	Enquire	To Order
	BHR780230	PLATE - MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BHA780070	DOOR - REAR - LESS HINGES	Enquire	To Order
	LR045549	DOOR - REAR - LESS HINGES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BHA780080	DOOR - REAR	Enquire	To Order
	LR045550	DOOR - REAR - LESS HINGES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BHE780060	LIFT - GAS	Enquire	To Order
	LR086368	LIFT - GAS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BHB780040	HINGE - LUGGAGE COMPARTMENT DOOR	Enquire	To Order
	LR031763	HINGE - LUGGAGE COMPARTMENT DOOR	Enquire	To Order
	LR083492	HINGE - LUGGAGE COMPARTMENT DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BHB780012	HINGE	Enquire	To Order
	LR031767	HINGE - TAILGATE	Enquire	To Order
	LR083493	HINGE - TAILGATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CKT500080	WEDGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CKT500090	WEDGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BIL780041	PIVOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BKF780030	PIVOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BKF780020	PIVOT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<113K54	BHR780220	PLATE - MOUNTING	BHR780220 PLATE - MOUNTING RH, Stay Mounting Lower Door / From: AA000001	-	1	Enquire
<113K54	BHR780230	PLATE - MOUNTING	BHR780230 PLATE - MOUNTING LH, Stay Mounting Lower Door / From: AA000001	-	1	Enquire
<404C28A	CKT500080	WEDGE	CKT500080 WEDGE Upper Tailgate / From: AA000001	-	2	Enquire
<404C28B	CKT500090	WEDGE	CKT500090 WEDGE Body / From: AA000001	-	2	Enquire
<406A10	BHE780060	LIFT - GAS	BHE780060 LIFT - GAS Upper Tailgate / From: AA000001 / To: GA824298	-	2	Enquire
<406A10	LR086368	LIFT - GAS	LR086368 LIFT - GAS Upper Tailgate / From: GA824299	-	2	Enquire
<442A38A	BIL780041	PIVOT	BIL780041 PIVOT Door Lower / From: AA000001	-	2	Enquire
<442A38B	BKF780030	PIVOT	BKF780030 PIVOT Door Upper / From: AA000001	-	2	Enquire
<442A38C	BKF780020	PIVOT	BKF780020 PIVOT Door Upper / From: AA000001	-	2	Enquire
<0606	BHF780040	STAY	BHF780040 STAY RH, Lower Tailgate / From: AA000001	-	1	Enquire
<0606	BHF780050	STAY	BHF780050 STAY LH, Lower Tailgate / From: AA000001	-	1	Enquire
<40010A	BHA780070	DOOR - REAR - LESS HINGES	BHA780070 DOOR - REAR - LESS HINGES Upper / From: AA000001 / To: CA711221	-	1	Enquire
<40010A	LR045549	DOOR - REAR - LESS HINGES	LR045549 DOOR - REAR - LESS HINGES Upper / From: CA711222	-	1	Enquire
<40010B	BHA780080	DOOR - REAR	BHA780080 DOOR - REAR Lower / From: AA000001 / To: CA711221	-	1	Enquire
<40010B	LR045550	DOOR - REAR - LESS HINGES	LR045550 DOOR - REAR - LESS HINGES Lower / From: CA711222	-	1	Enquire
<40678	BHR780243	REINFORCEMENT	BHR780243 REINFORCEMENT Lower Tailgate / From: AA000001	-	1	Enquire
<42900A	BHB780040	HINGE - LUGGAGE COMPARTMENT DOOR	BHB780040 HINGE - LUGGAGE COMPARTMENT DOOR Upper / From: AA000001 / To: BA588499	-	2	Enquire
<42900A	LR031763	HINGE - LUGGAGE COMPARTMENT DOOR	LR031763 HINGE - LUGGAGE COMPARTMENT DOOR Upper / From: BA588500 / To: GA793428	-	2	Enquire
<42900A	LR083492	HINGE - LUGGAGE COMPARTMENT DOOR	LR083492 HINGE - LUGGAGE COMPARTMENT DOOR Upper / From: GA793429	-	2	Enquire
<42900B	BHB780012	HINGE	BHB780012 HINGE Lower / From: AA000001 / To: BA577799	-	2	Enquire
<42900B	LR031767	HINGE - TAILGATE	LR031767 HINGE - TAILGATE Lower / From: BA577800 / To: GA793428	-	2	Enquire
<42900B	LR083493	HINGE - TAILGATE	LR083493 HINGE - TAILGATE Lower / From: GA793429	-	2	Enquire
HB1	AYG000012	BOLT	AYG000012 BOLT Hinge, M8, Upper Tailgate / From: AA000001	-	2	Enquire
HB2	BHZ780010	BOLT - SHOULDER	BHZ780010 BOLT - SHOULDER M8, Upper Tailgate, Wedge Assy / From: AA000001	-	2	Enquire
HB3	FS108161	Bolt	FS108161 Bolt M8, Upper Tailgate, Wedge Assy / From: AA000001	-	2	Enquire
HS1	FT110356	SCREW	FT110356 SCREW Hexagonal Head, Hinge, M10 x 35MM, Upper / From: AA000001	-	2	Enquire
HS2	RYG500620	SCREW AND WASHER	RYG500620 SCREW AND WASHER M6 x 12MM, Reinforcement / From: AA000001	-	10	Enquire
HS3	BYG500050	SCREW	BYG500050 SCREW Body, M8 X 16MM, Wedge Assy / From: AA000001	-	4	Enquire
HS4	RYG500980	SCREW AND WASHER	RYG500980 SCREW AND WASHER Hinge, M8 x 24MM / From: AA000001	-	6	Enquire
HW1	KVX100011	WASHER	KVX100011 WASHER Hinge, M10 / From: AA000001	-	2	Enquire
18A447	BZU500010	NUT	BZU500010 NUT Bolt / From: AA000001	-	2	Enquire
16155	ALR780770	REINFORCEMENT	ALR780770 REINFORCEMENT Rear Strut Mounting, Upper / From: AA000001	-	2	Enquire
