Rear Window Wiper And Washer ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Rear Window Wiper And Washer ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
DLP500010 NUT - WIPER ARM PIVOT Enquire To Order
Photo Part No Description Price (each) Stock
RYH500290 NUT AND WASHER - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR014304 HOSE - WINDSHIELD WASHER Enquire To Order
Photo Part No Description Price (each) Stock
DLB500074 MOTOR - WIPER Enquire To Order
LR029682 MOTOR - WIPER Enquire To Order
Photo Part No Description Price (each) Stock
DKB500690 ARM - WIPER Enquire To Order
Photo Part No Description Price (each) Stock
DKB500680 BLADE - WIPER Enquire To Order
Photo Part No Description Price (each) Stock
DNJ500260 JET - WINDSHIELD WASHER Enquire To Order
Photo Part No Description Price (each) Stock
DLD500033 SEAL Enquire To Order
LR030338 SEAL - WIPER MOTOR BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
DKG500011PMD CAP - WIPER ARM Enquire To Order
View All

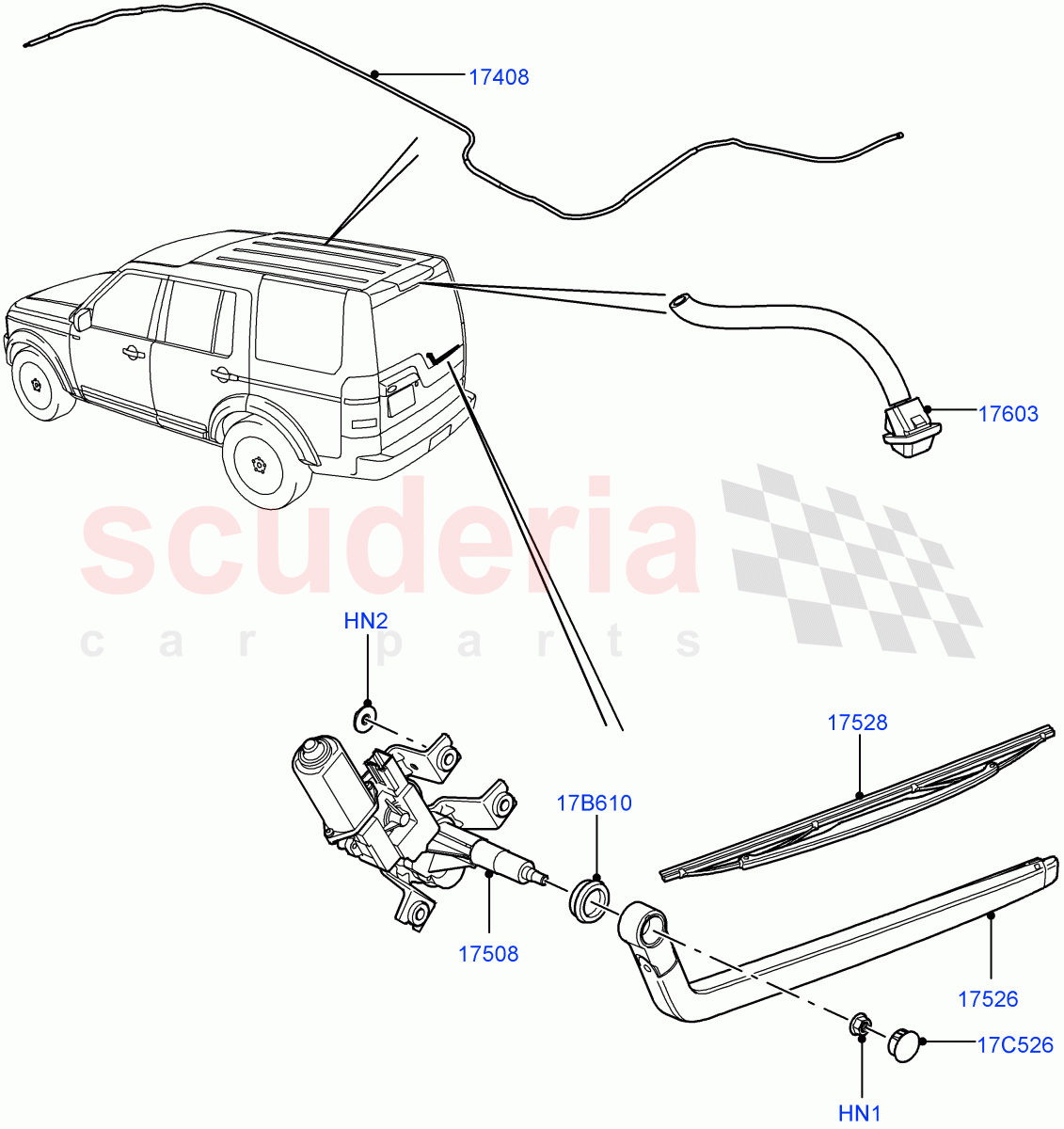

Rear Window Wiper And Washer ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 DLP500010
NUT - WIPER ARM PIVOT
M8, Wiper Arm / From: AA000001 		- 1 Enquire
HN2 RYH500290
NUT AND WASHER - HEX.
Attaches Wiper Motor, M6 / From: AA000001 		- 3 Enquire
17B610 DLD500033
SEAL
Motor - Rear Window Wiper / From: AA000001 / To: BA999999 		- 1 Enquire
17B610 LR030338
SEAL - WIPER MOTOR BRACKET
Motor - Rear Window Wiper / From: CA000001 		- 1 Enquire
17C526 DKG500011PMD
CAP - WIPER ARM
From: AA000001 		- 1 Enquire
17408 LR014304
HOSE - WINDSHIELD WASHER
From: AA000001 		- 1 Enquire
17508 DLB500074
MOTOR - WIPER
Rear Window / From: AA000001 / To: BA999999 		- 1 Enquire
17508 LR029682
MOTOR - WIPER
Rear Window / From: CA000001 		- 1 Enquire
17526 DKB500690
ARM - WIPER
From: AA000001 		- 1 Enquire
17528 DKB500680
BLADE - WIPER
Rear Window / From: AA000001 		- 1 Enquire
17603 DNJ500260
JET - WINDSHIELD WASHER
For Rear Window Washer, Includes Hose / From: AA000001 		- 1 Enquire
