Rear Bumper ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

View All

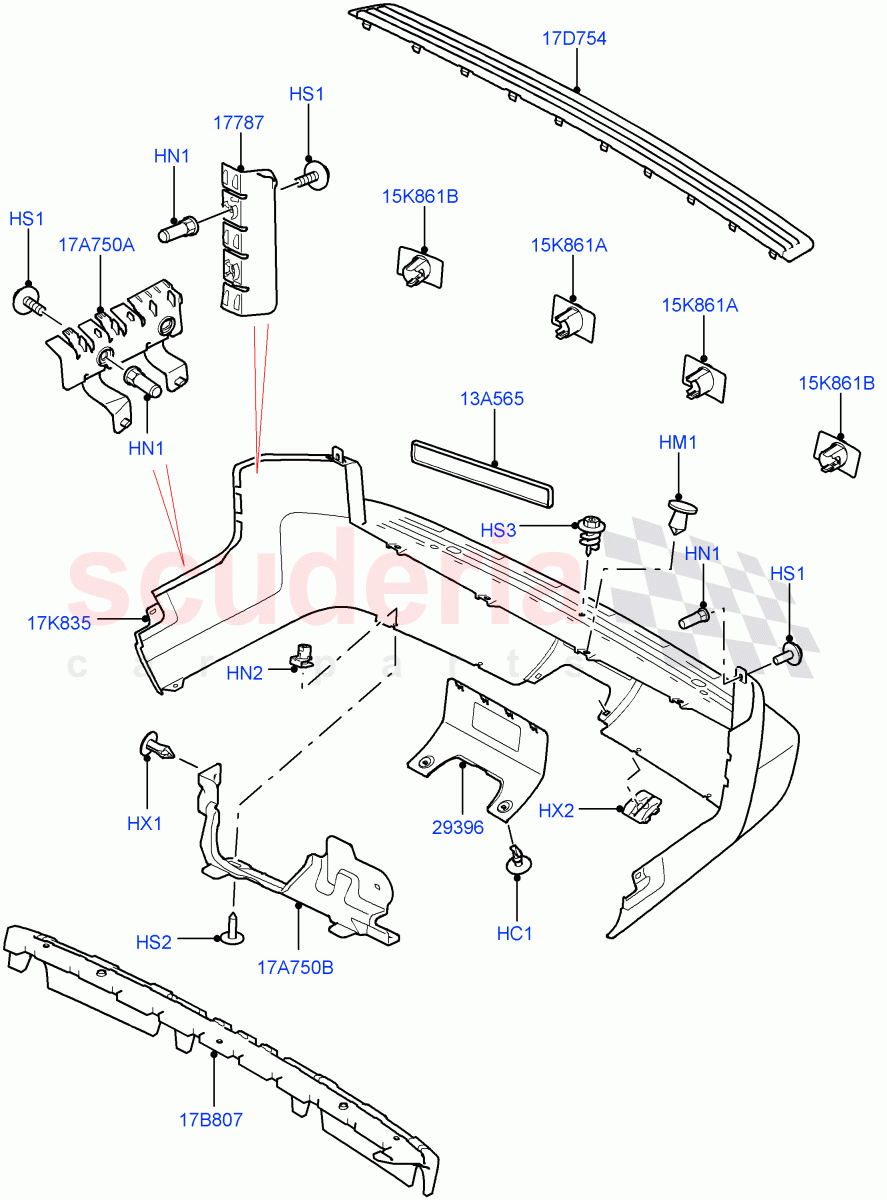

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Rear Bumper ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DYR500010	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR2224	HARDWARE - MISCELLANEOUS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYH500010	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYH500110	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501590	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106494	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYP500030	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AWR3994	RETAINER	Enquire	To Order
	RYQ500070	PIN - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYF500010	RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DQL000081	BRACKET - BUMPER MOUNTING	Enquire	To Order
	DQL000091	BRACKET - BUMPER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DPO500011PCL	MOULDING - BUMPER PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	XFF500020	REFLECTOR	Enquire	To Order
	XFF500030	REFLECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010132	PAD - BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DOE500020	INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015463	BUMPER - REAR	Enquire	To Order
	LR015464	BUMPER - REAR	Enquire	To Order
	DPO000031PCL	BUMPER - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015453	BRACKET - RETENTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015460	BRACKET - RETENTION	Enquire	To Order
	LR017351	BRACKET - RETENTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DQL000061	BRACKET - BUMPER MOUNTING	Enquire	To Order
	DQL000071	BRACKET - BUMPER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DQG000063	BRACKET - BUMPER MOUNTING	Enquire	To Order
	DQG000073	BRACKET - BUMPER MOUNTING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	DYR500010	STUD	DYR500010 STUD 1/4 Turn Click Type / From: AA000001	-	2	Enquire
HM1	ANR2224	HARDWARE - MISCELLANEOUS	ANR2224 HARDWARE - MISCELLANEOUS 8 X 20MM, On Body, Pin / From: AA000001	-	4	Enquire
HN1	DYH500010	NUT	DYH500010 NUT Bracket, M6, Side / From: AA000001	-	2	Enquire
HN2	DYH500110	NUT	DYH500110 NUT 7mm Diameter Holes, Bumper, Plastic / From: AA000001	-	2	Enquire
HS1	RYG501590	SCREW	RYG501590 SCREW Bracket, M6 x 22MM, Side, Torx / From: AA000001	-	2	Enquire
HS2	LR106494	SCREW	LR106494 SCREW Bracket, Centre, M5 x 20MM, Self Tapping / From: AA000001	-	2	Enquire
HS3	DYP500030	SCREW	DYP500030 SCREW Plastic, Torx / From: AA000001	-	3	Enquire
HX1	AWR3994	RETAINER	AWR3994 RETAINER 6.3 X 22MM, Push Pin / From: AA000001 / To: BA593799	-	4	Enquire
HX1	RYQ500070	PIN - RETAINING	RYQ500070 PIN - RETAINING 6.3 X 22MM, Push Pin / From: BA593800	-	4	Enquire
HX2	DYF500010	RETAINER	DYF500010 RETAINER 1/4 Turn Click Type, Bumper / From: AA000001	-	2	Enquire
13A565	XFF500020	REFLECTOR	XFF500020 REFLECTOR RH / From: AA000001	-	1	Enquire
13A565	XFF500030	REFLECTOR	XFF500030 REFLECTOR LH / From: AA000001	-	1	Enquire
15K861A	LR015453	BRACKET - RETENTION	LR015453 BRACKET - RETENTION Centre, PDC / From: AA000001	-	1	Enquire
15K861B	LR015460	BRACKET - RETENTION	LR015460 BRACKET - RETENTION RH, PDC / From: AA000001	-	1	Enquire
15K861B	LR017351	BRACKET - RETENTION	LR017351 BRACKET - RETENTION LH, PDC / From: AA000001	-	1	Enquire
17A750A	DQL000061	BRACKET - BUMPER MOUNTING	DQL000061 BRACKET - BUMPER MOUNTING RH, Side / From: AA000001	-	1	Enquire
17A750A	DQL000071	BRACKET - BUMPER MOUNTING	DQL000071 BRACKET - BUMPER MOUNTING LH, Side / From: AA000001	-	1	Enquire
17A750B	DQG000063	BRACKET - BUMPER MOUNTING	DQG000063 BRACKET - BUMPER MOUNTING RH, Centre / From: AA000001	-	1	Enquire
17A750B	DQG000073	BRACKET - BUMPER MOUNTING	DQG000073 BRACKET - BUMPER MOUNTING LH, Centre / From: AA000001	-	1	Enquire
17B807	LR010132	PAD - BUMPER	LR010132 PAD - BUMPER From: AA000001	-	1	Enquire
17D754	DOE500020	INSERT	DOE500020 INSERT Anthracite Black, Tread Mat / From: AA000001	-	1	Enquire
17K835	LR015463	BUMPER - REAR	LR015463 BUMPER - REAR Rr Bumper Plastic Partially Painted, With Rear Parking Aid / Primed / From: AA000001	-	1	Enquire
17K835	LR015464	BUMPER - REAR	LR015464 BUMPER - REAR Rear Bumper - Plastic Unpainted, With Rear Parking Aid / Anthracite Black / From: AA000001	-	1	Enquire
17K835	DPO000031PCL	BUMPER - REAR	DPO000031PCL BUMPER - REAR Less Rear Parking Aid, Rear Bumper - Plastic Unpainted / Anthracite Black / From: AA000001	-	1	Enquire
17787	DQL000081	BRACKET - BUMPER MOUNTING	DQL000081 BRACKET - BUMPER MOUNTING RH / From: AA000001	-	1	Enquire
17787	DQL000091	BRACKET - BUMPER MOUNTING	DQL000091 BRACKET - BUMPER MOUNTING LH / From: AA000001	-	1	Enquire
29396	DPO500011PCL	MOULDING - BUMPER PROTECTION	DPO500011PCL MOULDING - BUMPER PROTECTION Anthracite Black, Towing Eye / From: AA000001	-	1	Enquire
