Dash Panel And Front Fenders ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

View All

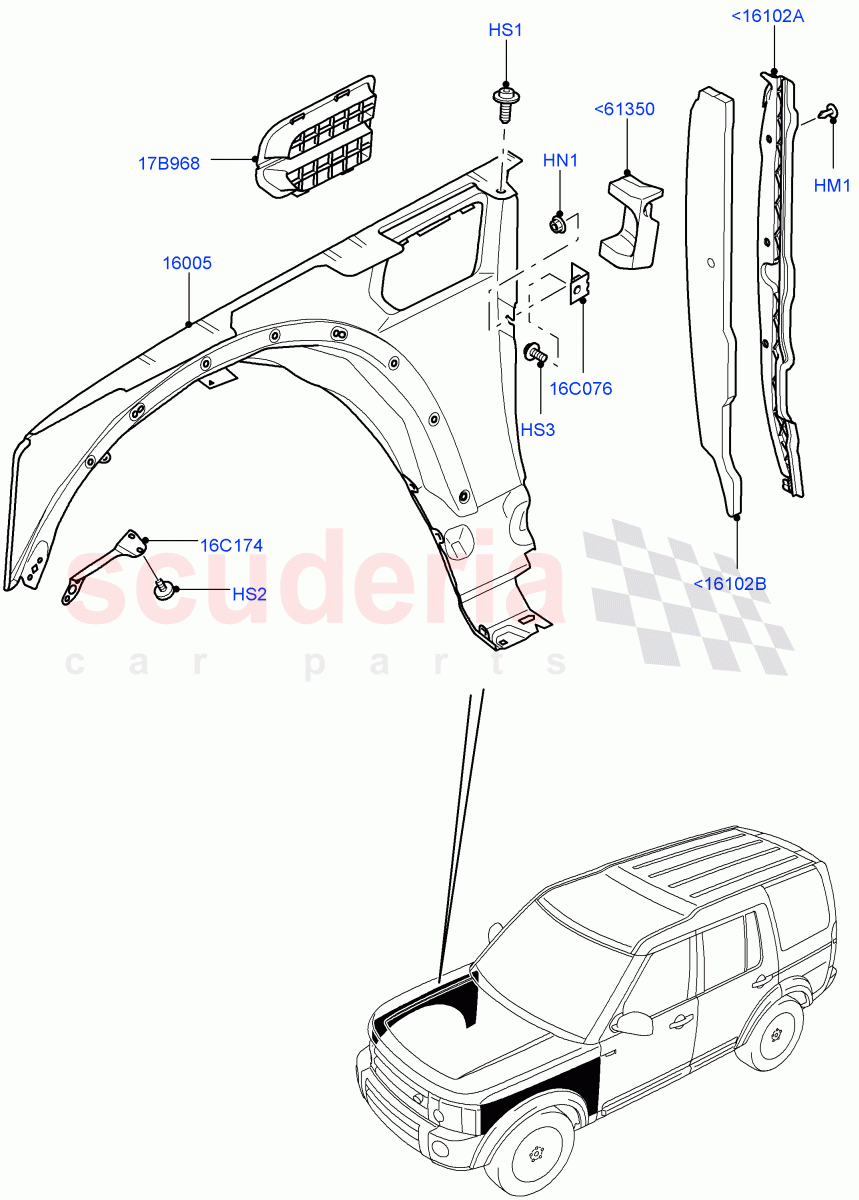

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Dash Panel And Front Fenders ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	ANR2224	HARDWARE - MISCELLANEOUS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ESR1560	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500010	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP000051	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500980	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013931	FENDER - FRONT	Enquire	To Order
	LR013932	FENDER - FRONT	Enquire	To Order
	LR056239	FENDER - FRONT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	EUH500341	COVER - INSULATOR	Enquire	To Order
	LR013218	COVER - INSULATOR	Enquire	To Order
	LR019638	COVER - INSULATOR	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	ASU780200	BRACKET - FENDER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ASU780120	BRACKET - FENDER MOUNTING	Enquire	To Order
	ASU780130	BRACKET - FENDER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013181	GRILLE - FENDER - FRONT	Enquire	To Order
	LR013194	GRILLE - FENDER - FRONT	Enquire	To Order
	LR013193	SCREEN ASSY	Enquire	To Order

...and 24 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	ASG780022	BAFFLE	Enquire	To Order
	ASG780032	BAFFLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013214	BAFFLE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<16102A	ASG780022	BAFFLE	ASG780022 BAFFLE RH, Front Fender / From: AA000001	-	1	Enquire
<16102A	ASG780032	BAFFLE	ASG780032 BAFFLE LH, Front Fender / From: AA000001	-	1	Enquire
<16102B	LR013214	BAFFLE	LR013214 BAFFLE Front Fender, RH/LH / From: AA000001	-	2	Enquire
<61350	EUH500341	COVER - INSULATOR	EUH500341 COVER - INSULATOR RH, Insulator-Duct Air Cooling Inlet / From: AA000001 / To: AA520261	-	1	Enquire
<61350	LR013218	COVER - INSULATOR	LR013218 COVER - INSULATOR 5.0L OHC SGDI NA V8 Petrol - AJ133 / LH, Insulator-Duct Air Cooling Inlet / From: AA000001 / To: AA520261	-	1	Enquire
<61350	LR019638	COVER - INSULATOR	LR019638 COVER - INSULATOR 5.0L OHC SGDI NA V8 Petrol - AJ133 / LH, Insulator-Duct Air Cooling Inlet / From: AA520262	-	1	Enquire
<61350	LR019639	COVER - INSULATOR	LR019639 COVER - INSULATOR RH, Insulator-Duct Air Cooling Inlet / From: AA520262	-	1	Enquire
<61350	LR019638	COVER - INSULATOR	LR019638 COVER - INSULATOR 3.0L DOHC GDI SC V6 PETROL / LH, Insulator-Duct Air Cooling Inlet / From: EA000001	-	1	Enquire
HM1	ANR2224	HARDWARE - MISCELLANEOUS	ANR2224 HARDWARE - MISCELLANEOUS 8 X 20MM, Pin / From: AA000001	-	4	Enquire
HN1	ESR1560	NUT - FLANGED	ESR1560 NUT - FLANGED Bracket - A Pillar, M6 / From: AA000001	-	1	Enquire
HS1	AYP500010	SCREW AND WASHER	AYP500010 SCREW AND WASHER Front Fender, M6 X 20MM / From: AA000001	-	5	Enquire
HS2	BYP000051	SCREW AND WASHER	BYP000051 SCREW AND WASHER Bracket, M6 x 14MM / From: AA000001	-	2	Enquire
HS3	RYG500980	SCREW AND WASHER	RYG500980 SCREW AND WASHER Bracket - A Pillar, M8 x 24MM / From: AA000001	-	1	Enquire
16C076	ASU780200	BRACKET - FENDER MOUNTING	ASU780200 BRACKET - FENDER MOUNTING "A" Pillar, RH/LH / From: AA000001	-	2	Enquire
16C174	ASU780120	BRACKET - FENDER MOUNTING	ASU780120 BRACKET - FENDER MOUNTING RH / From: AA000001	-	1	Enquire
16C174	ASU780130	BRACKET - FENDER MOUNTING	ASU780130 BRACKET - FENDER MOUNTING LH / From: AA000001	-	1	Enquire
17B968	LR013181	GRILLE - FENDER - FRONT	LR013181 GRILLE - FENDER - FRONT RH, Titan Silver / From: AA000001 / To: AA524233	-	1	Enquire
17B968	LR013194	GRILLE - FENDER - FRONT	LR013194 GRILLE - FENDER - FRONT 5.0L OHC SGDI NA V8 Petrol - AJ133 / LH, Titan Silver / From: AA000001 / To: AA524233	-	1	Enquire
17B968	LR013193	SCREEN ASSY	LR013193 SCREEN ASSY Lion Diesel 2.7 V6 (140KW) / LH, Titan Silver / From: AA000001 / To: AA524233	-	1	Enquire
17B968	LR020785	GRILLE - AIR INLET	LR020785 GRILLE - AIR INLET RH, Titan Silver / From: AA524234 / To: BA567174	-	1	Enquire
17B968	LR020799	GRILLE - FENDER - FRONT	LR020799 GRILLE - FENDER - FRONT 5.0L OHC SGDI NA V8 Petrol - AJ133 / LH, Titan Silver / From: AA524234 / To: BA567174	-	1	Enquire
17B968	LR020800	GRILLE - FENDER - FRONT	LR020800 GRILLE - FENDER - FRONT Lion Diesel 2.7 V6 (140KW) / LH, Titan Silver / From: AA524234 / To: BA567174	-	1	Enquire
17B968	LR024950	GRILLE - FENDER - FRONT	LR024950 GRILLE - FENDER - FRONT RH, Zermatt Silver / From: BA567175 / To: CA610276	-	1	Enquire
17B968	LR024951	GRILLE - FENDER - FRONT	LR024951 GRILLE - FENDER - FRONT 5.0L OHC SGDI NA V8 Petrol - AJ133 / LH, Zermatt Silver / From: BA567175 / To: CA610276	-	1	Enquire
17B968	LR024952	GRILLE - FENDER - FRONT	LR024952 GRILLE - FENDER - FRONT Lion Diesel 2.7 V6 (140KW) / LH, Zermatt Silver / From: BA567175 / To: CA610276	-	1	Enquire
17B968	LR033193	GRILLE - FENDER - FRONT	LR033193 GRILLE - FENDER - FRONT 3.0L 24V V6 Turbo Diesel Std Flow / RH, Rhodium/Indus Silver / From: CA610277 / To: DA999999	-	1	Enquire
17B968	LR033196	GRILLE - FENDER - FRONT	LR033196 GRILLE - FENDER - FRONT 5.0L OHC SGDI NA V8 Petrol - AJ133 / LH, Rhodium/Indus Silver / From: CA610277 / To: DA999999	-	1	Enquire
17B968	LR033198	GRILLE - FENDER - FRONT	LR033198 GRILLE - FENDER - FRONT 3.0L 24V V6 Turbo Diesel Std Flow / LH, Rhodium/Indus Silver / From: CA610277 / To: DA999999	-	1	Enquire
17B968	LR041346	GRILLE - FENDER - FRONT	LR041346 GRILLE - FENDER - FRONT Frt Fender Gill-Gloss Black / RH / From: DA000001 / To: DA999999	-	1	Enquire
17B968	LR041347	GRILLE - FENDER - FRONT	LR041347 GRILLE - FENDER - FRONT 5.0L OHC SGDI NA V8 Petrol - AJ133, Frt Fender Gill-Gloss Black / LH / From: DA000001 / To: DA999999	-	1	Enquire
17B968	LR041348	GRILLE - FENDER - FRONT	LR041348 GRILLE - FENDER - FRONT 3.0L 24V DOHC V6 TC Diesel, Frt Fender Gill-Gloss Black / LH / From: DA000001 / To: DA999999	-	1	Enquire
17B968	LR052698	GRILLE - FENDER - FRONT	LR052698 GRILLE - FENDER - FRONT 3.0L 24V V6 Turbo Diesel Std Flow, With Brunel Grille / LH / From: EA000001	-	1	Enquire
17B968	LR052699	GRILLE - FENDER - FRONT	LR052699 GRILLE - FENDER - FRONT 3.0L 24V DOHC V6 TC Diesel, Grille - Atlas / LH / From: EA000001	-	1	Enquire
17B968	LR052700	GRILLE - FENDER - FRONT	LR052700 GRILLE - FENDER - FRONT 3.0L 24V V6 Turbo Diesel Std Flow, With Black Gloss Grille / LH / From: EA000001	-	1	Enquire
17B968	LR051290	GRILLE - AIR INLET	LR051290 GRILLE - AIR INLET 3.0L 24V V6 Turbo Diesel Std Flow, With Brunel Grille / RH / From: EA000001	-	1	Enquire
17B968	LR051291	GRILLE - AIR INLET	LR051291 GRILLE - AIR INLET 3.0L 24V DOHC V6 TC Diesel, Grille - Atlas / RH / From: EA000001	-	1	Enquire
17B968	LR051292	GRILLE - AIR INLET	LR051292 GRILLE - AIR INLET 3.0L 24V V6 Turbo Diesel Std Flow, With Black Gloss Grille / RH / From: EA000001	-	1	Enquire
17B968	LR051295	GRILLE - AIR INLET	LR051295 GRILLE - AIR INLET 3.0L DOHC GDI SC V6 PETROL, With Brunel Grille / LH / From: EA000001	-	1	Enquire
17B968	LR051296	GRILLE - AIR INLET	LR051296 GRILLE - AIR INLET 3.0L DOHC GDI SC V6 PETROL, Grille - Atlas / LH / From: EA000001	-	1	Enquire
17B968	LR051297	GRILLE - AIR INLET	LR051297 GRILLE - AIR INLET 3.0L DOHC GDI SC V6 PETROL, With Black Gloss Grille / LH / From: EA000001	-	1	Enquire
17B968	LR069257	GRILLE - AIR INLET	LR069257 GRILLE - AIR INLET 3.0L DOHC GDI SC V6 PETROL, Grille - Dark Atlas / LH / From: GA000001	-	1	Enquire
17B968	LR069255	GRILLE - AIR INLET	LR069255 GRILLE - AIR INLET 3.0L DOHC GDI SC V6 PETROL, Grille - Dark Atlas / RH / From: GA000001	-	1	Enquire
17B968	LR069259	GRILLE - FENDER - FRONT	LR069259 GRILLE - FENDER - FRONT 3.0 V6 D Gen2 Twin Turbo, Grille - Dark Atlas / LH / From: GA000001	-	1	Enquire
16005	LR013931	FENDER - FRONT	LR013931 FENDER - FRONT RH / From: AA000001 / To: EA690152	-	1	Enquire
16005	LR013932	FENDER - FRONT	LR013932 FENDER - FRONT LH / From: AA000001 / To: EA690152	-	1	Enquire
16005	LR056239	FENDER - FRONT	LR056239 FENDER - FRONT RH / From: EA690153	-	1	Enquire
16005	LR056240	FENDER - FRONT	LR056240 FENDER - FRONT LH / From: EA690153	-	1	Enquire
