Air Deflectors ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Air Deflectors ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RZM500080 PIN - FASTENING Enquire To Order
Photo Part No Description Price (each) Stock
DYP101611 SCREW Enquire To Order
LR112445 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WJ105004 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR013049 DEFLECTOR - AIR Enquire To Order
LR013048 DEFLECTOR - AIR Enquire To Order
LR013050 DEFLECTOR - AIR Enquire To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR013543 DEFLECTOR - AIR Enquire To Order
DHN000094 DEFLECTOR - AIR Enquire To Order
DHN500013 DEFLECTOR - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR013042 DEFLECTOR - AIR Enquire To Order
LR013043 DEFLECTOR - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR062475 BRACKET - SENSOR MOUNTING Enquire To Order
View All

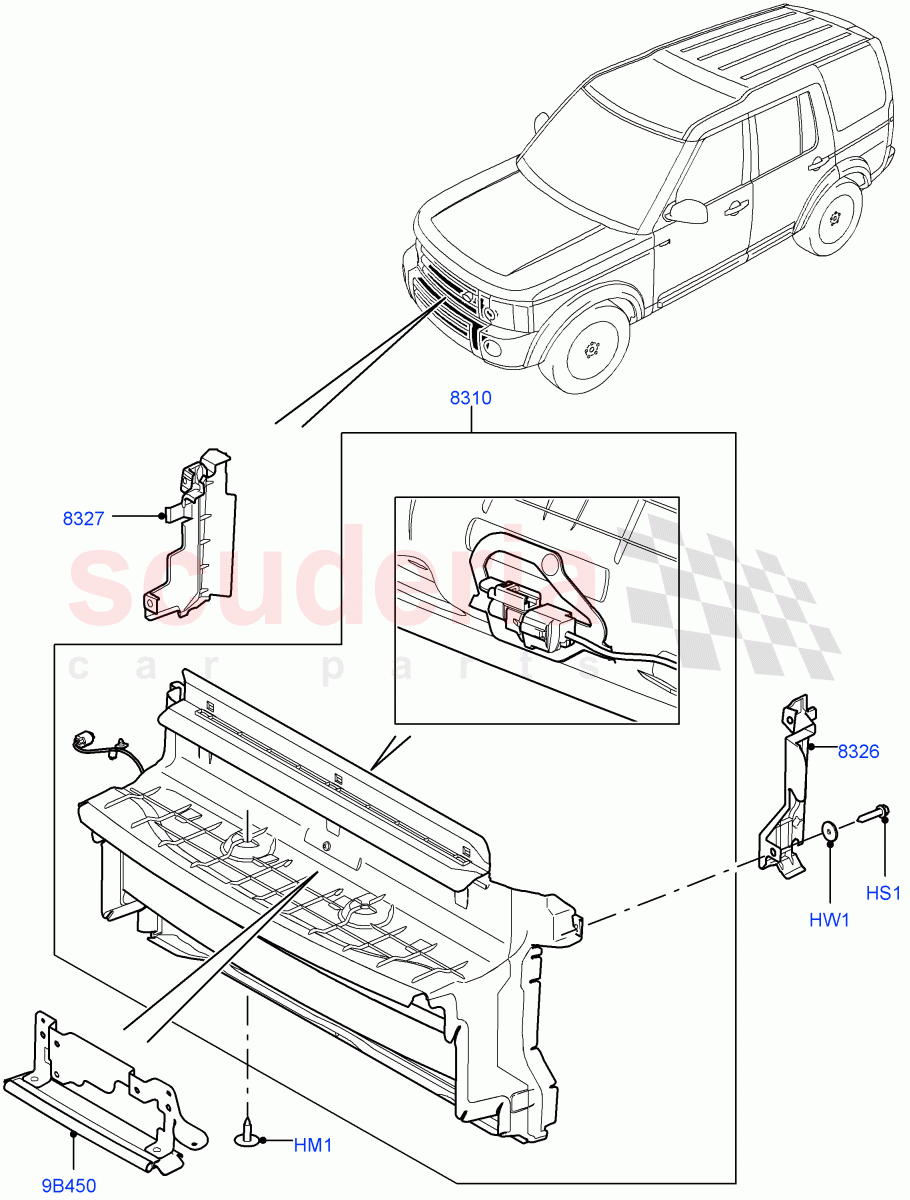

Air Deflectors ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HM1 RZM500080
PIN - FASTENING
6.35 X 28.5MM, Centre Front, Deflector Assy / From: AA000001 		- 2 Enquire
HS1 DYP101611
SCREW
Centre Front, Deflector Assy, M5 / From: AA000001 / To: CA999999 		- 2 Enquire
HS1 LR112445
SCREW
Centre Front, Deflector Assy, M5 / From: DA000001 		- 2 Enquire
HW1 WJ105004
WASHER
Centre Front, Deflector Assy, M5, Plain / From: AA000001 		- 2 Enquire
9B450 LR062475
BRACKET - SENSOR MOUNTING
With Adaptive Speed Control / Centre Front / From: FA000001 / To: GA999999 		- 1 Enquire
8310 LR013049
DEFLECTOR - AIR
Lion Diesel 2.7 V6 (140KW) / Centre Front, Contains Ambient Air Temperature Sensor / From: AA000001 / To: AA551483 		- 1 Enquire
8310 LR013048
DEFLECTOR - AIR
Cologne V6 4.0 EFI (SOHC) / Centre Front, Contains Ambient Air Temperature Sensor / From: AA000001 / To: AA551483 		- 1 Enquire
8310 LR013050
DEFLECTOR - AIR
5.0L OHC SGDI NA V8 Petrol - AJ133 / Centre Front, Contains Ambient Air Temperature Sensor / From: AA000001 / To: AA551483 		- 1 Enquire
8310 LR024162
DEFLECTOR- AIR
3.0 V6 Diesel / Centre Front, Contains Ambient Air Temperature Sensor / From: AA551484 / To: DA614120 		- 1 Enquire
8310 LR024163
DEFLECTOR - AIR
Lion Diesel 2.7 V6 (140KW) / Centre Front, Contains Ambient Air Temperature Sensor / From: AA551484 / To: DA667153 		- 1 Enquire
8310 LR024164
DEFLECTOR - AIR
Cologne V6 4.0 EFI (SOHC) / Centre Front, Contains Ambient Air Temperature Sensor / From: AA551484 / To: BA596891 		- 1 Enquire
8310 LR055300
DEFLECTOR - AIR
3.0 V6 Diesel / Centre Front, Contains Ambient Air Temperature Sensor / From: DA614121 / To: EA999999 		- 1 Enquire
8310 LR055300
DEFLECTOR - AIR
With Manual Speed Control / Centre Front, Contains Ambient Air Temperature Sensor / From: EA000001 		- 1 Enquire
8310 LR062461
DEFLECTOR - AIR
With Adaptive Speed Control / Centre Front, Contains Ambient Air Temperature Sensor / From: FA000001 		- 1 Enquire
8326 LR013543
DEFLECTOR - AIR
3.0 V6 Diesel / LH / From: AA000001 		- 1 Enquire
8326 DHN000094
DEFLECTOR - AIR
Lion Diesel 2.7 V6 (140KW) / LH / From: AA000001 		- 1 Enquire
8326 DHN500013
DEFLECTOR - AIR
3.0L DOHC GDI SC V6 PETROL / LH / From: EA000001 		- 1 Enquire
8327 LR013042
DEFLECTOR - AIR
3.0 V6 D Gen2 Twin Turbo / RH / From: AA000001 		- 1 Enquire
8327 LR013043
DEFLECTOR - AIR
Lion Diesel 2.7 V6 (140KW) / RH / From: AA000001 		- 1 Enquire
