Side Panels - Inner (Front) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Side Panels - Inner (Front) ((V) FROMAA000001)

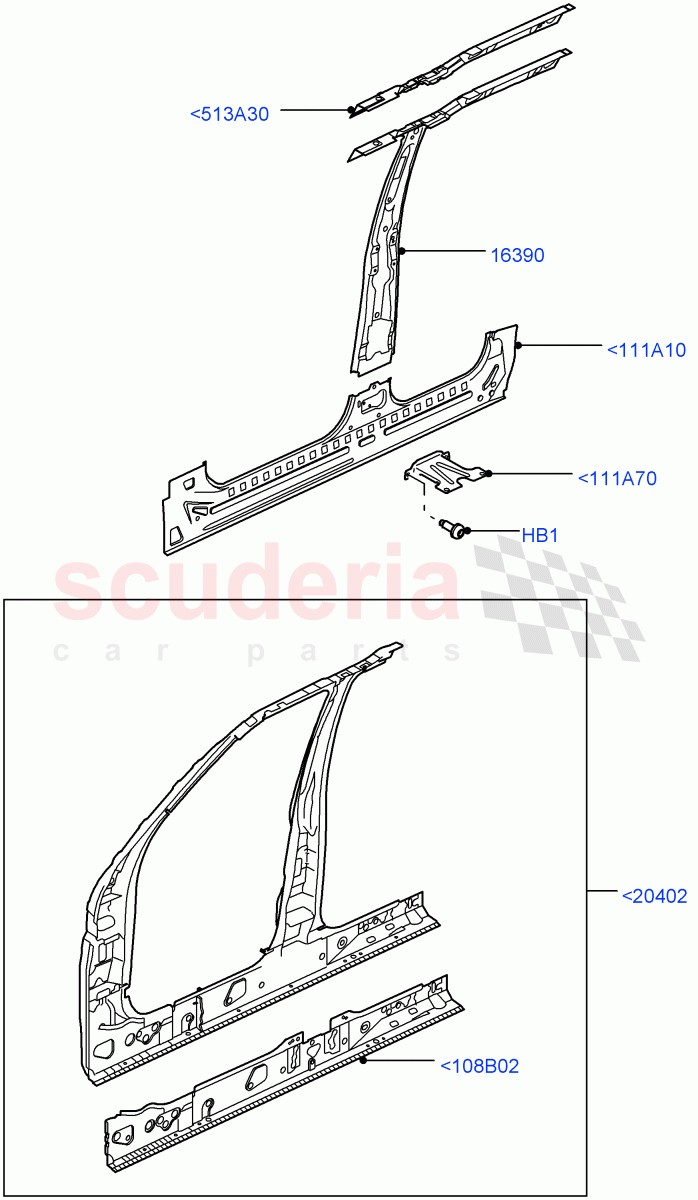

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BTR2710	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AME780280	REINFORCEMENT - "B" PILLAR	Enquire	To Order
	AME780290	REINFORCEMENT - "B" PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ALR780600	REINFORCEMENT - BODY SIDE CENTRE	Enquire	To Order
	ALR780610	REINFORCEMENT - DOOR ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ALR780560	REINFORCEMENT	Enquire	To Order
	ALR780570	REINFORCEMENT	Enquire	To Order
	LR061716	REINFORCEMENT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR014284	PANEL - SILL - INNER	Enquire	To Order
	LR014285	PANEL - SILL - INNER	Enquire	To Order
	LR055981	PANEL - SILL - INNER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	ADR780380	REINFORCEMENT - FLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AME780081	RAIL - BODY SIDE - UPPER	Enquire	To Order
	AME780091	RAIL - BODY SIDE - UPPER	Enquire	To Order
	LR031720	RAIL - BODY SIDE - UPPER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<108B02	ALR780560	REINFORCEMENT	ALR780560 REINFORCEMENT RH, Sill / From: AA000001 / To: EA999999	-	1	Enquire
<108B02	ALR780570	REINFORCEMENT	ALR780570 REINFORCEMENT LH, Sill / From: AA000001 / To: EA999999	-	1	Enquire
<108B02	LR061716	REINFORCEMENT	LR061716 REINFORCEMENT RH, Sill / From: FA000001	-	1	Enquire
<108B02	LR061715	REINFORCEMENT	LR061715 REINFORCEMENT LH, "B" Pillar / From: FA000001	-	1	Enquire
<111A10	LR014284	PANEL - SILL - INNER	LR014284 PANEL - SILL - INNER RH / From: AA000001 / To: DA999999	-	1	Enquire
<111A10	LR014285	PANEL - SILL - INNER	LR014285 PANEL - SILL - INNER LH / From: AA000001 / To: DA999999	-	1	Enquire
<111A10	LR055981	PANEL - SILL - INNER	LR055981 PANEL - SILL - INNER RH / From: EA000001	-	1	Enquire
<111A10	LR055982	PANEL - SILL - INNER	LR055982 PANEL - SILL - INNER LH / From: EA000001	-	1	Enquire
<111A70	ADR780380	REINFORCEMENT - FLOOR	ADR780380 REINFORCEMENT - FLOOR "B" Pillar, Located On Floor / From: AA000001	-	2	Enquire
<513A30	AME780081	RAIL - BODY SIDE - UPPER	AME780081 RAIL - BODY SIDE - UPPER RH / From: AA000001 / To: BA581534	-	1	Enquire
<513A30	AME780091	RAIL - BODY SIDE - UPPER	AME780091 RAIL - BODY SIDE - UPPER LH / From: AA000001 / To: BA581534	-	1	Enquire
<513A30	LR031720	RAIL - BODY SIDE - UPPER	LR031720 RAIL - BODY SIDE - UPPER RH / From: BA581535	-	1	Enquire
<513A30	LR031721	RAIL - BODY SIDE - UPPER	LR031721 RAIL - BODY SIDE - UPPER LH / From: BA581535	-	1	Enquire
<20402	ALR780600	REINFORCEMENT - BODY SIDE CENTRE	ALR780600 REINFORCEMENT - BODY SIDE CENTRE RH, Ringframe / From: AA000001	-	1	Enquire
<20402	ALR780610	REINFORCEMENT - DOOR ASSY	ALR780610 REINFORCEMENT - DOOR ASSY LH, Ringframe / From: AA000001	-	1	Enquire
HB1	BTR2710	BOLT	BTR2710 BOLT M10 X 1.5, Torx / From: AA000001	-	3	Enquire
16390	AME780280	REINFORCEMENT - "B" PILLAR	AME780280 REINFORCEMENT - "B" PILLAR RH, "B" Pillar / From: AA000001	-	1	Enquire
16390	AME780290	REINFORCEMENT - "B" PILLAR	AME780290 REINFORCEMENT - "B" PILLAR LH, "B" Pillar / From: AA000001	-	1	Enquire
