Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Plugs - Floor Pan ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
DJP5794 PLUG - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
DJP5792 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
AYB000060 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
LR014316 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
ALR2246 PLUG - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
LR014317 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
AYB500040 PLUG - BODY SEALING Enquire To Order
Photo Part No Description Price (each) Stock
HYB500010PMA PLUG - THREADED Enquire To Order
HYB500010PMA PLUG - THREADED Enquire To Order
Photo Part No Description Price (each) Stock
AYB500050 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
ALR2245 PLUG Enquire To Order
ALR2245 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
AVL500040 PLUG Enquire To Order
View All

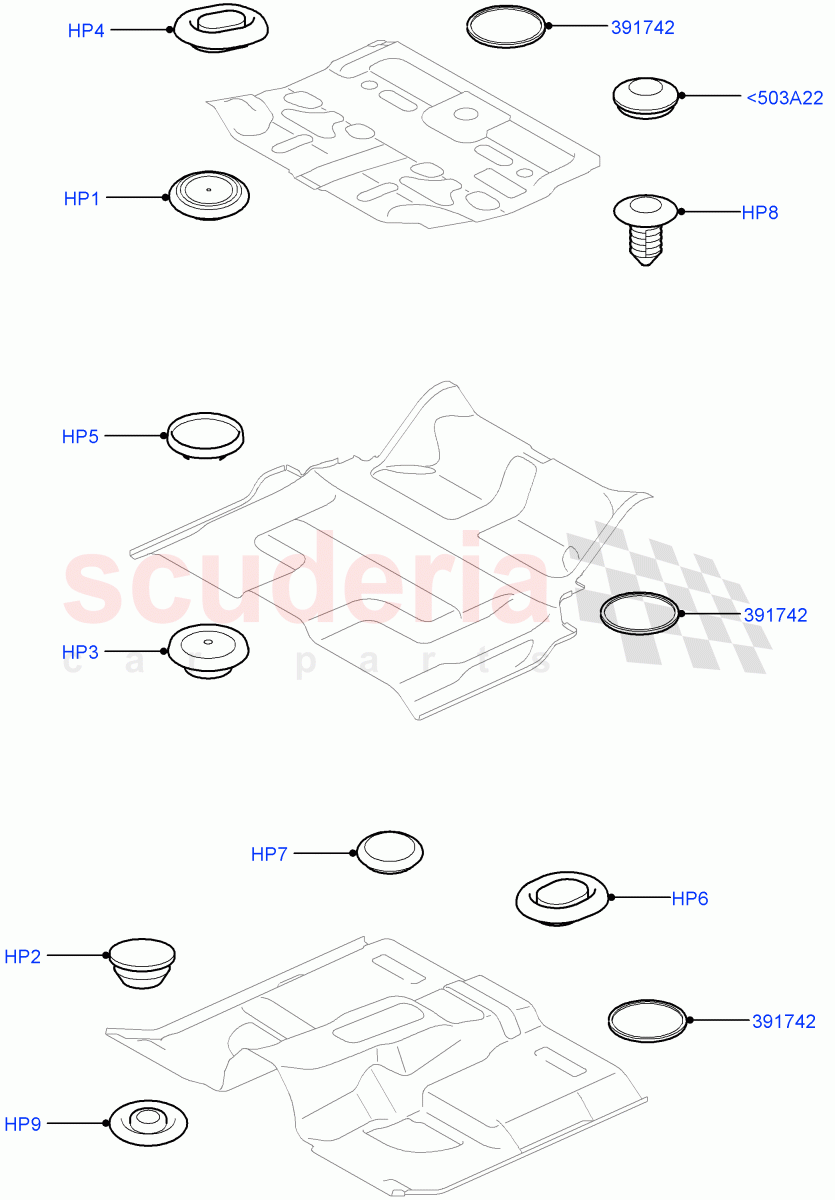

Plugs - Floor Pan ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<503A22 AVL500040
PLUG
(+)"CDN/MEX/USA" / Cable Cover, 		- 1 Enquire
HP1 DJP5794
PLUG - BLANKING
18MM, Luggage Compartment Floor, Side / From: AA000001 		- 2 Enquire
HP2 DJP5792
PLUG
12MM, Main Floor / From: AA000001 		- 2 Enquire
HP3 AYB000060
PLUG
20MM, Mid Floor / From: AA000001 		- 2 Enquire
HP4 LR014316
PLUG
18MM x 24MM, Luggage Compartment Floor, Side / From: AA000001 		- 2 Enquire
HP5 ALR2246
PLUG - BLANKING
25.4MM, Mid Floor / From: AA000001 		- 2 Enquire
HP6 LR014317
PLUG
25 X 30MM, Main Floor / From: AA000001 		- 2 Enquire
HP7 AYB500040
PLUG - BODY SEALING
33MM, Main Floor / From: AA000001 		- 1 Enquire
HP8 HYB500010PMA
PLUG - THREADED
With 7 Seat Configuration / 		- 2 Enquire
HP8 HYB500010PMA
PLUG - THREADED
With 5 Seat Configuration / 		- 16 Enquire
HP9 AYB500050
PLUG
25MM, Main Floor / From: AA000001 		- 3 Enquire
391742 ALR2245
PLUG
50MM, Luggage Compartment Floor / From: AA000001 		- 2 Enquire
391742 ALR2245
PLUG
50MM, Main Floor / From: AA000001 		- 3 Enquire
