Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Radiator Grille And Front Bumper ((V) FROMAA000001)

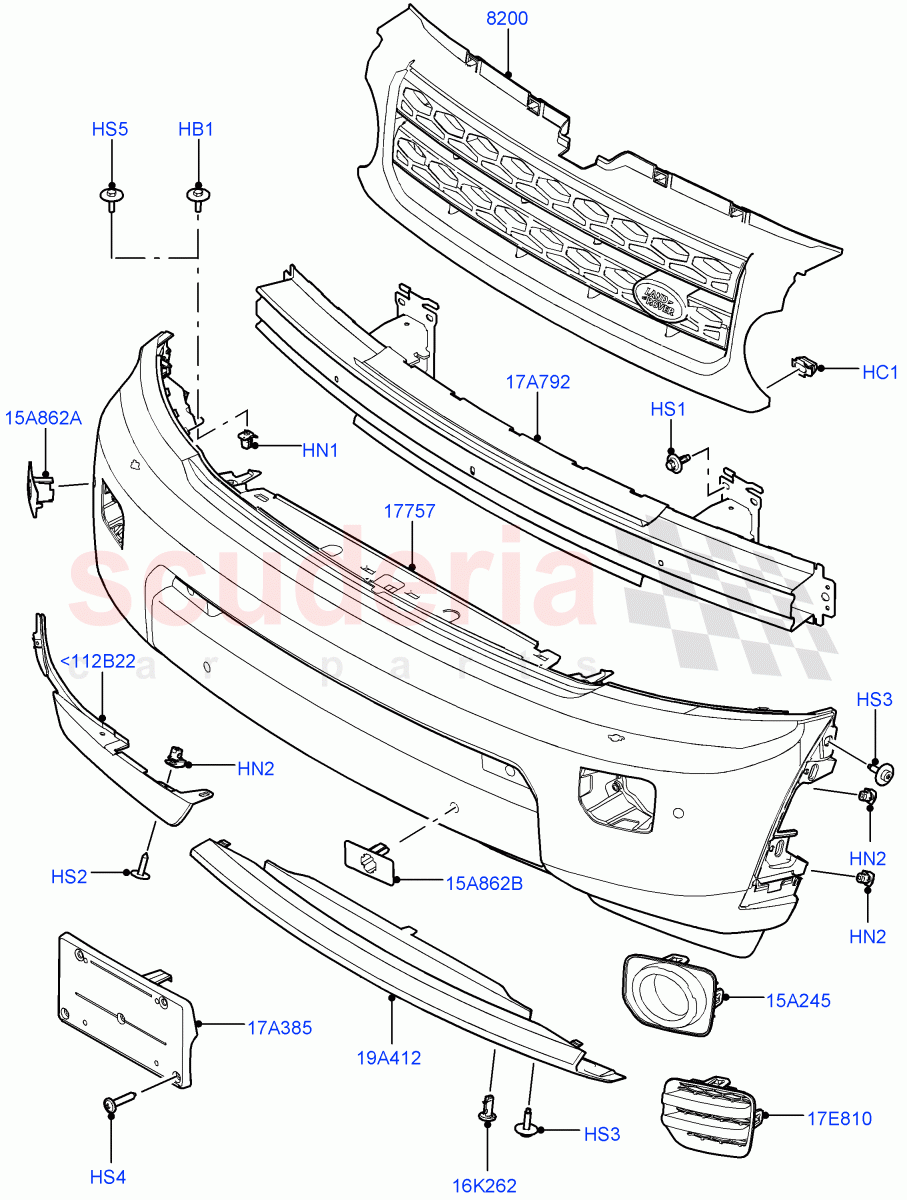

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DYP500080	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018173	CLIP - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYH500131	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYH500110	NUT	Enquire	To Order
	DYH500110	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	UYP500050	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106494	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500010	SCREW AND WASHER	Enquire	To Order
	AYP500010	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYP000040	SCREW	Enquire	To Order
	DYP000040	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033052	SCREW AND WASHER - SELF-TAPPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015446	GRILLE - CENTRE	Enquire	To Order
	LR020942	GRILLE - CENTRE	Enquire	To Order
	LR024301	GRILLE - CENTRE	Enquire	To Order

...and 12 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013894	BUMPER - FRONT	Enquire	To Order
	LR013895	BUMPER - FRONT	Enquire	To Order
	LR013896	BUMPER - FRONT	Enquire	To Order

...and 14 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR015461	BEZEL	Enquire	To Order
	LR015462	BEZEL	Enquire	To Order
	LR051335	BEZEL - LAMP	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR012844	CLIP - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013929	BRACKET - LICENSE PLATE	Enquire	To Order
	LR013928	BRACKET - LICENSE PLATE	Enquire	To Order
	LR013927	BRACKET - LICENSE PLATE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013926	REINFORCEMENT - FRONT BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051332	COVER - FOG LAMP PROTECTING	Enquire	To Order
	LR051333	COVER - FOG LAMP PROTECTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014045	COVER - TOWING HOOK	Enquire	To Order
	LR051329	COVER - TOWING HOOK	Enquire	To Order
	LR051330	COVER - TOWING HOOK	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR014318	DEFLECTOR - AIR	Enquire	To Order
	LR014319	DEFLECTOR - AIR	Enquire	To Order
	LR051327	DEFLECTOR - AIR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR015239	RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015238	RETAINER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<112B22	LR014318	DEFLECTOR - AIR	LR014318 DEFLECTOR - AIR RH / From: AA000001 / To: DA999999	-	1	Enquire
<112B22	LR014319	DEFLECTOR - AIR	LR014319 DEFLECTOR - AIR LH / From: AA000001 / To: DA999999	-	1	Enquire
<112B22	LR051327	DEFLECTOR - AIR	LR051327 DEFLECTOR - AIR RH / From: EA000001	-	1	Enquire
<112B22	LR051328	DEFLECTOR - AIR	LR051328 DEFLECTOR - AIR LH / From: EA000001	-	1	Enquire
HB1	DYP500080	BOLT	DYP500080 BOLT M5 x 20MM, Upper Bumper Fixing / From: AA000001 / To: FA999999	-	6	Enquire
HC1	LR018173	CLIP - RETAINING	LR018173 CLIP - RETAINING Front Grille / From: AA000001	-	2	Enquire
HN1	DYH500131	NUT	DYH500131 NUT Upper Bumper Fixing / From: AA000001	-	6	Enquire
HN2	DYH500110	NUT	DYH500110 NUT 7mm Diameter Holes, Deflector Assy, Plastic / From: AA000001	-	8	Enquire
HN2	DYH500110	NUT	DYH500110 NUT 7mm Diameter Holes, Bumper, Plastic / From: AA000001	-	4	Enquire
HS1	UYP500050	SCREW AND WASHER	UYP500050 SCREW AND WASHER M8 X 33MM, Reinforcement / From: AA000001	-	8	Enquire
HS2	LR106494	SCREW	LR106494 SCREW Deflector Assy, M5 x 20MM, Self Tapping / From: AA000001	-	8	Enquire
HS3	AYP500010	SCREW AND WASHER	AYP500010 SCREW AND WASHER Cover, M6 X 20MM / From: AA000001	-	4	Enquire
HS3	AYP500010	SCREW AND WASHER	AYP500010 SCREW AND WASHER Bumper, M6 X 20MM / From: AA000001	-	2	Enquire
HS4	DYP000040	SCREW	DYP000040 SCREW (-)"J" / M5, With Plinth - Licence Plate / From: AA000001	-	4	Enquire
HS4	DYP000040	SCREW	DYP000040 SCREW Fr Number Plate Plinth - NAS/Japan / M5, With Plinth - Licence Plate / From: AA000001	-	3	Enquire
HS5	LR033052	SCREW AND WASHER - SELF-TAPPING	LR033052 SCREW AND WASHER - SELF-TAPPING 5 x 20MM, Upper Bumper Fixing / From: GA000001	-	8	Enquire
15A245	LR015461	BEZEL	LR015461 BEZEL With Front Fog Lamps / LH, Primed / From: AA000001 / To: DA999999	-	1	Enquire
15A245	LR015462	BEZEL	LR015462 BEZEL With Front Fog Lamps / RH, Primed / From: AA000001 / To: DA999999	-	1	Enquire
15A245	LR051335	BEZEL - LAMP	LR051335 BEZEL - LAMP Fog Lamp Bezel - Atlas Blade, With Front Fog Lamps / LH / From: EA000001	-	1	Enquire
15A245	LR051336	BEZEL - LAMP	LR051336 BEZEL - LAMP With Black Fog Lamp Bezel, With Front Fog Lamps / LH / From: EA000001	-	1	Enquire
15A245	LR051337	BEZEL - FOG LAMP	LR051337 BEZEL - FOG LAMP Fog Lamp Bezel - Atlas Blade, With Front Fog Lamps / RH / From: EA000001	-	1	Enquire
15A245	LR051338	BEZEL - FOG LAMP	LR051338 BEZEL - FOG LAMP With Black Fog Lamp Bezel, With Front Fog Lamps / RH / From: EA000001	-	1	Enquire
15A862A	LR015239	RETAINER	LR015239 RETAINER With Front Parking Aid / RH/LH / From: AA000001	-	2	Enquire
15A862B	LR015238	RETAINER	LR015238 RETAINER With Front Parking Aid / Centre / From: AA000001	-	2	Enquire
16K262	LR012844	CLIP - RETAINING	LR012844 CLIP - RETAINING 1/4 Turn Click Type / From: AA000001	-	4	Enquire
17A385	LR013929	BRACKET - LICENSE PLATE	LR013929 BRACKET - LICENSE PLATE Front Number Plate Plinth NAS / From: AA000001 / To: GA793800	-	1	Enquire
17A385	LR013928	BRACKET - LICENSE PLATE	LR013928 BRACKET - LICENSE PLATE Front Number Plate Plinth - Japan / From: AA000001	-	1	Enquire
17A385	LR013927	BRACKET - LICENSE PLATE	LR013927 BRACKET - LICENSE PLATE (-)"J" / With Plinth - Licence Plate / From: AA000001	-	1	Enquire
17A385	LR048596	BRACKET - LICENSE PLATE	LR048596 BRACKET - LICENSE PLATE Front Number Plate Plinth-China / From: DA660952	-	1	Enquire
17A385	LR079936	BRACKET - LICENSE PLATE	LR079936 BRACKET - LICENSE PLATE Front Number Plate Plinth NAS / From: GA793801	-	1	Enquire
17A792	LR013926	REINFORCEMENT - FRONT BUMPER	LR013926 REINFORCEMENT - FRONT BUMPER Bumper / From: AA000001	-	1	Enquire
17E810	LR051332	COVER - FOG LAMP PROTECTING	LR051332 COVER - FOG LAMP PROTECTING Less Front Fog Lamps / RH / From: EA000001	-	1	Enquire
17E810	LR051333	COVER - FOG LAMP PROTECTING	LR051333 COVER - FOG LAMP PROTECTING Less Front Fog Lamps / LH / From: EA000001	-	1	Enquire
19A412	LR014045	COVER - TOWING HOOK	LR014045 COVER - TOWING HOOK Bumper / From: AA000001 / To: DA999999	-	1	Enquire
19A412	LR051329	COVER - TOWING HOOK	LR051329 COVER - TOWING HOOK Tow Eye Cover - Dark Techno Silver / From: EA000001 / To: GA799412	-	1	Enquire
19A412	LR051330	COVER - TOWING HOOK	LR051330 COVER - TOWING HOOK Tow Eye Cover - White Techno Silver / From: EA000001 / To: GA799412	-	1	Enquire
19A412	LR051331	COVER - TOWING HOOK	LR051331 COVER - TOWING HOOK Tow Eye Cover - Anthracite / From: EA000001 / To: GA799412	-	1	Enquire
19A412	LR084190	COVER - TOWING HOOK	LR084190 COVER - TOWING HOOK Tow Eye Cover - Dark Techno Silver / From: GA799413	-	1	Enquire
19A412	LR084189	COVER - TOWING HOOK	LR084189 COVER - TOWING HOOK Tow Eye Cover - White Techno Silver / From: GA799413	-	1	Enquire
19A412	LR084187	COVER - TOWING HOOK	LR084187 COVER - TOWING HOOK Tow Eye Cover - Anthracite / From: GA799413	-	1	Enquire
8200	LR015446	GRILLE - CENTRE	LR015446 GRILLE - CENTRE Primed / From: AA000001 / To: AA524233	-	1	Enquire
8200	LR020942	GRILLE - CENTRE	LR020942 GRILLE - CENTRE Primed / From: AA524234 / To: AA547142	-	1	Enquire
8200	LR024301	GRILLE - CENTRE	LR024301 GRILLE - CENTRE Primed / From: AA547143 / To: BA551563	-	1	Enquire
8200	LR023458	GRILLE - CENTRE	LR023458 GRILLE - CENTRE Primed / From: BA551564 / To: BA567776	-	1	Enquire
8200	LR030348	GRILLE - CENTRE	LR030348 GRILLE - CENTRE Primed / From: BA567777 / To: CA610290	-	1	Enquire
8200	LR032284	GRILLE - CENTRE	LR032284 GRILLE - CENTRE Sumatra Black (797), With Black Gloss Grille / From: BA000001 / To: BA590500	-	1	Enquire
8200	LR032848	GRILLE - CENTRE	LR032848 GRILLE - CENTRE Sumatra Black (797), With Black Gloss Grille / From: BA590501 / To: BA999999	-	1	Enquire
8200	LR033445	GRILLE - CENTRE	LR033445 GRILLE - CENTRE With Painted Body Colour Grille / Primed / From: CA610291 / To: DA999999	-	1	Enquire
8200	LR043292	GRILLE - RADIATOR	LR043292 GRILLE - RADIATOR With Black Gloss Grille / From: DA000001 / To: DA999999	-	1	Enquire
8200	LR048610	GRILLE - RADIATOR	LR048610 GRILLE - RADIATOR 3.0 V6 Diesel, With Black Gloss Grille / For Cold Climates Only / From: AA000001 / To: DA999999	-	1	Enquire
8200	LR051298	GRILLE - CENTRE	LR051298 GRILLE - CENTRE With Brunel Grille / From: EA000001	-	1	Enquire
8200	LR051299	GRILLE - CENTRE	LR051299 GRILLE - CENTRE Grille - Atlas / From: EA000001	-	1	Enquire
8200	LR051300	GRILLE - CENTRE	LR051300 GRILLE - CENTRE With Black Gloss Grille / From: EA000001	-	1	Enquire
8200	LR069599	GRILLE - RADIATOR	LR069599 GRILLE - RADIATOR 3.0 V6 Diesel / For Cold Climates Only / From: EA000001	-	1	Enquire
8200	LR057534	GRILLE - CENTRE	LR057534 GRILLE - CENTRE Grille - Dark Atlas / From: FA000001	-	1	Enquire
17757	LR013894	BUMPER - FRONT	LR013894 BUMPER - FRONT Less Camera System, Less Front Fog Lamps, Less Front Parking Aid, Less Headlamp Washer / Less Camera, Primed / From: AA000001 / To: DA999999	-	1	Enquire
17757	LR013895	BUMPER - FRONT	LR013895 BUMPER - FRONT Less Camera System, Less Front Parking Aid, With Front Fog Lamps, With Headlamp Power Wash / Less Camera, Primed / From: AA000001 / To: DA999999	-	1	Enquire
17757	LR013896	BUMPER - FRONT	LR013896 BUMPER - FRONT Less Camera System, With Front Fog Lamps, With Front Parking Aid, With Headlamp Power Wash / Less Camera, Primed / From: AA000001 / To: DA999999	-	1	Enquire
17757	LR013897	BUMPER - FRONT	LR013897 BUMPER - FRONT Less Front Fog Lamps, Less Front Parking Aid, Less Headlamp Washer, Surround Camera System / 2 Holes, Primed, With Camera / From: AA000001 / To: DA999999	-	1	Enquire
17757	LR013898	BUMPER - FRONT	LR013898 BUMPER - FRONT Less Front Parking Aid, Surround Camera System, With Front Fog Lamps, With Headlamp Power Wash / 2 Holes, Primed, With Camera / From: AA000001 / To: DA999999	-	1	Enquire
17757	LR013899	BUMPER - FRONT	LR013899 BUMPER - FRONT Surround Camera System, With Front Fog Lamps, With Front Parking Aid, With Headlamp Power Wash / 2 Holes, Primed, With Camera / From: AA000001 / To: DA999999	-	1	Enquire
17757	LR058012	BUMPER - FRONT	LR058012 BUMPER - FRONT Less Camera System, Less Front Fog Lamps, Less Front Parking Aid, Less Headlamp Washer / Primed / From: EA000001 / To: EA999999	-	1	Enquire
17757	LR058013	BUMPER - FRONT	LR058013 BUMPER - FRONT Less Camera System, Less Front Parking Aid, With Front Fog Lamps, With Headlamp Power Wash / Primed / From: EA704205 / To: EA999999	-	1	Enquire
17757	LR058014	BUMPER - FRONT	LR058014 BUMPER - FRONT Less Camera System, With Front Fog Lamps, With Front Parking Aid, With Headlamp Power Wash / Primed / From: EA000001 / To: EA999999	-	1	Enquire
17757	LR058015	BUMPER - FRONT	LR058015 BUMPER - FRONT Less Front Parking Aid, Surround Camera System, With Front Fog Lamps, With Headlamp Power Wash / Primed / From: EA000001 / To: EA999999	-	1	Enquire
17757	LR058016	BUMPER - FRONT	LR058016 BUMPER - FRONT Surround Camera System, With Front Fog Lamps, With Front Parking Aid, With Headlamp Power Wash / Primed / From: EA000001 / To: EA999999	-	1	Enquire
17757	LR051323	BUMPER - FRONT	LR051323 BUMPER - FRONT Less Front Parking Aid, Rear View Camera-Fixed, With Front Fog Lamps, With Headlamp Power Wash / Primed / From: EA000001 / To: EA704204	-	1	Enquire
17757	LR064189	BUMPER - FRONT	LR064189 BUMPER - FRONT Less Camera System, Less Front Fog Lamps, Less Front Parking Aid, Less Headlamp Washer / Primed / From: FA000001	-	1	Enquire
17757	LR064190	BUMPER - FRONT	LR064190 BUMPER - FRONT Less Camera System, Less Front Parking Aid, With Front Fog Lamps, With Headlamp Power Wash / Primed / From: FA000001	-	1	Enquire
17757	LR064191	BUMPER - FRONT	LR064191 BUMPER - FRONT Rear View Camera-Fixed, With Front Fog Lamps, With Front Parking Aid, With Headlamp Power Wash / Primed / From: FA000001	-	1	Enquire
17757	LR064192	BUMPER - FRONT	LR064192 BUMPER - FRONT Less Front Parking Aid, Surround Camera System, With Front Fog Lamps, With Headlamp Power Wash / Primed / From: FA000001	-	1	Enquire
17757	LR064193	BUMPER - FRONT	LR064193 BUMPER - FRONT Surround Camera System, With Front Fog Lamps, With Front Parking Aid, With Headlamp Power Wash / Primed / From: FA000001	-	1	Enquire
