Partition (Commercial) (With 2 Seat Configuration) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

View All

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Partition (Commercial) (With 2 Seat Configuration) ((V) FROMAA000001)

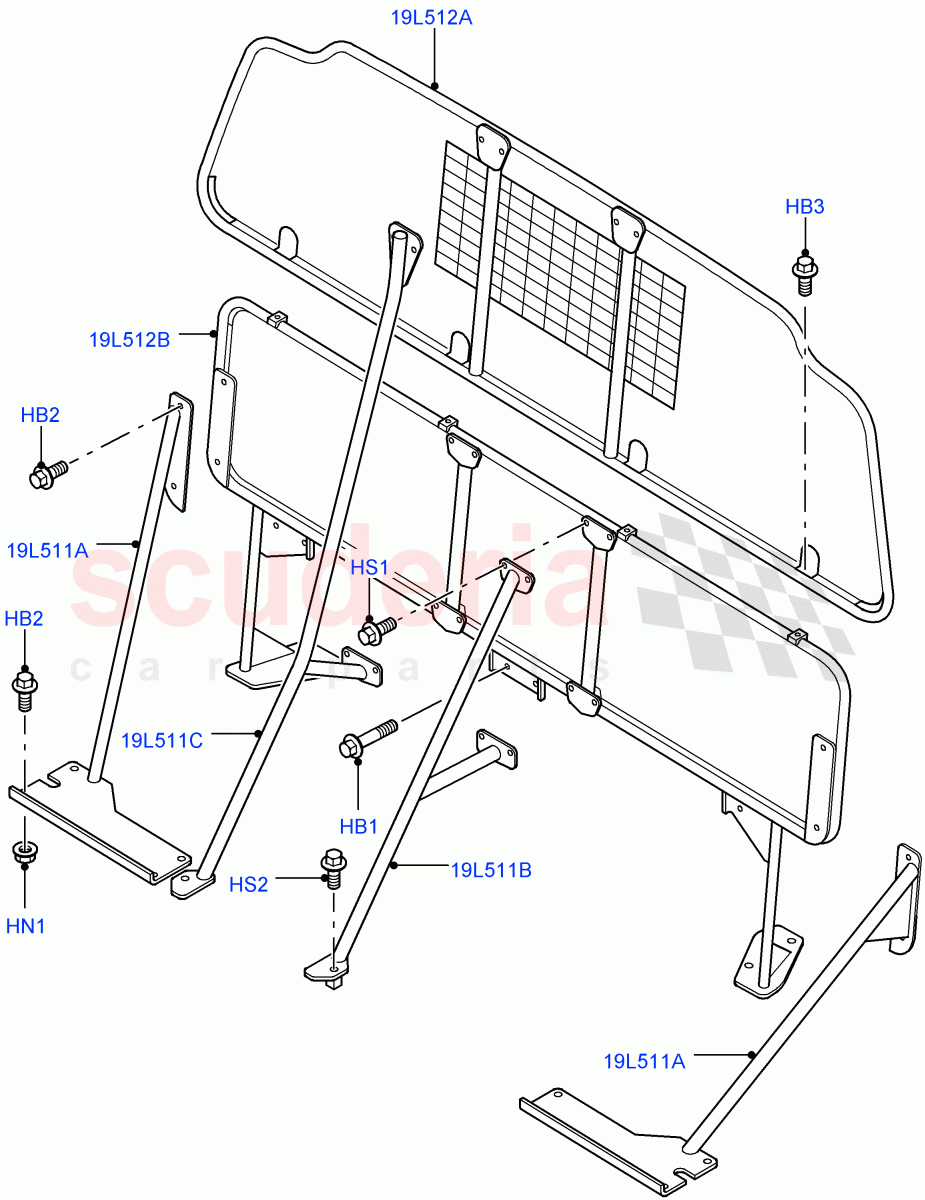

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB108086	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FB106086	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	MRC2178	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FB110096	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR026224	STAY - PARTITION	Enquire	To Order
	LR026225	STAY - PARTITION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006332	STAY - PARTITION	Enquire	To Order
	LR006333	STAY - PARTITION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006336	STAY - PARTITION	Enquire	To Order
	LR006337	STAY - PARTITION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006334	PARTITION - LOADING COMPARTMENT	Enquire	To Order
	LR006335	PARTITION - LOADING COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR026226	PARTITION - LOADING COMPARTMENT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FB108086	BOLT	FB108086 BOLT Hexagonal Head, M8 x 40MM / From: AA000001	-	6	Enquire
HB2	FS108206	BOLT	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: AA000001	-	12	Enquire
HB3	FB106086	BOLT	FB106086 BOLT M6 X 40MM / From: AA000001	-	4	Enquire
HN1	MRC2178	NUT - HEX.	MRC2178 NUT - HEX. M8, Stay / From: AA000001	-	8	Enquire
HS1	FS106166	SCREW	FS106166 SCREW Hexagonal Head, M6 X 16MM / From: AA000001	-	8	Enquire
HS2	FB110096	SCREW	FB110096 SCREW Hexagonal Head, M10 X 45 / From: AA000001	-	2	Enquire
19L511A	LR026224	STAY - PARTITION	LR026224 STAY - PARTITION RH, Lower, Outer / From: AA000001	-	1	Enquire
19L511A	LR026225	STAY - PARTITION	LR026225 STAY - PARTITION LH, Lower, Outer / From: AA000001	-	1	Enquire
19L511B	LR006332	STAY - PARTITION	LR006332 STAY - PARTITION RH, Inner, Lower / From: AA000001	-	1	Enquire
19L511B	LR006333	STAY - PARTITION	LR006333 STAY - PARTITION LH, Inner, Lower / From: AA000001	-	1	Enquire
19L511C	LR006336	STAY - PARTITION	LR006336 STAY - PARTITION RH, Upper / From: AA000001	-	1	Enquire
19L511C	LR006337	STAY - PARTITION	LR006337 STAY - PARTITION LH, Upper / From: AA000001	-	1	Enquire
19L512A	LR006334	PARTITION - LOADING COMPARTMENT	LR006334 PARTITION - LOADING COMPARTMENT Mesh Type, Upper / From: AA000001	-	1	Enquire
19L512A	LR006335	PARTITION - LOADING COMPARTMENT	LR006335 PARTITION - LOADING COMPARTMENT Solid Type, Upper / From: AA000001	-	1	Enquire
19L512B	LR026226	PARTITION - LOADING COMPARTMENT	LR026226 PARTITION - LOADING COMPARTMENT Lower / From: AA000001	-	1	Enquire
