Luggage Compartment Door (Finisher And Seals) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

View All

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Luggage Compartment Door (Finisher And Seals) ((V) FROMAA000001)

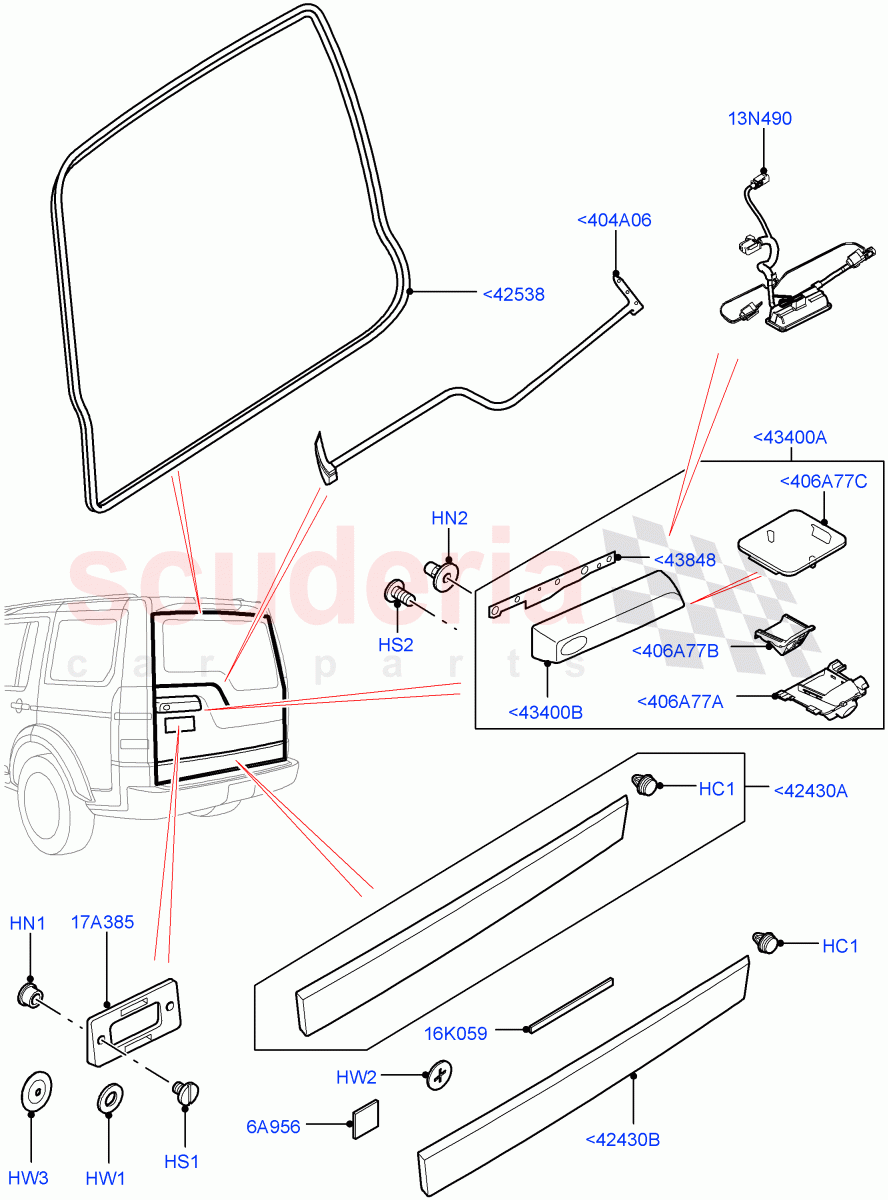

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DYC101420	CLIP - DOOR CLADDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYH000140	NUT - BLIND ANCHOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106047	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYP000120	SCREW - SELF-TAPPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP106392	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYF000070	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYF500330	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002147	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010616	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017173	SEAL - TAILGATE	Enquire	To Order
	LR024949	SEAL - TAILGATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DRK100041	GASKET	Enquire	To Order
	LR077208	GASKET - HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015459	SOCKET AND WIRE - LAMP	Enquire	To Order
	LR043266	SOCKET AND WIRE - LAMP	Enquire	To Order
	LR015458	SOCKET AND WIRE - LAMP	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR010617	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002145	BRACKET - LICENSE PLATE	Enquire	To Order
	LR019326	BRACKET - LICENSE PLATE	Enquire	To Order
	LR019327	BRACKET - LICENSE PLATE	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	CKE500120	WEATHERSTRIP - TAILGATE UPPER	Enquire	To Order
	LR044313	WEATHERSTRIP - TAILGATE UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DGP000184PCL	MOULDING - TAILGATE OUTSIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010640	MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016718	HANDLE - TAILGATE	Enquire	To Order
	LR016719	HANDLE - TAILGATE	Enquire	To Order
	LR016720	HANDLE - TAILGATE	Enquire	To Order

...and 8 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR051406	HANDLE - TAILGATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052249	MOULDING - TAILGATE OUTSIDE	Enquire	To Order
	LR052251	MOULDING - TAILGATE OUTSIDE	Enquire	To Order
	LR077206	MOULDING - TAILGATE OUTSIDE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR052252	MOULDING - TAILGATE OUTSIDE	Enquire	To Order
	LR055959	MOULDING - TAILGATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016354	MOULDING - TAILGATE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<404A06	CKE500120	WEATHERSTRIP - TAILGATE UPPER	CKE500120 WEATHERSTRIP - TAILGATE UPPER Tailgate Waist / From: AA000001 / To: CA626783	-	1	Enquire
<404A06	LR044313	WEATHERSTRIP - TAILGATE UPPER	LR044313 WEATHERSTRIP - TAILGATE UPPER Tailgate Waist / From: CA626784	-	1	Enquire
<406A77A	LR052249	MOULDING - TAILGATE OUTSIDE	LR052249 MOULDING - TAILGATE OUTSIDE Rear View Camera-Fixed / From: EA000001 / To: FA745563	-	1	Enquire
<406A77A	LR052251	MOULDING - TAILGATE OUTSIDE	LR052251 MOULDING - TAILGATE OUTSIDE Surround Camera System / From: EA000001 / To: FA745563	-	1	Enquire
<406A77A	LR077206	MOULDING - TAILGATE OUTSIDE	LR077206 MOULDING - TAILGATE OUTSIDE Rear View Camera-Fixed / From: FA745564	-	1	Enquire
<406A77A	LR077204	MOULDING - TAILGATE OUTSIDE	LR077204 MOULDING - TAILGATE OUTSIDE Surround Camera System / From: FA745564	-	1	Enquire
<406A77B	LR052252	MOULDING - TAILGATE OUTSIDE	LR052252 MOULDING - TAILGATE OUTSIDE Rear View Camera-Fixed / From: EA000001	-	1	Enquire
<406A77B	LR055959	MOULDING - TAILGATE	LR055959 MOULDING - TAILGATE Surround Camera System / From: EA000001	-	1	Enquire
<406A77C	LR016354	MOULDING - TAILGATE	LR016354 MOULDING - TAILGATE Less Camera System / Plug / From: AA000001	-	1	Enquire
<42430A	DGP000184PCL	MOULDING - TAILGATE OUTSIDE	DGP000184PCL MOULDING - TAILGATE OUTSIDE Rear Bumper - Plastic Unpainted / Anthracite, Lower Tailgate / From: AA000001	-	1	Enquire
<42430B	LR010640	MOULDING	LR010640 MOULDING Rr Bumper Plastic Partially Painted / Lower Tailgate, Primed / From: AA000001	-	1	Enquire
<42538	LR017173	SEAL - TAILGATE	LR017173 SEAL - TAILGATE Tailgate Aperture / From: AA000001 / To: AA520260	-	1	Enquire
<42538	LR024949	SEAL - TAILGATE	LR024949 SEAL - TAILGATE Tailgate Aperture / From: AA520261	-	1	Enquire
<43400A	LR016718	HANDLE - TAILGATE	LR016718 HANDLE - TAILGATE Less Camera System / Contains Green Land Rover Badge, Less Microswitch Tailgate Release, Primed / From: AA000001 / To: AA551483	-	1	Enquire
<43400A	LR016719	HANDLE - TAILGATE	LR016719 HANDLE - TAILGATE Rear View Camera-Fixed / Contains Green Land Rover Badge, Less Microswitch Tailgate Release, Primed / From: AA000001 / To: AA551483	-	1	Enquire
<43400A	LR016720	HANDLE - TAILGATE	LR016720 HANDLE - TAILGATE Surround Camera System / Contains Green Land Rover Badge, Less Microswitch Tailgate Release, Primed / From: AA000001 / To: AA551483	-	1	Enquire
<43400A	LR023299	HANDLE - TAILGATE	LR023299 HANDLE - TAILGATE Surround Camera System / Contains Green Land Rover Badge, Less Microswitch Tailgate Release, Primed / From: AA551484 / To: DA999999	-	1	Enquire
<43400A	LR023298	HANDLE - TAILGATE	LR023298 HANDLE - TAILGATE Rear View Camera-Fixed / Contains Green Land Rover Badge, Less Microswitch Tailgate Release, Primed / From: AA551484 / To: DA999999	-	1	Enquire
<43400A	LR023297	HANDLE - TAILGATE	LR023297 HANDLE - TAILGATE Less Camera System / Contains Green Land Rover Badge, Less Microswitch Tailgate Release, Primed / From: AA551484 / To: DA999999	-	1	Enquire
<43400A	LR051403	HANDLE - TAILGATE	LR051403 HANDLE - TAILGATE Less Camera System / Less Microswitch Tailgate Release, Primed / From: EA000001	-	1	Enquire
<43400A	LR051404	HANDLE - TAILGATE	LR051404 HANDLE - TAILGATE Rear View Camera-Fixed / Less Microswitch Tailgate Release, Primed / From: EA000001 / To: FA745563	-	1	Enquire
<43400A	LR051405	HANDLE - TAILGATE	LR051405 HANDLE - TAILGATE Surround Camera System / Less Microswitch Tailgate Release, Primed / From: EA000001 / To: FA745563	-	1	Enquire
<43400A	LR069280	HANDLE - TAILGATE	LR069280 HANDLE - TAILGATE Rear View Camera-Fixed / Less Microswitch Tailgate Release, Primed / From: FA745564	-	1	Enquire
<43400A	LR069282	HANDLE - TAILGATE	LR069282 HANDLE - TAILGATE Surround Camera System / Less Microswitch Tailgate Release, Primed / From: FA745564	-	1	Enquire
<43400B	LR051406	HANDLE - TAILGATE	LR051406 HANDLE - TAILGATE Primed / From: EA000001	-	1	Enquire
<43848	DRK100041	GASKET	DRK100041 GASKET Handle / From: AA000001 / To: FA777392	-	1	Enquire
<43848	LR077208	GASKET - HOUSING	LR077208 GASKET - HOUSING Handle / From: FA777393	-	1	Enquire
HC1	DYC101420	CLIP - DOOR CLADDING	DYC101420 CLIP - DOOR CLADDING Moulding Tailgate / From: AA000001	-	14	Enquire
HN1	DYH000140	NUT - BLIND ANCHOR	DYH000140 NUT - BLIND ANCHOR (+)"CDN/MEX/USA" / For Licence Plate, M5, Plastic / From: AA000001	-	2	Enquire
HN2	FN106047	Nut	FN106047 Nut Handle, M6 / From: AA000001	-	3	Enquire
HS1	DYP000120	SCREW - SELF-TAPPING	DYP000120 SCREW - SELF-TAPPING (-)"Europe" / For License Plate, Self Tapping / From: AA000001	-	2	Enquire
HS2	FYP106392	SCREW	FYP106392 SCREW Handle, M6 / From: AA000001	-	4	Enquire
HW1	DYF000070	WASHER	DYF000070 WASHER (+)"J" / For License Plate / From: AA000001 / To: EA704935	-	2	Enquire
HW2	DYF500330	WASHER	DYF500330 WASHER Foam, Lower Tailgate / From: AA000001	-	3	Enquire
HW3	LR002147	WASHER	LR002147 WASHER (+)"J" / 5.3 X 32, For License Plate / From: EA704936	-	2	Enquire
6A956	LR010616	FOAM PAD - ENERGY ABSORBING	LR010616 FOAM PAD - ENERGY ABSORBING Lower Tailgate / From: AA000001	-	2	Enquire
13N490	LR015459	SOCKET AND WIRE - LAMP	LR015459 SOCKET AND WIRE - LAMP Surround Camera System / For Tailgate, Handle, With Microswitch / From: AA000001 / To: CA634120	-	1	Enquire
13N490	LR043266	SOCKET AND WIRE - LAMP	LR043266 SOCKET AND WIRE - LAMP Surround Camera System / For Tailgate, Handle, With Microswitch / From: CA634121 / To: DA999999	-	1	Enquire
13N490	LR015458	SOCKET AND WIRE - LAMP	LR015458 SOCKET AND WIRE - LAMP Rear View Camera-Fixed / For Tailgate, Handle, With Microswitch / From: AA000001 / To: DA999999	-	1	Enquire
13N490	LR015457	SOCKET AND WIRE - LAMP	LR015457 SOCKET AND WIRE - LAMP Less Camera System / For Tailgate, Handle, With Microswitch / From: AA000001 / To: DA999999	-	1	Enquire
13N490	LR053163	SOCKET AND WIRE - LAMP	LR053163 SOCKET AND WIRE - LAMP Rear View Camera-Fixed / For Tailgate, Handle, With Microswitch / From: EA000001	-	1	Enquire
13N490	LR053164	SOCKET AND WIRE - LAMP	LR053164 SOCKET AND WIRE - LAMP Surround Camera System / For Tailgate, Handle, With Microswitch / From: EA000001	-	1	Enquire
13N490	LR053165	SOCKET AND WIRE - LAMP	LR053165 SOCKET AND WIRE - LAMP Less Camera System / For Tailgate, Handle, With Microswitch / From: EA000001	-	1	Enquire
16K059	LR010617	FOAM PAD - ENERGY ABSORBING	LR010617 FOAM PAD - ENERGY ABSORBING Lower Tailgate / From: AA000001	-	2	Enquire
17A385	LR002145	BRACKET - LICENSE PLATE	LR002145 BRACKET - LICENSE PLATE Rear Number Plate Plinth - Japan / Anthracite / From: AA000001 / To: AA520261	-	1	Enquire
17A385	LR019326	BRACKET - LICENSE PLATE	LR019326 BRACKET - LICENSE PLATE Rr Number Plate Plinth - Australia / Anthracite / From: AA000001 / To: BA582599	-	1	Enquire
17A385	LR019327	BRACKET - LICENSE PLATE	LR019327 BRACKET - LICENSE PLATE Rear Number Plate Plinth - NAS / Anthracite / From: AA000001	-	1	Enquire
17A385	LR021920	BRACKET - LICENSE PLATE	LR021920 BRACKET - LICENSE PLATE Rear Number Plate Plinth - Japan / Anthracite / From: AA520262 / To: EA709939	-	1	Enquire
17A385	LR019328	BRACKET - LICENSE PLATE	LR019328 BRACKET - LICENSE PLATE Rr Number Plate Plinth - Australia / Anthracite / From: BA582600	-	1	Enquire
17A385	LR048409	BRACKET - LICENSE PLATE	LR048409 BRACKET - LICENSE PLATE Rear Number Plate Plinth - China / Anthracite / From: DA669951	-	1	Enquire
17A385	LR055151	BRACKET - LICENSE PLATE	LR055151 BRACKET - LICENSE PLATE Rear Number Plate Plinth - Japan / Anthracite / From: EA709940	-	1	Enquire
