Rear Doors, Hinges & Weatherstrips (Door And Fixings) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

View All

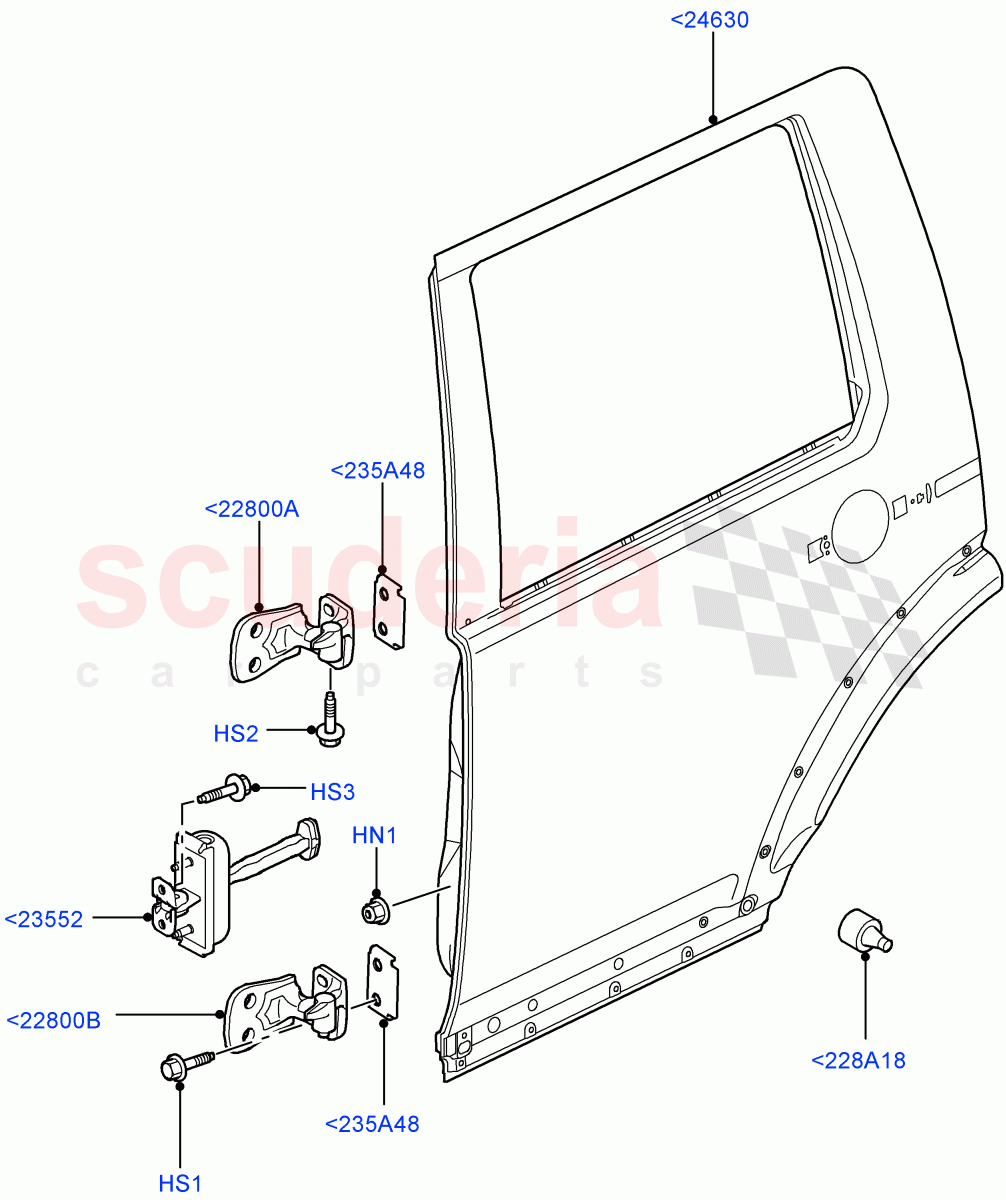

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Rear Doors, Hinges & Weatherstrips (Door And Fixings) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FY106047	NUT - FLANGED	Enquire	To Order
	LR045542	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500420	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500220	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500010	SCREW - PAN HEAD	Enquire	To Order
	LR033165	SCREW - PAN HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BDH780070	CHECK - DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BFA780180	DOOR - REAR	Enquire	To Order
	BFA780190	DOOR - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BDB780100	HINGE	Enquire	To Order
	BDB780110	HINGE	Enquire	To Order
	LR030347	HINGE - DOOR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	BDB780120	HINGE	Enquire	To Order
	BDB780130	HINGE	Enquire	To Order
	LR031768	HINGE - DOOR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	CFM500010	BUMP STOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BDP780020	PLATE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<228A18	CFM500010	BUMP STOP	CFM500010 BUMP STOP From: AA000001	-	2	Enquire
<235A48	BDP780020	PLATE	BDP780020 PLATE Door Hinge / From: AA000001	-	4	Enquire
<22800A	BDB780100	HINGE	BDB780100 HINGE RH, Upper / From: AA000001 / To: BA576799	-	1	Enquire
<22800A	BDB780110	HINGE	BDB780110 HINGE LH, Upper / From: AA000001 / To: BA576799	-	1	Enquire
<22800A	LR030347	HINGE - DOOR	LR030347 HINGE - DOOR RH, Upper / From: BA576800	-	1	Enquire
<22800A	LR030362	HINGE - DOOR	LR030362 HINGE - DOOR LH, Upper / From: BA576800	-	1	Enquire
<22800B	BDB780120	HINGE	BDB780120 HINGE RH, Lower / From: AA000001 / To: BA585999	-	1	Enquire
<22800B	BDB780130	HINGE	BDB780130 HINGE LH, Lower / From: AA000001 / To: BA585999	-	1	Enquire
<22800B	LR031768	HINGE - DOOR	LR031768 HINGE - DOOR RH, Lower / From: BA586000	-	1	Enquire
<22800B	LR031770	HINGE - DOOR	LR031770 HINGE - DOOR LH, Lower / From: BA586000	-	1	Enquire
<23552	BDH780070	CHECK - DOOR	BDH780070 CHECK - DOOR RH/LH / From: AA000001	-	2	Enquire
<24630	BFA780180	DOOR - REAR	BFA780180 DOOR - REAR RH / From: AA000001	-	1	Enquire
<24630	BFA780190	DOOR - REAR	BFA780190 DOOR - REAR LH / From: AA000001	-	1	Enquire
HN1	FY106047	NUT - FLANGED	FY106047 NUT - FLANGED M6 / From: AA000001 / To: DA656069	-	4	Enquire
HN1	LR045542	NUT	LR045542 NUT M6, Nut And Washer / From: DA656070	-	4	Enquire
HS1	BYP500420	SCREW	BYP500420 SCREW Door Hinge, M8 Torx / From: AA000001	-	16	Enquire
HS2	BYP500220	SCREW	BYP500220 SCREW Door Hinge, Hexagonal Head, M6 X 10MM / From: AA000001	-	8	Enquire
HS3	BYP500010	SCREW - PAN HEAD	BYP500010 SCREW - PAN HEAD M6 X 20MM / From: AA000001 / To: BA585999	-	8	Enquire
HS3	LR033165	SCREW - PAN HEAD	LR033165 SCREW - PAN HEAD M6 X 20MM / From: BA586000	-	8	Enquire
