Find Your Part

Windscreen Washer (Nitra Plant Build) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Windscreen Washer (Nitra Plant Build) ((V) FROMK2000001)

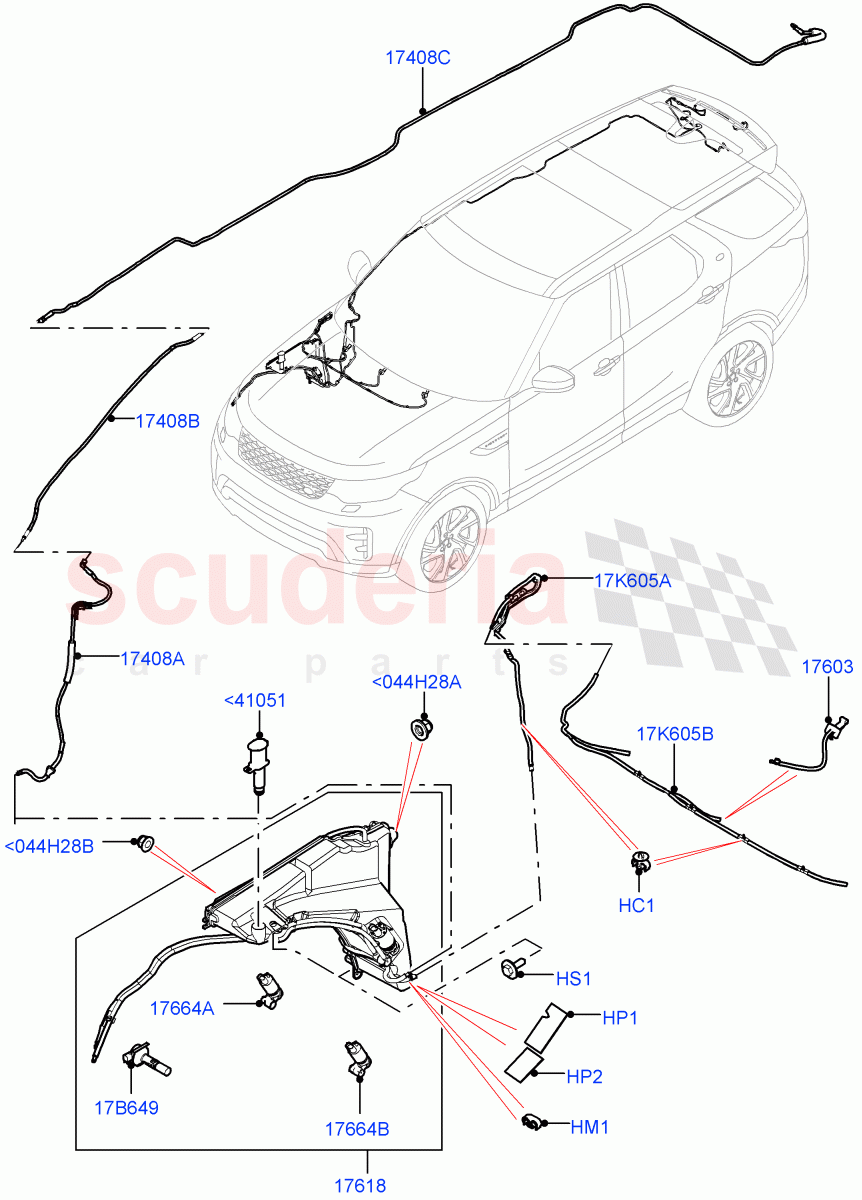

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR085632	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085574	GROMMET - WINDSHIELD WASHER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107637	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107638	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083281	JET - WINDSHIELD WASHER	Enquire	To Order
	LR083282	JET - WINDSHIELD WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110608	RESERVOIR - WINDSHIELD WASHER	Enquire	To Order
	LR110609	RESERVOIR - WINDSHIELD WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR089444	HOSE - FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054932	HOSE - WINDSHIELD WASHER	Enquire	To Order
	LR096447	HOSE - WINDSHIELD WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088962	HOSE - WINDSHIELD WASHER	Enquire	To Order
	LR155161	HOSE - WINDSHIELD WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112026	HOSE - WINDSHIELD WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079904	MOTOR AND PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR089443	MOTOR AND PUMP - HEADLAMP WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110605	SENSOR - WASHER FLUID LEVEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083288	HOSE - WINDSHIELD WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085649	HOSE - WINDSHIELD WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095819	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095818	GROMMET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<044H28A	LR095819	GROMMET	LR095819 GROMMET With Headlamp Power Wash / From: K2000001	-	1	Enquire
<044H28B	LR095818	GROMMET	LR095818 GROMMET With Headlamp Power Wash / From: K2000001	-	1	Enquire
<41051	LR089444	HOSE - FILLER PIPE	LR089444 HOSE - FILLER PIPE From: K2000001	-	1	Enquire
HC1	LR085632	CLIP	LR085632 CLIP Support / From: K2000001	-	2	Enquire
HM1	LR085574	GROMMET - WINDSHIELD WASHER PUMP	LR085574 GROMMET - WINDSHIELD WASHER PUMP With Headlamp Power Wash / Grommet / From: K2000001	-	1	Enquire
HP1	LR107637	PLUG - BLANKING	LR107637 PLUG - BLANKING Reservoir - Windshield Washer / From: K2000001	-	1	Enquire
HP2	LR107638	PLUG - BLANKING	LR107638 PLUG - BLANKING Reservoir - Windshield Washer / From: K2000001	-	1	Enquire
HS1	AYP500110	SCREW	AYP500110 SCREW Bolt And Washer, Hexagonal Head, M6 X 20MM / From: K2000001	-	2	Enquire
17B649	LR110605	SENSOR - WASHER FLUID LEVEL	LR110605 SENSOR - WASHER FLUID LEVEL Sensor - Washer Fluid Level / From: K2000001	-	1	Enquire
17K605A	LR083288	HOSE - WINDSHIELD WASHER	LR083288 HOSE - WINDSHIELD WASHER From: K2000001	-	1	Enquire
17K605B	LR085649	HOSE - WINDSHIELD WASHER	LR085649 HOSE - WINDSHIELD WASHER From: K2000001	-	1	Enquire
17408A	LR054932	HOSE - WINDSHIELD WASHER	LR054932 HOSE - WINDSHIELD WASHER RHD / RH Side Only / From: K2000001	-	1	Enquire
17408A	LR096447	HOSE - WINDSHIELD WASHER	LR096447 HOSE - WINDSHIELD WASHER LHD / RH Side Only / From: K2000001	-	1	Enquire
17408B	LR088962	HOSE - WINDSHIELD WASHER	LR088962 HOSE - WINDSHIELD WASHER From: K2000001 / To: L2999999	-	1	Enquire
17408B	LR155161	HOSE - WINDSHIELD WASHER	LR155161 HOSE - WINDSHIELD WASHER From: M2000001	-	1	Enquire
17408C	LR112026	HOSE - WINDSHIELD WASHER	LR112026 HOSE - WINDSHIELD WASHER From: K2000001	-	1	Enquire
17603	LR083281	JET - WINDSHIELD WASHER	LR083281 JET - WINDSHIELD WASHER Less Heated Washer Jet / From: K2000001	-	3	Enquire
17603	LR083282	JET - WINDSHIELD WASHER	LR083282 JET - WINDSHIELD WASHER With Heated Washer Jet / From: K2000001	-	3	Enquire
17618	LR110608	RESERVOIR - WINDSHIELD WASHER	LR110608 RESERVOIR - WINDSHIELD WASHER Less Headlamp Washer / From: K2000001	-	1	Enquire
17618	LR110609	RESERVOIR - WINDSHIELD WASHER	LR110609 RESERVOIR - WINDSHIELD WASHER With Headlamp Power Wash / From: K2000001	-	1	Enquire
17664A	LR079904	MOTOR AND PUMP	LR079904 MOTOR AND PUMP From: K2000001	-	1	Enquire
17664B	LR089443	MOTOR AND PUMP - HEADLAMP WASHER	LR089443 MOTOR AND PUMP - HEADLAMP WASHER With Headlamp Power Wash / From: K2000001	-	1	Enquire
