Front Doors, Hinges & Weatherstrips (Finishers And Mouldings, Nitra Plant Build) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Front Doors, Hinges & Weatherstrips (Finishers And Mouldings, Nitra Plant Build) ((V) FROMK2000001)

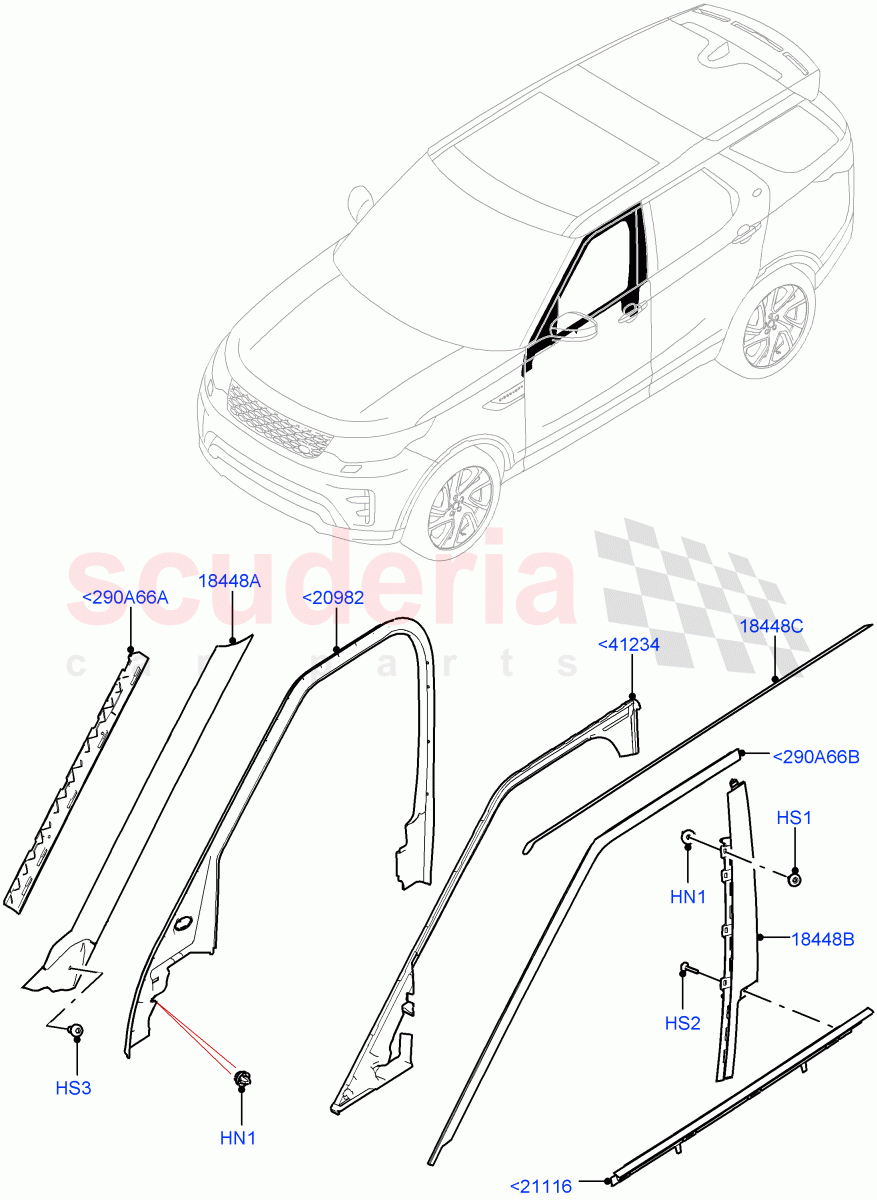

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR128940	NUT	Enquire	To Order
	LR128940	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079186	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034044	SCREW - PAN - TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085564	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108112	MOULDING - DOOR WINDOW FRAME	Enquire	To Order
	LR108110	MOULDING - DOOR WINDOW FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101098	WEATHERSTRIP - DOOR BELT	Enquire	To Order
	LR101099	WEATHERSTRIP - DOOR BELT	Enquire	To Order
	LR164053	WEATHERSTRIP - DOOR BELT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR082971	INSULATOR - DOOR OUTER PANEL	Enquire	To Order
	LR082973	INSULATOR - DOOR OUTER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR148855	FINISHER - PILLAR	Enquire	To Order
	LR148858	FINISHER - PILLAR	Enquire	To Order
	LR148855	FINISHER - PILLAR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR105994	FINISHER - DOOR	Enquire	To Order
	LR105995	FINISHER - DOOR	Enquire	To Order
	LR148859	FINISHER - DOOR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR082789	FINISHER - OUTER - BODY SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106792	MOULDING - WINDSHIELD	Enquire	To Order
	LR106791	MOULDING - WINDSHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082895	MOULDING - FRONT DOOR	Enquire	To Order
	LR082896	MOULDING - FRONT DOOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<290A66A	LR106792	MOULDING - WINDSHIELD	LR106792 MOULDING - WINDSHIELD RH / From: K2000001	-	1	Enquire
<290A66A	LR106791	MOULDING - WINDSHIELD	LR106791 MOULDING - WINDSHIELD LH / From: K2000001	-	1	Enquire
<290A66B	LR082895	MOULDING - FRONT DOOR	LR082895 MOULDING - FRONT DOOR RH Upper / From: K2000001	-	1	Enquire
<290A66B	LR082896	MOULDING - FRONT DOOR	LR082896 MOULDING - FRONT DOOR LH Upper / From: K2000001	-	1	Enquire
<20982	LR108112	MOULDING - DOOR WINDOW FRAME	LR108112 MOULDING - DOOR WINDOW FRAME RH / From: K2000001	-	1	Enquire
<20982	LR108110	MOULDING - DOOR WINDOW FRAME	LR108110 MOULDING - DOOR WINDOW FRAME LH / From: K2000001	-	1	Enquire
<21116	LR101098	WEATHERSTRIP - DOOR BELT	LR101098 WEATHERSTRIP - DOOR BELT RH / From: K2000001 / To: N2461471	-	1	Enquire
<21116	LR101099	WEATHERSTRIP - DOOR BELT	LR101099 WEATHERSTRIP - DOOR BELT LH / From: K2000001 / To: N2461471	-	1	Enquire
<21116	LR164053	WEATHERSTRIP - DOOR BELT	LR164053 WEATHERSTRIP - DOOR BELT RH / From: N2461472	-	1	Enquire
<21116	LR164054	WEATHERSTRIP - DOOR BELT	LR164054 WEATHERSTRIP - DOOR BELT LH / From: N2461472	-	1	Enquire
<41234	LR082971	INSULATOR - DOOR OUTER PANEL	LR082971 INSULATOR - DOOR OUTER PANEL RH / From: K2000001	-	1	Enquire
<41234	LR082973	INSULATOR - DOOR OUTER PANEL	LR082973 INSULATOR - DOOR OUTER PANEL LH / From: K2000001	-	1	Enquire
HN1	LR128940	NUT	LR128940 NUT 7.5 x 11.5MM / From: K2000001 / To: K2403754	-	8	Enquire
HN1	LR128940	NUT	LR128940 NUT 7.5 x 11.5MM / From: K2403755	-	8	Enquire
HS1	LR079186	SCREW	LR079186 SCREW M5 X 16MM / From: K2000001	-	8	Enquire
HS2	LR034044	SCREW - PAN - TORX	LR034044 SCREW - PAN - TORX M4 X 23 / From: K2000001	-	2	Enquire
HS3	LR085564	SCREW	LR085564 SCREW M6 x 12MM / From: K2000001	-	2	Enquire
18448A	LR148855	FINISHER - PILLAR	LR148855 FINISHER - PILLAR RH / From: K2000001 / To: N2459174	-	1	Enquire
18448A	LR148858	FINISHER - PILLAR	LR148858 FINISHER - PILLAR LH / From: K2000001 / To: N2459174	-	1	Enquire
18448A	LR148855	FINISHER - PILLAR	LR148855 FINISHER - PILLAR RH / From: N2459175	-	1	Enquire
18448A	LR148858	FINISHER - PILLAR	LR148858 FINISHER - PILLAR LH / From: N2459175	-	1	Enquire
18448B	LR105994	FINISHER - DOOR	LR105994 FINISHER - DOOR RH / From: K2000001 / To: N2459174	-	1	Enquire
18448B	LR105995	FINISHER - DOOR	LR105995 FINISHER - DOOR LH / From: K2000001 / To: N2459966	-	1	Enquire
18448B	LR148859	FINISHER - DOOR	LR148859 FINISHER - DOOR RH / From: N2459175	-	1	Enquire
18448B	LR148860	FINISHER - DOOR	LR148860 FINISHER - DOOR LH / From: N2459967	-	1	Enquire
18448C	LR082789	FINISHER - OUTER - BODY SIDE	LR082789 FINISHER - OUTER - BODY SIDE Black Painted Roof / From: K2000001	-	2	Enquire
