Rear Door Glass And Window Controls (Solihull Plant Build) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Rear Door Glass And Window Controls (Solihull Plant Build) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR087365	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028083	CLIP - CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078200	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049323	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045818	PANEL - DOOR TRIM	Enquire	To Order
	LR045819	PANEL - DOOR TRIM	Enquire	To Order
	LR110431	PANEL - DOOR TRIM	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR082924	GLASS - REAR DOOR	Enquire	To Order
	LR082925	GLASS - REAR DOOR	Enquire	To Order
	LR082926	GLASS - REAR DOOR	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR083207	REGULATOR AND MOTOR - WINDOW	Enquire	To Order
	LR083206	REGULATOR AND MOTOR - WINDOW	Enquire	To Order

View All

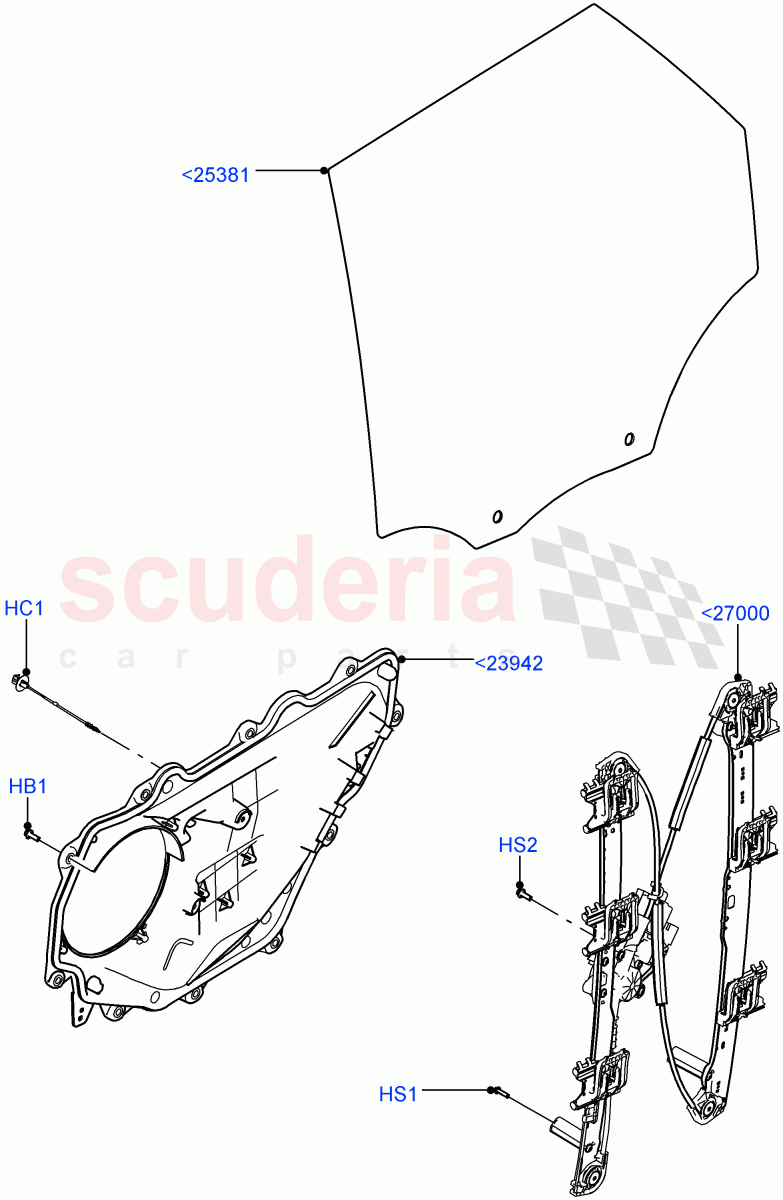

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<23942	LR045818	PANEL - DOOR TRIM	LR045818 PANEL - DOOR TRIM RH / To: HA046451	-	1	Enquire
<23942	LR045819	PANEL - DOOR TRIM	LR045819 PANEL - DOOR TRIM LH / To: HA046451	-	1	Enquire
<23942	LR110431	PANEL - DOOR TRIM	LR110431 PANEL - DOOR TRIM LH / From: HA046452	-	1	Enquire
<23942	LR110432	PANEL - DOOR TRIM	LR110432 PANEL - DOOR TRIM RH / From: HA046452	-	1	Enquire
<25381	LR082924	GLASS - REAR DOOR	LR082924 GLASS - REAR DOOR Green Tinted Glass All Round / RH / To: KA999999	-	1	Enquire
<25381	LR082925	GLASS - REAR DOOR	LR082925 GLASS - REAR DOOR With Privacy Glass / RH / To: KA999999	-	1	Enquire
<25381	LR082926	GLASS - REAR DOOR	LR082926 GLASS - REAR DOOR Green Tinted Glass All Round / LH / To: KA999999	-	1	Enquire
<25381	LR082927	GLASS - REAR DOOR	LR082927 GLASS - REAR DOOR With Privacy Glass / LH / To: KA999999	-	1	Enquire
<25381	LR082924	GLASS - REAR DOOR	LR082924 GLASS - REAR DOOR Less Privacy Glass / RH / From: LA000001	-	1	Enquire
<25381	LR082926	GLASS - REAR DOOR	LR082926 GLASS - REAR DOOR Less Privacy Glass / LH / From: LA000001	-	1	Enquire
<25381	LR082925	GLASS - REAR DOOR	LR082925 GLASS - REAR DOOR Privacy Glass / RH / From: LA000001	-	1	Enquire
<25381	LR082927	GLASS - REAR DOOR	LR082927 GLASS - REAR DOOR Privacy Glass / LH / From: LA000001	-	1	Enquire
<27000	LR083207	REGULATOR AND MOTOR - WINDOW	LR083207 REGULATOR AND MOTOR - WINDOW LH	-	1	Enquire
<27000	LR083206	REGULATOR AND MOTOR - WINDOW	LR083206 REGULATOR AND MOTOR - WINDOW RH	-	1	Enquire
HB1	LR087365	BOLT	LR087365 BOLT M6 x 18MM, Support	-	20	Enquire
HC1	LR028083	CLIP - CABLE	LR028083 CLIP - CABLE Cable Tie, Clip 6 X 6.5 X 1.9 - 2.1	-	2	Enquire
HS1	LR078200	SCREW	LR078200 SCREW M6 x 18MM, Torx	-	4	Enquire
HS2	LR049323	SCREW	LR049323 SCREW M5 x 22MM	-	2	Enquire
