Rear Bumper (Solihull Plant Build) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Rear Bumper (Solihull Plant Build) ((V) FROMHA000001)

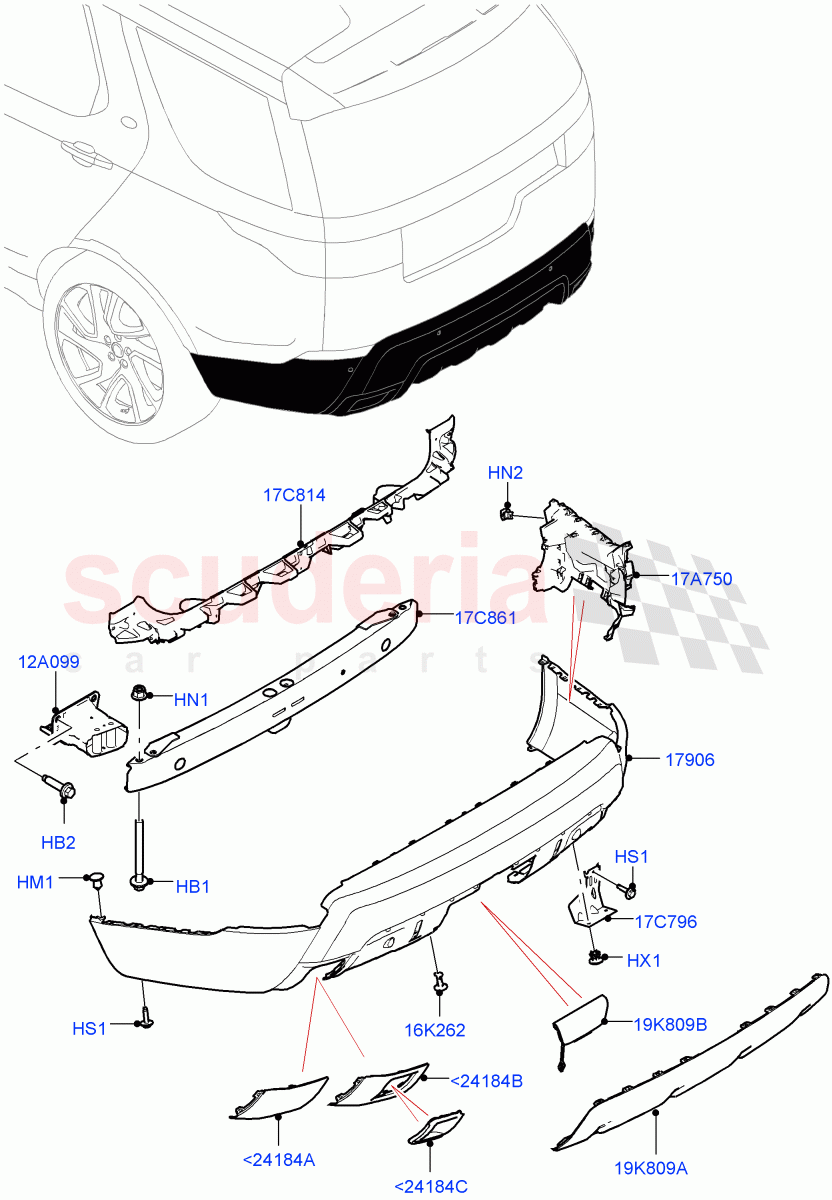

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR034229	BOLT	Enquire	To Order
	LR097372	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033214	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR2224	HARDWARE - MISCELLANEOUS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY114056	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR165498	NUT - EXPANSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYP500320	SCREW	Enquire	To Order
	KYP500320	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005896	RETAINER - RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083020	BUMPER - REAR	Enquire	To Order
	LR083022	BUMPER - REAR	Enquire	To Order
	LR083023	BUMPER - REAR	Enquire	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR080358	REINFORCEMENT - BUMPER SECURING	Enquire	To Order
	LR080359	REINFORCEMENT - BUMPER SECURING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012844	CLIP - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083039	BRACKET - BUMPER MOUNTING	Enquire	To Order
	LR083040	BRACKET - BUMPER MOUNTING	Enquire	To Order
	LR104903	BRACKET - BUMPER MOUNTING	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR083042	BRACKET - BUMPER MOUNTING	Enquire	To Order
	LR083043	BRACKET - BUMPER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083041	BRACKET - BUMPER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080357	REINFORCEMENT - REAR BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083024	INSERT - BUMPER	Enquire	To Order
	LR083026	INSERT - BUMPER	Enquire	To Order
	LR083028	INSERT - BUMPER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR086049	INSERT - BUMPER	Enquire	To Order
	LR086051	INSERT - BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086052	INSERT - BUMPER	Enquire	To Order
	LR086050	INSERT - BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083030	COVER - TOWING HOOK OPENING	Enquire	To Order
	LR083032	COVER - TOWING HOOK OPENING	Enquire	To Order
	LR083033	COVER - TOWING HOOK OPENING	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR116571	COVER - BUMPER	Enquire	To Order
	LR116572	COVER - BUMPER	Enquire	To Order
	LR116573	COVER - BUMPER	Enquire	To Order

...and 8 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<24184A	LR083024	INSERT - BUMPER	LR083024 INSERT - BUMPER Non Sport/Dynamic, Rear Bmp Lwr Valance - Dark Silver / RH	-	1	Enquire
<24184A	LR083026	INSERT - BUMPER	LR083026 INSERT - BUMPER Non Sport/Dynamic, Rear Bmp Lwr Valance - White Silver / RH	-	1	Enquire
<24184A	LR083028	INSERT - BUMPER	LR083028 INSERT - BUMPER Non Sport/Dynamic, Rear Bmp Lower Valance - Anthracite / RH	-	1	Enquire
<24184A	LR083025	INSERT - BUMPER	LR083025 INSERT - BUMPER Non Sport/Dynamic, Rear Bmp Lwr Valance - Dark Silver / LH	-	1	Enquire
<24184A	LR083027	INSERT - BUMPER	LR083027 INSERT - BUMPER Non Sport/Dynamic, Rear Bmp Lwr Valance - White Silver / LH	-	1	Enquire
<24184A	LR083029	INSERT - BUMPER	LR083029 INSERT - BUMPER Non Sport/Dynamic, Rear Bmp Lower Valance - Anthracite / LH	-	1	Enquire
<24184B	LR086049	INSERT - BUMPER	LR086049 INSERT - BUMPER Black Front Bumper, Rear Bmp Lower Valance-Indus Silver / RH	-	1	Enquire
<24184B	LR086051	INSERT - BUMPER	LR086051 INSERT - BUMPER Black Front Bumper, Rear Bmp Lower Valance-Indus Silver / LH	-	1	Enquire
<24184C	LR086052	INSERT - BUMPER	LR086052 INSERT - BUMPER Black Front Bumper, Rear Bmp Lower Valance-Indus Silver / LH, Blanking	-	1	Enquire
<24184C	LR086050	INSERT - BUMPER	LR086050 INSERT - BUMPER Black Front Bumper, Rear Bmp Lower Valance-Indus Silver / RH, Blanking	-	1	Enquire
HB1	LR034229	BOLT	LR034229 BOLT Hexagonal Head, M14 X 148MM / To: HA011634	-	4	Enquire
HB1	LR097372	BOLT	LR097372 BOLT Hexagonal Head, M14 X 148MM / From: HA011635	-	4	Enquire
HB2	LR033214	BOLT	LR033214 BOLT Bolt And Washer, Hexagonal Head, M14 X 55MM	-	10	Enquire
HM1	ANR2224	HARDWARE - MISCELLANEOUS	ANR2224 HARDWARE - MISCELLANEOUS 8 X 20MM, Pin	-	2	Enquire
HN1	FY114056	NUT - HEX.	FY114056 NUT - HEX. Hexagonal Head, M14	-	4	Enquire
HN2	LR165498	NUT - EXPANSION	LR165498 NUT - EXPANSION Plastic	-	8	Enquire
HS1	KYP500320	SCREW	KYP500320 SCREW Bolt And Washer, M6 x 30MM, Mounting Bracket, Support	-	2	Enquire
HS1	KYP500320	SCREW	KYP500320 SCREW Bolt And Washer, Bumper, M6 x 30MM	-	8	Enquire
HX1	LR005896	RETAINER - RIVET	LR005896 RETAINER - RIVET 10 X 4 - 5	-	4	Enquire
12A099	LR080358	REINFORCEMENT - BUMPER SECURING	LR080358 REINFORCEMENT - BUMPER SECURING Less Trailer Towing Hitch / RH	-	1	Enquire
12A099	LR080359	REINFORCEMENT - BUMPER SECURING	LR080359 REINFORCEMENT - BUMPER SECURING Less Trailer Towing Hitch / LH	-	1	Enquire
16K262	LR012844	CLIP - RETAINING	LR012844 CLIP - RETAINING 1/4 Turn Click Type	-	4	Enquire
17A750	LR083039	BRACKET - BUMPER MOUNTING	LR083039 BRACKET - BUMPER MOUNTING RH / To: HA016149	-	1	Enquire
17A750	LR083040	BRACKET - BUMPER MOUNTING	LR083040 BRACKET - BUMPER MOUNTING LH / To: HA016149	-	1	Enquire
17A750	LR104903	BRACKET - BUMPER MOUNTING	LR104903 BRACKET - BUMPER MOUNTING RH / From: HA016150 / To: JA999999	-	1	Enquire
17A750	LR104904	BRACKET - BUMPER MOUNTING	LR104904 BRACKET - BUMPER MOUNTING LH / From: HA016150 / To: JA999999	-	1	Enquire
17A750	LR116997	BRACKET - BUMPER MOUNTING	LR116997 BRACKET - BUMPER MOUNTING RH / From: KA000001	-	1	Enquire
17A750	LR116998	BRACKET - BUMPER MOUNTING	LR116998 BRACKET - BUMPER MOUNTING LH / From: KA000001	-	1	Enquire
17C796	LR083042	BRACKET - BUMPER MOUNTING	LR083042 BRACKET - BUMPER MOUNTING RH	-	1	Enquire
17C796	LR083043	BRACKET - BUMPER MOUNTING	LR083043 BRACKET - BUMPER MOUNTING LH	-	1	Enquire
17C814	LR083041	BRACKET - BUMPER MOUNTING	LR083041 BRACKET - BUMPER MOUNTING Centre	-	1	Enquire
17C861	LR080357	REINFORCEMENT - REAR BUMPER	LR080357 REINFORCEMENT - REAR BUMPER Less Trailer Towing Hitch	-	1	Enquire
19K809A	LR083030	COVER - TOWING HOOK OPENING	LR083030 COVER - TOWING HOOK OPENING Less Trailer Towing Hitch, Rear Bmp Lwr Valance - Dark Silver	-	1	Enquire
19K809A	LR083032	COVER - TOWING HOOK OPENING	LR083032 COVER - TOWING HOOK OPENING Less Trailer Towing Hitch, Rear Bmp Lower Valance - Anthracite	-	1	Enquire
19K809A	LR083033	COVER - TOWING HOOK OPENING	LR083033 COVER - TOWING HOOK OPENING Rear Bmp Lwr Valance - Dark Silver, Tow Hitch Receiver NAS	-	1	Enquire
19K809A	LR083034	COVER - TOWING HOOK OPENING	LR083034 COVER - TOWING HOOK OPENING Rear Bmp Lwr Valance - White Silver, Tow Hitch Receiver NAS	-	1	Enquire
19K809A	LR083035	COVER - TOWING HOOK OPENING	LR083035 COVER - TOWING HOOK OPENING Rear Bmp Lower Valance - Anthracite, Tow Hitch Receiver NAS	-	1	Enquire
19K809A	LR083036	COVER - TOWING HOOK OPENING	LR083036 COVER - TOWING HOOK OPENING Rear Bmp Lwr Valance - Dark Silver, Tow Hitch - Electric Deployable / To: KA084731	-	1	Enquire
19K809A	LR083037	COVER - TOWING HOOK OPENING	LR083037 COVER - TOWING HOOK OPENING Rear Bmp Lwr Valance - White Silver, Tow Hitch Man Detachable Swan Neck / To: KA084731	-	1	Enquire
19K809A	LR083038	COVER - TOWING HOOK OPENING	LR083038 COVER - TOWING HOOK OPENING Rear Bmp Lower Valance - Anthracite, Tow Hitch - Electric Deployable / To: KA084731	-	1	Enquire
19K809A	LR082879	COVER - TOWING HOOK OPENING	LR082879 COVER - TOWING HOOK OPENING Less Trailer Towing Hitch, Rear Bmp Lower Valance-Indus Silver	-	1	Enquire
19K809A	LR082880	COVER - TOWING HOOK OPENING	LR082880 COVER - TOWING HOOK OPENING Rear Bmp Lower Valance-Indus Silver, Tow Hitch Man Detachable Swan Neck / To: KA084731	-	1	Enquire
19K809A	LR082881	COVER - TOWING HOOK OPENING	LR082881 COVER - TOWING HOOK OPENING Rear Bmp Lower Valance-Indus Silver, Tow Hitch Receiver 12 Pin Elec	-	1	Enquire
19K809A	LR083031	COVER - TOWING HOOK OPENING	LR083031 COVER - TOWING HOOK OPENING Less Trailer Towing Hitch, Rear Bmp Lwr Valance - White Silver	-	1	Enquire
19K809A	LR123355	COVER - TOWING HOOK OPENING	LR123355 COVER - TOWING HOOK OPENING Rear Bmp Lwr Valance - Dark Silver, Tow Hitch Elec Deployable Swan Neck / From: KA084732	-	1	Enquire
19K809A	LR123356	COVER - TOWING HOOK OPENING	LR123356 COVER - TOWING HOOK OPENING Rear Bmp Lwr Valance - White Silver, Tow Hitch Man Detachable Swan Neck / From: KA084732	-	1	Enquire
19K809A	LR123357	COVER - TOWING HOOK OPENING	LR123357 COVER - TOWING HOOK OPENING Rear Bmp Lower Valance - Anthracite, Tow Hitch - Electric Deployable / From: KA084732	-	1	Enquire
19K809A	LR123354	COVER - TOWING HOOK OPENING	LR123354 COVER - TOWING HOOK OPENING Rear Bmp Lower Valance-Indus Silver, Tow Hitch - Detatchable / From: KA084732	-	1	Enquire
19K809B	LR116571	COVER - BUMPER	LR116571 COVER - BUMPER Rear Bmp Lwr Valance - Dark Silver, Tow Hitch - Electric Deployable / To: KA084731	-	1	Enquire
19K809B	LR116572	COVER - BUMPER	LR116572 COVER - BUMPER Rear Bmp Lwr Valance - White Silver, Tow Hitch Man Detachable Swan Neck / To: JA999999	-	1	Enquire
19K809B	LR116573	COVER - BUMPER	LR116573 COVER - BUMPER Rear Bmp Lower Valance - Anthracite, Tow Hitch Elec Deployable Swan Neck / To: JA999999	-	1	Enquire
19K809B	LR116574	COVER - BUMPER	LR116574 COVER - BUMPER Rear Bmp Lower Valance-Indus Silver, Tow Hitch Man Detachable Swan Neck / To: JA999999	-	1	Enquire
19K809B	LR116572	COVER - BUMPER	LR116572 COVER - BUMPER Rear Bmp Lwr Valance - White Silver, Tow Hitch - Electric Deployable / From: KA000001 / To: KA084731	-	1	Enquire
19K809B	LR116573	COVER - BUMPER	LR116573 COVER - BUMPER Rear Bmp Lower Valance - Anthracite, Tow Hitch - Detatchable / From: KA000001 / To: KA084731	-	1	Enquire
19K809B	LR116574	COVER - BUMPER	LR116574 COVER - BUMPER Rear Bmp Lower Valance-Indus Silver, Tow Hitch - Detatchable / From: KA000001 / To: KA084731	-	1	Enquire
19K809B	LR123359	COVER - BUMPER	LR123359 COVER - BUMPER Rear Bmp Lwr Valance - Dark Silver, Tow Hitch Elec Deployable Swan Neck / From: KA084732	-	1	Enquire
19K809B	LR123360	COVER - BUMPER	LR123360 COVER - BUMPER Rear Bmp Lwr Valance - White Silver, Tow Hitch Man Detachable Swan Neck / From: KA084732	-	1	Enquire
19K809B	LR123361	COVER - BUMPER	LR123361 COVER - BUMPER Rear Bmp Lower Valance - Anthracite, Tow Hitch - Electric Deployable / From: KA084732	-	1	Enquire
19K809B	LR123358	COVER - BUMPER	LR123358 COVER - BUMPER Rear Bmp Lower Valance-Indus Silver, Tow Hitch - Detatchable / From: KA084732	-	1	Enquire
17906	LR083020	BUMPER - REAR	LR083020 BUMPER - REAR Less Automated Parking System, Less Park Side Guard, Less Rear Parking Aid, Rear Bumper - Plastic Unpainted / Primed / To: HA999999	-	1	Enquire
17906	LR083022	BUMPER - REAR	LR083022 BUMPER - REAR Less Automated Parking System, Less Park Side Guard, Rear Bumper - Plastic Unpainted, With Rear Parking Aid / Primed / To: HA999999	-	1	Enquire
17906	LR083023	BUMPER - REAR	LR083023 BUMPER - REAR Autom Perpendicular Parking System, Rear Bumper - Plastic Unpainted, With Park Side Flank Guard, With Rear Parking Aid / Primed / To: HA999999	-	1	Enquire
17906	LR086046	BUMPER - REAR	LR086046 BUMPER - REAR Black Front Bumper, Less Automated Parking System, Less Park Side Guard, With Rear Parking Aid / Primed / To: HA999999	-	1	Enquire
17906	LR086047	BUMPER - REAR	LR086047 BUMPER - REAR Autom Perpendicular Parking System, Rear Bumper - Gloss Black, With Park Side Flank Guard, With Rear Parking Aid / Primed / To: HA999999	-	1	Enquire
17906	LR086046	BUMPER - REAR	LR086046 BUMPER - REAR Black Front Bumper, Less Automated Parking System, Less Park Side Guard / Primed / From: JA000001 / To: JA999999	-	1	Enquire
17906	LR086047	BUMPER - REAR	LR086047 BUMPER - REAR Black Front Bumper, Less Automated Parking System, With Park Side Flank Guard / Primed / From: JA000001 / To: JA999999	-	1	Enquire
17906	LR083020	BUMPER - REAR	LR083020 BUMPER - REAR Less Automated Parking System, Less Park Side Guard, Less Rear Parking Aid, Non Sport/Dynamic / Primed / From: JA000001 / To: JA999999	-	1	Enquire
17906	LR083022	BUMPER - REAR	LR083022 BUMPER - REAR Less Automated Parking System, Less Park Side Guard, Non Sport/Dynamic, With Rear Parking Aid / Primed / From: JA000001 / To: JA999999	-	1	Enquire
17906	LR083023	BUMPER - REAR	LR083023 BUMPER - REAR Autom Perpendicular Parking System, Non Sport/Dynamic, With Park Side Flank Guard, With Rear Parking Aid / Primed / From: JA000001 / To: JA999999	-	1	Enquire
17906	LR083022	BUMPER - REAR	LR083022 BUMPER - REAR Less Park Assist, Non Sport/Dynamic / Primed / From: KA000001	-	1	Enquire
17906	LR083023	BUMPER - REAR	LR083023 BUMPER - REAR Non Sport/Dynamic, Park Assist / Primed / From: KA000001	-	1	Enquire
17906	LR086046	BUMPER - REAR	LR086046 BUMPER - REAR Black Front Bumper, Less Park Assist / Primed / From: KA000001	-	1	Enquire
17906	LR086047	BUMPER - REAR	LR086047 BUMPER - REAR Black Front Bumper, Park Assist / Primed / From: KA000001	-	1	Enquire
