Luggage Compartment Door (Solihull Plant Build, Tailgate) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Luggage Compartment Door (Solihull Plant Build, Tailgate) ((V) FROMHA000001)

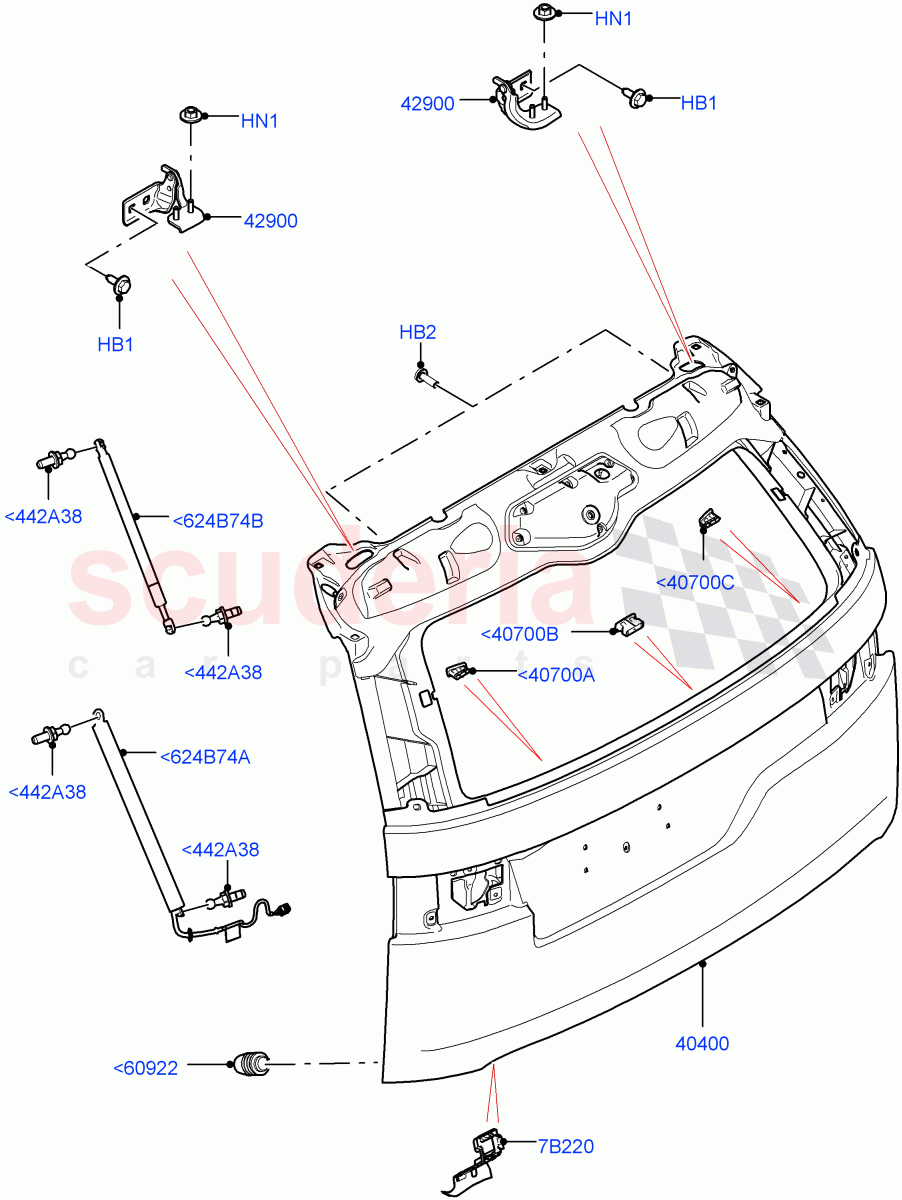

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR037087	BOLT AND WASHER - HEX.HEAD	Enquire	To Order
	LR106658	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024183	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYH500060	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080287	TAILGATE - COMPLETE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080293	HINGE - TAILGATE	Enquire	To Order
	LR080294	HINGE - DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083286	BRACKET - KEY MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095487	BUMP STOP - TAILGATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082310	CLIP - TAILGATE BLIND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099609	CLIP - TAILGATE BLIND	Enquire	To Order
	LR099609	CLIP - TAILGATE BLIND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082309	CLIP - TAILGATE BLIND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068275	STUD - BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083139	STRUT - TAILGATE	Enquire	To Order
	LR083138	STRUT - TAILGATE	Enquire	To Order
	LR126175	STRUT - TAILGATE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR083146	LIFT - GAS	Enquire	To Order
	LR095362	LIFT - GAS	Enquire	To Order
	LR102568	LIFT - GAS	Enquire	To Order

...and 2 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<442A38	LR068275	STUD - BALL	LR068275 STUD - BALL M8 x 19MM	-	4	Enquire
<624B74A	LR083139	STRUT - TAILGATE	LR083139 STRUT - TAILGATE Tailgate - Hands Free / LH / To: KA082855	-	1	Enquire
<624B74A	LR083138	STRUT - TAILGATE	LR083138 STRUT - TAILGATE Tailgate - Hands Free / RH / To: KA082855	-	1	Enquire
<624B74A	LR126175	STRUT - TAILGATE	LR126175 STRUT - TAILGATE Tailgate - Hands Free / RH / From: KA082856	-	1	Enquire
<624B74A	LR126177	STRUT - TAILGATE	LR126177 STRUT - TAILGATE Tailgate - Hands Free / LH / From: KA082856	-	1	Enquire
<624B74B	LR083146	LIFT - GAS	LR083146 LIFT - GAS With Conventional Tailgate / RH / To: JA079306	-	1	Enquire
<624B74B	LR095362	LIFT - GAS	LR095362 LIFT - GAS Tailgate - Manual One Piece / LH / To: HA013782	-	1	Enquire
<624B74B	LR102568	LIFT - GAS	LR102568 LIFT - GAS Tailgate - Manual One Piece / RH / From: JA079307	-	1	Enquire
<624B74B	LR102569	LIFT - GAS	LR102569 LIFT - GAS Tailgate - Manual One Piece / LH / From: HA013783 / To: JA999999	-	1	Enquire
<624B74B	LR102569	LIFT - GAS	LR102569 LIFT - GAS With Conventional Tailgate / LH / From: KA000001	-	1	Enquire
<40700A	LR082310	CLIP - TAILGATE BLIND	LR082310 CLIP - TAILGATE BLIND LH	-	1	Enquire
<40700B	LR099609	CLIP - TAILGATE BLIND	LR099609 CLIP - TAILGATE BLIND Centre / To: HA006482	-	1	Enquire
<40700B	LR099609	CLIP - TAILGATE BLIND	LR099609 CLIP - TAILGATE BLIND Centre / From: HA006483	-	1	Enquire
<40700C	LR082309	CLIP - TAILGATE BLIND	LR082309 CLIP - TAILGATE BLIND RH	-	1	Enquire
<60922	LR095487	BUMP STOP - TAILGATE	LR095487 BUMP STOP - TAILGATE	-	4	Enquire
HB1	LR037087	BOLT AND WASHER - HEX.HEAD	LR037087 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M8 X 30MM / To: JA280753	-	2	Enquire
HB1	LR106658	BOLT	LR106658 BOLT Bolt And Washer, Hexagonal Head, M8 X 25MM / From: JA280754	-	4	Enquire
HB2	LR024183	BOLT	LR024183 BOLT Hexagonal Head, M8 X 25MM	-	4	Enquire
HN1	BYH500060	NUT - FLANGED	BYH500060 NUT - FLANGED M8, Nut And Washer	-	4	Enquire
7B220	LR083286	BRACKET - KEY MOUNTING	LR083286 BRACKET - KEY MOUNTING Vehicle Access-Leisure Activity Key	-	1	Enquire
40400	LR080287	TAILGATE - COMPLETE	LR080287 TAILGATE - COMPLETE	-	1	Enquire
42900	LR080293	HINGE - TAILGATE	LR080293 HINGE - TAILGATE RH	-	1	Enquire
42900	LR080294	HINGE - DOOR	LR080294 HINGE - DOOR LH	-	1	Enquire
