Name: Fuel Tank & Related Parts (Nitra Plant Build) (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMM2000001)
Rating: 5.0 (1 reviews)

Fuel Tank & Related Parts (Nitra Plant Build) (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] - Fuel Tank & Related Parts (Nitra Plant Build) (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMM2000001)

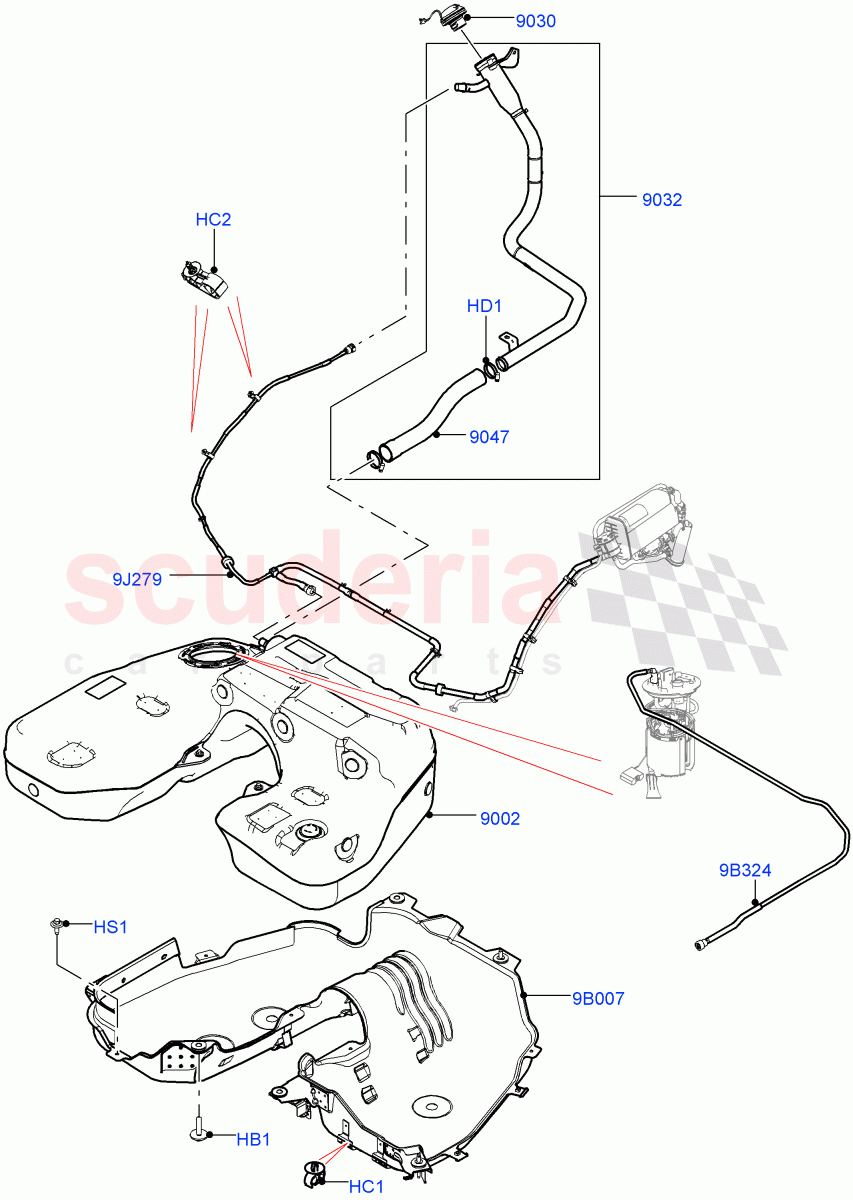

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR093364	BOLT	$2.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093365	CLIP	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094032	CLIP - HOSE	$4.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061655	CLAMP - FUEL SUPPLY TUBE	$5.85	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136780	TANK - FUEL	$1,198.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138718	CAP - FUEL TANK FILLER	$37.60	To Order
	LR138720	CAP - FUEL TANK FILLER	$37.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082767	PIPE - FUEL FILLER	$317.26	To Order
	LR082768	PIPE - FUEL FILLER	$340.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082775	HOSE - FILLER PIPE	$140.78	To Order
	LR082774	HOSE - FILLER PIPE	$140.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR148067	SHIELD	$631.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125885	TUBE - FUEL	$34.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082442	TUBE - VENTILATION	$92.33	To Order
	LR138423	TUBE - VENTILATION	$159.37	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR093364	BOLT	LR093364 BOLT Hexagonal Head, M10 X 50MM, To Body / From: M2000001	$2.69	7
HC1	LR093365	CLIP	LR093365 CLIP Shield / From: M2000001	$1.96	2
HC2	LR094032	CLIP - HOSE	LR094032 CLIP - HOSE Breather Pipe, Plastic / From: M2000001	$4.23	2
HD1	LR061655	CLAMP - FUEL SUPPLY TUBE	LR061655 CLAMP - FUEL SUPPLY TUBE 35-50 x 9 / From: M2000001	$5.85	1
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30 / From: M2000001	$4.03	5
9B007	LR148067	SHIELD	LR148067 SHIELD From: M2000001	$631.63	1
9B324	LR125885	TUBE - FUEL	LR125885 TUBE - FUEL Feed / From: M2000001	$34.33	1
9J279	LR082442	TUBE - VENTILATION	LR082442 TUBE - VENTILATION Fuel Tank Filler Neck - Unleaded / From: M2000001	$92.33	1
9J279	LR138423	TUBE - VENTILATION	LR138423 TUBE - VENTILATION Narrow Filler Neck - Unleaded / From: M2000001	$159.37	1
9002	LR136780	TANK - FUEL	LR136780 TANK - FUEL From: M2000001	$1,198.17	1
9030	LR138718	CAP - FUEL TANK FILLER	LR138718 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Unleaded / From: M2000001	$37.60	1
9030	LR138720	CAP - FUEL TANK FILLER	LR138720 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - DMTL / From: M2000001	$37.60	1
9032	LR082767	PIPE - FUEL FILLER	LR082767 PIPE - FUEL FILLER Narrow Filler Neck - Unleaded / From: M2000001	$317.26	1
9032	LR082768	PIPE - FUEL FILLER	LR082768 PIPE - FUEL FILLER Fuel Tank Filler Neck - Unleaded / From: M2000001	$340.03	1
9047	LR082775	HOSE - FILLER PIPE	LR082775 HOSE - FILLER PIPE Fuel Tank Filler Neck - Unleaded / From: M2000001	$140.78	1
9047	LR082774	HOSE - FILLER PIPE	LR082774 HOSE - FILLER PIPE Fuel Tank Filler Neck - DMTL / From: M2000001	$140.97	1
