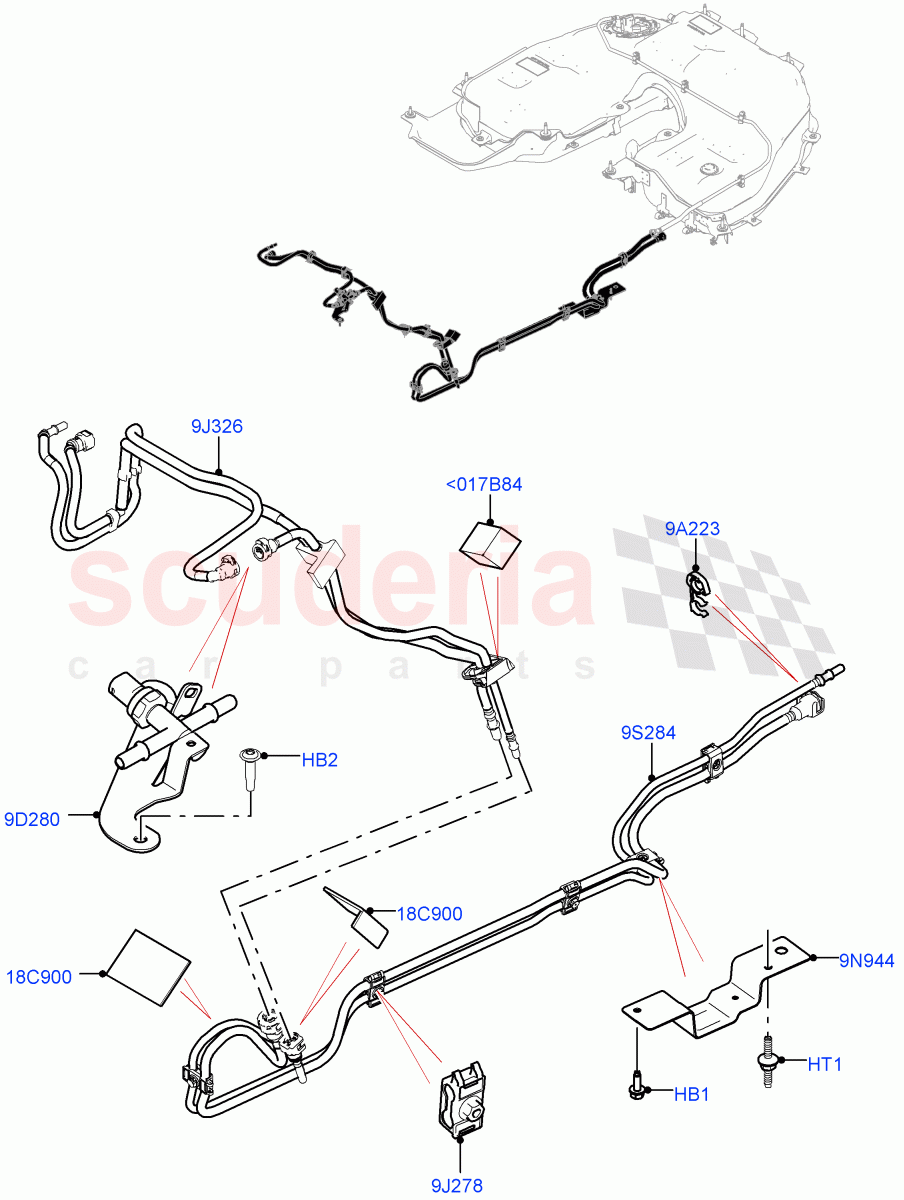

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR028253	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034354	BOLT - PAN - TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071705	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040125	CLIP - FUEL PIPE SECURING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082759	MANIFOLD - FUEL SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086433	RETAINER - TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100568	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082760	BRACKET - FUEL TUBE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086375	TUBE - FUEL SUPPLY AND VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	MTC7458	PAD - FOAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044464	PAD - FOAM	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<017B84	LR044464	PAD - FOAM	LR044464 PAD - FOAM From: JA000001	-	1	Enquire
HB1	LR028253	BOLT	LR028253 BOLT M6 X 16MM / From: JA000001	-	1	Enquire
HB2	LR034354	BOLT - PAN - TORX	LR034354 BOLT - PAN - TORX M6 x 19MM, Torx / From: JA000001	-	2	Enquire
HT1	LR071705	STUD	LR071705 STUD M6 X 20 + M6 X 16 / From: JA000001	-	1	Enquire
9A223	LR040125	CLIP - FUEL PIPE SECURING	LR040125 CLIP - FUEL PIPE SECURING From: JA000001	-	1	Enquire
9D280	LR082759	MANIFOLD - FUEL SUPPLY	LR082759 MANIFOLD - FUEL SUPPLY Fuel Pressure Sensor / From: JA000001	-	1	Enquire
9J278	LR086433	RETAINER - TUBE	LR086433 RETAINER - TUBE From: JA000001	-	5	Enquire
9J326	LR100568	PIPE - FUEL	LR100568 PIPE - FUEL Front / From: JA000001	-	1	Enquire
9N944	LR082760	BRACKET - FUEL TUBE SUPPORT	LR082760 BRACKET - FUEL TUBE SUPPORT From: JA000001	-	1	Enquire
9S284	LR086375	TUBE - FUEL SUPPLY AND VAPOUR	LR086375 TUBE - FUEL SUPPLY AND VAPOUR For Unleaded Fuel / Centre / From: JA000001	-	1	Enquire
18C900	MTC7458	PAD - FOAM	MTC7458 PAD - FOAM From: JA000001	-	2	Enquire
