Fuel Lines (Rear, Nitra Plant Build) (2.0L I4 High Dohc Aj200 Petrol, Pet Tank W/O Leak Det - Std...

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] - Fuel Lines (Rear, Nitra Plant Build) (2.0L I4 High DOHC AJ200 Petrol, Pet Tank W/O Leak Det - Std...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR094032 CLIP - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
RYP501050 SCREW - PAN - TORX Enquire To Order
Photo Part No Description Price (each) Stock
LR082334 RESERVOIR - FUEL VAPOUR SYSTEM Enquire To Order
LR161594 RESERVOIR - FUEL VAPOUR SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR082445 TUBE - FUEL VAPOUR Enquire To Order
LR148190 TUBE - FUEL VAPOUR Enquire To Order
Photo Part No Description Price (each) Stock
LR082335 HOSE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR079268 HOSE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR082442 TUBE - VENTILATION Enquire To Order
Photo Part No Description Price (each) Stock
LR120590 TUBE - VENTILATION Enquire To Order
View All

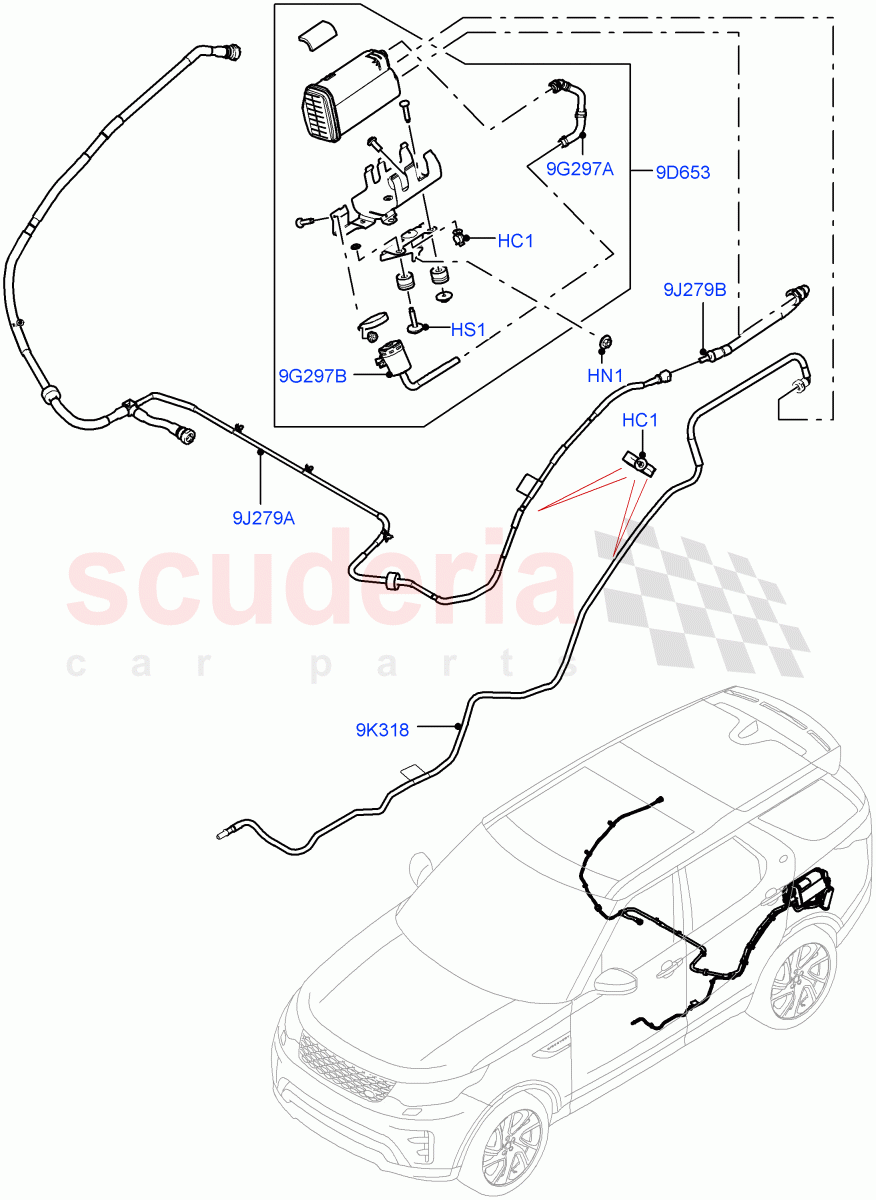

Fuel Lines (Rear, Nitra Plant Build) (2.0L I4 High DOHC AJ200 Petrol, Pet Tank W/O Leak Det - Std Filter) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR094032
CLIP - HOSE
Double, Plastic / From: K2000001 		- 4 Enquire
HN1 RYH500310
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer / From: K2000001 		- 2 Enquire
HS1 RYP501050
SCREW - PAN - TORX
M6 X 25MM, Torx / From: K2000001 		- 2 Enquire
9D653 LR082334
RESERVOIR - FUEL VAPOUR SYSTEM
Charcoal Cannister, With Bracket / From: K2000001 / To: N2455980 		- 1 Enquire
9D653 LR161594
RESERVOIR - FUEL VAPOUR SYSTEM
Charcoal Cannister, With Bracket / From: N2455981 		- 1 Enquire
9G297A LR082335
HOSE - FUEL
Canister vent / From: K2000001 		- 1 Enquire
9G297B LR079268
HOSE - FUEL
Canister vent / From: K2000001 		- 1 Enquire
9J279A LR082442
TUBE - VENTILATION
From: K2000001 		- 1 Enquire
9J279B LR120590
TUBE - VENTILATION
From: K2000001 		- 1 Enquire
9K318 LR082445
TUBE - FUEL VAPOUR
From Carbon Canister To Fuel Lines / From: K2000001 / To: L2999999 		- 1 Enquire
9K318 LR148190
TUBE - FUEL VAPOUR
From Carbon Canister To Fuel Lines / From: M2000001 		- 1 Enquire
