Name: Fuel Lines (Front, Nitra Plant Build) (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMK2000001, (V) TOL2999999)
Rating: 4.9 (1 reviews)

View All

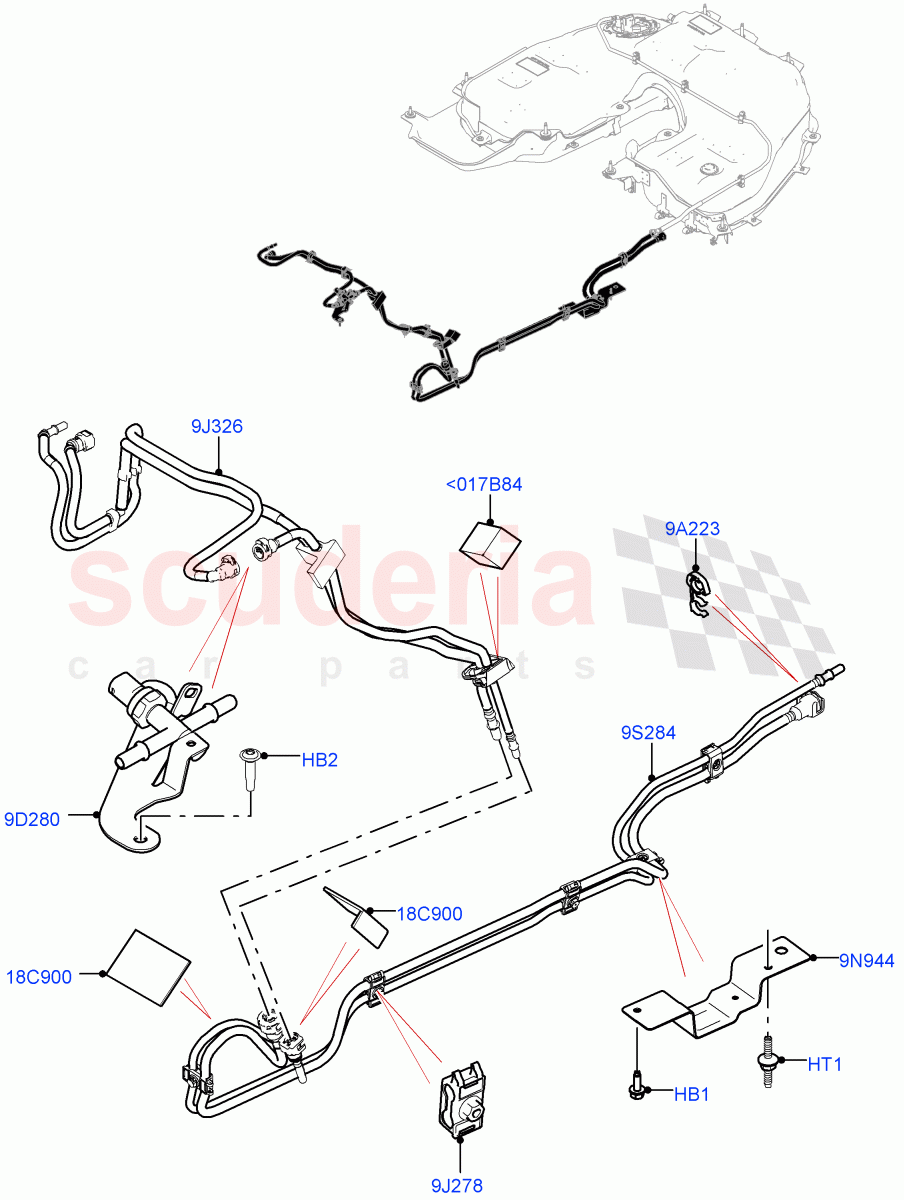

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR028253	BOLT	$1.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034354	BOLT - PAN - TORX	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071705	STUD	$3.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040125	CLIP - FUEL PIPE SECURING	$4.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082759	MANIFOLD - FUEL SUPPLY	$131.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086433	RETAINER - TUBE	$6.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100568	PIPE - FUEL	$276.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082760	BRACKET - FUEL TUBE SUPPORT	$10.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086375	TUBE - FUEL SUPPLY AND VAPOUR	$128.76	To Order

Photo	Part No	Description	Price (each)	Stock
	MTC7458	PAD - FOAM	$34.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044464	PAD - FOAM	$28.18	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<017B84	LR044464	PAD - FOAM	LR044464 PAD - FOAM From: K2000001	$28.18	1
HB1	LR028253	BOLT	LR028253 BOLT M6 X 16MM / From: K2000001	$1.45	1
HB2	LR034354	BOLT - PAN - TORX	LR034354 BOLT - PAN - TORX M6 x 19MM, Torx / From: K2000001	$1.01	2
HT1	LR071705	STUD	LR071705 STUD M6 X 20 + M6 X 16 / From: K2000001	$3.94	1
9A223	LR040125	CLIP - FUEL PIPE SECURING	LR040125 CLIP - FUEL PIPE SECURING From: K2000001	$4.47	1
9D280	LR082759	MANIFOLD - FUEL SUPPLY	LR082759 MANIFOLD - FUEL SUPPLY Fuel Pressure Sensor / From: K2000001	$131.64	1
9J278	LR086433	RETAINER - TUBE	LR086433 RETAINER - TUBE From: K2000001	$6.28	5
9J326	LR100568	PIPE - FUEL	LR100568 PIPE - FUEL Front / From: K2000001	$276.32	1
9N944	LR082760	BRACKET - FUEL TUBE SUPPORT	LR082760 BRACKET - FUEL TUBE SUPPORT From: K2000001	$10.70	1
9S284	LR086375	TUBE - FUEL SUPPLY AND VAPOUR	LR086375 TUBE - FUEL SUPPLY AND VAPOUR For Unleaded Fuel / Centre / From: K2000001	$128.76	1
18C900	MTC7458	PAD - FOAM	MTC7458 PAD - FOAM From: K2000001	$34.12	2
