Fuel Tank & Related Parts (Nitra Plant Build) (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMK2000001, (V) TOL2999999) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] - Fuel Tank & Related Parts (Nitra Plant Build) (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMK2000001,...

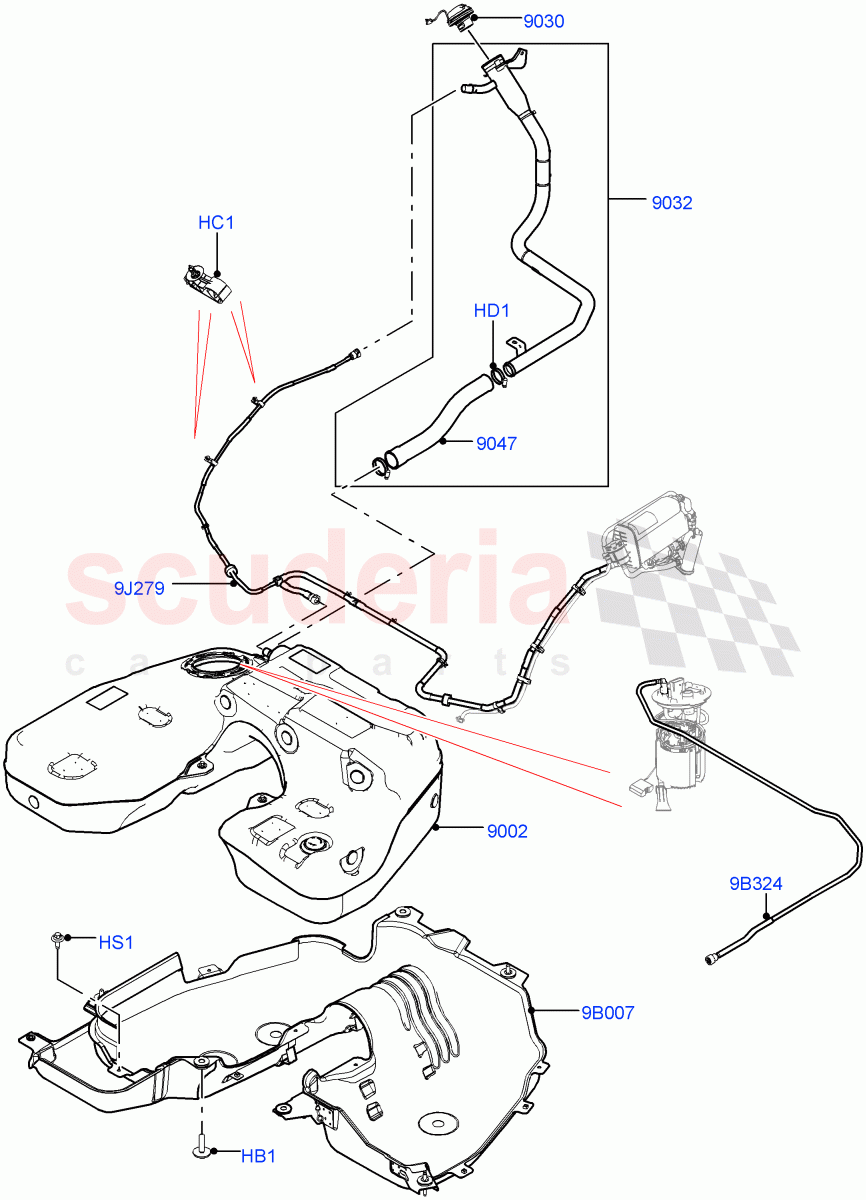

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR093364	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094032	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061655	CLAMP - FUEL SUPPLY TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125892	TANK - FUEL	Enquire	To Order
	LR136780	TANK - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053665	CAP - FUEL TANK FILLER	Enquire	To Order
	202123475	CAP - FUEL TANK FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082767	PIPE - FUEL FILLER	Enquire	To Order
	LR082768	PIPE - FUEL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082774	HOSE - FILLER PIPE	Enquire	To Order
	LR082775	HOSE - FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082727	SHIELD - FUEL TANK	Enquire	To Order
	LR135943	SHIELD - FUEL TANK	Enquire	To Order
	LR138377	Shield	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR125885	TUBE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082439	TUBE - VENTILATION	Enquire	To Order
	LR082442	TUBE - VENTILATION	Enquire	To Order
	LR138423	TUBE - VENTILATION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR093364	BOLT	LR093364 BOLT Hexagonal Head, M10 X 50MM, To Body / From: K2000001	-	6	Enquire
HC1	LR094032	CLIP - HOSE	LR094032 CLIP - HOSE Breather Pipe, Plastic / From: K2000001	-	2	Enquire
HD1	LR061655	CLAMP - FUEL SUPPLY TUBE	LR061655 CLAMP - FUEL SUPPLY TUBE 35-50 x 9 / From: K2000001	-	1	Enquire
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Fuel Tank To Shield, Hexagonal Head, M6X30 / From: K2000001	-	5	Enquire
9B007	LR082727	SHIELD - FUEL TANK	LR082727 SHIELD - FUEL TANK From: K2000001 / To: K2405429	-	1	Enquire
9B007	LR135943	SHIELD - FUEL TANK	LR135943 SHIELD - FUEL TANK From: K2405430 / To: L2434950	-	1	Enquire
9B007	LR138377	Shield	LR138377 Shield From: L2434951 / To: L2437597	-	1	Enquire
9B007	LR139063	SHIELD	LR139063 SHIELD From: L2437598	-	1	Enquire
9B324	LR125885	TUBE - FUEL	LR125885 TUBE - FUEL Feed / From: K2000001	-	1	Enquire
9J279	LR082439	TUBE - VENTILATION	LR082439 TUBE - VENTILATION Narrow Filler Neck - Unleaded / From: K2000001 / To: L2419276	-	1	Enquire
9J279	LR082442	TUBE - VENTILATION	LR082442 TUBE - VENTILATION Fuel Tank Filler Neck - Unleaded / From: K2000001	-	1	Enquire
9J279	LR138423	TUBE - VENTILATION	LR138423 TUBE - VENTILATION Narrow Filler Neck - Unleaded / From: L2419277	-	1	Enquire
9002	LR125892	TANK - FUEL	LR125892 TANK - FUEL From: K2000001 / To: L2418070	-	1	Enquire
9002	LR136780	TANK - FUEL	LR136780 TANK - FUEL From: L2418071	-	1	Enquire
9030	LR053665	CAP - FUEL TANK FILLER	LR053665 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Unleaded / From: K2000001	-	1	Enquire
9030	202123475	CAP - FUEL TANK FILLER	202123475 CAP - FUEL TANK FILLER Narrow Filler Neck - Unleaded / From: K2000001	-	1	Enquire
9032	LR082767	PIPE - FUEL FILLER	LR082767 PIPE - FUEL FILLER Narrow Filler Neck - Unleaded / From: K2000001	-	1	Enquire
9032	LR082768	PIPE - FUEL FILLER	LR082768 PIPE - FUEL FILLER Fuel Tank Filler Neck - Unleaded / From: K2000001	-	1	Enquire
9047	LR082774	HOSE - FILLER PIPE	LR082774 HOSE - FILLER PIPE Narrow Filler Neck - Unleaded / From: K2000001	-	1	Enquire
9047	LR082775	HOSE - FILLER PIPE	LR082775 HOSE - FILLER PIPE Fuel Tank Filler Neck - Unleaded / From: K2000001	-	1	Enquire
