Tow Bar (Solihull Plant Build) (Tow Hitch Receiver Nas, Tow Hitch Receiver 12 Pin Elec, Tow Hitch -...

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Tow Bar (Solihull Plant Build) (Tow Hitch Receiver NAS, Tow Hitch Receiver 12 Pin Elec, Tow Hitch -...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR033214 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR034229 BOLT Enquire To Order
LR097372 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR106035 HOOK - TOWING - REAR Enquire To Order
Photo Part No Description Price (each) Stock
LR064194 HOOK - TOWING - REAR Enquire To Order
Photo Part No Description Price (each) Stock
LR083046 KIT - TOW BRACKET Enquire To Order
LR083052 KIT - TOW BRACKET Enquire To Order
LR113716 KIT - TOW BRACKET Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR083048 KIT - TOW BRACKET Enquire To Order
LR083050 KIT - TOW BRACKET Enquire To Order
LR126252 KIT - TOW BRACKET Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR083047 KIT - TOW BRACKET Enquire To Order
LR083053 KIT - TOW BRACKET Enquire To Order
LR083047 KIT - TOW BRACKET Enquire To Order
...and 1 more part variants. See table on right for more details.
View All

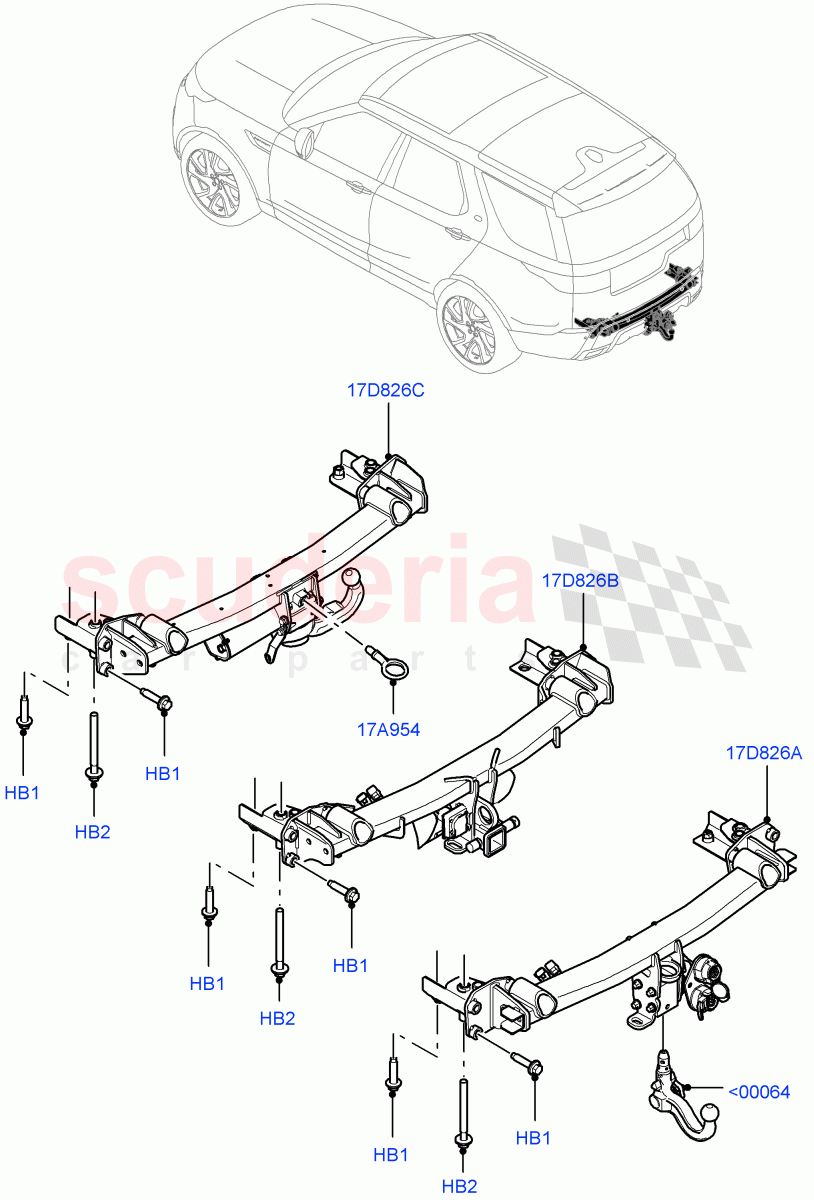

Tow Bar (Solihull Plant Build) (Tow Hitch Receiver NAS, Tow Hitch Receiver 12 Pin Elec, Tow Hitch - Electric Deployable, Tow Hitch Elec Deployable Swan Neck, Tow Hitch Man Detachable Swan Neck, Tow Hitch - Detatchable) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<00064 LR106035
HOOK - TOWING - REAR
Tow Hitch Man Detachable Swan Neck 		- 1 Enquire
HB1 LR033214
BOLT
Bolt And Washer, Hexagonal Head, M14 X 55MM, To Body 		- 10 Enquire
HB2 LR034229
BOLT
Hexagonal Head, M14 X 148MM / To: HA011634 		- 4 Enquire
HB2 LR097372
BOLT
Hexagonal Head, M14 X 148MM / From: HA011635 		- 4 Enquire
17A954 LR064194
HOOK - TOWING - REAR
Tow Hitch Elec Deployable Swan Neck 		- 1 Enquire
17D826A LR083046
KIT - TOW BRACKET
Tow Hitch Man Detachable Swan Neck, With 13 PIN Elec Socket And Harness / To: JA055574 		- 1 Enquire
17D826A LR083052
KIT - TOW BRACKET
Tow Hitch Man Detachable Swan Neck, With 7 PIN N Type Socket/Harness / To: JA999999 		- 1 Enquire
17D826A LR113716
KIT - TOW BRACKET
Tow Hitch Man Detachable Swan Neck, With 13 PIN Elec Socket And Harness / From: JA055575 / To: JA999999 		- 1 Enquire
17D826A LR113717
KIT - TOW BRACKET
Tow Hitch - Detatchable / From: KA000001 		- 1 Enquire
17D826A LR126251
KIT - TOW BRACKET
Tow Hitch Man Detachable Swan Neck / From: KA000001 		- 1 Enquire
17D826B LR083048
KIT - TOW BRACKET
Tow Hitch Receiver 12 Pin Elec / To: JA079306 		- 1 Enquire
17D826B LR083050
KIT - TOW BRACKET
Tow Hitch Receiver NAS / To: JA079306 		- 1 Enquire
17D826B LR126252
KIT - TOW BRACKET
Tow Hitch Receiver 12 Pin Elec / From: JA079307 		- 1 Enquire
17D826B LR126253
KIT - TOW BRACKET
Tow Hitch Receiver NAS / From: JA079307 		- 1 Enquire
17D826C LR083047
KIT - TOW BRACKET
Tow Hitch Elec Deployable Swan Neck, With 13 PIN Elec Socket And Harness / To: JA999999 		- 1 Enquire
17D826C LR083053
KIT - TOW BRACKET
Tow Hitch Elec Deployable Swan Neck, With 7 PIN N Type Socket/Harness / To: JA999999 		- 1 Enquire
17D826C LR083047
KIT - TOW BRACKET
Tow Hitch Elec Deployable Swan Neck / From: KA000001 		- 1 Enquire
17D826C LR083053
KIT - TOW BRACKET
Tow Hitch - Electric Deployable / From: KA000001 		- 1 Enquire
