Side Panels - Inner (Nitra Plant Build, Wheelarch) ((V) Fromk2000001)

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Side Panels - Inner (Nitra Plant Build, Wheelarch) ((V) FROMK2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR033697 CLIP - PUSH ON STEEL $1.38 To Order
Photo Part No Description Price (each) Stock
HYQ100060PUY FASTENER $4.17 IN STOCK
Photo Part No Description Price (each) Stock
ANR2224 HARDWARE - MISCELLANEOUS $2.57 To Order
Photo Part No Description Price (each) Stock
RYH500840 NUT $1.01 To Order
Photo Part No Description Price (each) Stock
LR088325 NUT - SPECIAL $2.63 To Order
Photo Part No Description Price (each) Stock
LR000066 PLUG - BLANKING $0.53 To Order
Photo Part No Description Price (each) Stock
LR005590 PLUG $3.53 To Order
Photo Part No Description Price (each) Stock
AYB500080 PLUG - BLANKING $7.59 To Order
Photo Part No Description Price (each) Stock
LR000807 PLUG - BODY SEALING $0.58 To Order
Photo Part No Description Price (each) Stock
LR092819 SCREW $1.09 To Order
Photo Part No Description Price (each) Stock
LR043516 INSULATOR - REAR FLOOR PAN $33.67 To Order
Photo Part No Description Price (each) Stock
LR104041 SHIELD - SPLASH - WHEELHOUSE $173.75 To Order
LR104042 SHIELD - SPLASH - WHEELHOUSE $185.56 To Order
LR142422 SHIELD - SPLASH - WHEELHOUSE $129.14 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR080213 GASKET - FILLER PIPE $53.16 To Order
Photo Part No Description Price (each) Stock
LR080207 INSULATOR - QUARTER PANEL $21.64 To Order
LR080208 INSULATOR - QUARTER PANEL $21.64 To Order
Photo Part No Description Price (each) Stock
LR080209 INSULATOR - QUARTER PANEL $21.48 To Order
LR080210 INSULATOR - QUARTER PANEL $21.48 To Order
Photo Part No Description Price (each) Stock
LR080211 INSULATOR - SOUND - BODY $22.87 To Order
LR080212 INSULATOR - SOUND - BODY $22.87 To Order
Photo Part No Description Price (each) Stock
LR080002 INSULATOR - QUARTER PANEL $29.70 To Order
LR080003 INSULATOR - QUARTER PANEL $31.17 To Order
Photo Part No Description Price (each) Stock
LR080214 INSULATOR - QUARTER PANEL $23.84 To Order
LR080215 INSULATOR - QUARTER PANEL $22.87 To Order
Photo Part No Description Price (each) Stock
LR080216 INSULATOR - QUARTER PANEL $27.85 To Order
LR080217 INSULATOR - QUARTER PANEL $27.85 To Order
View All

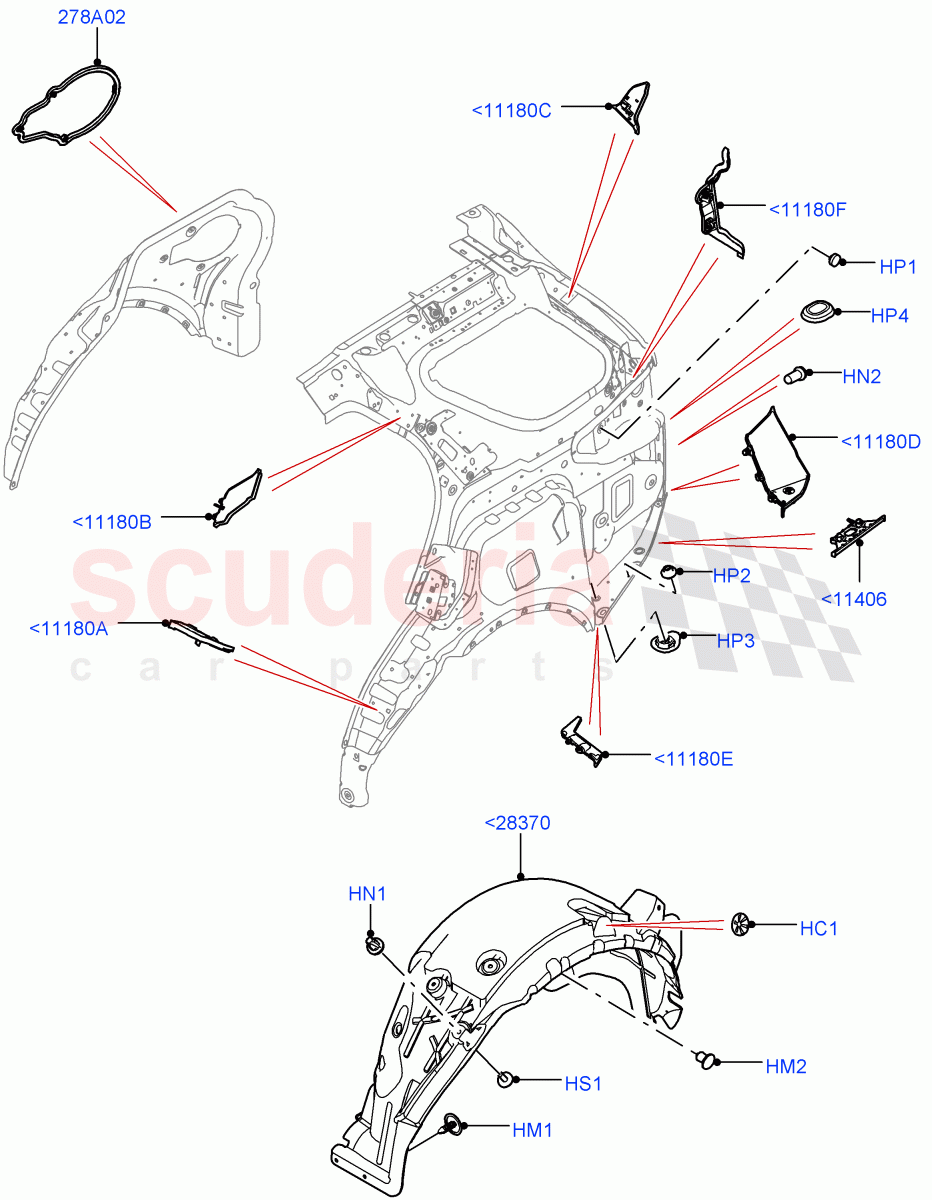

Side Panels - Inner (Nitra Plant Build, Wheelarch) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<11180A LR080207
INSULATOR - QUARTER PANEL
RH / From: K2000001 		$21.64 1
<11180A LR080208
INSULATOR - QUARTER PANEL
LH / From: K2000001 		$21.64 1
<11180B LR080209
INSULATOR - QUARTER PANEL
RH / From: K2000001 		$21.48 1
<11180B LR080210
INSULATOR - QUARTER PANEL
LH / From: K2000001 		$21.48 1
<11180C LR080211
INSULATOR - SOUND - BODY
RH / From: K2000001 		$22.87 1
<11180C LR080212
INSULATOR - SOUND - BODY
LH / From: K2000001 		$22.87 1
<11180D LR080002
INSULATOR - QUARTER PANEL
RH / From: K2000001 		$29.70 1
<11180D LR080003
INSULATOR - QUARTER PANEL
LH / From: K2000001 		$31.17 1
<11180E LR080214
INSULATOR - QUARTER PANEL
RH / From: K2000001 		$23.84 1
<11180E LR080215
INSULATOR - QUARTER PANEL
LH / From: K2000001 		$22.87 1
<11180F LR080216
INSULATOR - QUARTER PANEL
RH / From: K2000001 		$27.85 1
<11180F LR080217
INSULATOR - QUARTER PANEL
LH / From: K2000001 		$27.85 1
<11406 LR043516
INSULATOR - REAR FLOOR PAN
From: K2000001 		$33.67 1
<28370 LR104041
SHIELD - SPLASH - WHEELHOUSE
RH / From: K2000001 / To: L2999999 		$173.75 1
<28370 LR104042
SHIELD - SPLASH - WHEELHOUSE
LH / From: K2000001 / To: L2999999 		$185.56 1
<28370 LR142422
SHIELD - SPLASH - WHEELHOUSE
LH / From: M2000001 		$129.14 1
<28370 LR142421
SHIELD - SPLASH - WHEELHOUSE
RH / From: M2000001 		$129.14 1
HC1 LR033697
CLIP - PUSH ON STEEL
M6 / From: K2000001 		$1.38 6
HM1 HYQ100060PUY
FASTENER
Rivet / From: K2000001
IN STOCK 		$4.17 12
HM2 ANR2224
HARDWARE - MISCELLANEOUS
8 X 20MM, Pin / From: K2000001 		$2.57 6
HN1 RYH500840
NUT
M4, Plastic Nut / From: K2000001 		$1.01 8
HN2 LR088325
NUT - SPECIAL
M6 x 29MM, Rivet Nut / From: K2000001 		$2.63 4
HP1 LR000066
PLUG - BLANKING
16 X 0.6MM / From: K2000001 		$0.53 1
HP2 LR005590
PLUG
19 x 0.7MM / From: K2000001 		$3.53 1
HP3 AYB500080
PLUG - BLANKING
Approx. 30 x 36 x 9, Drain Plug / From: K2000001 		$7.59 2
HP4 LR000807
PLUG - BODY SEALING
16 X 22.5 X 0.5MM, RH/LH / From: K2000001 		$0.58 2
HS1 LR092819
SCREW
Hexagonal Head, M5 x 20MM, Self Tapping / From: K2000001 		$1.09 6
278A02 LR080213
GASKET - FILLER PIPE
From: K2000001 		$53.16 1
