Rear Bumper (Nitra Plant Build) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Rear Bumper (Nitra Plant Build) ((V) FROMM2000001)

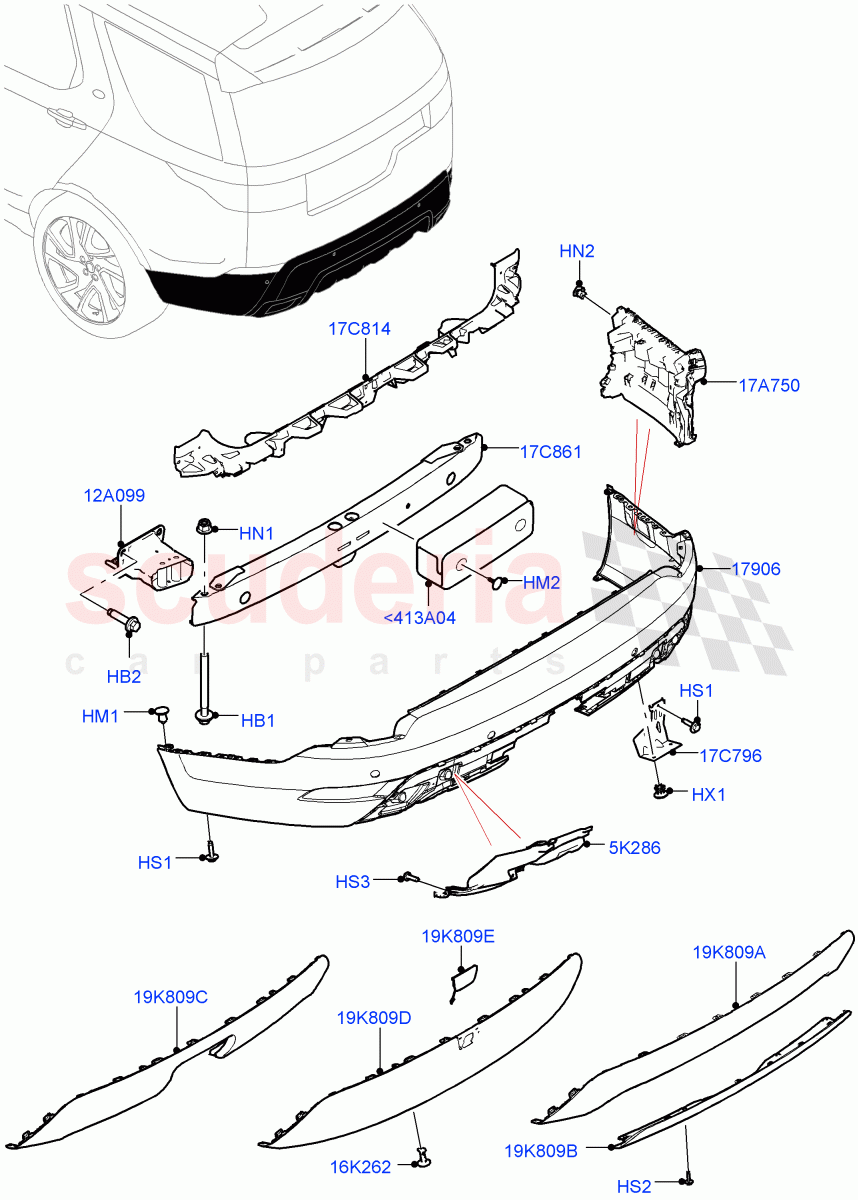

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR097372	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033214	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR2224	HARDWARE - MISCELLANEOUS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RZM500080	PIN - FASTENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY114056	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR165498	NUT - EXPANSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYP500320	SCREW	Enquire	To Order
	KYP500320	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083229	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038663	SCREW - FLAT ROUND HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005896	RETAINER - RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142599	BUMPER - REAR	Enquire	To Order
	LR142601	BUMPER - REAR	Enquire	To Order
	LR142603	BUMPER - REAR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR159355	HEAT SHIELD - EXHAUST	Enquire	To Order
	LR159356	HEAT SHIELD - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080358	REINFORCEMENT - BUMPER SECURING	Enquire	To Order
	LR080359	REINFORCEMENT - BUMPER SECURING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012844	CLIP - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142613	BRACKET - BUMPER MOUNTING	Enquire	To Order
	LR142614	BRACKET - BUMPER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083042	BRACKET - BUMPER MOUNTING	Enquire	To Order
	LR083043	BRACKET - BUMPER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142615	BRACKET - BUMPER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR148216	REINFORCEMENT - REAR BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR150016	INSULATOR - FLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142609	COVER - TOWING HOOK OPENING	Enquire	To Order
	LR142606	COVER - TOWING HOOK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142616	BUMPER - EXTENSION	Enquire	To Order
	LR142617	BUMPER - EXTENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142610	COVER - TOWING HOOK OPENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142611	COVER - TOWING HOOK OPENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142901	COVER - TOWING HOOK	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<413A04	LR150016	INSULATOR - FLOOR	LR150016 INSULATOR - FLOOR 3.0L AJ20P6 Petrol High, Less Trailer Towing Hitch / RH/LH / From: M2446804	-	2	Enquire
HB1	LR097372	BOLT	LR097372 BOLT Hexagonal Head, M14 X 148MM / From: M2000001	-	2	Enquire
HB2	LR033214	BOLT	LR033214 BOLT Bolt And Washer, Hexagonal Head, M14 X 55MM / From: M2000001	-	10	Enquire
HM1	ANR2224	HARDWARE - MISCELLANEOUS	ANR2224 HARDWARE - MISCELLANEOUS 8 X 20MM, Pin / From: M2000001	-	2	Enquire
HM2	RZM500080	PIN - FASTENING	RZM500080 PIN - FASTENING 3.0L AJ20P6 Petrol High, Less Trailer Towing Hitch / 6.35 X 28.5MM, Push Pin / From: M2446804	-	6	Enquire
HN1	FY114056	NUT - HEX.	FY114056 NUT - HEX. Hexagonal Head, M14 / From: M2000001	-	4	Enquire
HN2	LR165498	NUT - EXPANSION	LR165498 NUT - EXPANSION Plastic / From: M2000001	-	18	Enquire
HS1	KYP500320	SCREW	KYP500320 SCREW Bolt And Washer, M6 x 30MM, Mounting Bracket, Support / From: M2000001	-	2	Enquire
HS1	KYP500320	SCREW	KYP500320 SCREW Bolt And Washer, Bumper, M6 x 30MM / From: M2000001	-	8	Enquire
HS2	LR083229	SCREW	LR083229 SCREW M6 x 18MM / From: M2000001	-	4	Enquire
HS3	LR038663	SCREW - FLAT ROUND HEAD	LR038663 SCREW - FLAT ROUND HEAD 4 X 16MM, Heat Shield, Pan Head - Torx / From: M2000001	-	8	Enquire
HX1	LR005896	RETAINER - RIVET	LR005896 RETAINER - RIVET 10 X 4 - 5 / From: M2000001	-	4	Enquire
5K286	LR159355	HEAT SHIELD - EXHAUST	LR159355 HEAT SHIELD - EXHAUST RH / From: M2000001	-	1	Enquire
5K286	LR159356	HEAT SHIELD - EXHAUST	LR159356 HEAT SHIELD - EXHAUST LH / From: M2000001	-	1	Enquire
12A099	LR080358	REINFORCEMENT - BUMPER SECURING	LR080358 REINFORCEMENT - BUMPER SECURING Less Trailer Towing Hitch / RH / From: M2000001	-	1	Enquire
12A099	LR080359	REINFORCEMENT - BUMPER SECURING	LR080359 REINFORCEMENT - BUMPER SECURING Less Trailer Towing Hitch / LH / From: M2000001	-	1	Enquire
16K262	LR012844	CLIP - RETAINING	LR012844 CLIP - RETAINING 1/4 Turn Click Type / From: M2000001	-	4	Enquire
17A750	LR142613	BRACKET - BUMPER MOUNTING	LR142613 BRACKET - BUMPER MOUNTING RH / From: M2000001	-	1	Enquire
17A750	LR142614	BRACKET - BUMPER MOUNTING	LR142614 BRACKET - BUMPER MOUNTING LH / From: M2000001	-	1	Enquire
17C796	LR083042	BRACKET - BUMPER MOUNTING	LR083042 BRACKET - BUMPER MOUNTING RH / From: M2000001	-	1	Enquire
17C796	LR083043	BRACKET - BUMPER MOUNTING	LR083043 BRACKET - BUMPER MOUNTING LH / From: M2000001	-	1	Enquire
17C814	LR142615	BRACKET - BUMPER MOUNTING	LR142615 BRACKET - BUMPER MOUNTING Centre / From: M2000001	-	1	Enquire
17C861	LR148216	REINFORCEMENT - REAR BUMPER	LR148216 REINFORCEMENT - REAR BUMPER Less Trailer Towing Hitch / From: M2000001	-	1	Enquire
19K809A	LR142609	COVER - TOWING HOOK OPENING	LR142609 COVER - TOWING HOOK OPENING Less Trailer Towing Hitch, Rear Bumper Lower Valance-Narvik Bk / Primed / From: M2000001	-	1	Enquire
19K809A	LR142606	COVER - TOWING HOOK	LR142606 COVER - TOWING HOOK Less Trailer Towing Hitch, Rear Bmp Lower Valance - Anthracite, Towing Eye Cover - White Silver / From: M2000001	-	1	Enquire
19K809B	LR142616	BUMPER - EXTENSION	LR142616 BUMPER - EXTENSION Less Trailer Towing Hitch, Rear Bmp Lwr Valance - White Silver, Towing Eye Cover - White Silver / From: M2000001	-	1	Enquire
19K809B	LR142617	BUMPER - EXTENSION	LR142617 BUMPER - EXTENSION Less Trailer Towing Hitch, Rear Bumper Lower Valance-Narvik Bk, Tow Eye Cover - Body Colour / From: M2000001	-	1	Enquire
19K809C	LR142610	COVER - TOWING HOOK OPENING	LR142610 COVER - TOWING HOOK OPENING Rear Bumper Lower Valance-Narvik Bk, Tow Hitch Receiver NAS / Primed / From: M2000001	-	1	Enquire
19K809D	LR142611	COVER - TOWING HOOK OPENING	LR142611 COVER - TOWING HOOK OPENING Rear Bumper Lower Valance-Narvik Bk, Tow Hitch - Electric Deployable / Primed / From: M2000001	-	1	Enquire
19K809E	LR142901	COVER - TOWING HOOK	LR142901 COVER - TOWING HOOK Rear Bumper Lower Valance-Narvik Bk, Tow Hitch - Detatchable / Primed / From: M2000001	-	1	Enquire
17906	LR142599	BUMPER - REAR	LR142599 BUMPER - REAR Less Trailer Towing Hitch, Rear Bmp Lower Valance - Anthracite / From: M2000001	-	1	Enquire
17906	LR142601	BUMPER - REAR	LR142601 BUMPER - REAR Rear Bmp Lower Valance-Indus Silver, Tow Hitch Elec Deployable Swan Neck / From: M2000001	-	1	Enquire
17906	LR142603	BUMPER - REAR	LR142603 BUMPER - REAR Less Trailer Towing Hitch, Rear Bumper Lower Valance-Narvik Bk / From: M2000001	-	1	Enquire
17906	LR142605	BUMPER - REAR	LR142605 BUMPER - REAR Rear Bumper Lower Valance-Narvik Bk, Tow Hitch - Electric Deployable / From: M2000001	-	1	Enquire
