Splash And Heat Shields (Nitra Plant Build, Rear, Centre) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Splash And Heat Shields (Nitra Plant Build, Rear, Centre) ((V) FROMK2000001)

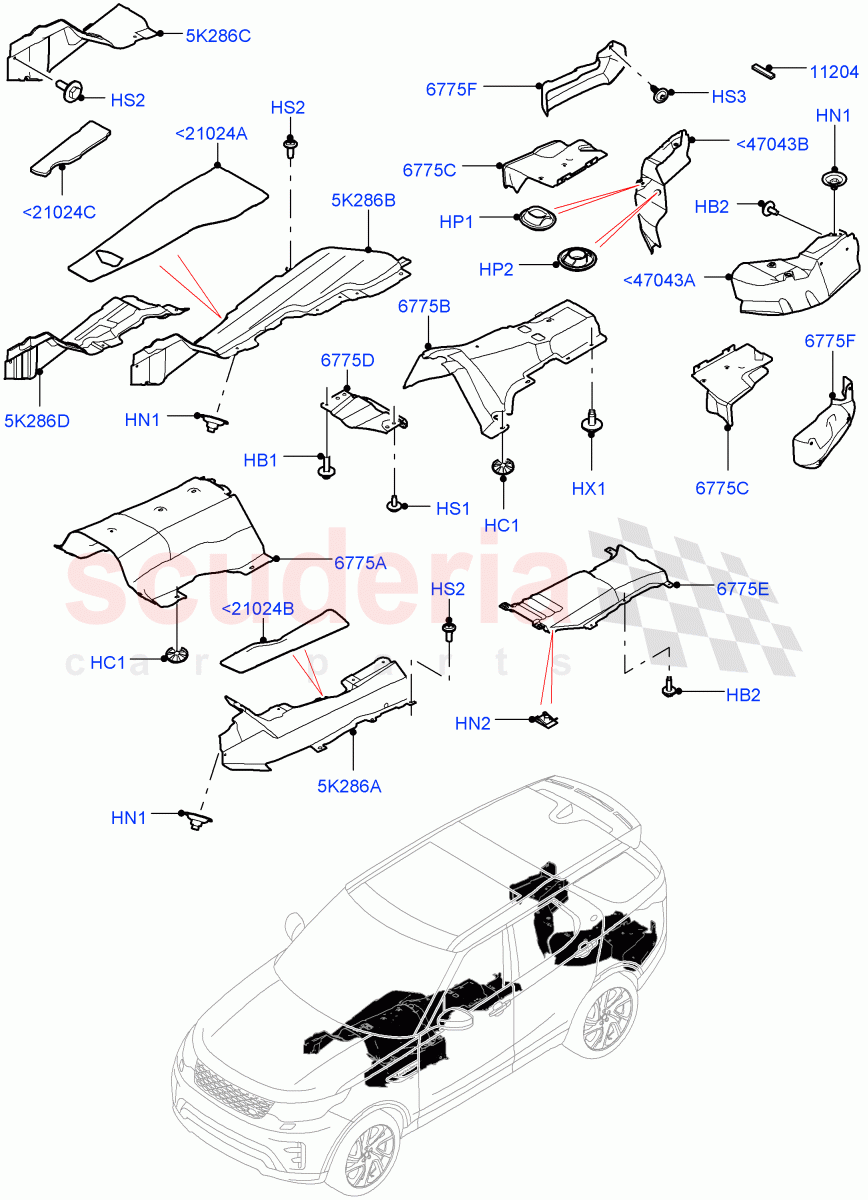

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR009266	BOLT M6 X 24	Enquire	To Order
	LR009266	BOLT M6 X 24	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033409	BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD	Enquire	To Order
	LR033409	BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033697	CLIP - PUSH ON STEEL	Enquire	To Order
	LR033697	CLIP - PUSH ON STEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033698	NUT - HEX. - PLATE	Enquire	To Order
	LR033698	NUT - HEX. - PLATE	Enquire	To Order
	LR033698	NUT - HEX. - PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYH100790	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005311	PLUG - BODY SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132021	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501170	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	Enquire	To Order
	AYP500110	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106494	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086390	INSULATOR - REAR FLOOR PAN	Enquire	To Order
	LR086390	INSULATOR - REAR FLOOR PAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR098015	SHIELD - TRANS. TUNNEL - FRONT	Enquire	To Order
	LR136830	SHIELD - TRANS. TUNNEL - FRONT	Enquire	To Order
	LR139286	SHIELD - TRANS. TUNNEL - FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR098010	SHIELD - TRANS. TUNNEL - REAR	Enquire	To Order
	LR118388	SHIELD - TRANS. TUNNEL - REAR	Enquire	To Order
	LR139253	SHIELD - TRANS. TUNNEL - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083675	SHIELD - REAR FLOOR PAN	Enquire	To Order
	LR083676	SHIELD - REAR FLOOR PAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094073	SHIELD - FRONT FLOOR PAN	Enquire	To Order
	LR094073	SHIELD - FRONT FLOOR PAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092621	SHIELD - REAR FLOOR PAN	Enquire	To Order
	LR137639	SHIELD - REAR FLOOR PAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116996	SHIELD - REAR FLOOR PAN	Enquire	To Order
	LR123051	SHIELD - REAR FLOOR PAN	Enquire	To Order
	LR123051	SHIELD - REAR FLOOR PAN	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR112555	HEAT SHIELD - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112556	SHIELD - FLOOR	Enquire	To Order
	LR112556	SHIELD - FLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094596	SHIELD - FLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132936	HEAT SHIELD - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116493	PAD - MUTE - FRONT	Enquire	To Order
	LR116493	PAD - MUTE - FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116494	PAD - MUTE - FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121156	PAD - MUTE - FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116993	HEATSHIELD - UNDERBODY SPARE TYRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083679	HEATSHIELD - UNDERBODY SPARE TYRE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<21024A	LR116493	PAD - MUTE - FRONT	LR116493 PAD - MUTE - FRONT 2.0L I4 High DOHC AJ200 Petrol / RH / From: K2000001 / To: L2999999	-	1	Enquire
<21024A	LR116493	PAD - MUTE - FRONT	LR116493 PAD - MUTE - FRONT 2.0L I4 High DOHC AJ200 Petrol / RH / From: M2000001	-	1	Enquire
<21024B	LR116494	PAD - MUTE - FRONT	LR116494 PAD - MUTE - FRONT 3.0 V6 D Gen2 Mono Turbo / LH / From: K2000001 / To: L2999999	-	1	Enquire
<21024C	LR121156	PAD - MUTE - FRONT	LR121156 PAD - MUTE - FRONT 3.0L AJ20P6 Petrol High / RH / From: M2000001	-	1	Enquire
<47043A	LR116993	HEATSHIELD - UNDERBODY SPARE TYRE	LR116993 HEATSHIELD - UNDERBODY SPARE TYRE 21" Full Size Spare Wheel, 3.0 V6 D Gen2 Mono Turbo / LH / From: K2000001	-	1	Enquire
<47043B	LR083679	HEATSHIELD - UNDERBODY SPARE TYRE	LR083679 HEATSHIELD - UNDERBODY SPARE TYRE 19" Full Size Spare Wheel / RH / From: K2000001	-	1	Enquire
HB1	LR009266	BOLT M6 X 24	LR009266 BOLT M6 X 24 Bolt And Washer, Heat Shield, Hexagonal Head, M6 X 24MM / From: K2000001	-	3	Enquire
HB1	LR009266	BOLT M6 X 24	LR009266 BOLT M6 X 24 Bolt And Washer, Front Floor Pan, Hexagonal Head, M6 X 24MM / From: K2000001	-	4	Enquire
HB2	LR033409	BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD	LR033409 BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD Centre, M6 X 13.5MM / From: K2000001	-	8	Enquire
HB2	LR033409	BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD	LR033409 BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD M6 X 13.5MM, Rear, Side / From: K2000001	-	4	Enquire
HC1	LR033697	CLIP - PUSH ON STEEL	LR033697 CLIP - PUSH ON STEEL Front, M6 / From: K2000001	-	3	Enquire
HC1	LR033697	CLIP - PUSH ON STEEL	LR033697 CLIP - PUSH ON STEEL M6, Rear / From: K2000001	-	2	Enquire
HN1	LR033698	NUT - HEX. - PLATE	LR033698 NUT - HEX. - PLATE LH, Heat Shield, M6 / From: K2000001	-	6	Enquire
HN1	LR033698	NUT - HEX. - PLATE	LR033698 NUT - HEX. - PLATE RH, Heat Shield, M6 / From: K2000001	-	4	Enquire
HN1	LR033698	NUT - HEX. - PLATE	LR033698 NUT - HEX. - PLATE Heat Shield, M6, Spare Wheel Mounting / From: K2000001	-	2	Enquire
HN2	AYH100790	NUT - SPECIAL	AYH100790 NUT - SPECIAL M6 X 0.5-4, Nut "U" Spring / From: K2000001	-	2	Enquire
HP1	LR005311	PLUG - BODY SEALING	LR005311 PLUG - BODY SEALING 19 X 25, Plastic / From: K2000001	-	3	Enquire
HP2	LR132021	PLUG	LR132021 PLUG 19mm x 0.7 - 2.5mm, Heatshield / From: K2000001	-	2	Enquire
HS1	RYG501170	SCREW AND WASHER	RYG501170 SCREW AND WASHER Heat Shield, Hexagonal Head, M8 X 30MM / From: K2000001	-	1	Enquire
HS2	AYP500110	SCREW	AYP500110 SCREW LH, Bolt And Washer, Heat Shield, Hexagonal Head, M6 X 20MM / From: K2000001	-	2	Enquire
HS2	AYP500110	SCREW	AYP500110 SCREW RH, Bolt And Washer, Heat Shield, Hexagonal Head, M6 X 20MM / From: K2000001	-	1	Enquire
HS3	LR106494	SCREW	LR106494 SCREW M5 x 20MM, Self Tapping / From: K2000001	-	6	Enquire
HX1	RYQ500070	PIN - RETAINING	RYQ500070 PIN - RETAINING 6.3 X 22MM, Push Pin / From: K2000001	-	4	Enquire
5K286A	LR112555	HEAT SHIELD - EXHAUST	LR112555 HEAT SHIELD - EXHAUST 3.0 V6 D Gen2 Twin Turbo / LH / From: K2000001 / To: L2999999	-	1	Enquire
5K286B	LR112556	SHIELD - FLOOR	LR112556 SHIELD - FLOOR 2.0L I4 High DOHC AJ200 Petrol / RH / From: K2000001 / To: L2999999	-	1	Enquire
5K286B	LR112556	SHIELD - FLOOR	LR112556 SHIELD - FLOOR 2.0L I4 High DOHC AJ200 Petrol / RH / From: M2000001	-	1	Enquire
5K286C	LR094596	SHIELD - FLOOR	LR094596 SHIELD - FLOOR 3.0 V6 D Gen2 Twin Turbo / From: K2000001 / To: L2999999	-	1	Enquire
5K286D	LR132936	HEAT SHIELD - EXHAUST	LR132936 HEAT SHIELD - EXHAUST 3.0L AJ20P6 Petrol High / From: M2000001	-	1	Enquire
6775A	LR098015	SHIELD - TRANS. TUNNEL - FRONT	LR098015 SHIELD - TRANS. TUNNEL - FRONT Front, Transmission / From: K2000001 / To: L2432806	-	1	Enquire
6775A	LR136830	SHIELD - TRANS. TUNNEL - FRONT	LR136830 SHIELD - TRANS. TUNNEL - FRONT Front, Transmission / From: L2432807 / To: L2433806	-	1	Enquire
6775A	LR139286	SHIELD - TRANS. TUNNEL - FRONT	LR139286 SHIELD - TRANS. TUNNEL - FRONT Front, Transmission / From: L2433807	-	1	Enquire
6775B	LR098010	SHIELD - TRANS. TUNNEL - REAR	LR098010 SHIELD - TRANS. TUNNEL - REAR Rear, Transmission / From: K2000001 / To: L2432806	-	1	Enquire
6775B	LR118388	SHIELD - TRANS. TUNNEL - REAR	LR118388 SHIELD - TRANS. TUNNEL - REAR Rear, Transmission / From: L2432807 / To: L2433806	-	1	Enquire
6775B	LR139253	SHIELD - TRANS. TUNNEL - REAR	LR139253 SHIELD - TRANS. TUNNEL - REAR Rear, Transmission / From: L2433807	-	1	Enquire
6775C	LR083675	SHIELD - REAR FLOOR PAN	LR083675 SHIELD - REAR FLOOR PAN RH, Rear Floor / From: K2000001	-	1	Enquire
6775C	LR083676	SHIELD - REAR FLOOR PAN	LR083676 SHIELD - REAR FLOOR PAN LH, Rear Floor / From: K2000001	-	1	Enquire
6775D	LR094073	SHIELD - FRONT FLOOR PAN	LR094073 SHIELD - FRONT FLOOR PAN 3.0 V6 D Low MT ROW / From: K2000001 / To: L2999999	-	1	Enquire
6775D	LR094073	SHIELD - FRONT FLOOR PAN	LR094073 SHIELD - FRONT FLOOR PAN 2.0L I4 High DOHC AJ200 Petrol / From: M2000001	-	1	Enquire
6775E	LR092621	SHIELD - REAR FLOOR PAN	LR092621 SHIELD - REAR FLOOR PAN Centre, Rear Floor / From: K2000001 / To: L2423410	-	1	Enquire
6775E	LR137639	SHIELD - REAR FLOOR PAN	LR137639 SHIELD - REAR FLOOR PAN Centre, Rear Floor / From: L2423411	-	1	Enquire
6775F	LR116996	SHIELD - REAR FLOOR PAN	LR116996 SHIELD - REAR FLOOR PAN 3.0 V6 D Gen2 Twin Turbo / RH, For Diesel Engines, Front Floor Pan / From: K2000001 / To: L2999999	-	1	Enquire
6775F	LR123051	SHIELD - REAR FLOOR PAN	LR123051 SHIELD - REAR FLOOR PAN 3.0 V6 D Gen2 Mono Turbo / LH, For Diesel Engines, Front Floor Pan / From: K2000001 / To: L2999999	-	1	Enquire
6775F	LR123051	SHIELD - REAR FLOOR PAN	LR123051 SHIELD - REAR FLOOR PAN 3.0L DOHC GDI SC V6 PETROL / LH, Front Floor Pan / From: K2000001 / To: L2999999	-	1	Enquire
6775F	LR083677	SHIELD - REAR FLOOR PAN	LR083677 SHIELD - REAR FLOOR PAN 3.0L DOHC GDI SC V6 PETROL / RH, Front Floor Pan / From: K2000001 / To: L2999999	-	1	Enquire
6775F	LR142292	SHIELD - REAR FLOOR PAN	LR142292 SHIELD - REAR FLOOR PAN RH, Front Floor Pan / From: M2000001	-	1	Enquire
6775F	LR142293	SHIELD - REAR FLOOR PAN	LR142293 SHIELD - REAR FLOOR PAN 2.0L I4 High DOHC AJ200 Petrol / LH, Front Floor Pan / From: M2000001	-	1	Enquire
11204	LR086390	INSULATOR - REAR FLOOR PAN	LR086390 INSULATOR - REAR FLOOR PAN 3.0 V6 D Low MT ROW / From: K2000001 / To: L2999999	-	1	Enquire
11204	LR086390	INSULATOR - REAR FLOOR PAN	LR086390 INSULATOR - REAR FLOOR PAN From: M2000001	-	1	Enquire
