Body Mouldings (Solihull Plant Build) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Body Mouldings (Solihull Plant Build) ((V) FROMHA000001)

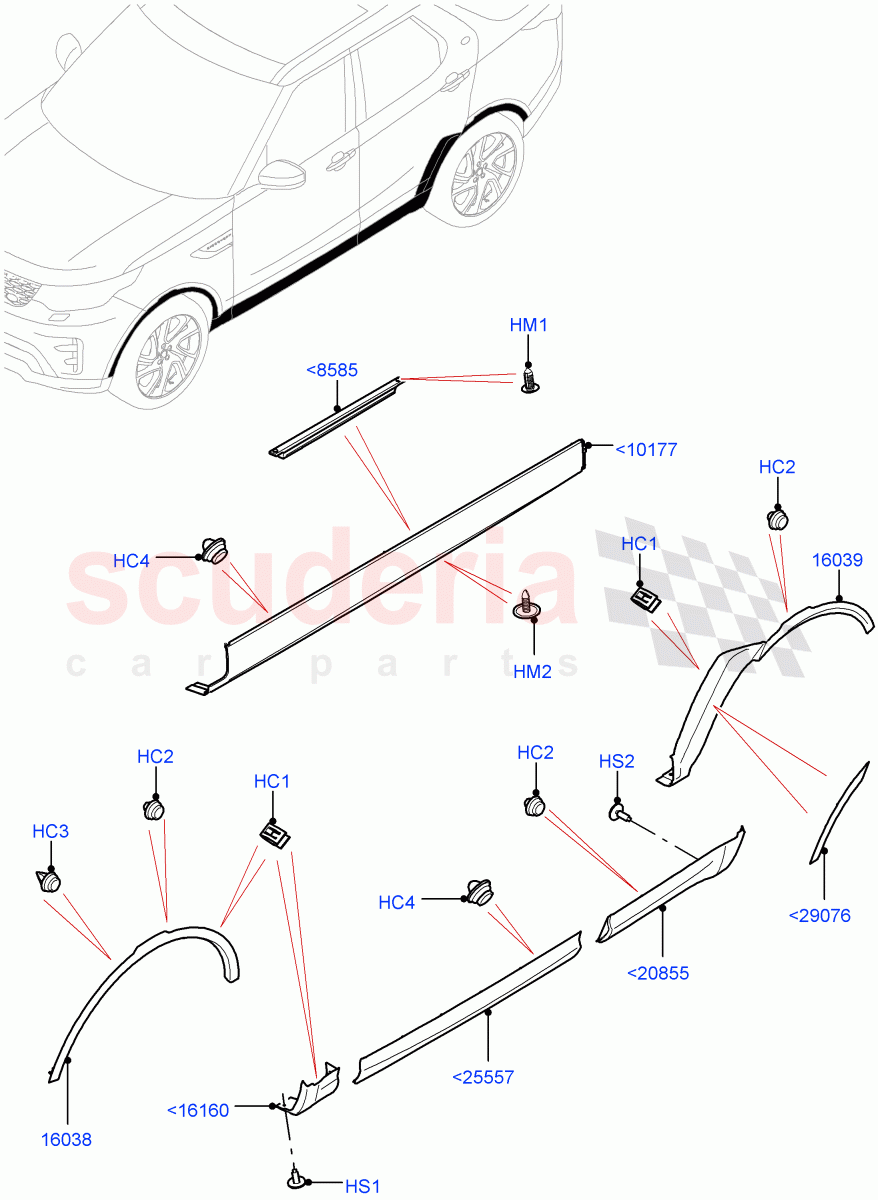

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR082683	CLIP	Enquire	To Order
	LR082683	CLIP	Enquire	To Order
	LR082683	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028939	CLIP	Enquire	To Order
	LR028939	CLIP	Enquire	To Order
	LR028939	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027255	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078957	CLIP	Enquire	To Order
	LR078957	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RZM500130	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYQ100060PUY	FASTENER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106494	SCREW	Enquire	To Order
	LR106494	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010155	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050865	FOAM PAD - ENERGY ABSORBING	Enquire	To Order
	LR050866	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082934	MOULDING - FRONT WHEEL ARCH	Enquire	To Order
	LR082935	MOULDING - FRONT WHEEL ARCH	Enquire	To Order
	LR082936	MOULDING - FRONT WHEEL ARCH	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR082940	MOULDING - REAR WHEEL ARCH	Enquire	To Order
	LR082941	MOULDING - REAR WHEEL ARCH	Enquire	To Order
	LR082822	MOULDING - REAR WHEEL ARCH	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR048270	MOULDING - DOOR SILL	Enquire	To Order
	LR048269	MOULDING - DOOR SILL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082946	MOULDING - FENDER	Enquire	To Order
	LR082947	MOULDING - FENDER	Enquire	To Order
	LR082681	MOULDING - FENDER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR082686	MOULDING - DOOR OUTSIDE	Enquire	To Order
	LR082687	MOULDING - DOOR OUTSIDE	Enquire	To Order
	LR082944	MOULDING - DOOR OUTSIDE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR082690	MOULDING - DOOR OUTSIDE	Enquire	To Order
	LR082691	MOULDING - DOOR OUTSIDE	Enquire	To Order
	LR082942	MOULDING - DOOR OUTSIDE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR082938	MOULDING - REAR WHEEL ARCH	Enquire	To Order
	LR082939	MOULDING - REAR WHEEL ARCH	Enquire	To Order
	LR082820	MOULDING - REAR WHEEL ARCH	Enquire	To Order

...and 7 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<8585	LR050865	FOAM PAD - ENERGY ABSORBING	LR050865 FOAM PAD - ENERGY ABSORBING RH	-	1	Enquire
<8585	LR050866	FOAM PAD - ENERGY ABSORBING	LR050866 FOAM PAD - ENERGY ABSORBING LH	-	1	Enquire
<10177	LR048270	MOULDING - DOOR SILL	LR048270 MOULDING - DOOR SILL RH	-	1	Enquire
<10177	LR048269	MOULDING - DOOR SILL	LR048269 MOULDING - DOOR SILL LH	-	1	Enquire
<16160	LR082946	MOULDING - FENDER	LR082946 MOULDING - FENDER With Lower Body Cladding / RH	-	1	Enquire
<16160	LR082947	MOULDING - FENDER	LR082947 MOULDING - FENDER With Lower Body Cladding / LH	-	1	Enquire
<16160	LR082681	MOULDING - FENDER	LR082681 MOULDING - FENDER Lower Painter Cladding Design A / RH	-	1	Enquire
<16160	LR082682	MOULDING - FENDER	LR082682 MOULDING - FENDER Lower Painter Cladding Design A / LH	-	1	Enquire
<20855	LR082686	MOULDING - DOOR OUTSIDE	LR082686 MOULDING - DOOR OUTSIDE Lower Painter Cladding Design A / RH	-	1	Enquire
<20855	LR082687	MOULDING - DOOR OUTSIDE	LR082687 MOULDING - DOOR OUTSIDE Lower Painter Cladding Design A / LH	-	1	Enquire
<20855	LR082944	MOULDING - DOOR OUTSIDE	LR082944 MOULDING - DOOR OUTSIDE With Lower Body Cladding / RH	-	1	Enquire
<20855	LR082945	MOULDING - DOOR OUTSIDE	LR082945 MOULDING - DOOR OUTSIDE With Lower Body Cladding / LH	-	1	Enquire
<25557	LR082690	MOULDING - DOOR OUTSIDE	LR082690 MOULDING - DOOR OUTSIDE Lower Painter Cladding Design A / RH	-	1	Enquire
<25557	LR082691	MOULDING - DOOR OUTSIDE	LR082691 MOULDING - DOOR OUTSIDE Lower Painter Cladding Design A / LH	-	1	Enquire
<25557	LR082942	MOULDING - DOOR OUTSIDE	LR082942 MOULDING - DOOR OUTSIDE With Lower Body Cladding / RH	-	1	Enquire
<25557	LR082943	MOULDING - DOOR OUTSIDE	LR082943 MOULDING - DOOR OUTSIDE With Lower Body Cladding / LH	-	1	Enquire
<29076	LR082938	MOULDING - REAR WHEEL ARCH	LR082938 MOULDING - REAR WHEEL ARCH With Lower Body Cladding / RH / To: HA016037	-	1	Enquire
<29076	LR082939	MOULDING - REAR WHEEL ARCH	LR082939 MOULDING - REAR WHEEL ARCH With Lower Body Cladding / LH / To: HA016037	-	1	Enquire
<29076	LR082820	MOULDING - REAR WHEEL ARCH	LR082820 MOULDING - REAR WHEEL ARCH Lower Painter Cladding Design A / RH / To: JA078765	-	1	Enquire
<29076	LR082821	MOULDING - REAR WHEEL ARCH	LR082821 MOULDING - REAR WHEEL ARCH Lower Painter Cladding Design A / LH / To: JA078754	-	1	Enquire
<29076	LR106324	MOULDING - REAR WHEEL ARCH	LR106324 MOULDING - REAR WHEEL ARCH With Lower Body Cladding / RH / From: HA016038 / To: JA078759	-	1	Enquire
<29076	LR106325	MOULDING - REAR WHEEL ARCH	LR106325 MOULDING - REAR WHEEL ARCH With Lower Body Cladding / LH / From: HA016038 / To: JA078759	-	1	Enquire
<29076	LR117002	MOULDING - REAR WHEEL ARCH	LR117002 MOULDING - REAR WHEEL ARCH With Lower Body Cladding / RH / From: JA078760	-	1	Enquire
<29076	LR117004	MOULDING - REAR WHEEL ARCH	LR117004 MOULDING - REAR WHEEL ARCH With Lower Body Cladding / LH / From: JA078760	-	1	Enquire
<29076	LR117003	MOULDING - REAR WHEEL ARCH	LR117003 MOULDING - REAR WHEEL ARCH Lower Painter Cladding Design A / LH / From: JA078755	-	1	Enquire
<29076	LR117001	MOULDING - REAR WHEEL ARCH	LR117001 MOULDING - REAR WHEEL ARCH Lower Painter Cladding Design A / RH / From: JA078766	-	1	Enquire
HC1	LR082683	CLIP	LR082683 CLIP Attaches Moulding, CLIP 1.5-6.5 X 6 - 12.5, Front Fender	-	3	Enquire
HC1	LR082683	CLIP	LR082683 CLIP Attaches Moulding, CLIP 1.5-6.5 X 6 - 12.5	-	8	Enquire
HC1	LR082683	CLIP	LR082683 CLIP Attaches Moulding, CLIP 1.5-6.5 X 6 - 12.5, Rear Fender	-	6	Enquire
HC2	LR028939	CLIP	LR028939 CLIP Clip Lantern 8.2 X 0.65-1 + 2 Plastic, Front Fender	-	4	Enquire
HC2	LR028939	CLIP	LR028939 CLIP Attaches Moulding, Clip Lantern 8.2 X 0.65-1 + 2 Plastic	-	3	Enquire
HC2	LR028939	CLIP	LR028939 CLIP Attaches Moulding, Clip Lantern 8.2 X 0.65-1 + 2 Plastic, Rear Fender	-	14	Enquire
HC3	LR027255	CLIP	LR027255 CLIP Front Fender, Trim Pin 8 X 2.9 - 3.1 + 2.3 Special Plastic	-	2	Enquire
HC4	LR078957	CLIP	LR078957 CLIP Clip Lantern 8.2 X 0.65-1 + 2 Plastic	-	11	Enquire
HC4	LR078957	CLIP	LR078957 CLIP Attaches Moulding, Clip Lantern 8.2 X 0.65-1 + 2 Plastic	-	12	Enquire
HM1	RZM500130	PIN	RZM500130 PIN M10 X 28MM	-	4	Enquire
HM2	HYQ100060PUY	FASTENER	HYQ100060PUY FASTENER Rivet	-	20	Enquire
HS1	LR106494	SCREW	LR106494 SCREW Attaches Moulding, M5 x 20MM, Self Tapping / To: JA060365	-	2	Enquire
HS1	LR106494	SCREW	LR106494 SCREW Attaches Moulding, M5 x 19MM, Self Tapping / From: JA060366	-	8	Enquire
HS2	LR010155	SCREW	LR010155 SCREW M5 X 16MM, Torx, Woofer	-	4	Enquire
16038	LR082934	MOULDING - FRONT WHEEL ARCH	LR082934 MOULDING - FRONT WHEEL ARCH Less Park Side Guard, With Lower Body Cladding / RH / To: JA999999	-	1	Enquire
16038	LR082935	MOULDING - FRONT WHEEL ARCH	LR082935 MOULDING - FRONT WHEEL ARCH With Lower Body Cladding, With Park Side Flank Guard / RH / To: JA999999	-	1	Enquire
16038	LR082936	MOULDING - FRONT WHEEL ARCH	LR082936 MOULDING - FRONT WHEEL ARCH Less Park Side Guard, With Lower Body Cladding / LH / To: JA999999	-	1	Enquire
16038	LR082937	MOULDING - FRONT WHEEL ARCH	LR082937 MOULDING - FRONT WHEEL ARCH With Lower Body Cladding, With Park Side Flank Guard / LH / To: JA999999	-	1	Enquire
16038	LR082815	MOULDING - FRONT WHEEL ARCH	LR082815 MOULDING - FRONT WHEEL ARCH Less Park Side Guard, Lower Painter Cladding Design A / RH / To: JA999999	-	1	Enquire
16038	LR082817	MOULDING - FRONT WHEEL ARCH	LR082817 MOULDING - FRONT WHEEL ARCH Lower Painter Cladding Design A, With Park Side Flank Guard / RH / To: JA999999	-	1	Enquire
16038	LR082818	MOULDING - FRONT WHEEL ARCH	LR082818 MOULDING - FRONT WHEEL ARCH Less Park Side Guard, Lower Painter Cladding Design A / LH / To: JA999999	-	1	Enquire
16038	LR082819	MOULDING - FRONT WHEEL ARCH	LR082819 MOULDING - FRONT WHEEL ARCH Lower Painter Cladding Design A, With Park Side Flank Guard / LH / To: JA999999	-	1	Enquire
16038	LR082934	MOULDING - FRONT WHEEL ARCH	LR082934 MOULDING - FRONT WHEEL ARCH Front And Rear Parking Aid, With Lower Body Cladding / RH / From: KA000001	-	1	Enquire
16038	LR082817	MOULDING - FRONT WHEEL ARCH	LR082817 MOULDING - FRONT WHEEL ARCH 360 Parking Aid, Lower Painter Cladding Design A / RH / From: KA000001	-	1	Enquire
16038	LR082935	MOULDING - FRONT WHEEL ARCH	LR082935 MOULDING - FRONT WHEEL ARCH 360 Parking Aid, With Lower Body Cladding / RH / From: KA000001	-	1	Enquire
16038	LR082815	MOULDING - FRONT WHEEL ARCH	LR082815 MOULDING - FRONT WHEEL ARCH Front And Rear Parking Aid, Lower Painter Cladding Design A / RH / From: KA000001	-	1	Enquire
16038	LR082936	MOULDING - FRONT WHEEL ARCH	LR082936 MOULDING - FRONT WHEEL ARCH Front And Rear Parking Aid, With Lower Body Cladding / LH / From: KA000001	-	1	Enquire
16038	LR082937	MOULDING - FRONT WHEEL ARCH	LR082937 MOULDING - FRONT WHEEL ARCH 360 Parking Aid, With Lower Body Cladding / LH / From: KA000001	-	1	Enquire
16038	LR082818	MOULDING - FRONT WHEEL ARCH	LR082818 MOULDING - FRONT WHEEL ARCH Front And Rear Parking Aid, Lower Painter Cladding Design A / LH / From: KA000001	-	1	Enquire
16038	LR082819	MOULDING - FRONT WHEEL ARCH	LR082819 MOULDING - FRONT WHEEL ARCH 360 Parking Aid, Lower Painter Cladding Design A / LH / From: KA000001	-	1	Enquire
16039	LR082940	MOULDING - REAR WHEEL ARCH	LR082940 MOULDING - REAR WHEEL ARCH With Lower Body Cladding / RH / To: HA001508	-	1	Enquire
16039	LR082941	MOULDING - REAR WHEEL ARCH	LR082941 MOULDING - REAR WHEEL ARCH With Lower Body Cladding / LH / To: HA001508	-	1	Enquire
16039	LR082822	MOULDING - REAR WHEEL ARCH	LR082822 MOULDING - REAR WHEEL ARCH Lower Painter Cladding Design A / RH / To: HA039790	-	1	Enquire
16039	LR082823	MOULDING - REAR WHEEL ARCH	LR082823 MOULDING - REAR WHEEL ARCH Lower Painter Cladding Design A / LH / To: HA039790	-	1	Enquire
16039	LR099643	MOULDING - REAR WHEEL ARCH	LR099643 MOULDING - REAR WHEEL ARCH With Lower Body Cladding / RH / From: HA001509	-	1	Enquire
16039	LR099644	MOULDING - REAR WHEEL ARCH	LR099644 MOULDING - REAR WHEEL ARCH With Lower Body Cladding / LH / From: HA001509	-	1	Enquire
16039	LR106670	MOULDING - REAR WHEEL ARCH	LR106670 MOULDING - REAR WHEEL ARCH Lower Painter Cladding Design A / RH / From: HA039791	-	1	Enquire
16039	LR106669	MOULDING - REAR WHEEL ARCH	LR106669 MOULDING - REAR WHEEL ARCH Lower Painter Cladding Design A / LH / From: HA039791	-	1	Enquire
