Switches (Steering Column) (Changsu (China)) ((V) Fromfg000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Switches (Steering Column) (Changsu (China)) ((V) FROMFG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYP500180 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR137877 SWITCH - STEERING COLUMN ADJUST Enquire To Order
LR137749 SWITCH - STEERING COLUMN ADJUST Enquire To Order
LR146272 SWITCH - MULTIPLE FUNCTION Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR060892 SENSOR - STEERING ROTATION Enquire To Order
LR060895 SENSOR - STEERING ROTATION Enquire To Order
Photo Part No Description Price (each) Stock
LR042311 HOUSING - STEERING ANGLE SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
LR024625 SWITCH - DIRECTION INDICATOR Enquire To Order
LR024627 SWITCH - DIRECTION INDICATOR Enquire To Order
LR125095 SWITCH - DIRECTION INDICATOR Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR024628 SWITCH - WASHER AND WIPER Enquire To Order
LR024629 SWITCH - WASHER AND WIPER Enquire To Order
LR125096 SWITCH - WASHER AND WIPER Enquire To Order
...and 1 more part variants. See table on right for more details.
View All

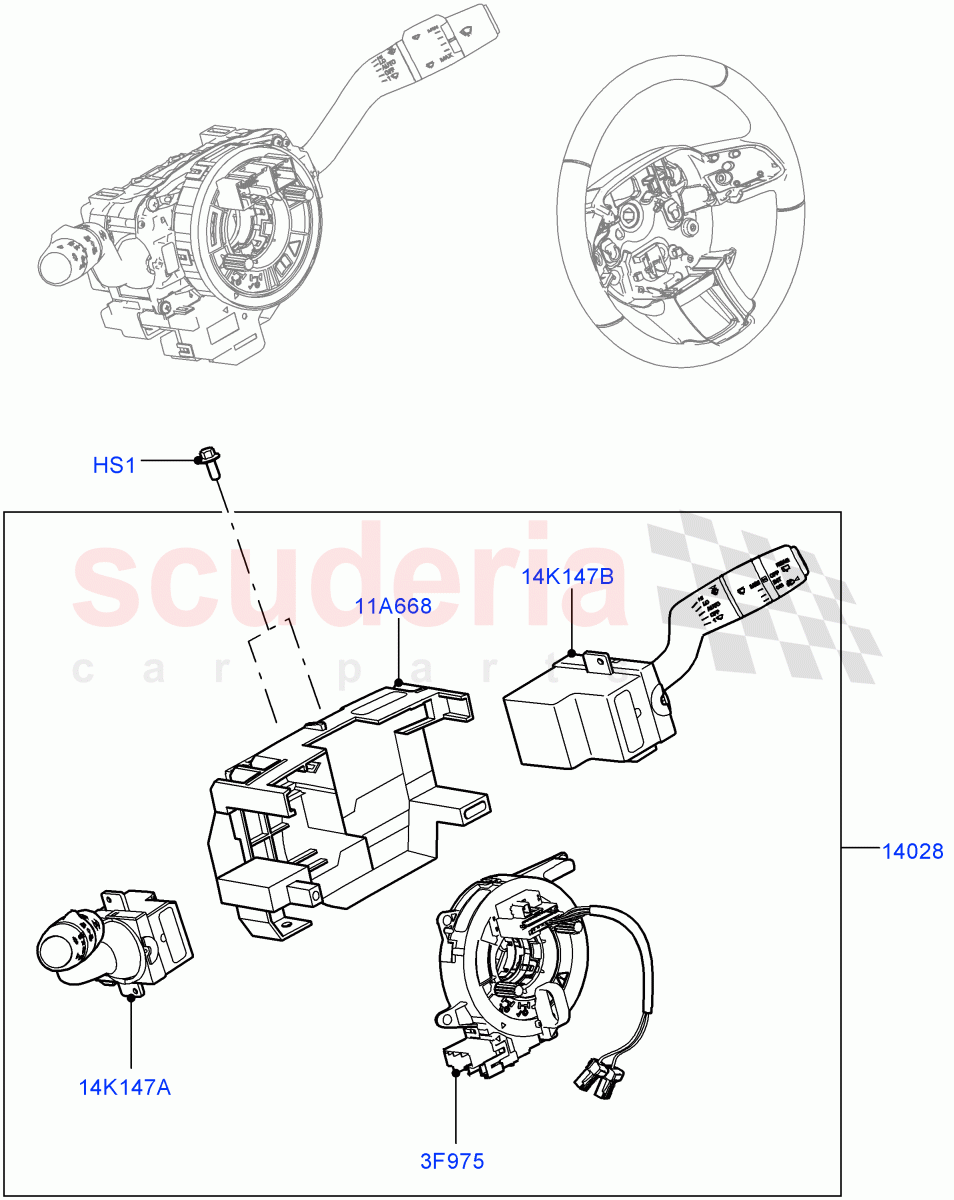

Switches (Steering Column) (Changsu (China)) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 RYP500180
SCREW
M5 X 12MM, Torx / From: FG000001 		- 2 Enquire
3F975 LR060892
SENSOR - STEERING ROTATION
Less Heated Steering Wheel / From: FG000001 / To: KG446856 		- 1 Enquire
3F975 LR060895
SENSOR - STEERING ROTATION
With Heated Steering Wheel / From: FG000001 / To: KG446856 		- 1 Enquire
11A668 LR042311
HOUSING - STEERING ANGLE SENSOR
Handle And Housing Assy / From: FG000001 / To: KG446856 		- 1 Enquire
14K147A LR024625
SWITCH - DIRECTION INDICATOR
Less Rain Sensor - Front W/Wiper, With Conventional Headlamp Control, With Front Fog Lamps / From: FG000001 		- 1 Enquire
14K147A LR024627
SWITCH - DIRECTION INDICATOR
With Automatic Headlamp On/Off, With Front Fog Lamps / From: FG000001 / To: JG421298 		- 1 Enquire
14K147A LR125095
SWITCH - DIRECTION INDICATOR
Leather Steering Wheel, Less Heated Steering Wheel, Rain Sensor - Fr Windscreen Wiper, With Automatic Headlamp On/Off, With Front Fog Lamps / From: JG421299 		- 1 Enquire
14K147A LR024624
SWITCH - DIRECTION INDICATOR
Less Front Fog Lamps, Less Heated Steering Wheel, With Conventional Headlamp Control / From: FG000001 / To: JG421298 		- 1 Enquire
14K147A LR125094
SWITCH - DIRECTION INDICATOR
Less Front Fog Lamps, Rain Sensor - Fr Windscreen Wiper, With Automatic Headlamp On/Off / From: JG421299 / To: KG446856 		- 1 Enquire
14K147B LR024628
SWITCH - WASHER AND WIPER
With Conventional Headlamp Control / From: FG000001 / To: HG379387 		- 1 Enquire
14K147B LR024629
SWITCH - WASHER AND WIPER
With Automatic Headlamp On/Off / From: FG000001 / To: JG421299 		- 1 Enquire
14K147B LR125096
SWITCH - WASHER AND WIPER
With Conventional Headlamp Control / From: HG379388 / To: KG446856 		- 1 Enquire
14K147B LR125097
SWITCH - WASHER AND WIPER
With Automatic Headlamp On/Off / From: JG421299 / To: KG446856 		- 1 Enquire
14028 LR137877
SWITCH - STEERING COLUMN ADJUST
Cockpit CCR, Less Front Fog Lamps, With Heated Steering Wheel / From: KG446857 / To: MG140568 		- 1 Enquire
14028 LR137749
SWITCH - STEERING COLUMN ADJUST
Cockpit CCR, Less Front Fog Lamps, Less Heated Steering Wheel / From: KG446857 / To: MG140568 		- 1 Enquire
14028 LR146272
SWITCH - MULTIPLE FUNCTION
Cockpit CCR, Less Front Fog Lamps, Less Heated Steering Wheel / From: MG140569 		- 1 Enquire
14028 LR146275
SWITCH - MULTIPLE FUNCTION
Cockpit CCR, Less Front Fog Lamps, With Heated Steering Wheel / From: MG140569 		- 1 Enquire
