Audio Equipment - Original Fit (Changsu (China)) ((V) Fromfg000001, (V) Tokg446856)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Audio Equipment - Original Fit (Changsu (China)) ((V) FROMFG000001, (V) TOKG446856)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106042 NUT Enquire To Order
Photo Part No Description Price (each) Stock
RYP500250 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR054312 NAVIGATION COMPUTER - LESS SCREEN Enquire To Order
Photo Part No Description Price (each) Stock
LR076046 DISPLAY - NAVIGATION Enquire To Order
LR073545 SCREEN - NAVIGATION Enquire To Order
LR083639 SCREEN - NAVIGATION Enquire To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR065049 CARD - MEMORY Enquire To Order
LR084611 CARD - MEMORY Enquire To Order
LR101872 CARD - MEMORY Enquire To Order
Photo Part No Description Price (each) Stock
LR067836 BRACKET - AMPLIFIER Enquire To Order
LR084543 BRACKET - AMPLIFIER Enquire To Order
Photo Part No Description Price (each) Stock
LR078896 RADIO WITH CD PLAYER Enquire To Order
LR083308 RADIO WITH CD PLAYER Enquire To Order
Photo Part No Description Price (each) Stock
LR077499 UNIT - INFOTAINMENT CONTROL Enquire To Order
LR085477 UNIDAD CONT. SIST. ENTRETENIMIENTO Enquire To Order
LR085471 UNIT - INFOTAINMENT CONTROL Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR060859 CONTROL - AUDIO/VISUAL UNIT Enquire To Order
LR060861 CONTROL - AUDIO/VISUAL UNIT Enquire To Order
LR060862 CONTROL - AUDIO/VISUAL UNIT Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR061047 MICROPHONE - HANDS FREE SET Enquire To Order
Photo Part No Description Price (each) Stock
LR059385 AMPLIFIER - AUDIO SYSTEM Enquire To Order
LR081470 AMPLIFIER - AUDIO SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR076681 AMPLIFIER - AUDIO SYSTEM Enquire To Order
LR071201 AMPLIFIER - AUDIO SYSTEM Enquire To Order
LR107812 AMPLIFIER - AUDIO SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR088622 BRACKET - AMPLIFIER Enquire To Order
Photo Part No Description Price (each) Stock
LR084542 BRACKET - AMPLIFIER Enquire To Order
View All

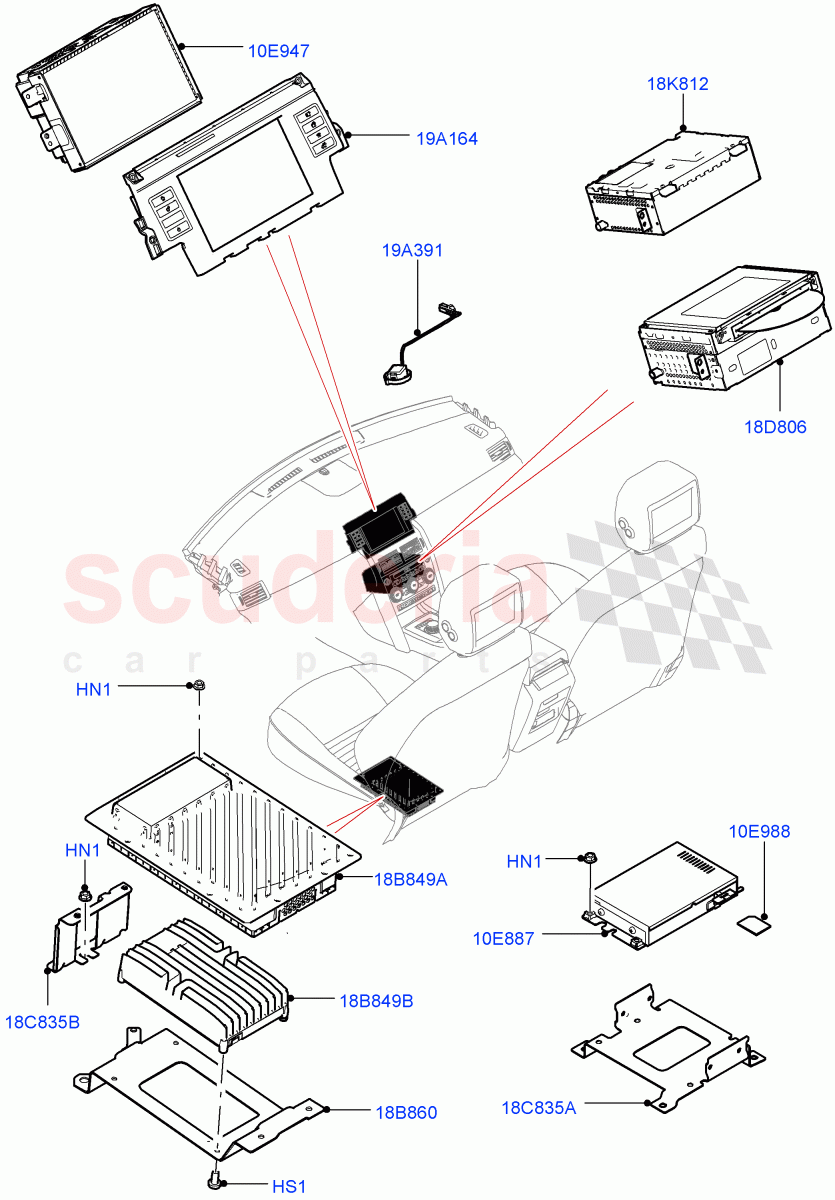

Audio Equipment - Original Fit (Changsu (China)) ((V) FROMFG000001, (V) TOKG446856) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN106042
NUT
Hexagonal Head, M6 / From: FG000001 		- 4 Enquire
HS1 RYP500250
SCREW
Midline Sound System / M5 X 10MM, Torx / From: FG000001 		- 4 Enquire
10E887 LR054312
NAVIGATION COMPUTER - LESS SCREEN
Navigation Centre - Asia / From: FG000001 		- 1 Enquire
10E947 LR076046
DISPLAY - NAVIGATION
HLDF Screen, Infotainment Gen 2.1 Head Unit / From: FG000001 / To: HG000010 		- 1 Enquire
10E947 LR073545
SCREEN - NAVIGATION
Infotainment Head Unit Level C, TFT Screen / From: FG000001 / To: GG317404 		- 1 Enquire
10E947 LR083639
SCREEN - NAVIGATION
Infotainment Head Unit Level B, TFT Screen / From: GG317405 / To: GG331752 		- 1 Enquire
10E947 LR088625
SCREEN - NAVIGATION
Infotainment Head Unit Level B, TFT Screen / From: GG331753 / To: JG392642 		- 1 Enquire
10E947 LR112397
SCREEN - NAVIGATION
MFD Single View Screen / 10" / From: JG391407 / To: KG446857 		- 1 Enquire
10E947 LR088626
SCREEN - NAVIGATION
HLDF Standard Screen 10.2", NGI Head Unit / 10" / From: HG347884 / To: JG391407 		- 1 Enquire
10E947 LR079561
DISPLAY - NAVIGATION
HLDF Screen, Infotainment Gen 2.1 Head Unit / From: HG000011 / To: JG391407 		- 1 Enquire
10E947 LR112396
SCREEN - NAVIGATION
HLDF Screen, Infotainment Head Unit Level C / From: JG392643 		- 1 Enquire
10E947 LR128793
CONTROL - AUDIO/VISUAL UNIT
MFD Single View Screen / From: KG446856 		- 1 Enquire
10E988 LR065049
CARD - MEMORY
Nav Data - Reg 7 - North Asia / From: FG000001 / To: GG314063 		- 1 Enquire
10E988 LR084611
CARD - MEMORY
Nav Data - Reg 7 - North Asia / From: GG314064 / To: HG353814 		- 1 Enquire
10E988 LR101872
CARD - MEMORY
Nav Data - Reg 7 - North Asia / From: HG353815 		- 1 Enquire
18B849A LR059385
AMPLIFIER - AUDIO SYSTEM
Premium Audio 1280 W / From: FG000001 / To: HG379387 		- 1 Enquire
18B849A LR081470
AMPLIFIER - AUDIO SYSTEM
NGI Head Unit, Premium Audio 1280 W / From: HG379388 / To: KG446856 		- 1 Enquire
18B849B LR076681
AMPLIFIER - AUDIO SYSTEM
Midline Sound System / From: FG304091 / To: HG379387 		- 1 Enquire
18B849B LR071201
AMPLIFIER - AUDIO SYSTEM
Mid Performance Sound System / From: FG000001 / To: FG304090 		- 1 Enquire
18B849B LR107812
AMPLIFIER - AUDIO SYSTEM
Mid Performance Sound System / From: HG379388 		- 1 Enquire
18B860 LR067836
BRACKET - AMPLIFIER
Mid Performance Sound System / From: FG000001 / To: HG347883 		- 1 Enquire
18B860 LR084543
BRACKET - AMPLIFIER
Low Line Audio System - 400W / From: HG347884 		- 1 Enquire
18C835A LR088622
BRACKET - AMPLIFIER
From: FG000001 		- 1 Enquire
18C835B LR084542
BRACKET - AMPLIFIER
Hi Line Audio System - 600 W / From: HG347884 		- 1 Enquire
18D806 LR078896
RADIO WITH CD PLAYER
HLDF Screen, Infotainment Gen 2.1 Head Unit, Navigation Centre - Asia / From: FG000001 / To: GG318546 		- 1 Enquire
18D806 LR083308
RADIO WITH CD PLAYER
HLDF Screen, Infotainment Gen 2.1 Head Unit, With Navigation Preparation / From: GG318547 		- 1 Enquire
18K812 LR077499
UNIT - INFOTAINMENT CONTROL
Analogue Audio Broadcast, Infotainment Head Unit Level C / From: FG000001 / To: GG320254 		- 1 Enquire
18K812 LR085477
UNIDAD CONT. SIST. ENTRETENIMIENTO
Analogue Audio Broadcast, Infotainment Head Unit Level C / From: GG320255 / To: HG351035 		- 1 Enquire
18K812 LR085471
UNIT - INFOTAINMENT CONTROL
Analogue Audio Broadcast, Infotainment Head Unit Level C / From: HG351036 		- 1 Enquire
18K812 LR085476
UNIT - INFOTAINMENT CONTROL
Analogue Audio Broadcast, Changsu (China), Infotainment Head Unit Level B / From: GG320255 		- 1 Enquire
18K812 LR123631
UNIT - INFOTAINMENT CONTROL
Analogue Audio Broadcast, Changsu (China), Infotainment Head Unit Level B / From: GG320255 		- 1 Enquire
19A164 LR060859
CONTROL - AUDIO/VISUAL UNIT
Less Camera System, Less Navigation System, TFT Screen, With Automated Parking System, With Rear Parking Aid / Screen Surround Switches / From: FG000001 		- 1 Enquire
19A164 LR060861
CONTROL - AUDIO/VISUAL UNIT
Less Navigation System, Surround Camera System, TFT Screen, With Automated Parking System, With Rear Parking Aid / Screen Surround Switches / From: FG000001 		- 1 Enquire
19A164 LR060862
CONTROL - AUDIO/VISUAL UNIT
Autom Perpendicular Parking System, Less Camera System, TFT Screen, With Navigation, With Rear Parking Aid / Screen Surround Switches / From: FG000001 		- 1 Enquire
19A164 LR060863
CONTROL - AUDIO/VISUAL UNIT
Autom Perpendicular Parking System, HLDF Screen, Surround Camera System, With Navigation, With Rear Parking Aid / Screen Surround Switches / From: FG000001 		- 1 Enquire
19A164 LR060865
CONTROL - AUDIO/VISUAL UNIT
HLDF Screen, Less Automated Parking System, Less Camera System, Less Navigation System, With Rear Parking Aid / Screen Surround Switches / From: FG000001 		- 1 Enquire
19A164 LR060867
CONTROL - AUDIO/VISUAL UNIT
HLDF Screen, Less Automated Parking System, Less Navigation System, Surround Camera System, With Rear Parking Aid / Screen Surround Switches / From: FG000001 		- 1 Enquire
19A164 LR060868
CONTROL - AUDIO/VISUAL UNIT
Less Automated Parking System, Less Camera System, TFT Screen, With Navigation, With Rear Parking Aid / Screen Surround Switches / From: FG000001 		- 1 Enquire
19A164 LR060869
CONTROL - AUDIO/VISUAL UNIT
Less Automated Parking System, Rear View Camera-Fixed, TFT Screen, With Navigation, With Rear Parking Aid / Screen Surround Switches / From: FG000001 		- 1 Enquire
19A391 LR061047
MICROPHONE - HANDS FREE SET 		- 1 Enquire
