Relays (Halewood (UK)) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Relays (Halewood (UK))

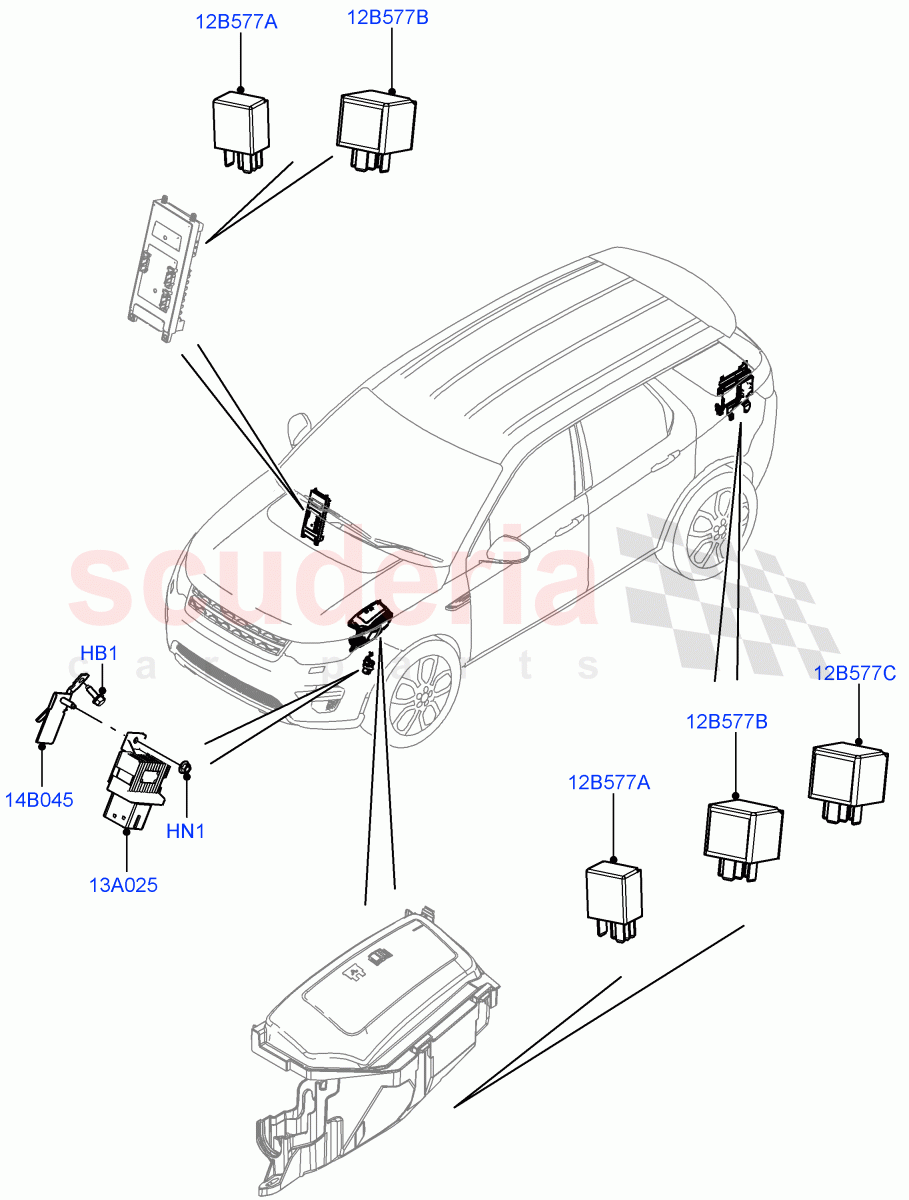

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR028253	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073555	RELAY - GLOW PLUG	Enquire	To Order
	LR019011	RELAY - GLOW PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048404	BRACKET - RELAY MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138846	RELAY	Enquire	To Order
	YWB500210	RELAY	Enquire	To Order
	LR138846	RELAY	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	YWB500060	RELAY	Enquire	To Order
	YWB500220	RELAY	Enquire	To Order
	LR126493	RELAY	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR030372	RELAY	Enquire	To Order
	YWB500020	RELAY	Enquire	To Order
	LR138845	RELAY	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR028253	BOLT	LR028253 BOLT M6 X 16MM	-	1	Enquire
HN1	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6	-	1	Enquire
12B577A	LR138846	RELAY	LR138846 RELAY 20 AMP, 5 Pin, Black, Micro	-	2	Enquire
12B577A	YWB500210	RELAY	YWB500210 RELAY 5 Pin, Black, Mini, Tyco	-	1	Enquire
12B577A	LR138846	RELAY	LR138846 RELAY 20 AMP, 5 Pin, Black, Micro	-	-	Enquire
12B577A	LR126492	RELAY	LR126492 RELAY 4 Pin, 40 AMP, Mini	-	-	Enquire
12B577A	LR161565	RELAY	LR161565 RELAY 5 Pin, Blue, Micro	-	-	Enquire
12B577A	LR122946	RELAY	LR122946 RELAY 20 AMP, 4 Pin, Black, Micro	-	-	Enquire
12B577B	YWB500060	RELAY	YWB500060 RELAY 4 Pin, 40 AMP, Black, Mini, White Stripe	-	2	Enquire
12B577B	YWB500220	RELAY	YWB500220 RELAY 4 Blade Terminal, 70 AMP, Grey, Mini, Power, Tyco	-	6	Enquire
12B577B	LR126493	RELAY	LR126493 RELAY 4 Blade Terminal, 70 AMP, Grey, Mini	-	-	Enquire
12B577B	LR138847	RELAY	LR138847 RELAY 5 Pin, Black, Mini, Tyco	-	-	Enquire
12B577C	LR030372	RELAY	LR030372 RELAY 4 Pin, 40 AMP, Brown, Power, Tyco	-	1	Enquire
12B577C	YWB500020	RELAY	YWB500020 RELAY 20 AMP, 4 Pin, Black With Yellow Band, Micro	-	2	Enquire
12B577C	LR138845	RELAY	LR138845 RELAY 20 AMP, 4 Pin, Black, Micro	-	-	Enquire
13A025	LR073555	RELAY - GLOW PLUG	LR073555 RELAY - GLOW PLUG 2.2L CR DI 16V Diesel / Glow Plug / From: FH506411	-	1	Enquire
13A025	LR019011	RELAY - GLOW PLUG	LR019011 RELAY - GLOW PLUG 2.2L CR DI 16V Diesel / Glow Plug / To: FH506410	-	1	Enquire
14B045	LR048404	BRACKET - RELAY MOUNTING	LR048404 BRACKET - RELAY MOUNTING 2.2L CR DI 16V Diesel	-	1	Enquire
