Instrument Panel Related Parts (Changsu (China)) ((V) Fromfg000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Instrument Panel Related Parts (Changsu (China)) ((V) FROMFG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR066535 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR014322 KNOB AND ELEMENT - CIGAR LIGHTER Enquire To Order
LR014322 KNOB AND ELEMENT - CIGAR LIGHTER Enquire To Order
Photo Part No Description Price (each) Stock
LR068428 SOCKET - USB Enquire To Order
LR128008 SOCKET - USB Enquire To Order
Photo Part No Description Price (each) Stock
LR140127 CHARGER - WIRELESS DEVICE Enquire To Order
LR128200 CHARGER - WIRELESS DEVICE Enquire To Order
Photo Part No Description Price (each) Stock
LR033370 SOCKET - LIGHTER Enquire To Order
LR033370 SOCKET - LIGHTER Enquire To Order
Photo Part No Description Price (each) Stock
LR140509 SOCKET - ADDITIONAL Enquire To Order
Photo Part No Description Price (each) Stock
LR068429 COVER - POWER POINT Enquire To Order
LR128006 RING - CIGAR LIGHTER Enquire To Order
Photo Part No Description Price (each) Stock
LR073353 RING - LUMINOUS - CIGAR LIGHTER Enquire To Order
Photo Part No Description Price (each) Stock
LR073352 RING - LUMINOUS - CIGAR LIGHTER Enquire To Order
Photo Part No Description Price (each) Stock
LR061057 SOCKET - INTERFACE AUDIO SYSTEM Enquire To Order
LR085516 SOCKET - INTERFACE AUDIO SYSTEM Enquire To Order
LR061058 SOCKET - INTERFACE AUDIO SYSTEM Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR114028 SOCKET - INTERFACE AUDIO SYSTEM Enquire To Order
LR106219 SOCKET - INTERFACE AUDIO SYSTEM Enquire To Order
LR161933 SOCKET - INTERFACE AUDIO SYSTEM Enquire To Order
View All

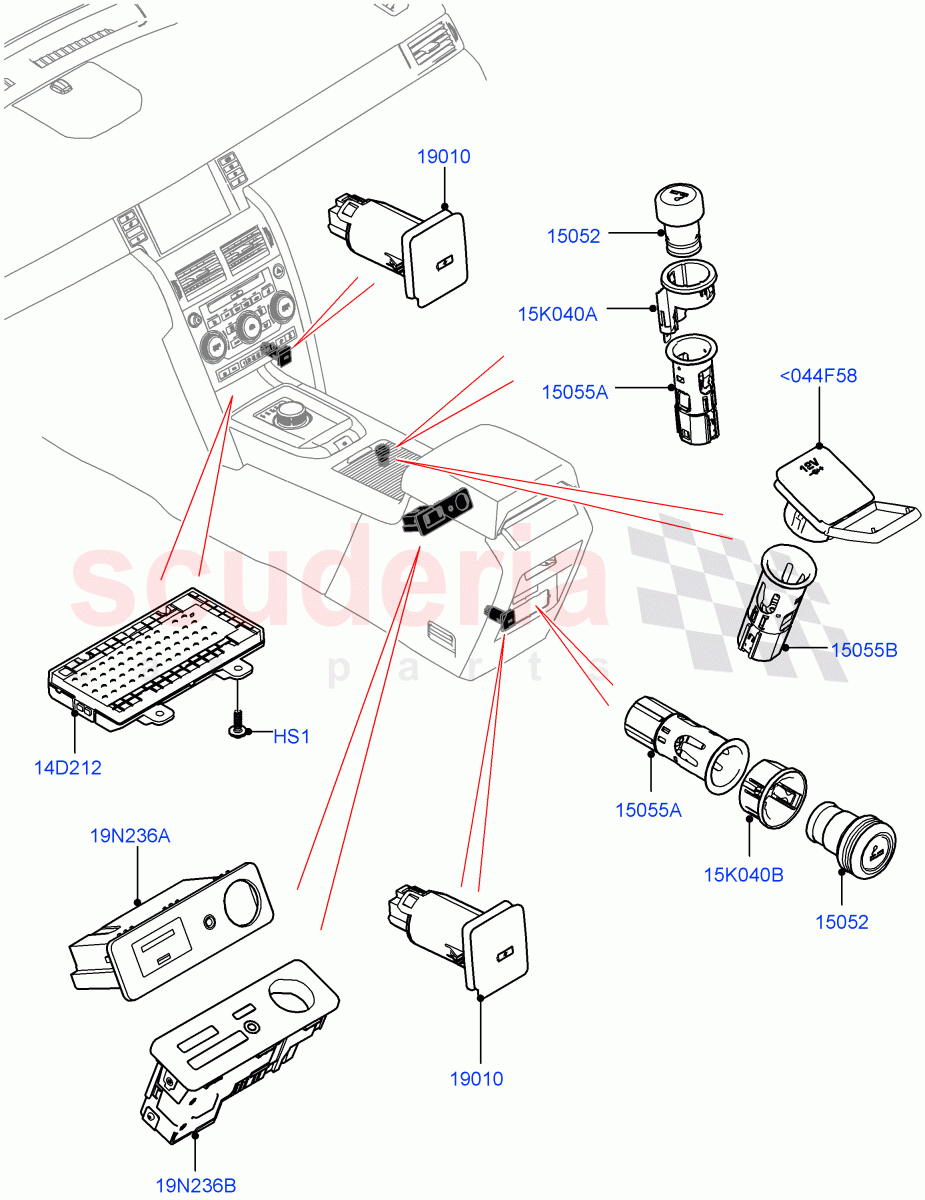

Instrument Panel Related Parts (Changsu (China)) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<044F58 LR068429
COVER - POWER POINT
With Power Point Plug - Rear / 12V, Located In Trunk, Power Point / From: FG000001 		- 1 Enquire
<044F58 LR128006
RING - CIGAR LIGHTER
Power Point / From: JG424300 		- 1 Enquire
HS1 LR066535
SCREW
4 X 12MM / From: KG446857 		- 4 Enquire
14D212 LR140127
CHARGER - WIRELESS DEVICE
Wireless Charger w/Booster - 4.9 Fq / From: MG140569 		- 1 Enquire
14D212 LR128200
CHARGER - WIRELESS DEVICE
Telephone Charging Cradle - Rear / From: KG446857 / To: MG140568 		- 1 Enquire
15K040A LR073353
RING - LUMINOUS - CIGAR LIGHTER
With 2nd Row Smokers Package / Illuminated / From: FG000001 		- 1 Enquire
15K040B LR073352
RING - LUMINOUS - CIGAR LIGHTER
With 2nd Row Smokers Package / Non Illuminated / From: FG000001 		- 1 Enquire
19N236A LR061057
SOCKET - INTERFACE AUDIO SYSTEM
Infotainment Head Unit Level C, With Navigation System / From: FG000001 / To: GG332468 		- 1 Enquire
19N236A LR085516
SOCKET - INTERFACE AUDIO SYSTEM
Infotainment Head Unit Level C, With Navigation System / From: GG332469 		- 1 Enquire
19N236A LR061058
SOCKET - INTERFACE AUDIO SYSTEM
Infotainment Head Unit Level C, Less Navigation System / From: FG000001 		- 1 Enquire
19N236A LR065680
SOCKET - INTERFACE AUDIO SYSTEM
Infotainment Gen 2.1 Head Unit, Less Cell Phone Interface System / From: FG000001 		- 1 Enquire
19N236B LR114028
SOCKET - INTERFACE AUDIO SYSTEM
3G Cellular Connectivity, NGI Head Unit / From: HG379388 / To: KG446856 		- 1 Enquire
19N236B LR106219
SOCKET - INTERFACE AUDIO SYSTEM
From: KG446857 / To: MG140568 		- 1 Enquire
19N236B LR161933
SOCKET - INTERFACE AUDIO SYSTEM
From: MG140569 		- 1 Enquire
15052 LR014322
KNOB AND ELEMENT - CIGAR LIGHTER
With 2nd Row Smokers Package / Front / Rear / From: FG000001 		- 2 Enquire
15052 LR014322
KNOB AND ELEMENT - CIGAR LIGHTER
With Smokers Package / Front / From: FG000001 		- 1 Enquire
15055A LR033370
SOCKET - LIGHTER
With Smokers Package / Front / From: FG000001 		- 1 Enquire
15055A LR033370
SOCKET - LIGHTER
With 2nd Row Smokers Package / Front / Rear / From: FG000001 		- 2 Enquire
15055B LR140509
SOCKET - ADDITIONAL
Floor Console, Please Order LR156788 At The Same Time When You Need To Fix LR140509, Power Point / From: KG446857 		- 1 Enquire
19010 LR068428
SOCKET - USB
USB Power Socket Row 2 / 5V, Rear / From: FG000001 / To: KG446856 		- 2 Enquire
19010 LR128008
SOCKET - USB
Power Pack 2(Row2,Row3 USB) / 5V, Rear / From: KG446857 		- 1 Enquire
