Find Your Part

Aerial (Changsu (China)) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Aerial (Changsu (China)) ((V) FROMFG000001)

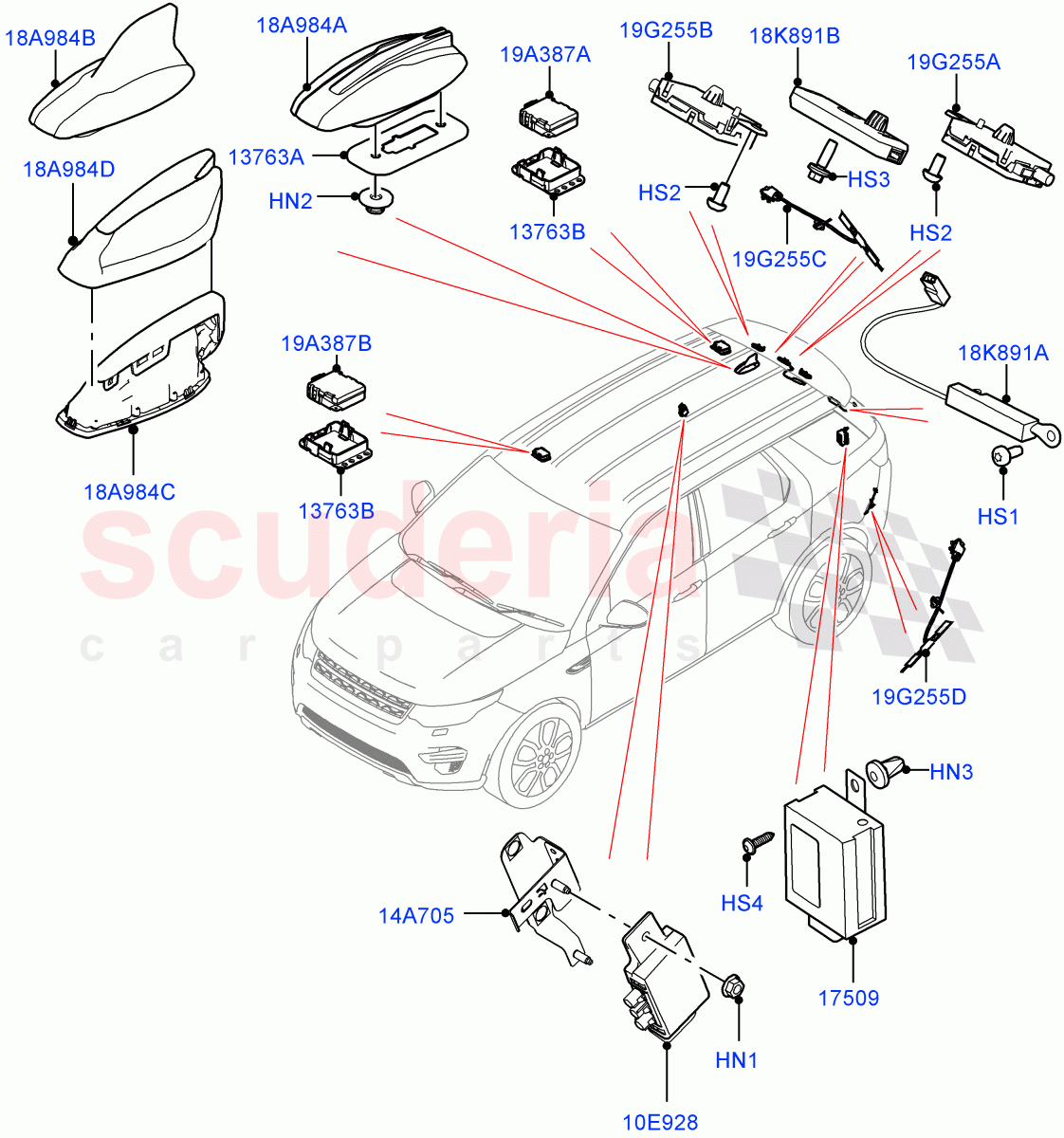

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	Enquire	To Order
	FN106042	NUT	Enquire	To Order
	FN106042	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500420	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500840	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003450	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028254	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061033	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007312	SCREW	Enquire	To Order
	LR007312	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067419	MODULE - RADIO SUPRESSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044855	SPLITTER BOX	Enquire	To Order
	LR114132	SPLITTER BOX	Enquire	To Order
	LR114132	SPLITTER BOX	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR038595	BRACKET - AERIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110282	BRACKET - SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137213	BRACKET - ELECTRICAL UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR059747	AERIAL - ROOF MOUNTED	Enquire	To Order
	LR042321	AERIAL - ROOF MOUNTED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070771	AERIAL - ROOF MOUNTED	Enquire	To Order
	LR140900	SUPPORT - RADIO AERIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127416	SUPPORT - RADIO AERIAL	Enquire	To Order
	LR140530	AERIAL - ROOF MOUNTED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117853	AERIAL - ROOF MOUNTED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR164121	ISOLATOR	Enquire	To Order
	LR164122	ISOLATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038151	ISOLATOR - RADIO ANTENNA	Enquire	To Order
	LR163155	ISOLATOR - RADIO ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133253	TRANSCEIVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129339	TRANSCEIVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060980	AMPLIFIER - RADIO ANTENNA	Enquire	To Order
	LR158394	AMPLIFIER - RADIO ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060985	AMPLIFIER - RADIO ANTENNA	Enquire	To Order
	LR164123	AMPLIFIER - RADIO ANTENNA	Enquire	To Order
	LR161874	AMPLIFIER - RADIO ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129327	SPLITTER BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR164458	AERIAL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HN1	FN106042	NUT	FN106042 NUT Hexagonal Head, M6 / From: FG000001 / To: KG446856	-	2	Enquire
HN1	FN106042	NUT	FN106042 NUT Electric Engine Battery-PHEV / Hexagonal Head, M6 / From: KG446857	-	4	Enquire
HN1	FN106042	NUT	FN106042 NUT Less Electric Engine Battery / Hexagonal Head, M6 / From: KG446857	-	2	Enquire
HN2	RYH500420	NUT AND WASHER - HEX.	RYH500420 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer / From: FG000001	-	1	Enquire
HN3	RYH500840	NUT	RYH500840 NUT M4, Plastic Nut / From: FG000001	-	1	Enquire
HS1	LR003450	SCREW	LR003450 SCREW M6 X 16MM / From: FG000001	-	2	Enquire
HS2	LR028254	SCREW	LR028254 SCREW M6 x 12MM / From: FG000001	-	2	Enquire
HS3	LR061033	SCREW AND WASHER	LR061033 SCREW AND WASHER M6 X 20MM / From: FG000001	-	1	Enquire
HS4	LR007312	SCREW	LR007312 SCREW With Keyless Start / 4.2 X 19MM / From: FG000001	-	4	Enquire
HS4	LR007312	SCREW	LR007312 SCREW 4.2 X 19MM / From: FG000001	-	1	Enquire
10E928	LR044855	SPLITTER BOX	LR044855 SPLITTER BOX From: FG000001 / To: JG999999	-	1	Enquire
10E928	LR114132	SPLITTER BOX	LR114132 SPLITTER BOX From: KG000001 / To: KG446856	-	1	Enquire
10E928	LR114132	SPLITTER BOX	LR114132 SPLITTER BOX Electric Engine Battery-PHEV / From: KG446857	-	2	Enquire
10E928	LR114132	SPLITTER BOX	LR114132 SPLITTER BOX Electric Engine Battery-MHEV / From: KG446857	-	1	Enquire
14A705	LR137213	BRACKET - ELECTRICAL UNIT	LR137213 BRACKET - ELECTRICAL UNIT Electric Engine Battery-PHEV, TCU Module - China / From: KG446857	-	1	Enquire
18A984A	LR059747	AERIAL - ROOF MOUNTED	LR059747 AERIAL - ROOF MOUNTED HD Radio Broadcast, Less Multi Media/Telematics System, With Navigation System / From: FG000001	-	1	Enquire
18A984A	LR042321	AERIAL - ROOF MOUNTED	LR042321 AERIAL - ROOF MOUNTED HD Radio Broadcast, Less Cell Phone Interface System, Less Multi Media/Telematics System, Less Navigation System / From: FG000001	-	1	Enquire
18A984B	LR070771	AERIAL - ROOF MOUNTED	LR070771 AERIAL - ROOF MOUNTED TCU Module - China / From: HG347884 / To: MG140568	-	1	Enquire
18A984B	LR140900	SUPPORT - RADIO AERIAL	LR140900 SUPPORT - RADIO AERIAL TCU Module - China, With Dipping Interior Mirrors / From: MG140569	-	1	Enquire
18A984C	LR127416	SUPPORT - RADIO AERIAL	LR127416 SUPPORT - RADIO AERIAL Analogue Audio Broadcast, Smart Rear View Mirror, TCU Module - China / From: KG446857 / To: MG140568	-	1	Enquire
18A984C	LR140530	AERIAL - ROOF MOUNTED	LR140530 AERIAL - ROOF MOUNTED From: MG140569	-	1	Enquire
18A984D	LR117853	AERIAL - ROOF MOUNTED	LR117853 AERIAL - ROOF MOUNTED Smart Rear View Mirror / Cover / From: KG446857	-	1	Enquire
18K891A	LR164121	ISOLATOR	LR164121 ISOLATOR LH / From: FG000001	-	1	Enquire
18K891A	LR164122	ISOLATOR	LR164122 ISOLATOR RH / From: FG000001	-	1	Enquire
18K891B	LR038151	ISOLATOR - RADIO ANTENNA	LR038151 ISOLATOR - RADIO ANTENNA From: FG000001 / To: KG446856	-	1	Enquire
18K891B	LR163155	ISOLATOR - RADIO ANTENNA	LR163155 ISOLATOR - RADIO ANTENNA From: KG446857	-	1	Enquire
19A387A	LR133253	TRANSCEIVER	LR133253 TRANSCEIVER Keyless Entry/Start - Passive / From: KG446857	-	1	Enquire
19A387B	LR129339	TRANSCEIVER	LR129339 TRANSCEIVER Keyless Entry/Start - Passive / From: KG446857	-	1	Enquire
19G255A	LR060980	AMPLIFIER - RADIO ANTENNA	LR060980 AMPLIFIER - RADIO ANTENNA Analogue Audio Broadcast, Less Navigation System / From: FG000001 / To: GG347882	-	1	Enquire
19G255A	LR158394	AMPLIFIER - RADIO ANTENNA	LR158394 AMPLIFIER - RADIO ANTENNA From: HG347884	-	1	Enquire
19G255B	LR060985	AMPLIFIER - RADIO ANTENNA	LR060985 AMPLIFIER - RADIO ANTENNA From: FG000001 / To: KG436909	-	1	Enquire
19G255B	LR164123	AMPLIFIER - RADIO ANTENNA	LR164123 AMPLIFIER - RADIO ANTENNA Radio - AM/FM / From: KG436910 / To: MG140568	-	1	Enquire
19G255B	LR161874	AMPLIFIER - RADIO ANTENNA	LR161874 AMPLIFIER - RADIO ANTENNA Radio - AM/FM / From: MG140569	-	1	Enquire
19G255C	LR129327	SPLITTER BOX	LR129327 SPLITTER BOX PIVI Mid / From: MG140569	-	1	Enquire
19G255D	LR164458	AERIAL	LR164458 AERIAL PIVI Mid / From: MG140569	-	1	Enquire
13763A	LR038595	BRACKET - AERIAL	LR038595 BRACKET - AERIAL From: FG000001	-	1	Enquire
13763B	LR110282	BRACKET - SUPPORT	LR110282 BRACKET - SUPPORT Keyless Entry/Start - Passive / Attaches Antenna, Front And Rear / From: KG446857	-	2	Enquire
17509	LR067419	MODULE - RADIO SUPRESSION	LR067419 MODULE - RADIO SUPRESSION Passive Filtering Unit / From: FG000001	-	1	Enquire
