Front Suspension Struts And Springs (Halewood (Uk)) ((V) Fromlh000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Front Suspension Struts And Springs (Halewood (UK)) ((V) FROMLH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR106658 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR000055 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR114305 SPRING - SUSPENSION - FRONT Enquire To Order
LR114306 SPRING - SUSPENSION - FRONT Enquire To Order
LR114307 SPRING - SUSPENSION - FRONT Enquire To Order
...and 19 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR121039 INSULATOR - SHOCK ABSORBER Enquire To Order
Photo Part No Description Price (each) Stock
LR127605 BRACKET - SENSOR MOUNTING Enquire To Order
LR127610 BRACKET - SENSOR MOUNTING Enquire To Order
LR136802 BRACKET - SENSOR MOUNTING Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR115224 MOUNTING - SHOCK ABSORBER Enquire To Order
Photo Part No Description Price (each) Stock
LR009664 PAD - SUSPENSION SPRING Enquire To Order
Photo Part No Description Price (each) Stock
LR028618 PAD - ANTI-SQUEAK Enquire To Order
Photo Part No Description Price (each) Stock
LR115216 JUMPER WIRING Enquire To Order
LR143642 JUMPER WIRING Enquire To Order
Photo Part No Description Price (each) Stock
LR073344 BOOT - SHOCK ABSORBER Enquire To Order
Photo Part No Description Price (each) Stock
LR121033 BUMPER - SHOCK ABSORBER Enquire To Order
Photo Part No Description Price (each) Stock
LR126480 CAP - SHOCK ABSORBER SECURING Enquire To Order
Photo Part No Description Price (each) Stock
LR126238 MACPHERSON STRUT Enquire To Order
LR126237 SHOCK ABSORBER Enquire To Order
Photo Part No Description Price (each) Stock
LR126233 MACPHERSON STRUT Enquire To Order
LR126232 SHOCK ABSORBER Enquire To Order
LR138850 SHOCK ABSORBER Enquire To Order
...and 3 more part variants. See table on right for more details.
View All

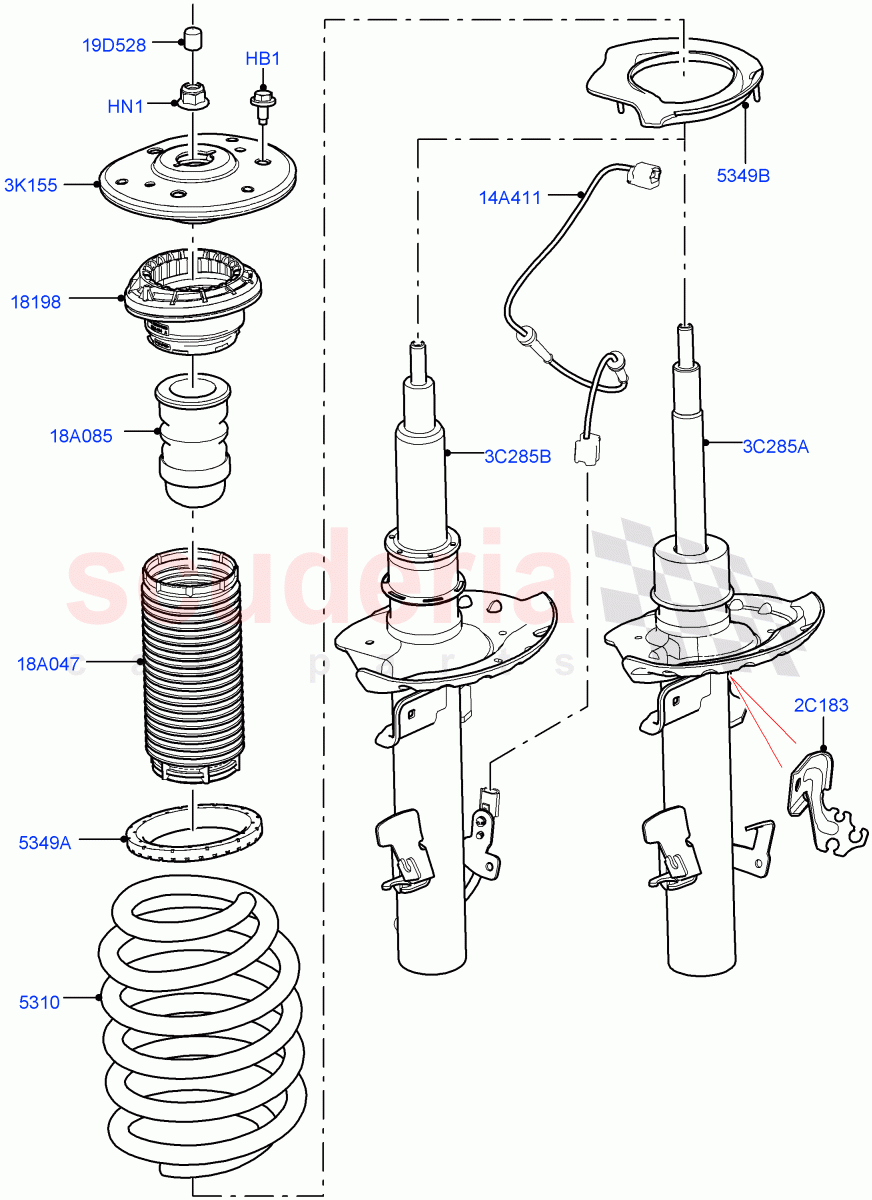

Front Suspension Struts And Springs (Halewood (UK)) ((V) FROMLH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR106658
BOLT
Bolt And Washer, Hexagonal Head, M8 X 25MM / From: LH000001 		- 6 Enquire
HN1 LR000055
NUT - HEX.
M12 x 1.25MM / From: LH000001 		- 2 Enquire
2C183 LR127605
BRACKET - SENSOR MOUNTING
Active Damping / LH / From: LH000001 / To: LH851821 		- 1 Enquire
2C183 LR127610
BRACKET - SENSOR MOUNTING
Active Damping / RH / From: LH000001 / To: LH851821 		- 1 Enquire
2C183 LR136802
BRACKET - SENSOR MOUNTING
Active Damping / LH / From: LH851822 		- 1 Enquire
2C183 LR136803
BRACKET - SENSOR MOUNTING
Active Damping / RH / From: LH851822 		- 1 Enquire
3C285A LR126238
MACPHERSON STRUT
Less Adaptive Damping / LH / From: LH000001 		- 1 Enquire
3C285A LR126237
SHOCK ABSORBER
Less Adaptive Damping / RH / From: LH000001 		- 1 Enquire
3C285B LR126233
MACPHERSON STRUT
Active Damping / LH / From: LH000001 / To: LH839158 		- 1 Enquire
3C285B LR126232
SHOCK ABSORBER
Active Damping / RH / From: LH000001 / To: LH839158 		- 1 Enquire
3C285B LR138850
SHOCK ABSORBER
Active Damping / RH / From: LH839159 / To: LH851543 		- 1 Enquire
3C285B LR138848
MACPHERSON STRUT
Active Damping / LH / From: LH839159 / To: LH850618 		- 1 Enquire
3C285B LR139467
SHOCK ABSORBER
Active Damping / RH / From: LH851544 		- 1 Enquire
3C285B LR139465
MACPHERSON STRUT
Active Damping / LH / From: LH850619 		- 1 Enquire
3K155 LR115224
MOUNTING - SHOCK ABSORBER
From: LH000001 		- 2 Enquire
14A411 LR115216
JUMPER WIRING
Active Damping / From: LH000001 / To: LH999999 		- 2 Enquire
14A411 LR143642
JUMPER WIRING
Active Damping / From: MH000001 		- 2 Enquire
18A047 LR073344
BOOT - SHOCK ABSORBER
From: LH000001 		- 2 Enquire
18A085 LR121033
BUMPER - SHOCK ABSORBER
From: LH000001 		- 2 Enquire
19D528 LR126480
CAP - SHOCK ABSORBER SECURING
From: LH000001 		- 2 Enquire
5310 LR114305
SPRING - SUSPENSION - FRONT
Front Spring Load Class-A / STD - SUPPLIED ONLY IN KIT / From: LH000001 / To: MH889843 		- 2 Enquire
5310 LR114306
SPRING - SUSPENSION - FRONT
Front Spring Load Class-B / Yellow / Grey / Yellow / From: LH000001 / To: MH889843 		- 2 Enquire
5310 LR114307
SPRING - SUSPENSION - FRONT
Front Spring Load Class-C / Yellow / Grey / Orange / From: LH000001 / To: MH890765 		- 2 Enquire
5310 LR114308
SPRING - SUSPENSION - FRONT
Front Spring Load Class-D / Yellow / Grey / Red / From: LH000001 / To: MH890393 		- 2 Enquire
5310 LR114309
SPRING - SUSPENSION - FRONT
Front Spring Load Class-E / Yellow / Grey / Green / From: LH000001 / To: MH890765 		- 2 Enquire
5310 LR114311
SPRING - SUSPENSION - FRONT
Front Spring Load Class-F / Yellow / Grey / Brown / From: LH000001 / To: MH890393 		- 2 Enquire
5310 LR114313
SPRING - SUSPENSION - FRONT
Front Spring Load Class-G / Yellow / Grey / Pink / From: LH000001 / To: MH890393 		- 2 Enquire
5310 LR114314
SPRING - SUSPENSION - FRONT
Front Spring Load Class-H / Yellow / Brown / Pink / From: LH000001 / To: MH895724 		- 2 Enquire
5310 LR121268
SPRING - SUSPENSION - FRONT
Front Spring Load Class-I / Yellow / Brown / Red / From: LH000001 / To: MH889843 		- 2 Enquire
5310 LR121269
SPRING - SUSPENSION - FRONT
Front Spring Load Class-J / Yellow / Brown / Blue / From: LH000001 / To: MH889843 		- 2 Enquire
5310 LR121270
SPRING - SUSPENSION - FRONT
Front Spring Load Class-K / Yellow / Brown / Yellow / From: LH000001 / To: MH889843 		- 2 Enquire
5310 LR157142
SPRING - SUSPENSION - FRONT
Front Spring Load Class-A / STD - SUPPLIED ONLY IN KIT / From: MH889844 		- 2 Enquire
5310 LR157147
SPRING - SUSPENSION - FRONT
Front Spring Load Class-B / STD - SUPPLIED ONLY IN KIT / From: MH889844 		- 2 Enquire
5310 LR157159
SPRING - SUSPENSION - FRONT
Front Spring Load Class-I / Yellow / Brown / Red / From: MH889844 		- 2 Enquire
5310 LR157160
SPRING - SUSPENSION - FRONT
Front Spring Load Class-J / Yellow / Brown / Blue / From: MH889844 		- 2 Enquire
5310 LR157163
SPRING - SUSPENSION - FRONT
Front Spring Load Class-K / Yellow / Brown / Yellow / From: MH889844 		- 2 Enquire
5310 LR157150
SPRING - SUSPENSION - FRONT
Front Spring Load Class-C / Yellow / Grey / Orange / From: MH890766 		- 2 Enquire
5310 LR157152
SPRING - SUSPENSION - FRONT
Front Spring Load Class-E / Yellow / Grey / Green / From: MH890766 		- 2 Enquire
5310 LR157859
SPRING - SUSPENSION - FRONT
Front Spring Load Class-D / Yellow / Grey / Red / From: MH890394 		- 2 Enquire
5310 LR157155
SPRING - SUSPENSION - FRONT
Front Spring Load Class-F / Yellow / Grey / Brown / From: MH890394 		- 2 Enquire
5310 LR157157
SPRING - SUSPENSION - FRONT
Front Spring Load Class-G / Yellow / Grey / Pink / From: MH890394 		- 2 Enquire
5310 LR157158
SPRING - SUSPENSION - FRONT
Front Spring Load Class-H / Yellow / Brown / Pink / From: MH895725 		- 2 Enquire
5349A LR009664
PAD - SUSPENSION SPRING
Upper / From: LH000001 		- 2 Enquire
5349B LR028618
PAD - ANTI-SQUEAK
Lower / From: LH000001 		- 2 Enquire
18198 LR121039
INSULATOR - SHOCK ABSORBER
From: LH000001 		- 2 Enquire
