Drive Shaft - Front Axle Drive (2.0L I4 Mid Dohc Aj200 Petrol, Changsu (China), 2.0L Aj20P4 Petrol...

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Drive Shaft - Front Axle Drive (2.0L I4 Mid DOHC AJ200 Petrol, Changsu (China), 2.0L AJ20P4 Petrol...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR001192 BOLT Enquire To Order
LR001192 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR114221 BOLT AND WASHER - TORX HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR124673 JOINT AND STUB SHAFT Enquire To Order
Photo Part No Description Price (each) Stock
LR125497 SHAFT AND CV JOINT - RR AXLE Enquire To Order
LR135950 SHAFT - FRONT AXLE Enquire To Order
Photo Part No Description Price (each) Stock
LR139088 SHAFT - FRONT AXLE Enquire To Order
Photo Part No Description Price (each) Stock
LR161110 RETAINER - BEARING Enquire To Order
Photo Part No Description Price (each) Stock
LR003158 RETAINER - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR128145 INSULATOR - ENGINE SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
IYX500050 KIT - GREASE AND ORING Enquire To Order
Photo Part No Description Price (each) Stock
LR139941 BRACKET - TRANSFER CASE Enquire To Order
LR126450 BRACKET - TRANSFER CASE Enquire To Order
Photo Part No Description Price (each) Stock
LR124708 KIT - DRIVESHAFT BOOT Enquire To Order
Photo Part No Description Price (each) Stock
LR025066 KIT - DRIVESHAFT BOOT Enquire To Order
View All

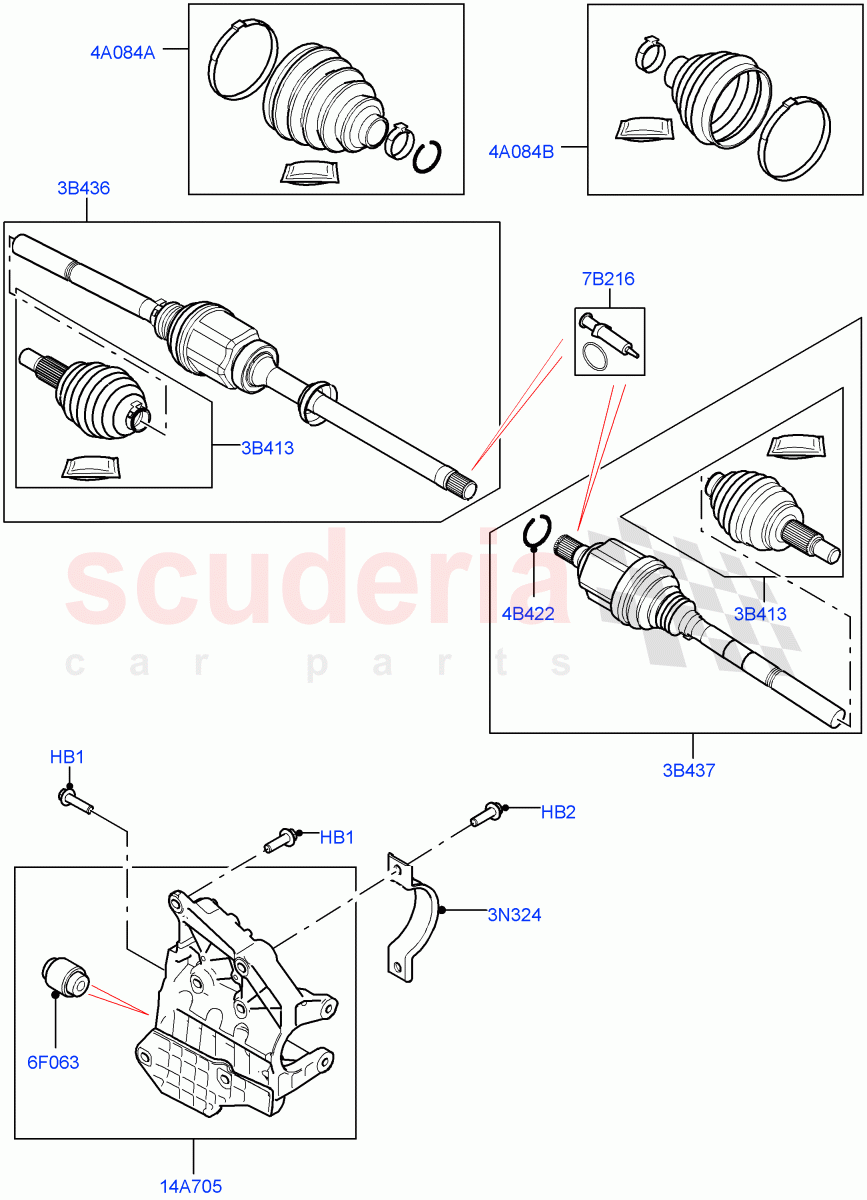

Drive Shaft - Front Axle Drive (2.0L I4 Mid DOHC AJ200 Petrol, Changsu (China), 2.0L AJ20P4 Petrol Mid PTA) ((V) FROMKG446857) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR001192
BOLT
2.0L AJ20P4 Petrol Mid PTA / Hexagonal Head, M10 x 40MM, PTU Bracket To Engine / From: KG446857 		- 6 Enquire
HB1 LR001192
BOLT
Hexagonal Head, M10 x 40MM, PTU Bracket To PTU / From: KG446857 		- 2 Enquire
HB2 LR114221
BOLT AND WASHER - TORX HEAD
M8 X 20MM(TORX) / From: KG446857 		- 2 Enquire
3B413 LR124673
JOINT AND STUB SHAFT
RH/LH / From: KG446857 		- 2 Enquire
3B436 LR125497
SHAFT AND CV JOINT - RR AXLE
8 Speed Automatic Trans 8G30 / RH / From: KG446857 		- 1 Enquire
3B436 LR135950
SHAFT - FRONT AXLE
9 Speed Auto Trans 9HP50 / RH, Please Consider Repair Using LR161873 Front Bearing Retainer, Before Ordering This Part / From: KG446857 		- 1 Enquire
3B437 LR139088
SHAFT - FRONT AXLE
LH / From: KG446857 		- 1 Enquire
3N324 LR161110
RETAINER - BEARING
From: KG446857 		- 1 Enquire
4A084A LR124708
KIT - DRIVESHAFT BOOT
Outer / From: KG446857 		- 2 Enquire
4A084B LR025066
KIT - DRIVESHAFT BOOT
Inner / From: KG446857 		- 2 Enquire
4B422 LR003158
RETAINER - SPECIAL
From: KG446857 		- 2 Enquire
6F063 LR128145
INSULATOR - ENGINE SUPPORT
2.0L AJ20P4 Petrol Mid PTA / Engine / From: KG446857 		- 1 Enquire
7B216 IYX500050
KIT - GREASE AND ORING
Halfshaft Spline Grease - "O" Ring Not Required / From: KG446857 		- 1 Enquire
14A705 LR139941
BRACKET - TRANSFER CASE
1.5L AJ20P3 Petrol High / Driveshaft And Power Transfer Unit / From: KG446857 		- 1 Enquire
14A705 LR126450
BRACKET - TRANSFER CASE
2.0L AJ20P4 Petrol Mid PTA / Driveshaft And Power Transfer Unit / From: KG446857 		- 1 Enquire
