Rear Cross Member & Stabilizer Bar (Halewood (Uk)) ((V) Tokh999999)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Rear Cross Member & Stabilizer Bar (Halewood (UK)) ((V) TOKH999999)

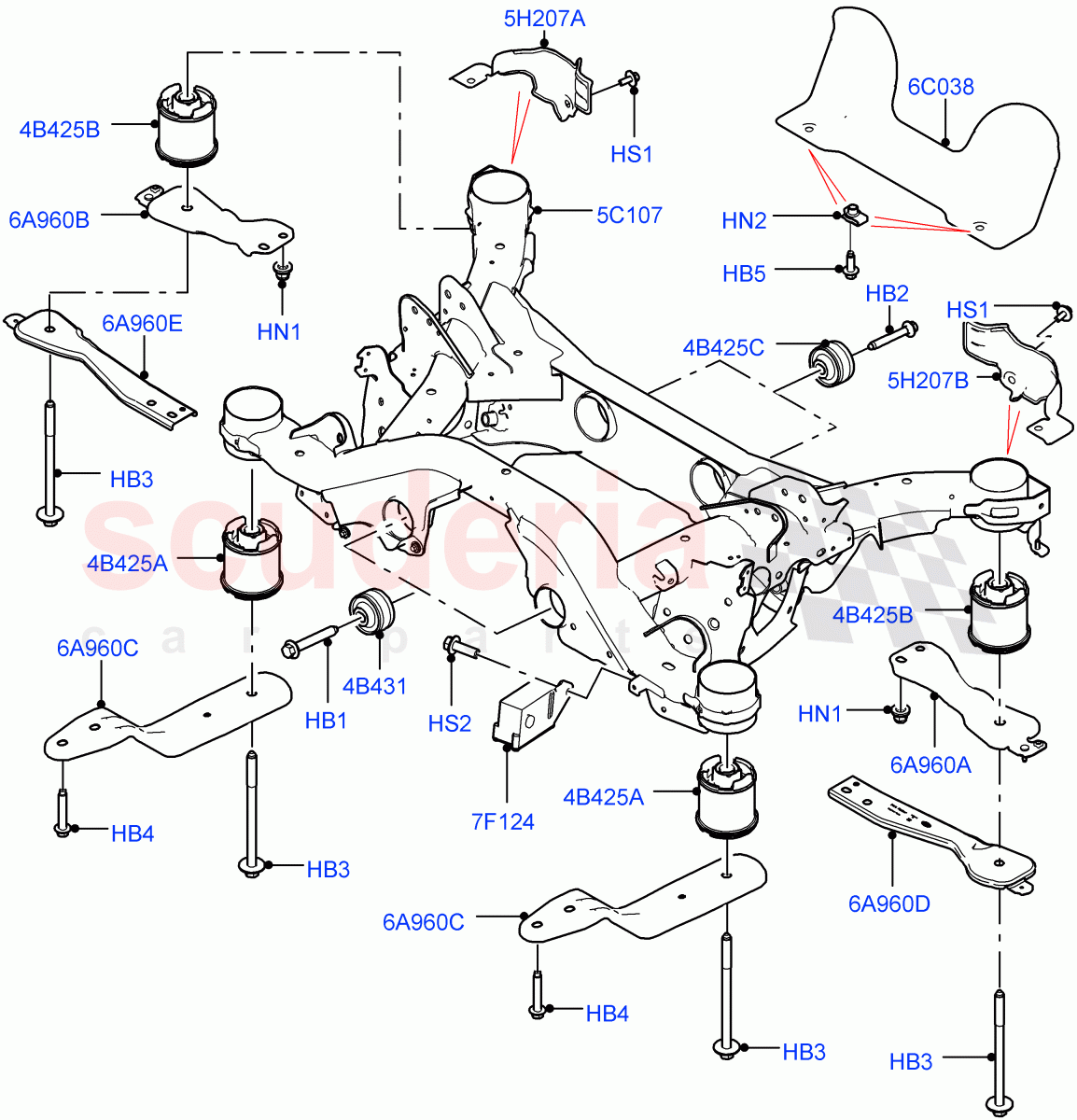

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR090447 BOLT $5.08 To Order
LR023457 BOLT $5.88 To Order
LR023457 BOLT $5.88 To Order
Photo Part No Description Price (each) Stock
LR001188 BOLT $4.08 To Order
LR001188 BOLT $4.08 To Order
Photo Part No Description Price (each) Stock
LR060389 BOLT - FLANGED HEX. $11.97 To Order
Photo Part No Description Price (each) Stock
LR000039 BOLT $1.61 To Order
Photo Part No Description Price (each) Stock
RYG500440 BOLT $0.99 To Order
Photo Part No Description Price (each) Stock
LR033244 NUT $2.86 To Order
Photo Part No Description Price (each) Stock
RYH500170 NUT - ADJUSTING SCREW $1.92 IN STOCK
Photo Part No Description Price (each) Stock
LR000095 SCREW AND WASHER $0.58 To Order
Photo Part No Description Price (each) Stock
FS110306 BOLT - HEX.HEAD $2.27 To Order
Photo Part No Description Price (each) Stock
LR066382 INSULATOR - CROSS MEMBER $58.11 To Order
LR066382 INSULATOR - CROSS MEMBER $58.11 To Order
Photo Part No Description Price (each) Stock
LR059304 CROSSMEMBER - REAR $1,723.73 To Order
LR077097 CROSS MEMBER - REAR $3,007.78 To Order
LR078717 CROSSMEMBER - REAR $1,910.61 To Order
...and 8 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR061974 HEAT SHIELD - UNDERFLOOR $14.14 To Order
LR113122 HEAT SHIELD - UNDERFLOOR $19.18 To Order
Photo Part No Description Price (each) Stock
LR067192 WEIGHT - VIBRATION DAMPER $181.45 To Order
LR067193 WEIGHT - VIBRATION DAMPER $181.45 To Order
LR067193 WEIGHT - VIBRATION DAMPER $181.45 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR060486 INSULATOR - CROSS MEMBER $87.44 To Order
Photo Part No Description Price (each) Stock
LR061535 INSULATOR - CROSS MEMBER $95.06 To Order
Photo Part No Description Price (each) Stock
LR065717 INSULATOR - DIFFERENTIAL $58.11 To Order
LR065717 INSULATOR - DIFFERENTIAL $58.11 To Order
Photo Part No Description Price (each) Stock
LR060611 HEAT SHIELD - UNDERFLOOR $8.74 To Order
Photo Part No Description Price (each) Stock
LR060616 HEAT SHIELD - UNDERFLOOR $60.31 To Order
Photo Part No Description Price (each) Stock
LR060484 REINFORCEMENT - REAR CROSSMEMBER $28.38 To Order
Photo Part No Description Price (each) Stock
LR060481 REINFORCEMENT - REAR CROSSMEMBER $31.50 To Order
Photo Part No Description Price (each) Stock
LR060477 REINFORCEMENT - REAR CROSSMEMBER $59.82 To Order
LR073536 REINFORCEMENT - REAR CROSSMEMBER $63.43 To Order
Photo Part No Description Price (each) Stock
LR065716 REINFORCEMENT - REAR CROSSMEMBER $71.15 To Order
Photo Part No Description Price (each) Stock
LR065714 BRACKET - CROSS MEMBER TO FLOOR $77.07 To Order
View All
Rear Cross Member & Stabilizer Bar (Halewood (UK)) ((V) TOKH999999) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR090447
BOLT
All Wheel Drive / Hexagonal Head, M14 X 90 / From: KH821539 		$5.08 2
HB1 LR023457
BOLT
6 Speed Manual Trans M66 - AWD / Hex Head, M14 X 90 / To: KH821538 		$5.88 2
HB1 LR023457
BOLT
6 Speed Manual Trans BG6, All Wheel Drive / M14 X 90 / From: KH000001 / To: KH821538 		$5.88 2
HB2 LR001188
BOLT
9 Speed Auto AWD / Hexagonal Head, M12 x 80MM 		$4.08 2
HB2 LR001188
BOLT
6 Speed Manual Trans BG6, All Wheel Drive / Hexagonal Head, M12 x 80MM / From: KH000001 		$4.08 2
HB3 LR060389
BOLT - FLANGED HEX.
HEX Flange, M14 X 200MM 		$11.97 4
HB4 LR000039
BOLT
HEX Flange, Hexagonal Head, M12 x 65MM 		$1.61 4
HB5 RYG500440
BOLT
6 Speed Manual Trans M66 - AWD, Less Tool Kit, With 7 Seat Configuration / Hexagonal Head, M8 X 20MM 		$0.99 2
HN1 LR033244
NUT
Hexagonal Head, M12 		$2.86 4
HN2 RYH500170
NUT - ADJUSTING SCREW
6 Speed Manual Trans M66 - AWD, Less Tool Kit, Spare Wheel - Reduced Section Steel, With 7 Seat Configuration / M8 X 1.25, Nut "U" Spring
IN STOCK 		$1.92 2
HS1 LR000095
SCREW AND WASHER
9 Speed Auto AWD / M6 X 16 HEX 		$0.58 2
HS2 FS110306
BOLT - HEX.HEAD
Hexagonal Head, M10 X 30MM 		$2.27 2
4B425A LR060486
INSULATOR - CROSS MEMBER
Frame To Body, Front 		$87.44 2
4B425B LR061535
INSULATOR - CROSS MEMBER
Frame To Body, Rear 		$95.06 2
4B425C LR065717
INSULATOR - DIFFERENTIAL
6 Speed Manual Trans M66 - AWD / Differential, Rear / To: KH999999 		$58.11 2
4B425C LR065717
INSULATOR - DIFFERENTIAL
6 Speed Manual Trans BG6, All Wheel Drive / Differential, Rear / From: KH000001 / To: KH999999 		$58.11 2
4B431 LR066382
INSULATOR - CROSS MEMBER
9 Speed Auto AWD / Differential, Front / To: KH999999 		$58.11 2
4B431 LR066382
INSULATOR - CROSS MEMBER
6 Speed Manual Trans BG6, All Wheel Drive / Differential, Front / From: KH000001 / To: KH999999 		$58.11 2
5C107 LR059304
CROSSMEMBER - REAR
9 Speed Auto AWD / To: FH531352 		$1,723.73 1
5C107 LR077097
CROSS MEMBER - REAR
6 Speed Manual Trans M66 - AWD / From: FH531353 / To: GH569957 		$3,007.78 1
5C107 LR078717
CROSSMEMBER - REAR
6 Speed Manual Trans M66 - AWD / From: GH569958 / To: HH999999 		$1,910.61 1
5C107 LR072109
CROSS MEMBER - REAR
6 Speed Manual Trans-JLR M66 2WD / To: GH555677 		$1,710.96 1
5C107 LR077392
CROSS MEMBER - REAR
6 Speed Manual Trans-JLR M66 2WD / From: GH555678 / To: GH569955 		$1,795.88 1
5C107 LR078718
CROSS MEMBER - REAR
6 Speed Manual Trans-JLR M66 2WD / From: GH569956 / To: HH999999 		$1,644.19 1
5C107 LR098961
CROSS MEMBER - REAR
9 Speed Auto AWD / From: JH000001 / To: KH823759 		$1,924.29 1
5C107 LR098960
CROSS MEMBER - REAR
6 Speed Manual Trans-JLR M66 2WD / From: JH000001 		$1,647.78 1
5C107 LR098961
CROSS MEMBER - REAR
6 Speed Manual Trans BG6, All Wheel Drive / From: KH000001 / To: KH823759 		$1,924.29 1
5C107 LR098960
CROSS MEMBER - REAR
6 Speed Manual Trans BG6, Front Wheel Drive / From: KH000001 		$1,647.78 1
5C107 LR134907
CROSS MEMBER - REAR
9 Speed Auto AWD / From: KH823760 		$1,815.38 1
5H207A LR060611
HEAT SHIELD - UNDERFLOOR
RH 		$8.74 1
5H207B LR060616
HEAT SHIELD - UNDERFLOOR
LH 		$60.31 1
6A960A LR060484
REINFORCEMENT - REAR CROSSMEMBER
With 7 Seat Configuration / Frame To Body, LH Rear 		$28.38 1
6A960B LR060481
REINFORCEMENT - REAR CROSSMEMBER
With 7 Seat Configuration / Frame To Body, RH Rear 		$31.50 1
6A960C LR060477
REINFORCEMENT - REAR CROSSMEMBER
Frame To Body, Front / To: FH521029 		$59.82 2
6A960C LR073536
REINFORCEMENT - REAR CROSSMEMBER
Frame To Body, Front / From: FH521030 		$63.43 2
6A960D LR065716
REINFORCEMENT - REAR CROSSMEMBER
With 5 Seat Configuration / Frame To Body, LH Rear 		$71.15 1
6A960E LR065714
BRACKET - CROSS MEMBER TO FLOOR
With 5 Seat Configuration / Frame To Body, RH Rear 		$77.07 1
6C038 LR061974
HEAT SHIELD - UNDERFLOOR
9 Speed Auto AWD, Less Tool Kit / Crossmember, Rear / To: JH999999 		$14.14 1
6C038 LR113122
HEAT SHIELD - UNDERFLOOR
All Wheel Drive / Crossmember, Rear / From: KH000001 		$19.18 1
7F124 LR067192
WEIGHT - VIBRATION DAMPER
2.2L CR DI 16V Diesel / RH 		$181.45 1
7F124 LR067193
WEIGHT - VIBRATION DAMPER
2.0L I4 DSL MID DOHC AJ200 / LH 		$181.45 1
7F124 LR067193
WEIGHT - VIBRATION DAMPER
2.0L I4 DSL HIGH DOHC AJ200 / LH / From: JH000001 		$181.45 1
7F124 LR067192
WEIGHT - VIBRATION DAMPER
2.0L I4 High DOHC AJ200 Petrol / RH / From: JH000001 		$181.45 1
