Front Cross Member & Stabilizer Bar (Halewood (UK)) ((V) TOKH999999) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Front Cross Member & Stabilizer Bar (Halewood (UK)) ((V) TOKH999999)

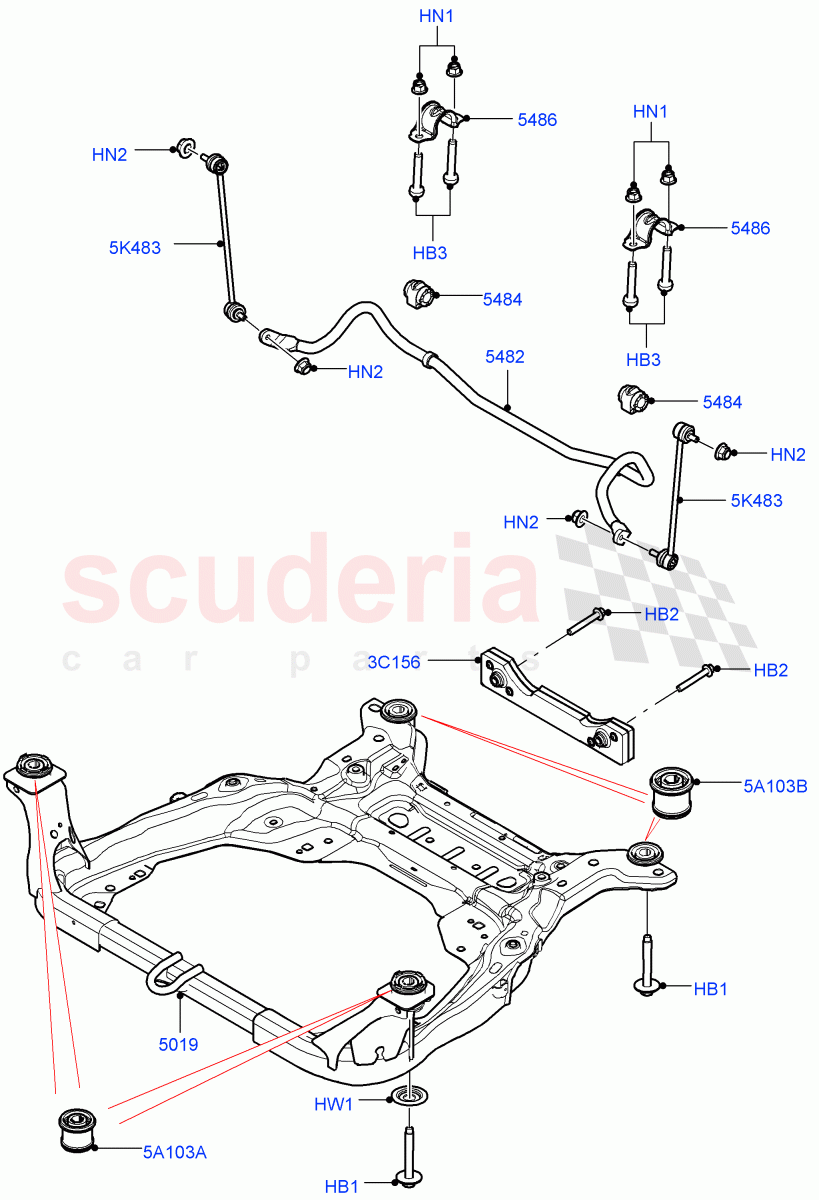

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000466	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FB108086	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024150	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY114056	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FX110056	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000475	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR059295	CROSSMEMBER - FRONT	Enquire	To Order
	LR072058	CROSS MEMBER - FRONT	Enquire	To Order
	LR084444	CROSS MEMBER - FRONT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR061480	BAR - FRONT STABILIZER	Enquire	To Order
	LR061481	BAR - FRONT STABILIZER	Enquire	To Order
	LR067053	BAR - FRONT STABILIZER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR107663	INSULATOR - STABILIZER BAR	Enquire	To Order
	LR031310	INSULATOR - STABILIZER BAR	Enquire	To Order
	LR110708	INSULATOR - STABILIZER BAR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR090408	CLAMP - STABILIZER BAR	Enquire	To Order
	LR090408	CLAMP - STABILIZER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR026336	DAMPER - VIBRATION	Enquire	To Order
	LR077467	DAMPER - VIBRATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024474	LINK - STABILIZER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012724	BUSH - INSULATING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003940	INSULATOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR000466	BOLT AND WASHER - HEX.HEAD	LR000466 BOLT AND WASHER - HEX.HEAD Bolt And Washer, M16	-	4	Enquire
HB2	FB108086	BOLT	FB108086 BOLT 2.2L CR DI 16V Diesel, 9 Speed Auto AWD / Hexagonal Head, M8 x 40MM	-	2	Enquire
HB3	LR024150	BOLT	LR024150 BOLT M14 x 85MM	-	4	Enquire
HN1	FY114056	NUT - HEX.	FY114056 NUT - HEX. Hexagonal Head, M14	-	4	Enquire
HN2	FX110056	NUT - HEX.	FX110056 NUT - HEX. Hex Nut Type, M10	-	4	Enquire
HW1	LR000475	WASHER	LR000475 WASHER Frame To Body,	-	2	Enquire
3C156	LR026336	DAMPER - VIBRATION	LR026336 DAMPER - VIBRATION 2.2L CR DI 16V Diesel, 9 Speed Auto AWD	-	1	Enquire
3C156	LR077467	DAMPER - VIBRATION	LR077467 DAMPER - VIBRATION 2.0L I4 DSL MID DOHC AJ200 / From: GH000001	-	1	Enquire
5A103A	LR012724	BUSH - INSULATING	LR012724 BUSH - INSULATING Frame To Body, Front	-	2	Enquire
5A103B	LR003940	INSULATOR	LR003940 INSULATOR Frame To Body, Rear / To: HH999999	-	2	Enquire
5K483	LR024474	LINK - STABILIZER BAR	LR024474 LINK - STABILIZER BAR	-	2	Enquire
5019	LR059295	CROSSMEMBER - FRONT	LR059295 CROSSMEMBER - FRONT To: FH999999	-	1	Enquire
5019	LR072058	CROSS MEMBER - FRONT	LR072058 CROSS MEMBER - FRONT From: GH000001 / To: GH621943	-	1	Enquire
5019	LR084444	CROSS MEMBER - FRONT	LR084444 CROSS MEMBER - FRONT From: GH621944 / To: HH999999	-	1	Enquire
5019	LR098371	CROSS MEMBER - FRONT	LR098371 CROSS MEMBER - FRONT From: JH000001	-	1	Enquire
5482	LR061480	BAR - FRONT STABILIZER	LR061480 BAR - FRONT STABILIZER Class A Front Stabiliser Bar	-	1	Enquire
5482	LR061481	BAR - FRONT STABILIZER	LR061481 BAR - FRONT STABILIZER Class B Front Stabiliser Bar	-	1	Enquire
5482	LR067053	BAR - FRONT STABILIZER	LR067053 BAR - FRONT STABILIZER Front Stabiliser Bar Class C	-	1	Enquire
5482	LR072680	BAR - FRONT STABILIZER	LR072680 BAR - FRONT STABILIZER Front Stabiliser Bar Class D	-	1	Enquire
5484	LR107663	INSULATOR - STABILIZER BAR	LR107663 INSULATOR - STABILIZER BAR Class B Front Stabiliser Bar / Stabilizer Bar / From: JH737817	-	2	Enquire
5484	LR031310	INSULATOR - STABILIZER BAR	LR031310 INSULATOR - STABILIZER BAR Front Stabiliser Bar Class D / Stabilizer Bar	-	2	Enquire
5484	LR110708	INSULATOR - STABILIZER BAR	LR110708 INSULATOR - STABILIZER BAR Class A Front Stabiliser Bar / Stabilizer Bar	-	2	Enquire
5484	LR034392	INSULATOR - STABILIZER BAR	LR034392 INSULATOR - STABILIZER BAR Front Stabiliser Bar Class C / Stabilizer Bar / To: JH737816	-	2	Enquire
5486	LR090408	CLAMP - STABILIZER BAR	LR090408 CLAMP - STABILIZER BAR Stabilizer Bar / To: HH636317	-	2	Enquire
5486	LR090408	CLAMP - STABILIZER BAR	LR090408 CLAMP - STABILIZER BAR Stabilizer Bar / From: HH636318	-	2	Enquire
