Rear Suspension Arms (Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Rear Suspension Arms (Itatiaia (Brazil)) ((V) FROMGT000001)

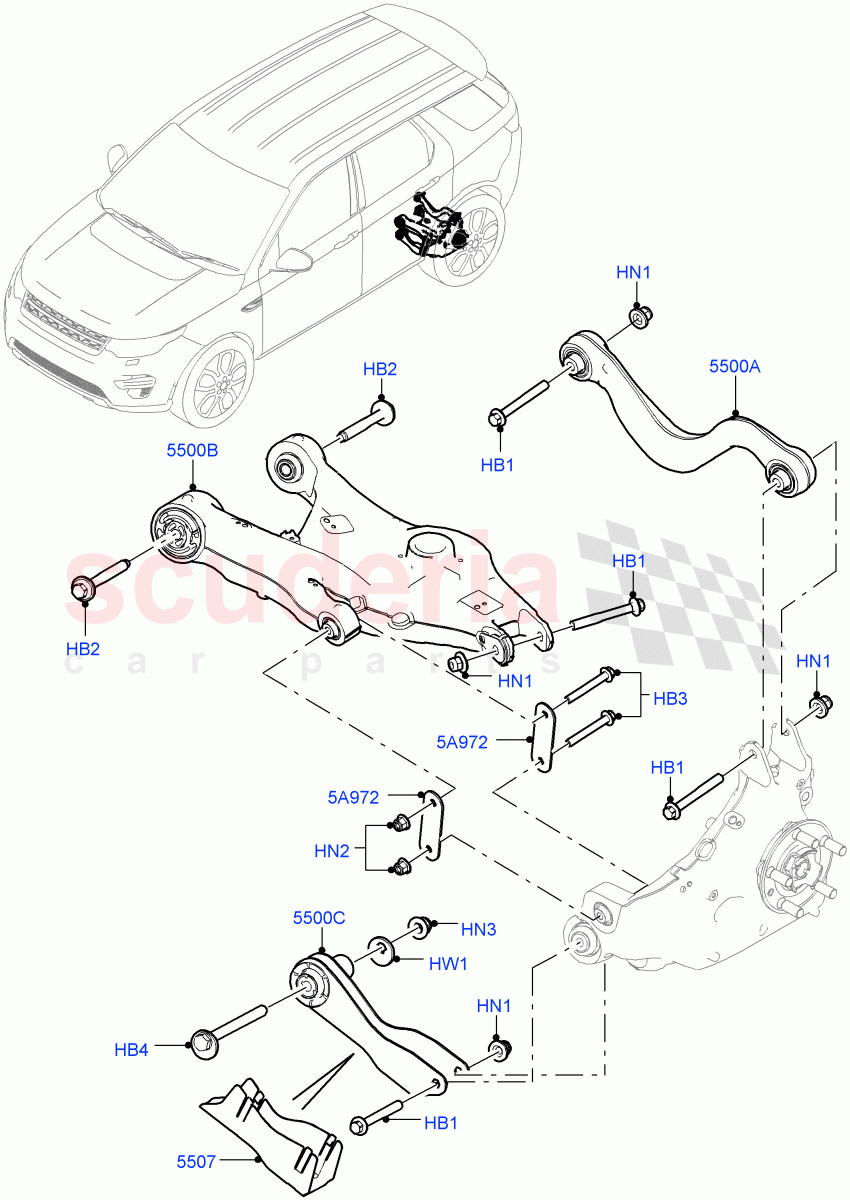

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR060782	BOLT - FLANGED HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060781	BOLT - FLANGED HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR065396	BOLT - FLANGED HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR065710	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033244	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY110056	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY114056	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060780	WASHER - ADJUSTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068229	COVER - SUSPENSION ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078519	ARM - REAR SUSPENSION	Enquire	To Order
	LR078520	ARM - REAR SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR076678	ARM - REAR SUSPENSION	Enquire	To Order
	LR076679	ARM - REAR SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068167	ARM - REAR SUSPENSION	Enquire	To Order
	LR068166	ARM - REAR SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060773	LINK - SUSPENSION ARM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR060782	BOLT - FLANGED HEX.	LR060782 BOLT - FLANGED HEX. M12 x 100MM / From: GT000001	-	8	Enquire
HB2	LR060781	BOLT - FLANGED HEX.	LR060781 BOLT - FLANGED HEX. M14 x 110MM / From: GT000001	-	4	Enquire
HB3	LR065396	BOLT - FLANGED HEX.	LR065396 BOLT - FLANGED HEX. M10 x 70MM / From: GT000001	-	4	Enquire
HB4	LR065710	BOLT	LR065710 BOLT Adjusting, Hexagonal Head, M14 X 130MM / From: GT000001	-	2	Enquire
HN1	LR033244	NUT	LR033244 NUT Hexagonal Head, M12 / From: GT000001	-	8	Enquire
HN2	FY110056	NUT	FY110056 NUT M10 / From: GT000001	-	4	Enquire
HN3	FY114056	NUT - HEX.	FY114056 NUT - HEX. Hexagonal Head, M14 / From: GT000001	-	4	Enquire
HW1	LR060780	WASHER - ADJUSTING	LR060780 WASHER - ADJUSTING Adjusting / From: GT000001	-	2	Enquire
5A972	LR060773	LINK - SUSPENSION ARM	LR060773 LINK - SUSPENSION ARM Suspension Arm To Knuckle / From: GT000001	-	4	Enquire
5500A	LR078519	ARM - REAR SUSPENSION	LR078519 ARM - REAR SUSPENSION RH Upper / From: GT000001	-	1	Enquire
5500A	LR078520	ARM - REAR SUSPENSION	LR078520 ARM - REAR SUSPENSION LH Upper / From: GT000001	-	1	Enquire
5500B	LR076678	ARM - REAR SUSPENSION	LR076678 ARM - REAR SUSPENSION Rear, RH Lower / From: GT000001	-	1	Enquire
5500B	LR076679	ARM - REAR SUSPENSION	LR076679 ARM - REAR SUSPENSION LH Lower, Rear / From: GT000001	-	1	Enquire
5500C	LR068167	ARM - REAR SUSPENSION	LR068167 ARM - REAR SUSPENSION Front, LH Lower / From: GT000001	-	1	Enquire
5500C	LR068166	ARM - REAR SUSPENSION	LR068166 ARM - REAR SUSPENSION Front, RH Lower / From: GT000001	-	1	Enquire
5507	LR068229	COVER - SUSPENSION ARM	LR068229 COVER - SUSPENSION ARM From: GT000001	-	2	Enquire
